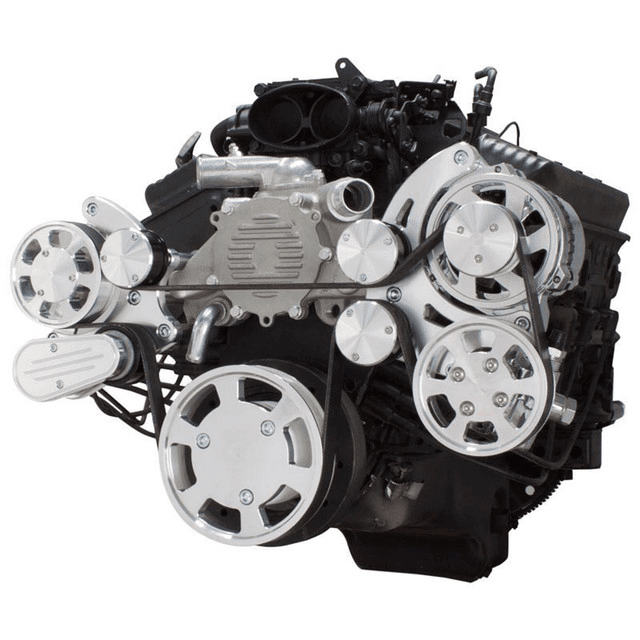

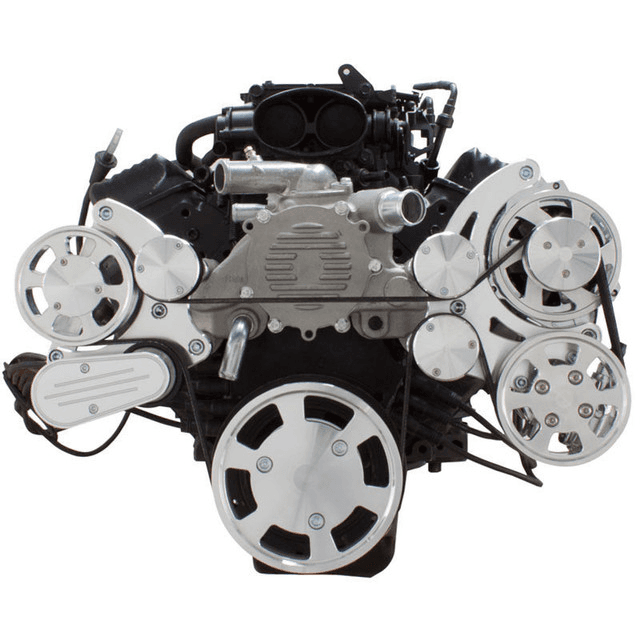

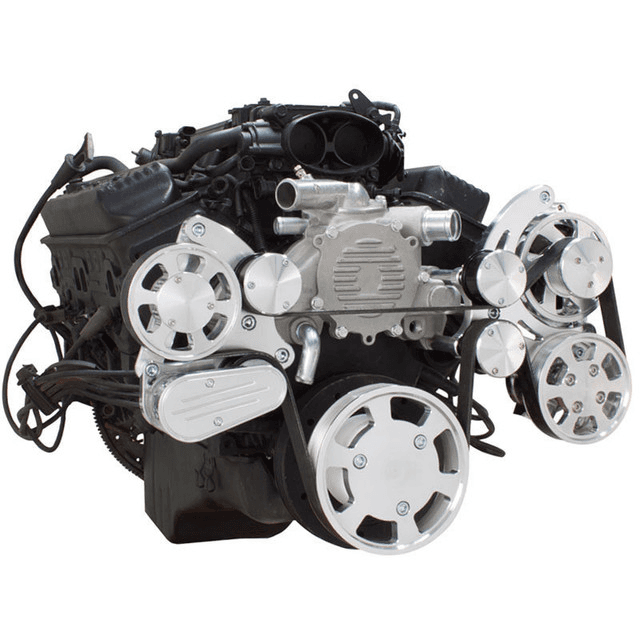

CVF Chevy LT1 Gen II Serpentine System with Power Steering & Alternator - Polished (All Inclusive)

The WRAPTOR 8 Track Serpentine System for Chevy LT1 engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit Chevy LT1 Gen II Engines.

See the blue product options button to configure your system!

Kit Includes:
High Flow Aluminum Water Pump
140 Amp Chrome 1-Wire CS130 Alternator
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket - Polished Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Crank Pulley - Polished Billet Aluminum
Crank Pulley Spacer - Polished Billet Aluminum
Alternator Pulley & Cover - Polished Billet Aluminum
Power Steering Pulley - Polished Billet Aluminum
Two Piece Billet Aluminum Bracket - Polished Billet Aluminum
Universal Alternator Fan - Polished Billet Aluminum

Specs:
Power Steering Included: Yes
AC Included: No
Mounting Position: Mid-Mount
Finish: Polished or C3 Clear Coat
Belt Type: Serpentine 8 rib
Water Pump Type: Mechanical
Water Pump: LT1
Engine Fitment: LT1 Gen II Engines

Applications Notes:
Works with Chevy LT1 engines from 1992 - 1997
Fits with multiple crank hub lengths
Corvette, Camaro and Firebird water pumps are preferred for optimal compatibility if you prefer to use your existing water pump.
Compatible with Hydroboost
