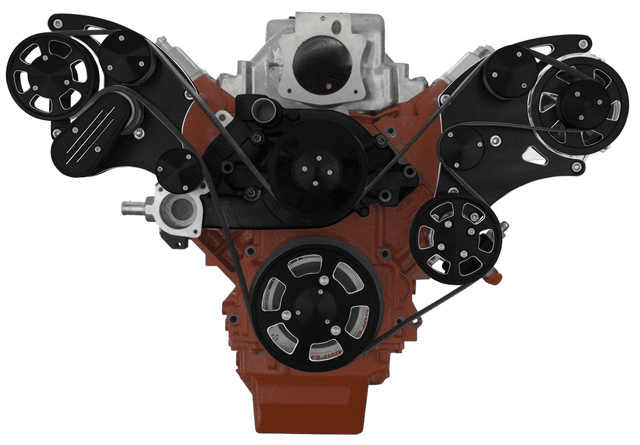

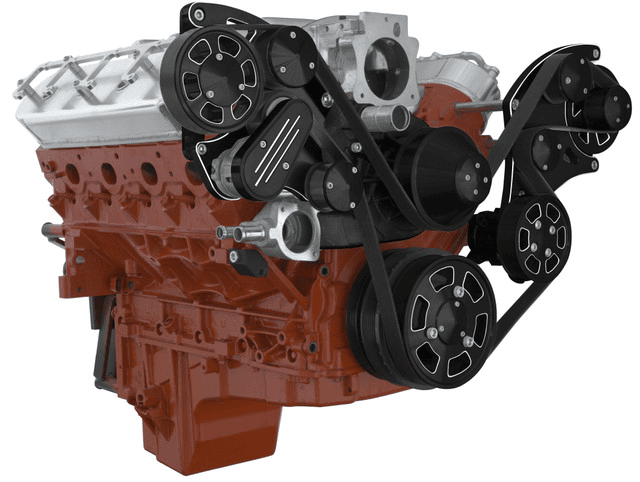

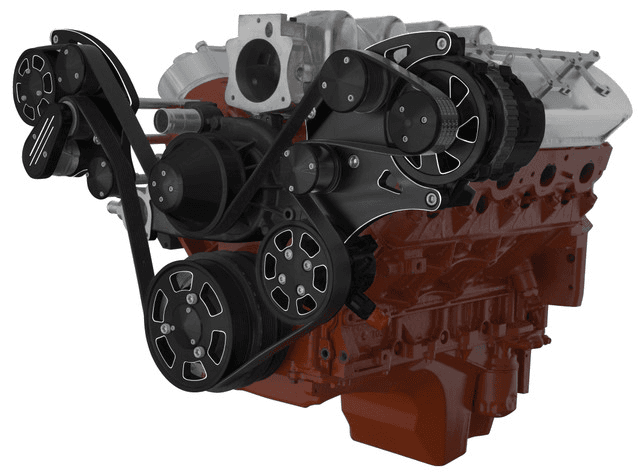

CVF Chevy LS Wide-Mount Serpentine System with PS & Alternator - Black Diamond (All Inclusive)

All Inclusive WRAPTOR 8 Track Serpentine System for kit Chevy LS engines with Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Note: This kit will fit Chevy LS1, LS2, LS3, LS6 & LS7 Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
GM Type II Power Steering Pump
140 Amp, 1-Wire CS130 Alternator
Black Remote Mount Reservoir with Mounting Bracket
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley
Gates Spring Loaded Idler Pulley
Two Piece Billet Aluminum Bracket
Hub Adapter for attaching crank pulley to SFI or ATI Balancer
Billet alternator fan
AC Idler

Tech Tip:
It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

Specs:
Power steering included: Yes
AC included: No
Mounting position: Wide-Mount
Finish: Black Diamond
Belt type: Serpentine 8 rib
Water pump type: Mechanical
Water pump: LS1
Water pump rotation: Reverse

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
Some drive by wire applications may require Holley part# 717-15
Not compatible with 102MM or MSD Atomic 2701 Intake
