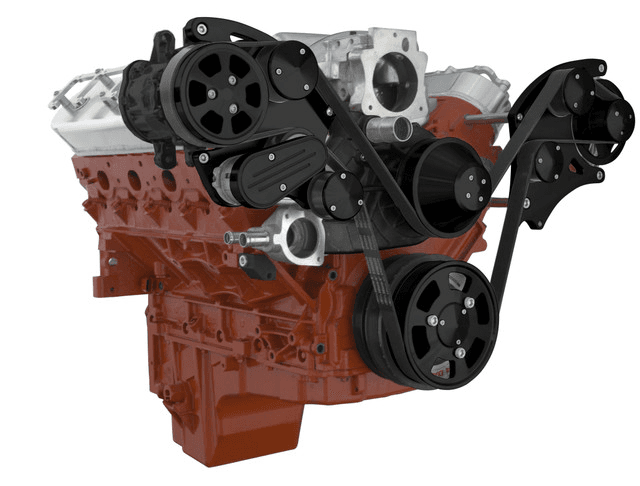

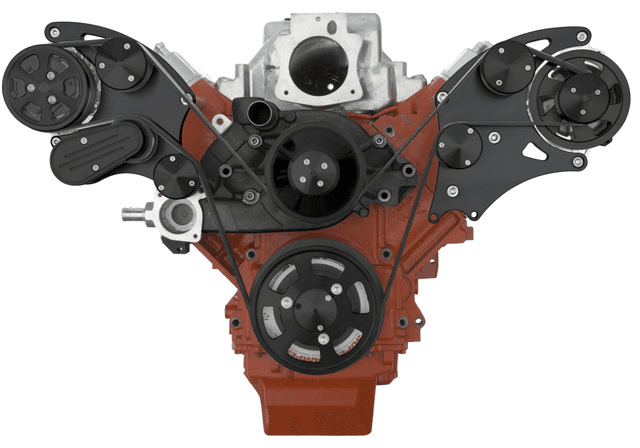

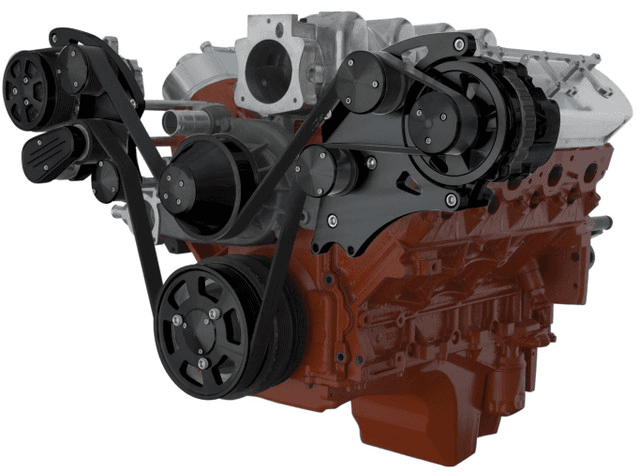

CVF Chevy LS Wide-Mount Serpentine System with AC & Alternator - Black (All Inclusive)

All Inclusive WRAPTOR 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side. Uses special LS water pump with provision for bolt on water pump pulley.

Note: This kit will fit Chevy LS1, LS2, LS3, LS6 & LS7 Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
140 Amp, 1-Wire CS130 Alternator
Sanden Style Peanut Compressor with 8 Rib Clutch
Polished AC Compressor Fitting
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
Gates Spring Loaded Idler Pulley
Two Piece Billet Aluminum Bracket
Hub Adapter for attaching crank pulley to SFI or ATI Balancer
Billet Compressor Clutch Cover
Billet alternator fan

Tech Tip:
It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

Specs:
Power steering included: No
AC included: Yes
Mounting position: Wide-Mount
Finish: Stealth Black
Belt type: Serpentine 8 rib
Water pump type: Mechanical
Water pump: LS1
Water pump rotation: Reverse

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
Some drive by wire applications may require Holley part# 717-15
Not compatible with 102MM or MSD Atomic 2701 Intake
