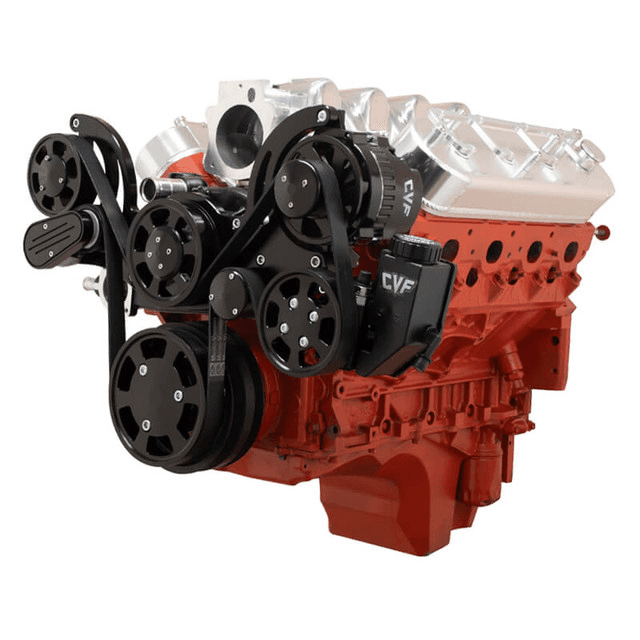

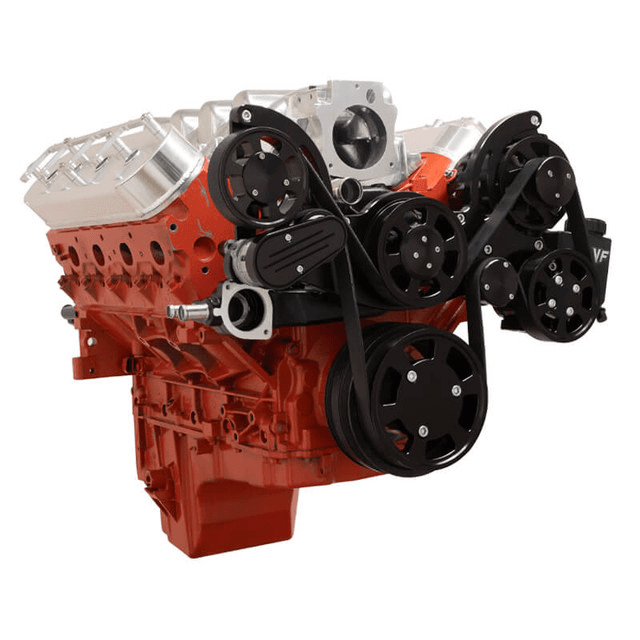

CVF Chevy LS Mid-Mount Serpentine System with Power Steering & Alternator - Black (All Inclusive)

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy LS engines with Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add AC in the future just by purchasing the compressor. Mounts GM Type II Power Steering pump on driver's side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Note: This kit will fit Chevy LS1, LS2, LS3, LS6 & LS7 Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
140 Amp, 1-Wire CS130 Alternator with side mount post
GM Type II Power Steering Pump
Polished Remote Mount Reservoir with Mounting Bracket
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley
Spring Loaded Tensioner
Single Bracket
Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
Billet alternator fan

Tech Tip:
It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

Specs:
Power steering included: Yes
AC included: No
Mounting position: Mid-Mount
Finish: Stealth Black
Belt type: Serpentine 8 rib
Water pump type: Mechanical
Water pump: LS1
Water pump rotation: Reverse

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
Some drive by wire applications may require Holley part# 717-15
Not compatible with 102MM or MSD Atomic 2701 Intake
Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer, Decorative Design on Water Pump Pulley not available with VVT Applications.
