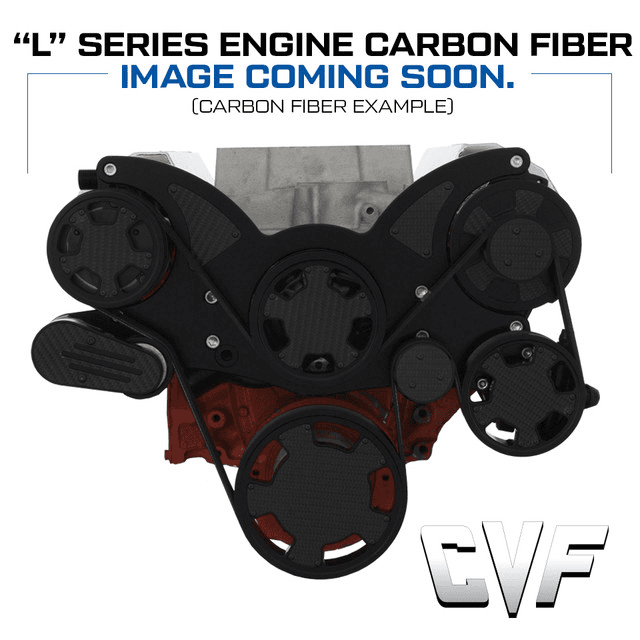

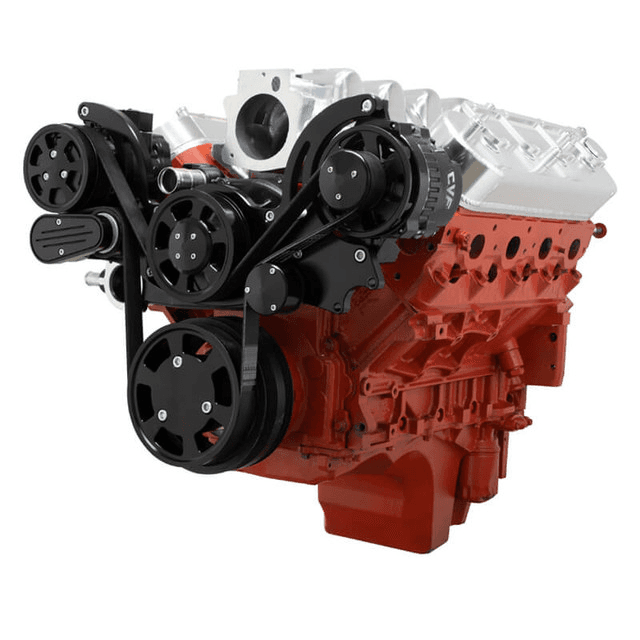

CVF Chevy LS Mid-Mount Serpentine System with AC & Alternator - Black W/ Carbon Fiber Inlay (All Inclusive)

All Inclusive WRAPTOR 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Note: This kit will fit Chevy LS1, LS2, LS3, LS6 & LS7 Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
140 Amp, 1-Wire CS130 Alternator with side mount post
Sanden Style Peanut Compressor with 8 Rib Clutch
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
Gates Spring Loaded Idler Pulley
Single Bracket
Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
Billet Compressor Clutch Cover
Billet alternator fan

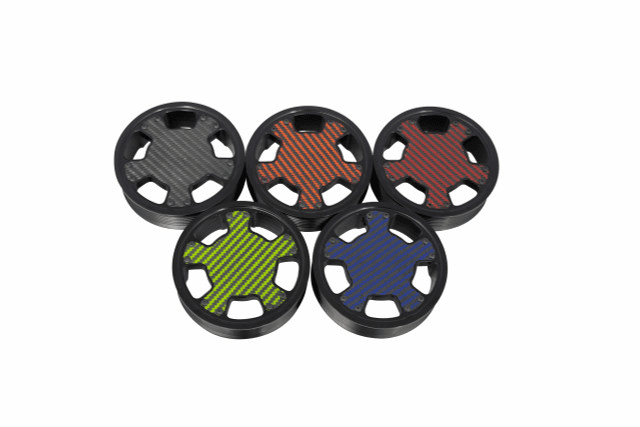

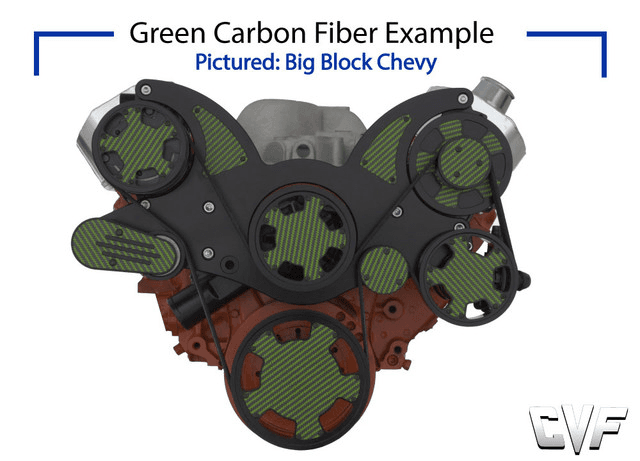

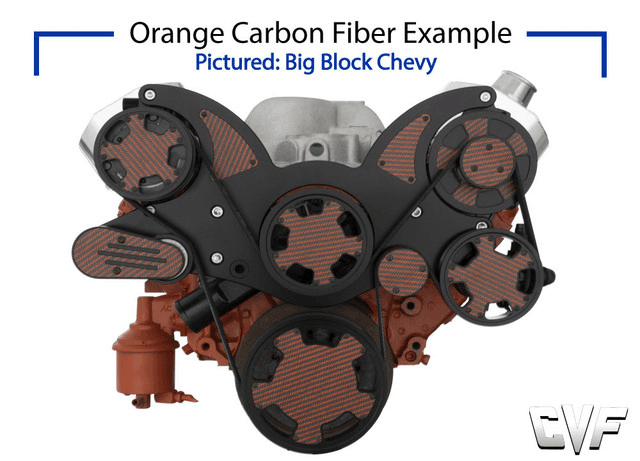

Carbon Fiber Inlay

Specs:
Power steering included: Yes
AC included: No
Mounting position: Mid-Mount
Finish: Stealth Black W/ Carbon Fiber Inlay
Belt type: Serpentine 8 rib
Water pump type: Mechanical
Water pump: LS1
Water pump rotation: Reverse

Application Notes:
Power Steering Lines from pump to reservoir not included
Some drive by wire applications may require Holley part# 717-15
Not compatible with 102MM or MSD Atomic 2701 Intake
Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer, Decorative Design on Water Pump Pulley not available with VVT Applications.
