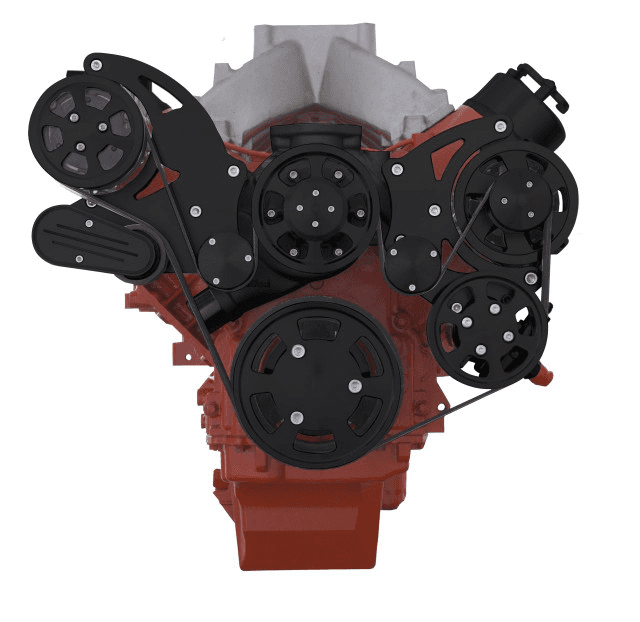

CVF Chevy LS High-Mount Serpentine System with Standard Rotation WP, AC, Alternator & Power Steering - Black (All Inclusive)

8 Track Serpentine System for Chevy LS engines with Air Conditioning and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add power steering in the future just by purchasing the power steering pulley and pump. Mounts Sanden Style Peanut AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

This is a one of a kind kit! The only serpentine system available on the market for a STANDARD ROTATION LS Water Pump (Not Included). Recommended for use with the Edelbrock 8895.

Note: This kit will fit Chevy LS1, LS2, LS3, LS6 & LS7 Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
GM Type II Power Steering Pump
140 Amp, 1-Wire CS130 Alternator
Sanden Style Peanut Compressor with 8 Rib Clutch
AC Compressor Fitting
Remote Mount Reservoir with Mounting Bracket
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley
Gates Spring Loaded Idler Pulley
Passenger Side Compressor Bracket
Driver Side Power Steering / Alternator Bracket
Hub Adapter for attaching crank pulley to OEM Balancer
Billet Compressor Clutch Cover
Billet Alternator Fan

Specs:
Power steering included: Yes
AC included: Yes
Mounting position: High-Mount
Finish: Stealth Black
Belt type: Serpentine 8 rib
Water pump type: Mechanical
Water pump: LS1
Water pump rotation: Standard

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
Some drive by wire applications may require Holley part# 717-15
Not compatible with 102mm intake
Not compatible with VVT or ATI Balancers
Requires Electric Fan
Recommended for use with the Edelbrock 8895
