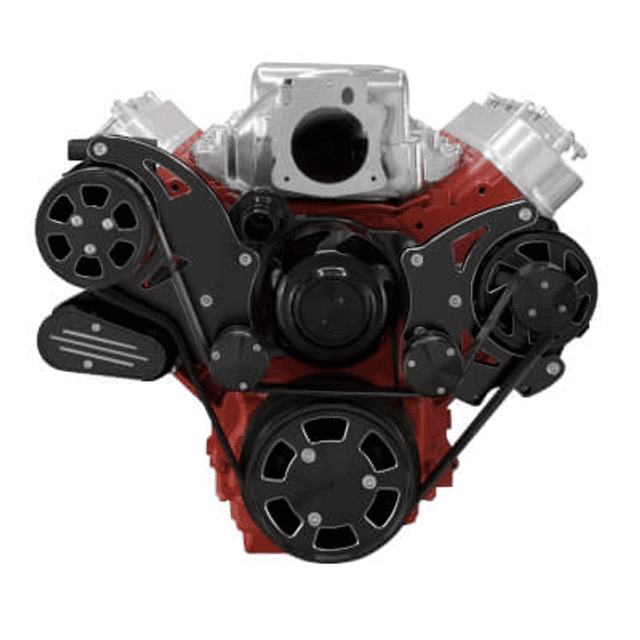

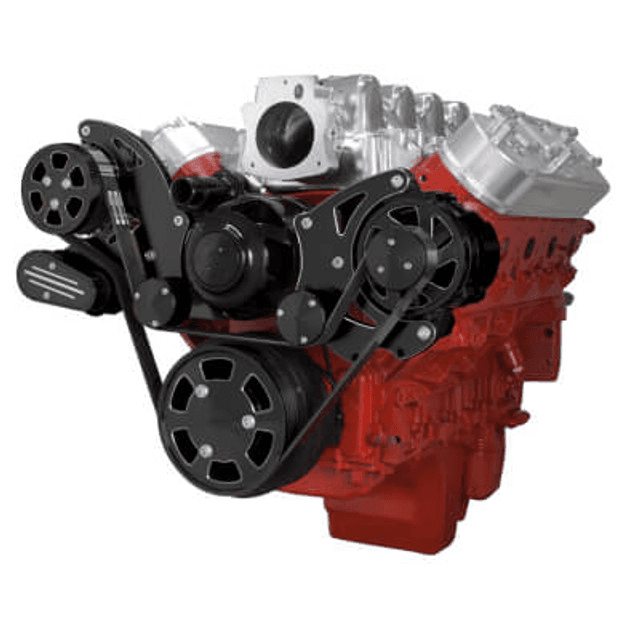

CVF Chevy LS High-Mount Serpentine System with Alternator Only with Electric Water Pump - Black Diamond (All Inclusive)

WRAPTOR 8 Track Serpentine System for Chevy LS engines with Alternator Only. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add AC or Power Steering in the future just by purchasing the compressor or PS Pump & Pulley. Mounts alternator on the driver's side. Uses special LS water pump with provision for bolt on water pump pulley.

Note: This kit will fit Chevy LS1, LS2, LS3, LS6 & LS7 Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
140 Amp, 1-Wire CS130 Alternator
Gates Premium Green Strip 8 Rib Belt
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib AC Idler Pulley
Gates Spring Loaded Idler Pulley
Passenger Side Compressor Bracket with Idler Pulley Mount
Driver Side Alternator/Power Steering Bracket
Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
Billet alternator fan

Specs:
Power steering included: No
AC included: No
Mounting position: High-Mount
Finish: Black Diamond
Belt type: Serpentine 8 rib
Water pump type: Electric

Application Notes:
Kit designed to work with Meziere LSX High Flow electric water pumps
Some drive by wire applications may require Holley part# 717-15
Not compatible with 102MM or MSD Atomic 2701 Intake
Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer.
