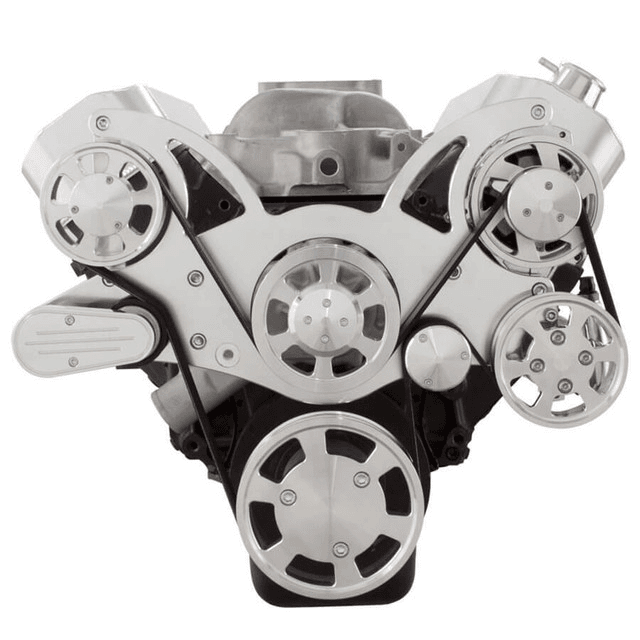

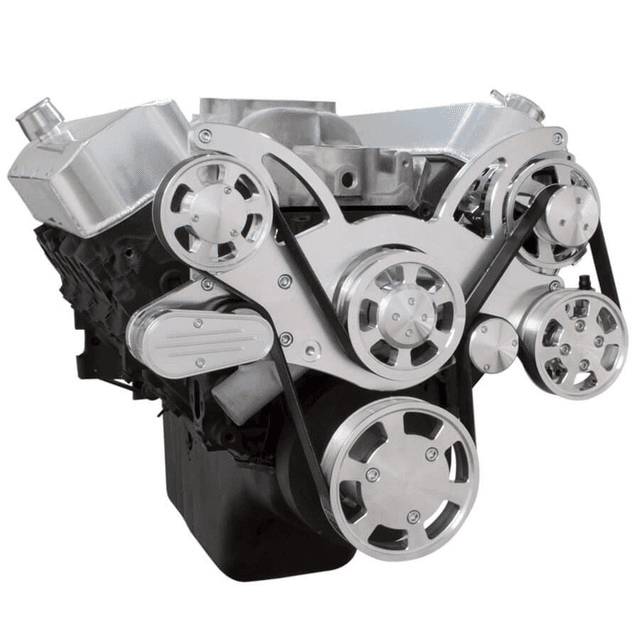

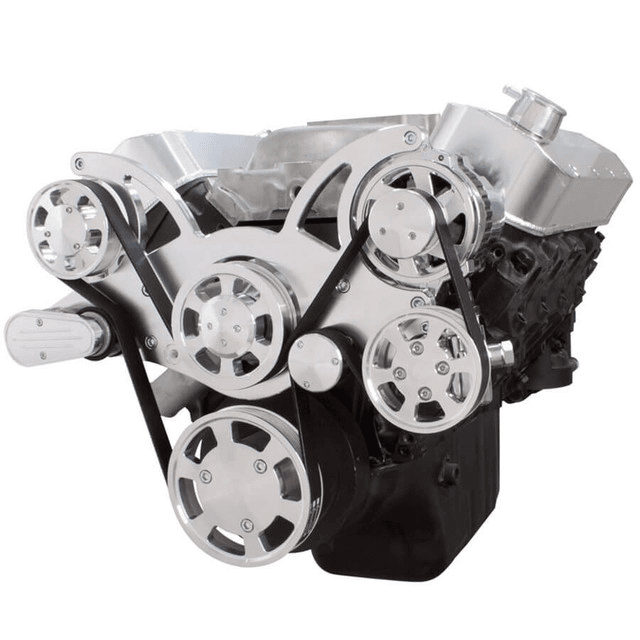

CVF Chevy Big Block Serpentine System with Power Steering & Alternator (All Inclusive) - Polished

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator and GM Type II Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 396, 427 and 454 Big Block Chevy Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
140 Amp Chrome 1-Wire CS130 Alternator
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket - Polished Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Polished Billet Aluminum
Crank Pulley - Polished Billet Aluminum
Crank Pulley Spacer - Polished Billet Aluminum
Alternator Pulley & Cover - Polished Billet Aluminum
Power Steering Pulley - Polished Billet Aluminum
One Piece Billet Aluminum Bracket - Polished Billet Aluminum
AC Delete Idler Pulley & Bracket - Polished Billet Aluminum
Universal alternator fan - Polished Billet Aluminum

Specs:
Power Steering Included: Yes
AC Included: No
Mounting Position: Mid-Mount
Finish: Polished or C3 Clear Coat
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Short
Water Pump Rotation: Reverse
Engine Fitment : 396, 427 and 454 Big Block Chevy Engines

Application Notes:
Upgrade to AC Only Requires Compressor Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Tall Deck BBC Engines
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
