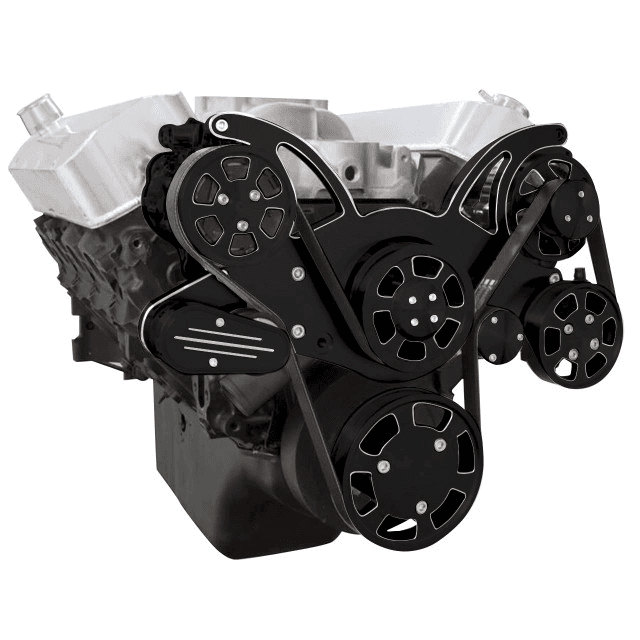

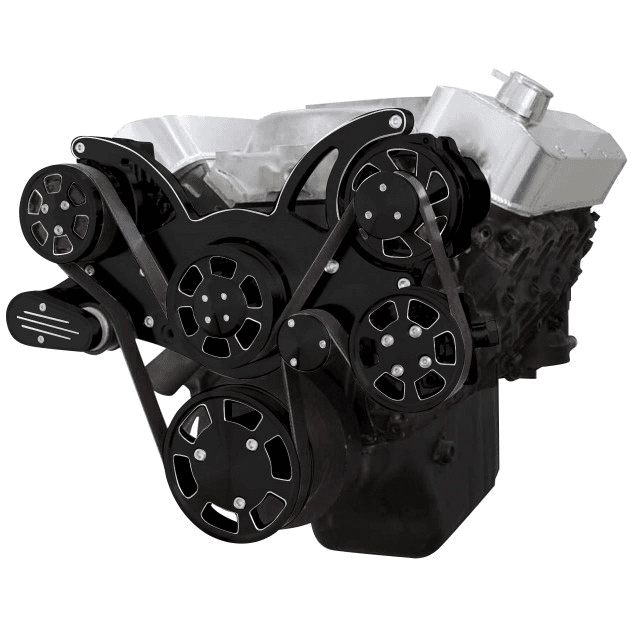

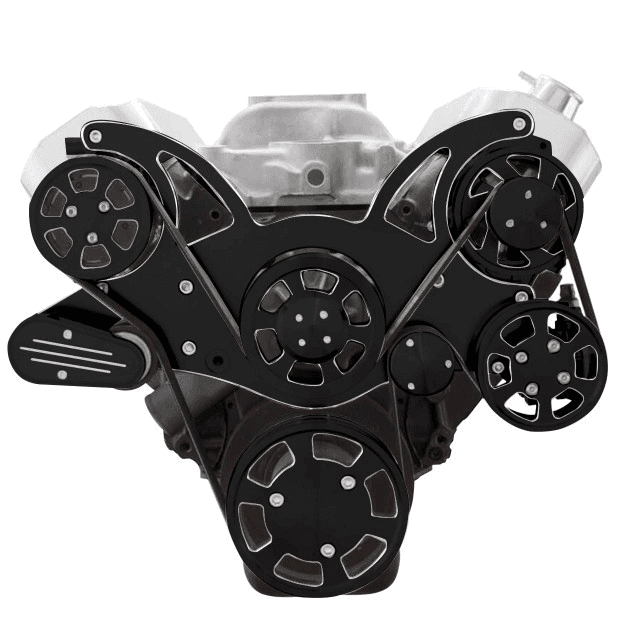

CVF Chevy Big Block Serpentine System with AC, Power Steering & Alternator (All Inclusive) - Black Diamond

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 396, 427 and 454 Big Block Chevy Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump - Black Powder Coated
140 Amp Black Powder Coated 1-Wire CS130 Alternator
Black Powder Coated AC Compressor
AC Compressor Clutch Cover - Black Bright Dip Anodized Aluminum
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket - Black Bright Dip Anodized Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Black Bright Dip Anodized Aluminum
Crank Pulley - Black Bright Dip Anodized Aluminum
Crank Pulley Spacer - Billet Aluminum
Alternator Pulley & Cover - Black Bright Dip Anodized Aluminum
Power Steering Pulley - Black Bright Dip Anodized Aluminum
One Piece Billet Aluminum Bracket - Black Bright Dip Anodized Aluminum
Universal Alternator Fan - Black Bright Dip Anodized Aluminum

Specs:
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Stealth Black Diamond
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Short
Water Pump Rotation: Reverse
Engine Fitment : 396, 427 and 454 Big Block Chevy Engines

Application Notes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Tall Deck Engines
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost
