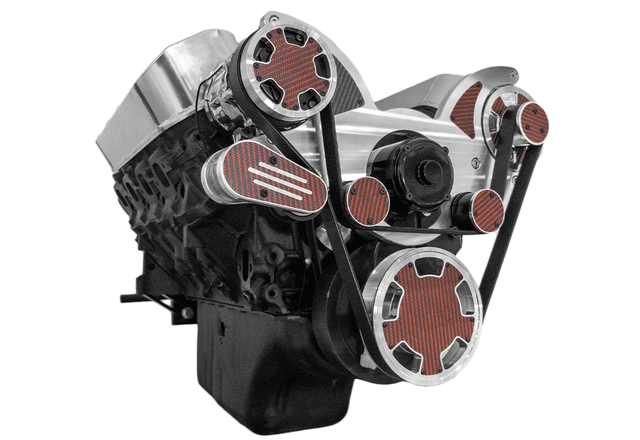

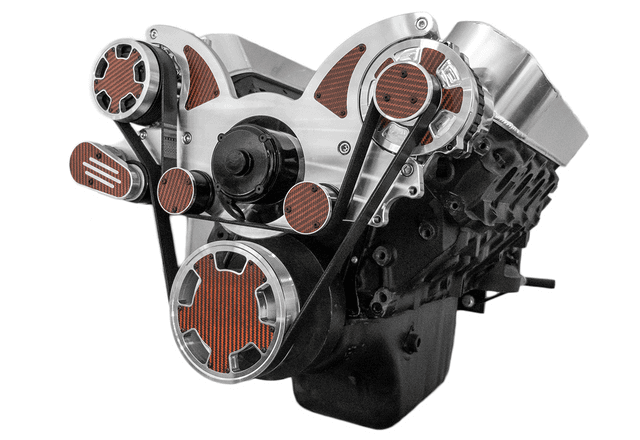

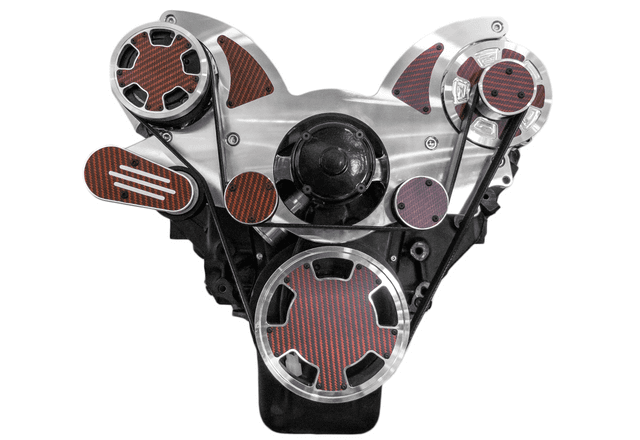

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
Exclusive Carbon Fiber Wraptor Includes Authentic Carbon Fiber cut outs on main bracket and pulleys available in 5 different unique colors.
Note: This kit will fit 396, 427 and 454 Big Block Chevy Engines.
See the blue product options button to configure your system!
Kit Includes (All Inclusive):
140 Amp Chrome 1-Wire CS130 Alternator
35 GMP Electric Water Pump
Chrome AC Compressor
AC Compressor Clutch Cover
Gates Premium 8 Rib Belt
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
One Piece Billet Aluminum
Universal Alternator Fan
Specs:
Power Steering Included: No
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Stealth Black W/ Carbon Fiber Inlay
Belt Type: Serpentine 8 Rib
Water Pump Type: Electric
Engine Fitment : 396, 427 and 454 Big Block Chevy Engines
Application Notes:
Works with either Mechanical or Electric fuel Pump
Requires Electric Fan
Works with either Standard or Tall Deck Engines
