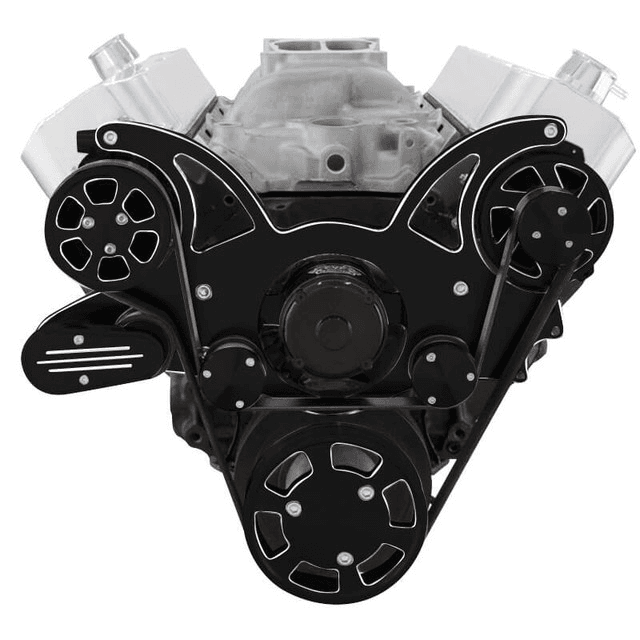

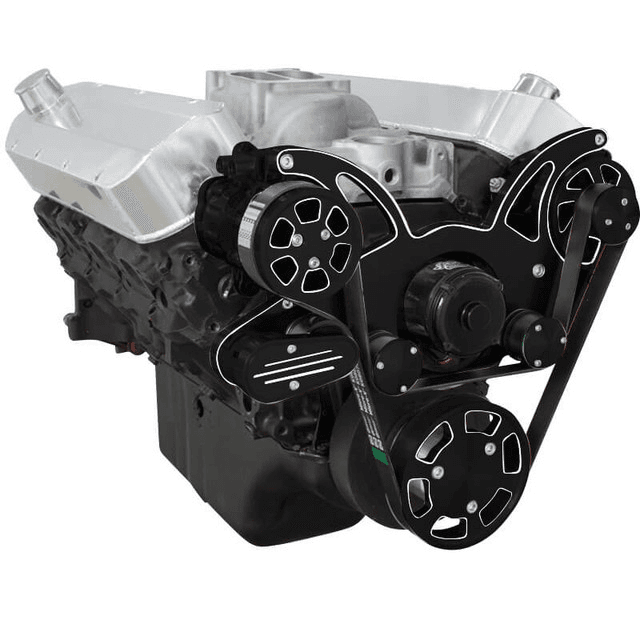

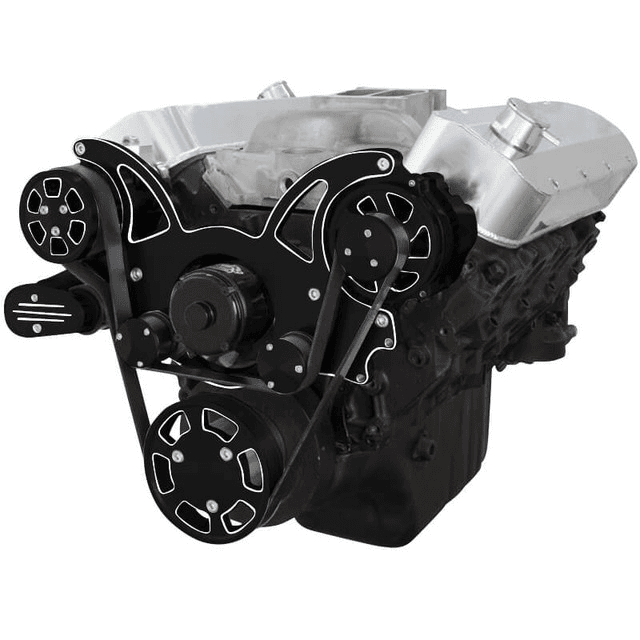

CVF Chevy Big Block Serpentine System with AC & Alternator with Electric Water Pump (All Inclusive) - Black Diamond

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 396, 427 and 454 Big Block Chevy Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
140 Amp Black Powder Coated 1-Wire CS130 Alternator
35 GMP Electric Water Pump
Black Powder Coated AC Compressor
AC Compressor Clutch Cover - Black Bright Dip Anodized Aluminum
Gates Premium Green Strip 8 Rib Belt
Crank Pulley - Black Bright Dip Anodized Aluminum
Crank Pulley Spacer - Billet Aluminum
Alternator Pulley & Cover - Black Bright Dip Anodized Aluminum
One Piece Billet Aluminum Bracket - Black Bright Dip Anodized Aluminum
Universal Alternator Fan - Black Bright Dip Anodized Aluminum

Specs:
Power Steering Included: No
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Black Diamond
Belt Type: Serpentine 8 Rib
Water Pump Type: Electric
Engine Fitment : 396, 427 and 454 Big Block Chevy Engines

Application Notes:
Upgrade to Power Steering Requires Only Pump, PS Pulley and Belt Purchase.
Works with either Mechanical or Electric fuel Pumps
Works with either Mechanical or Electric fans (may require long fan spacer)
Works with either Standard or Tall Deck Engines
