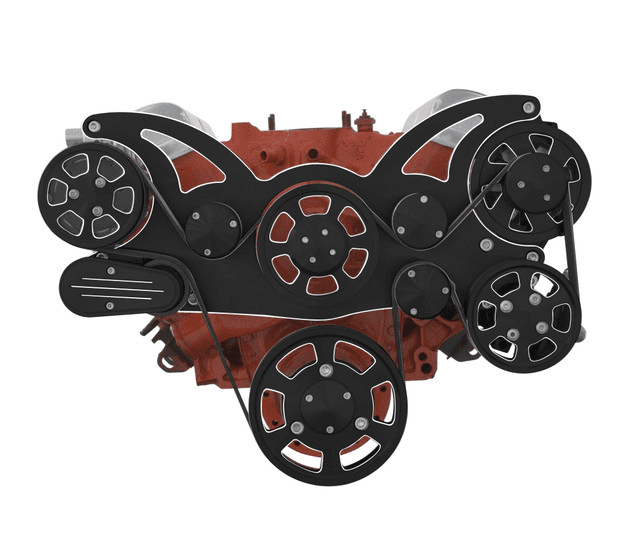

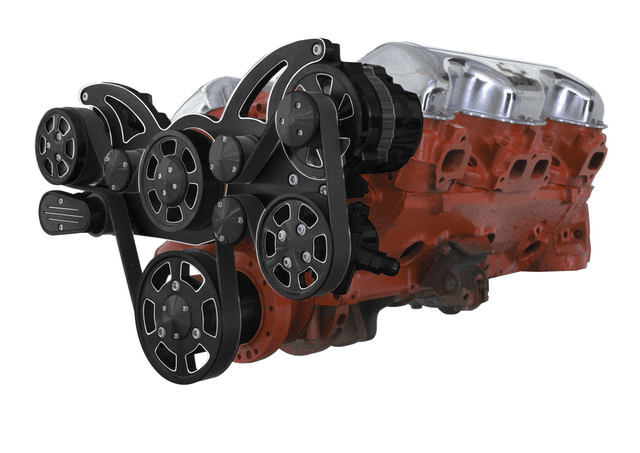

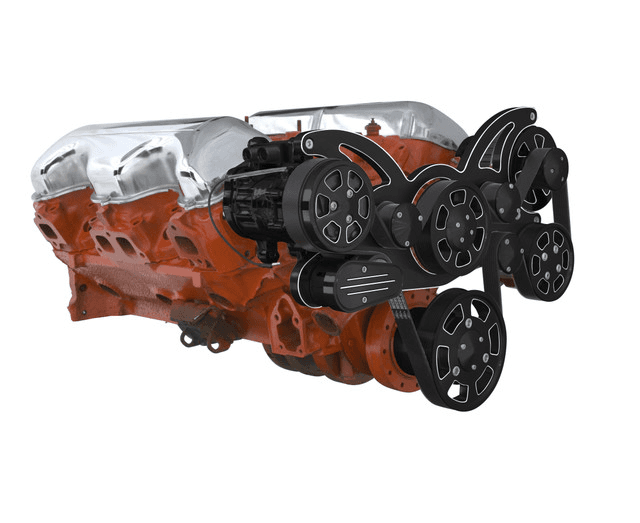

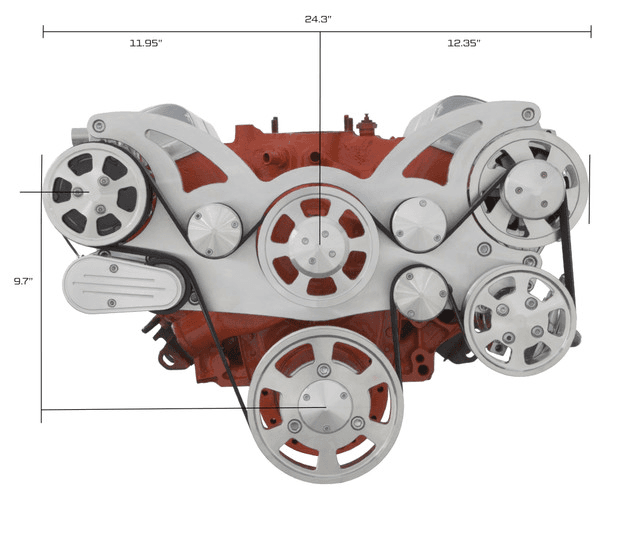

CVF Chevy BBC 348 & 409 Serpentine System with AC, PS, and ALT - Black Diamond (All Inclusive)

The WRAPTOR 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit Chevy BBC 348 & 409 Engines.

See the blue product options button to configure your system!

Kit Includes:
140 Amp Chrome 1-Wire CS130 Alternator
Chrome AC Compressor
AC Compressor Clutch Cover
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley
One Piece Bracket
Universal Alternator Fan

Specs:
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Black Diamond
Belt Type: Serpentine 8 rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard

Applications Notes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Tall Deck Engines
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
