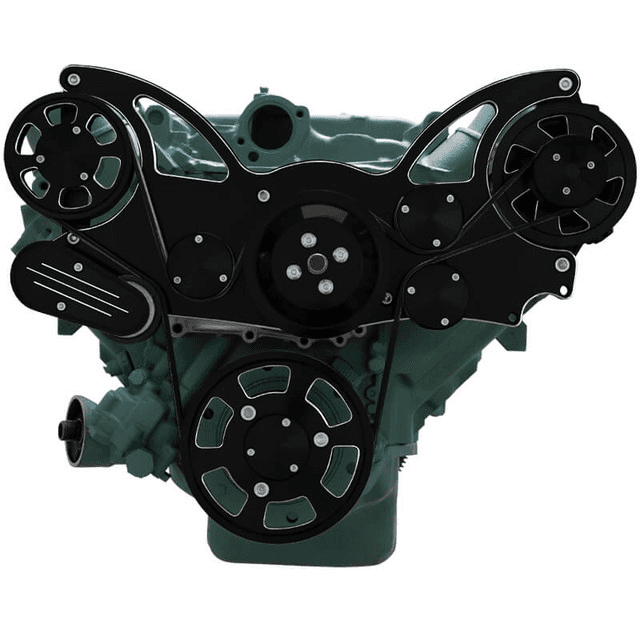

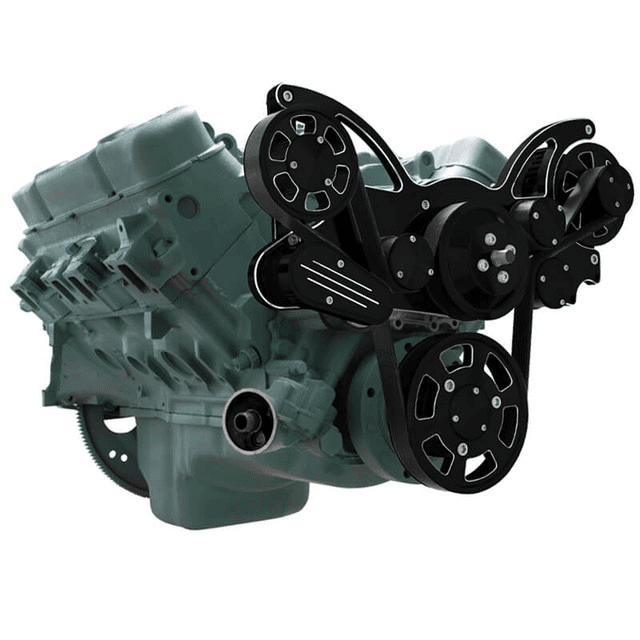

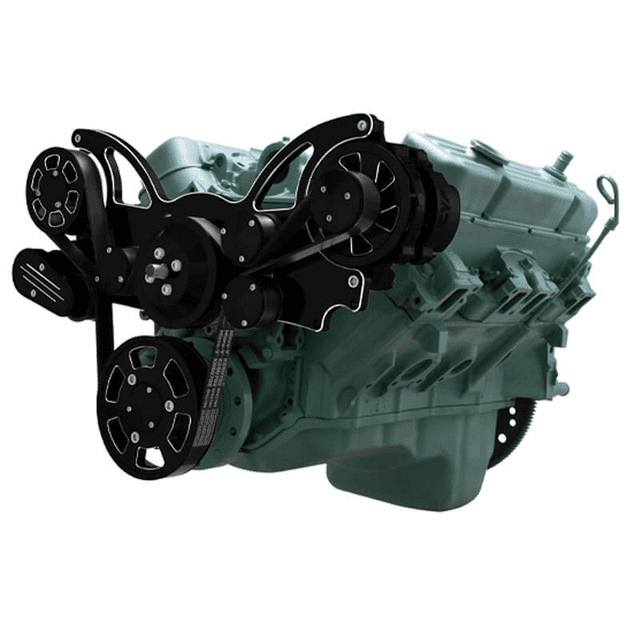

CVF Buick Big Block 455 Serpentine System with Alternator - Black Diamond (All Inclusive)

All Inclusive WRAPTORTM 8 Track Serpentine System for Buick engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit Buick Big Block 455 Engines, Does Not work with Buick 350 Engines. Does not include water pump see below for required water pump.

See the blue product options button to configure your system!

Kit Includes:
Remote Mount Reservoir with Bracket - Anodized Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley - Anodized Billet Aluminum
Crank Pulley - Anodized Billet Aluminum
Crank Pulley Spacer - Anodized Billet Aluminum
Alternator Pulley & Cover - Anodized Billet Aluminum
One Piece Billet Aluminum Bracket - Anodized Billet Aluminum
Universal Alternator Fan - Anodized Billet Aluminum

Specs:
Finish: Black Diamond
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard
Engine: Buick 455
Power Steering Included: No
AC Included: No
Mounting Position: Mid-Mount

Application Notes:
Does not include Water Pump Requires Long Body 1971-1976 Water Pump with 4 1/8" Hub Height & 0.625 Pilot-1" tall - such as Murray CP1045
A/C specific clutch fan needed for water pump pilot
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Power Steering Lines from pump to reservoir not included
Hydroboost upgrade available
Will not work on Buick 350 Engines.
