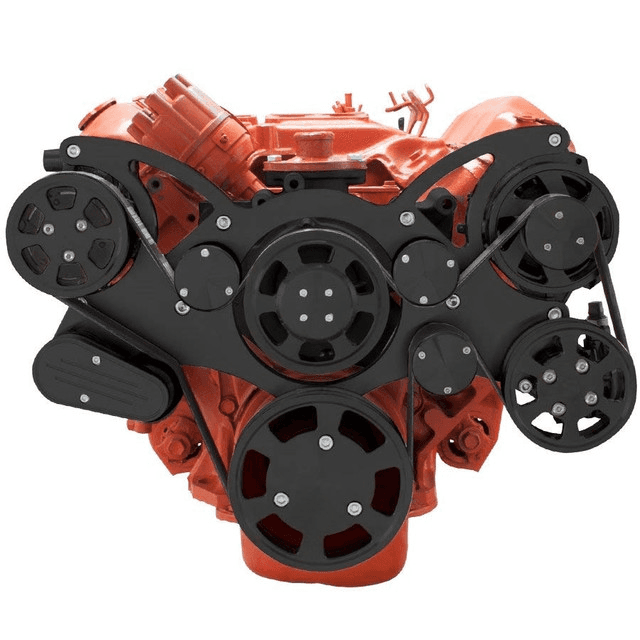

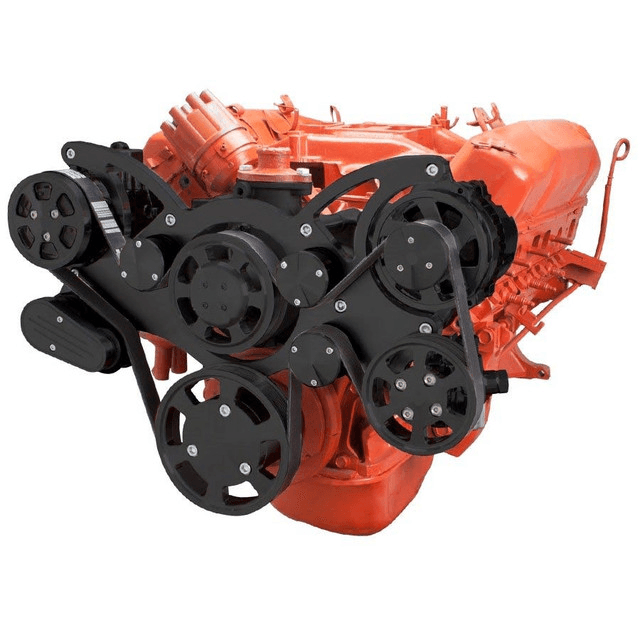

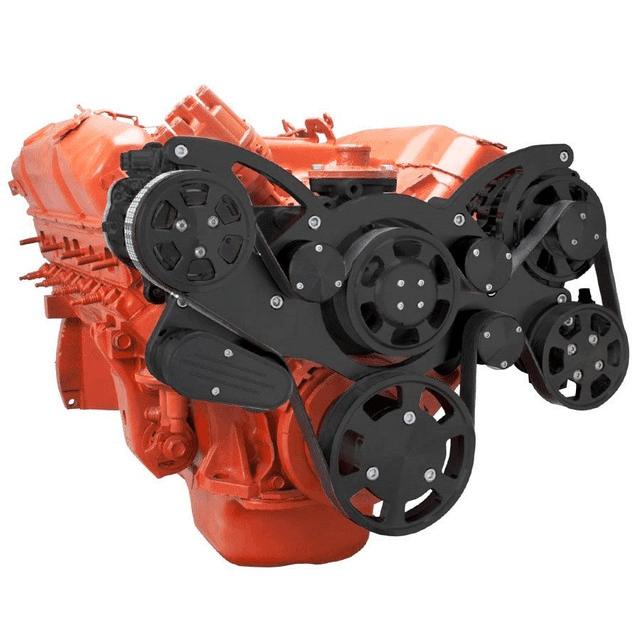

CVF BBM Serpentine System with AC, Power Steering & Alternator For High Flow Water Pump - Black (All Inclusive)

the wraptor 8 Track Serpentine System for Chrysler Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 383, 400, 426 & 440 Big Block Mopar Engines

See the blue product options button to configure your system!

Kit Includes:
High Flow Aluminum Water Pump
Water Pump Housing
140 Amp Black 1-Wire CS130 Alternator
AC Compressor
AC Compressor Clutch Cover
Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley
One Piece Billet Aluminum Bracket
Universal Alternator Fan
90 Degree Heater Hose Fitting (Brass)

Specs:
Finish: Stealth Black
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard
Engine: 383, 400, 426 & 440 Big Block Mopar
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount

Notes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Requires Lower Radiator Hose on Driver Side
Power Steering Lines from pump to reservoir not included
Hydroboost upgrade available
Saginaw Power Steering Pump extends right side measurement from water pump pilot to 16" (Initially 11.25")
