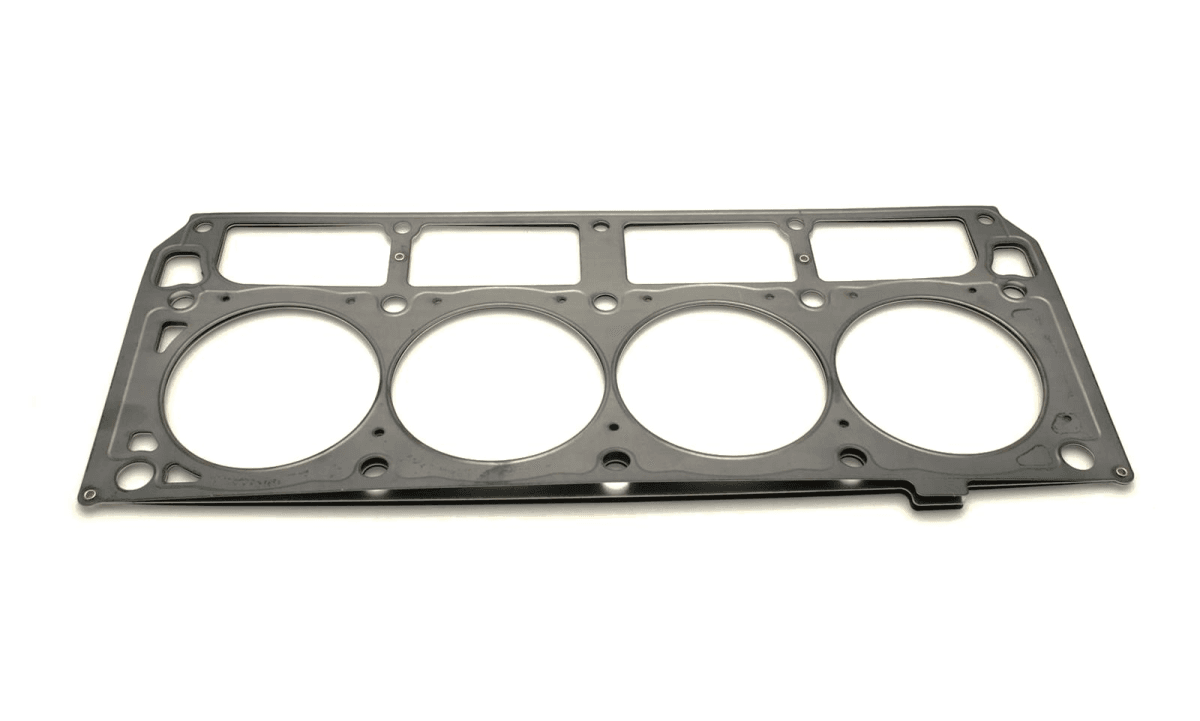

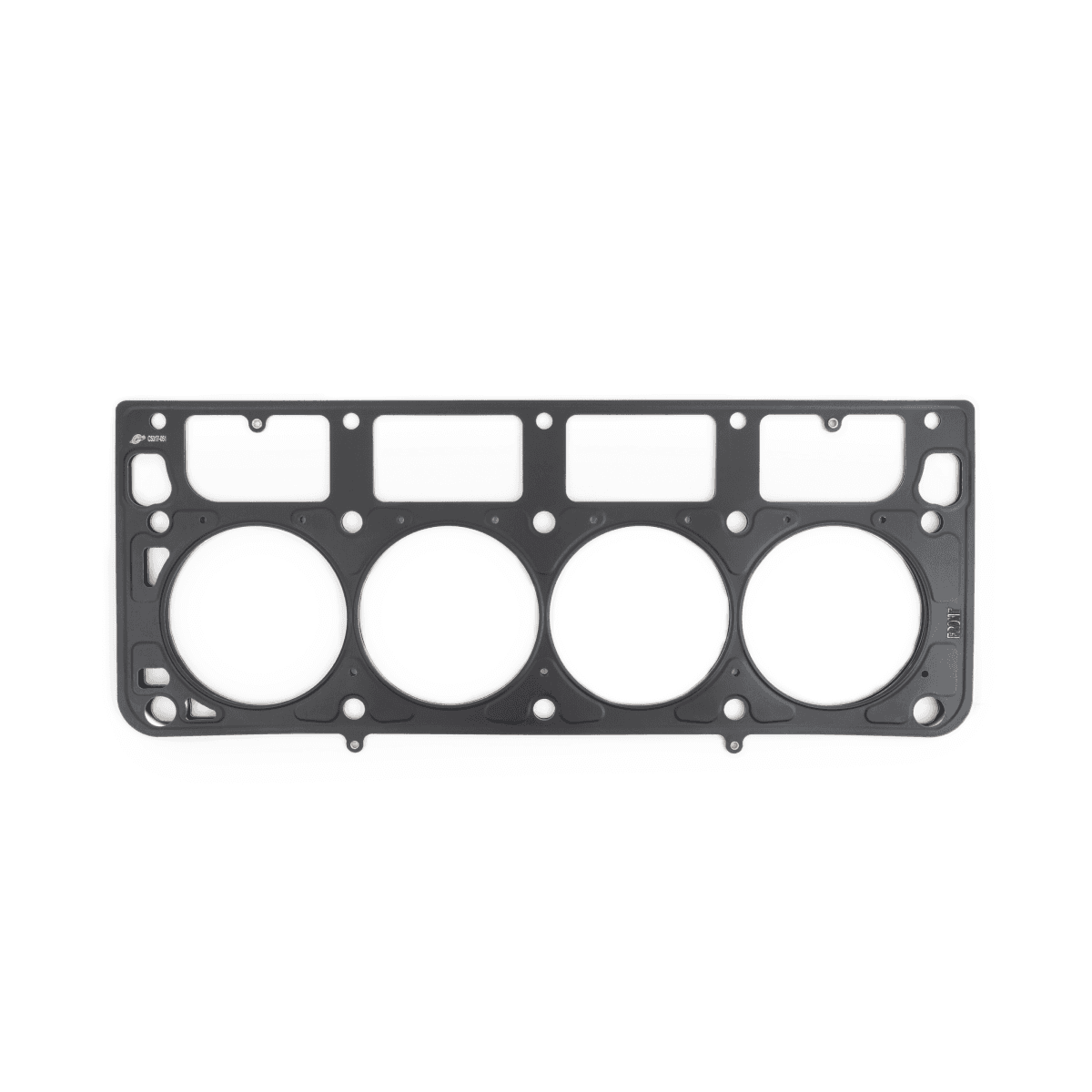

Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer.
Note: Fits LS1, LS7, 6.2L, 6.0L, Dart LS Next W/ 4 Bolt Heads With 4.130" Bore.
Specs:
Part Number: C5317-051
Bore (in.): 4.130 in.
Bore (mm): 104.900mm
Gasket Material: Multi-layer stainless steel
Compressed Thickness (in.): 0.051 in.
Compressed Volume (cc): 11.196cc
Lock Wire: No
Note: Sold as a single head gasket, 2 head gaskets needed.
