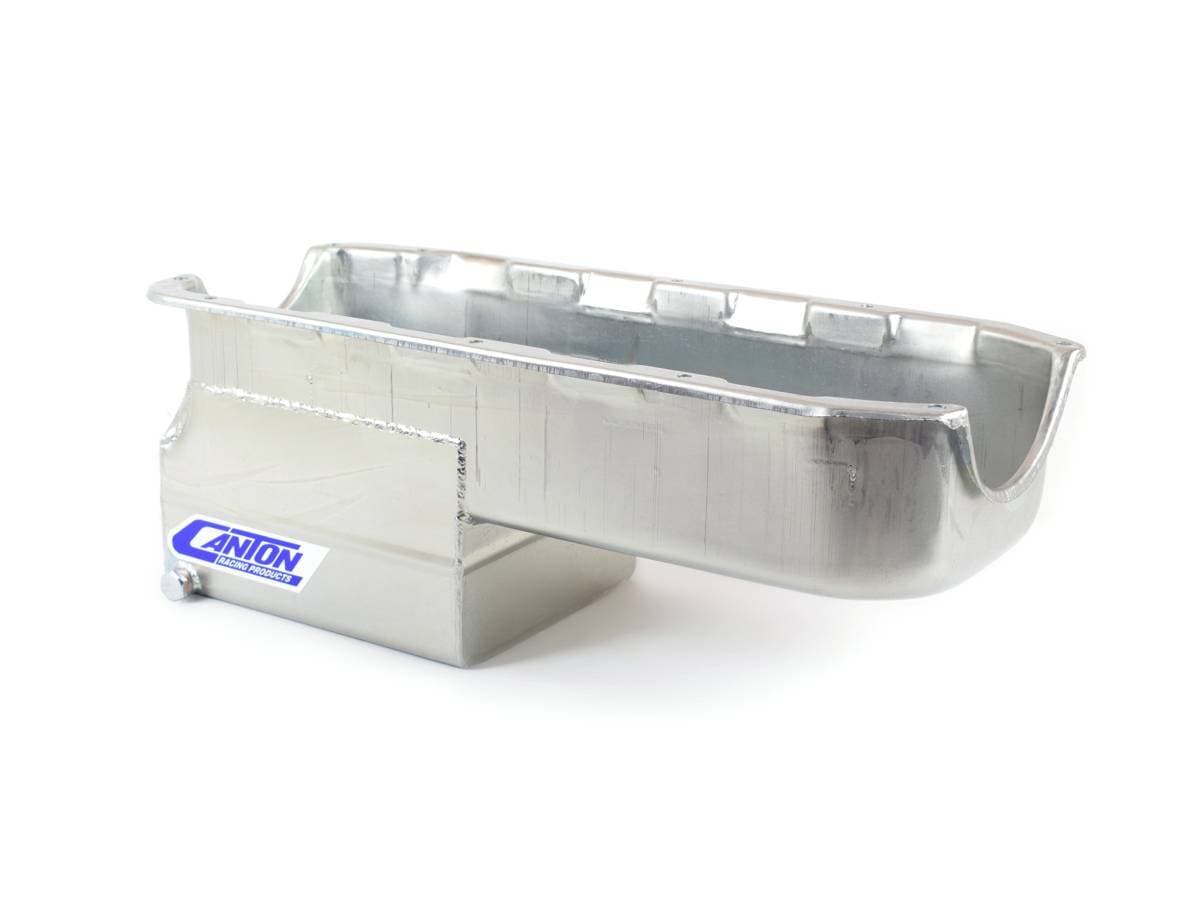

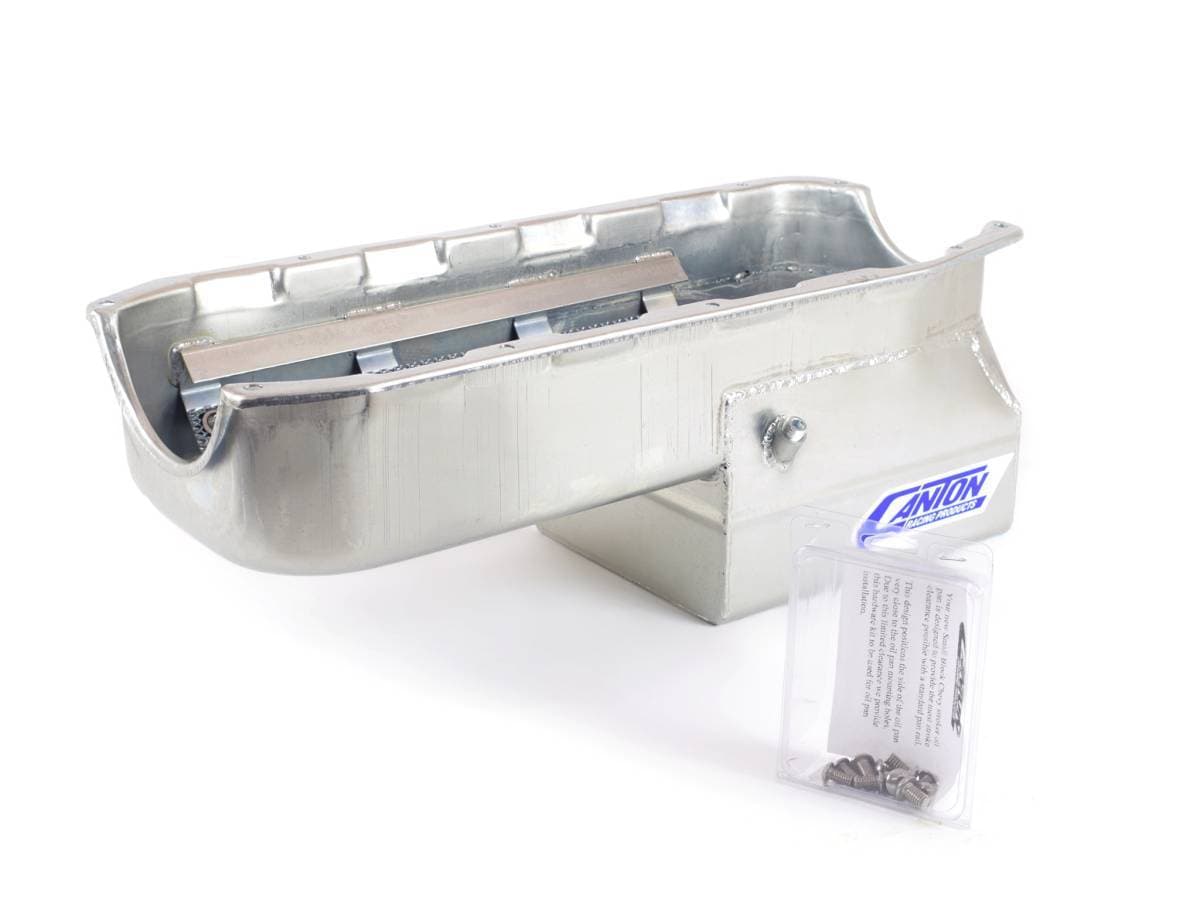

Chevy SBC Pre- 1985 Blocks Stroker Drag Race Canton Oil Pan - Black

This bracket drag race stroker oil pan is for SBC pre-1985 blocks with a two piece rear main. It is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity. The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug. Clears a 4" stroke with a steel rod.



Note: This pan requires one of canton's pickups.

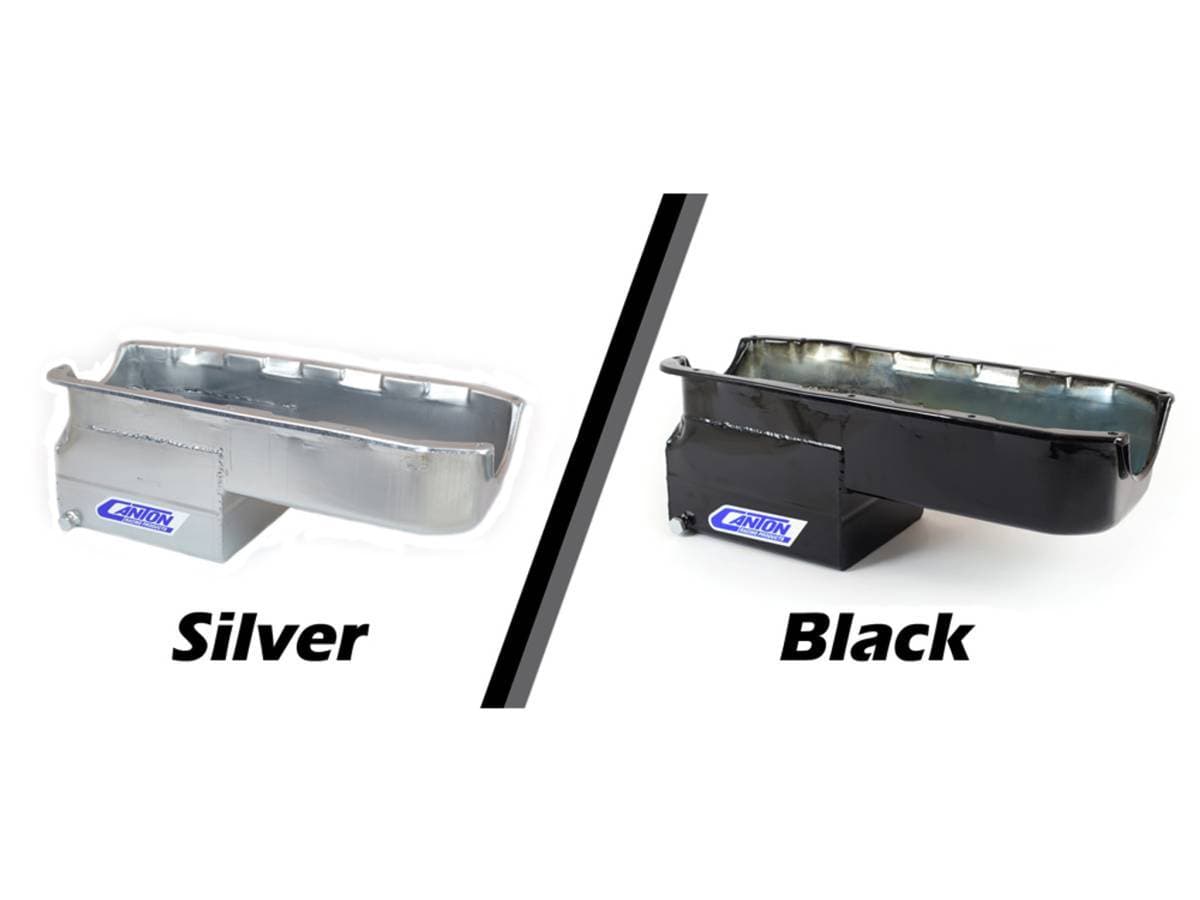

Pictures are for reference, oil pan would come in black*

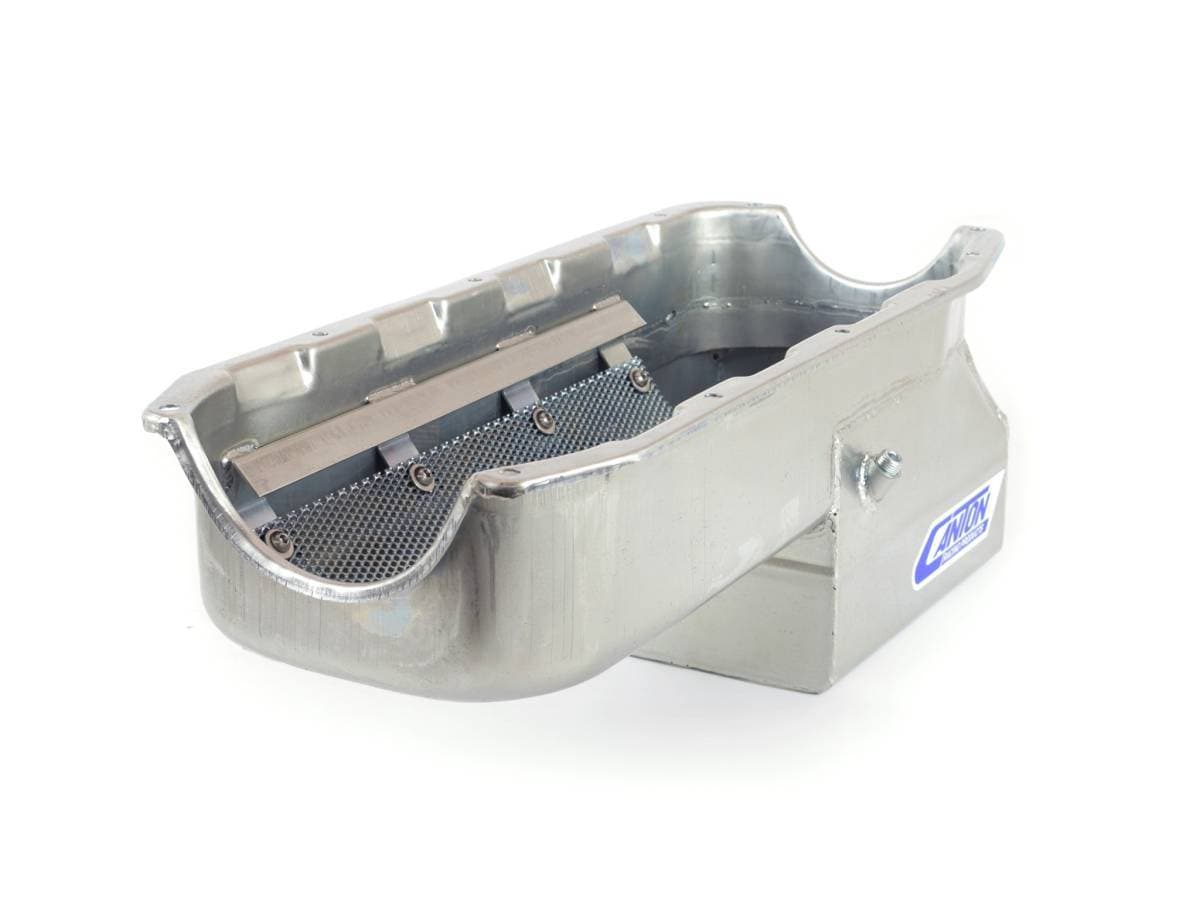

FEATURES: The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.

STYLE: This bracket drag race stroker oil pan is for SBC pre-1985 blocks with a two piece rear main. It is designed to fit most stock chassis. Black Powdercoating

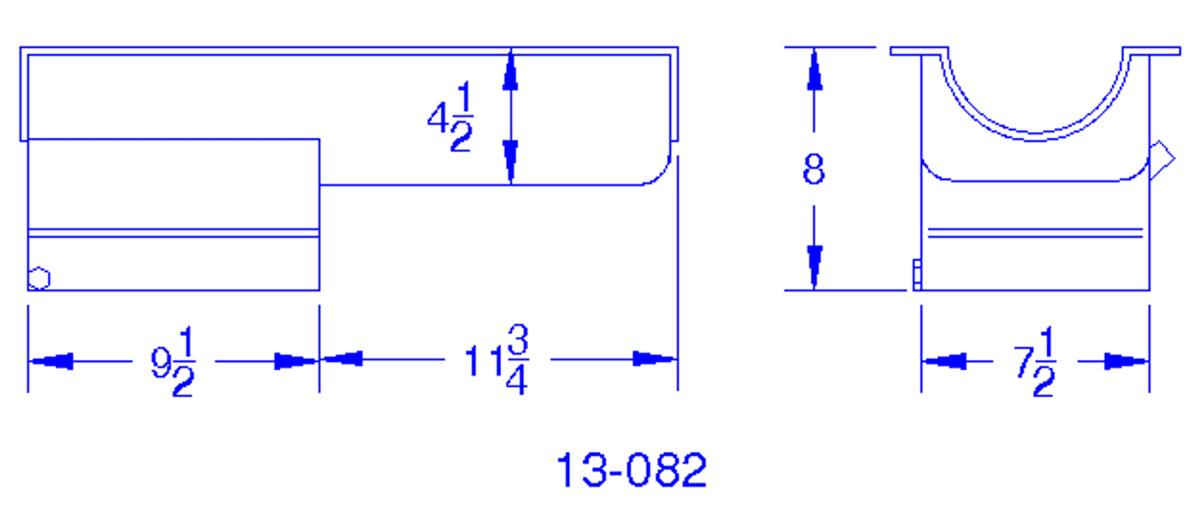

SIZE: It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity.

OIL PAN PART #: 13-082BLK Canton Drag Race Chevy SBC Pre-1985 Blocks Stroker Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-050 for SB Standard Vol. Pumps M55 & M55A.
PART #: 20-055 for SB Standard Vol. Pumps w/ 3/4" tube M155.
PART #: 20-080 for SB High Vol. Pumps M55HV.
PART #: 20-081 - Bolt-On Pickup for Melling M10555 Pumps
PART #: 20-082 for SB.H.V. Melling 10555 Pumps.
PART #: 20-085 for SB High Vol. Pumps w/ 3/4" tube M155HV.

GASKETS:
PART #: 88-100 Gasket Set for Pre-1980 SBC blocks.
