There are many options available for ATI/Procharger kits, click the blue "Choose Product Options" button near the price to see them all. The standard kit is designed to be used with "V" belt alternator, water pump, and power steering front end accessories. You can add a mounting bracket for power steering as an option, or go with the Serpentine Accessory Drive option to install your remote P/S with or without A/C as well. That kit adds a 6 rib serpentine to run the accessories behind the 8 or 12 rib supercharger drive. If you have a tight engine bay and want to be able to adjust the head unit location slightly there is a repositioning bracket, but then you will need to get a custom belt since the included belt will not fit.
There are many options available for ATI/Procharger kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

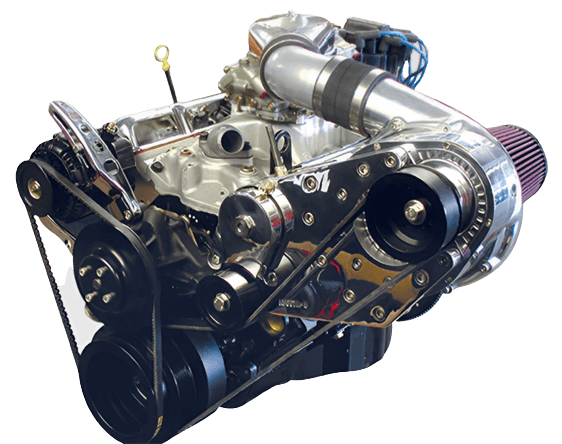

ProCharger carbureted & aftermarket EFI superchargers were designed with one simple goal: blow the competition away. From 350 small blocks to 383 strokers and all the way up to massive 600+ cid big block monsters, ProCharger’s extensive lineup of applications for carbureted and aftermarket EFI Chevrolet engines are ideally suited for street, strip and full race vehicles. Building the correct engine and blower combination, numerous ProCharged “muscle car” owners have demonstrated that it is possible to build a 1,600+ horsepower street car, complete with air conditioning and power steering!
ProCharger’s carb and aftermarket EFI small and big block applications include a wide range of available superchargers, intercoolers, drive systems, bypass valves, carb bonnets and even serpentine accessory drives for both small- and big-block Chevrolet engines.

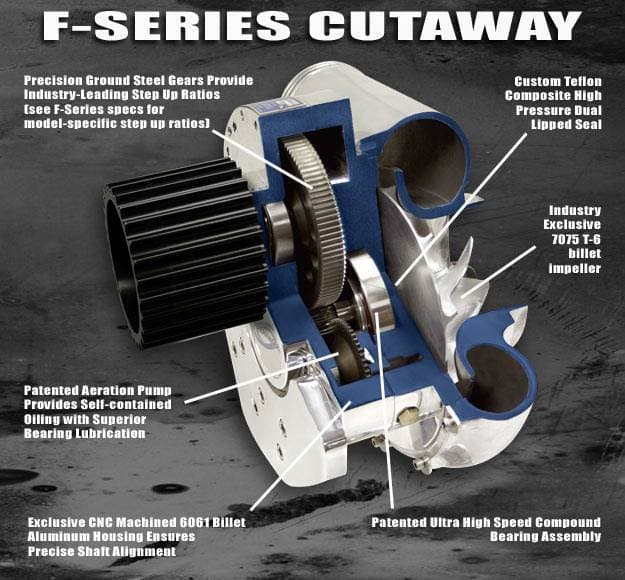

From the custom designed 7075 billet aluminum impeller to the CNC machined transmission case to the industry-exclusive, compound bearing design, each self-contained ProCharger supercharger has been designed to deliver maximum performance, pass after pass, year after year, championship after championship.

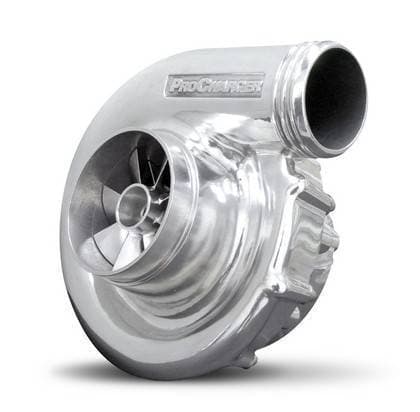

The ProCharger F-1A-94 superchargers utilize a 9.75 inch volute and are powerful and highly versatile superchargers. Like all the ProCharger F-Series models, the F-1A-94 features the industry-exclusive compound bearing design that supports high-horsepower applications, while the patented and proven self-contained oiling design eliminates the need for external oil lines while providing years and years of trouble-free performance.
These kits also include a standard carb bonnet and the tubing required to boost your Holley 4150-style carburetor. The F-1A-94 utilizes an advanced helixed impeller capable of accommodating a broad range of applications. The F-1A-94 will support up to 1,300 hp.
DETAILS:
Horsepower gain: Depends on custom tuning
F-1A-94 supercharger head unit, satin finish standard, upgrades available
Boost pressure up to 38 psi, spec'd out after order is placed
Race Bypass Valve
Tubing: NONE Supplied
Belt Drive System: Additional Dedicated 12 Rib Serpentine
Intercooler: NONE Supplied, available as an option
Fuel Pump Supplied: NONE Supplied, available as an option
Fuel Injectors Supplied: NONE Supplied, available as an option
Computer/Ignition Mods.: NONE Supplied
Carburetor: NONE Supplied, Requires blow through carb or aftermarket EFI
Maximum Supercharged HP Rating: F-1A-94 1300 HP
Maximum Boost: 38 psi
Inlet Diameter: 4 inches
Outlet Diameter: 3.5 inches
Internal Step-up Ratio: 5.40:1
Self-Contained Oiling: Yes
Reverse Rotation Available: Yes
The coolest charge air temperatures and largest power gains available
ProCharger’s patented and proven, self-contained oiling design requires no external oil lines
Easiest and quickest installation
TREperformance is an Authorized Priority Dealer of ATI Prochargers.
12 Month warranty direct from ATI
Custom made and shipped direct from Procharger in 3-5 business days!
Notes:
Electric water pump recommended
Must provide own P/S pump with remote reservoir, GM Type II pump (NAPA part #’s 811255 / 811426) or similar (optional)
Requires standard rotation, long water pump
A/C not an option for V-belt; consider upgrading to serpentine accessories
ATI / ProCharger Dealer information
Procharger is very strict about who they allow as dealers. Procharger dealers must have experience with high performance forced induction applications and provide excellent customer service and application advice. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits.
Why choose ATI / Procharger Superchargers?
ProCharger supercharger systems are absolutely the most powerful and reliable supercharger systems available for your vehicle. Intercooler ProCharger systems are able to reliably increase horsepower and torque by 50-85% while still keeping your vehicle emissions legal and allowing you to run pump gas. For street use or at the track, Intercooled ProCharger supercharger systems will deliver the largest increase in horsepower and torque available from any supercharger system. And thanks to the extremely low charge air temperatures provided by ProCharger technology, ProCharger systems also provide much better engine longevity by protecting your motor from detonation. ProCharger systems are designed with a fundamental understanding of the physics behind supercharging, and are engineered to the highest quality standards.
Superior Supercharger Technology
Thanks to relentless innovation, ProCharger technology is generations ahead of the competition. ATI’s self-contained (Part numbers ending in SC) ProCharger models are the first and only gear-driven centrifugal superchargers to feature self-lubrication, and contain the industry’s most advanced technology. The exclusive, patented, self-contained, gear-driven superchargers eliminate tapping into your oil pan, run cooler and produce more power than any competitor’s products. The impellers are created with aircraft grade 7075 T-6 aluminum alloy for tremendous strength and performance. The top tier material used in the construction of every ProCharger billet impeller and compressor housing allows the use of higher step up ratios than the competition. This in turn allows increased boost levels and superior overall performance than other offerings on the market. Because of this unwavering commitment to excellence, ProCharger is the only manufacturer of self-contained superchargers offering a 3-year warranty to ensure years of trouble free performance.
