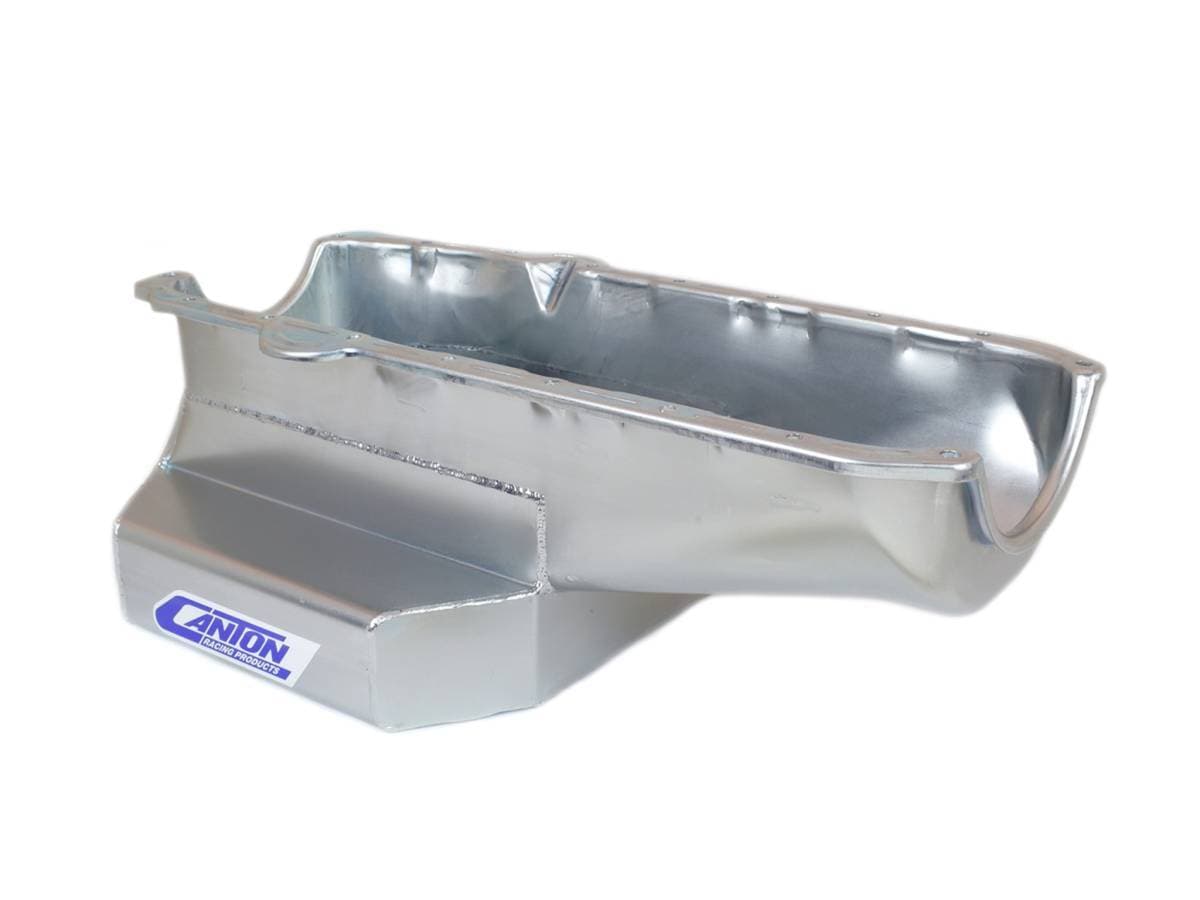

Chevy Pre-1980 SBC Road Race Canton Oil Pan - Black

This SBC road race pan is for pre-'80 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front ends. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity.



Note: This pan requires one of our pickups.

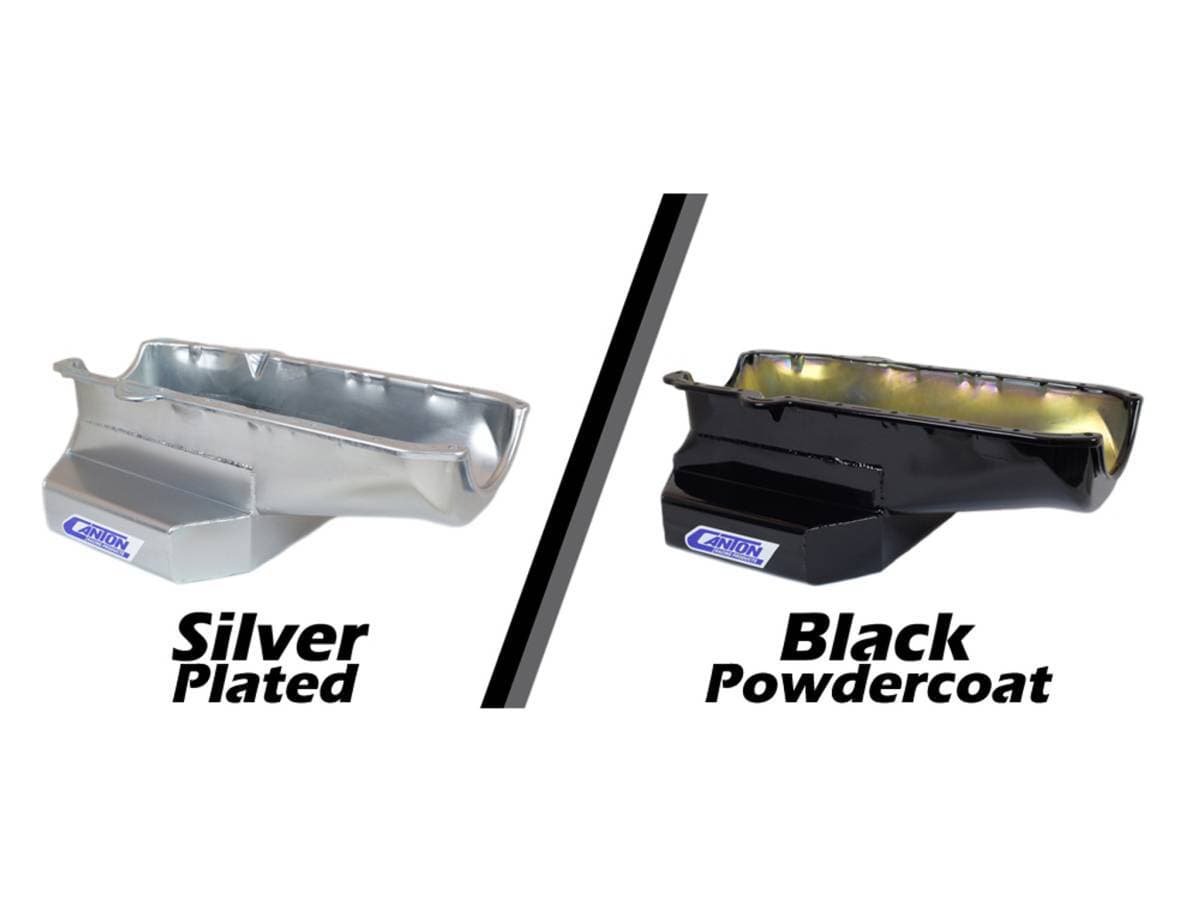

Pictures are for reference, oil pan would come black*

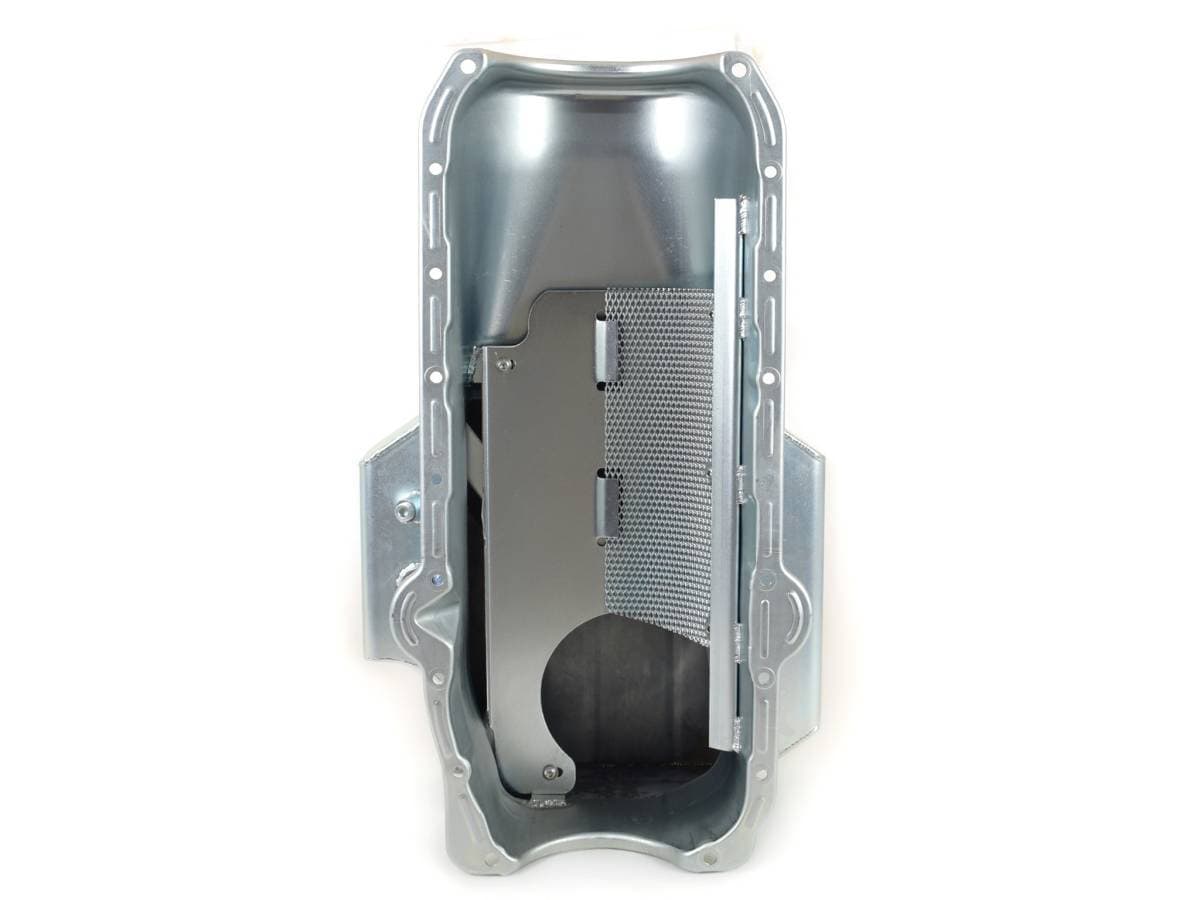

FEATURES: Five Trap Door Baffles. Crank Scraper. Built In Screen Windage Tray. 1/2" NPT Temperature Bung. Magnetic Drain Plug

STYLE: 7-1/2" deep, fully baffled for road racing, this pan was designed to fit in late model (82-92) F Bodies. Makes a great late F-Body Drag Pan. Can be used with cross-over exhaust.

SIZE: 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity.

OIL PAN PART #:15-260BLK pan for direct bolt-in for pre-'80 blocks with left side dipstick. Powdercoated Black

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 Standard Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-013 Standard Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.
PART #: 20-020 High Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-023 High Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.
PART #: 20-021 - Bolt-On Pickup for Melling M10555 Pumps

GASKET:
PART #: 88-100 – SBC Pre ’85 Oil Pan Gasket

OIL DIPSTICKS:
PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
