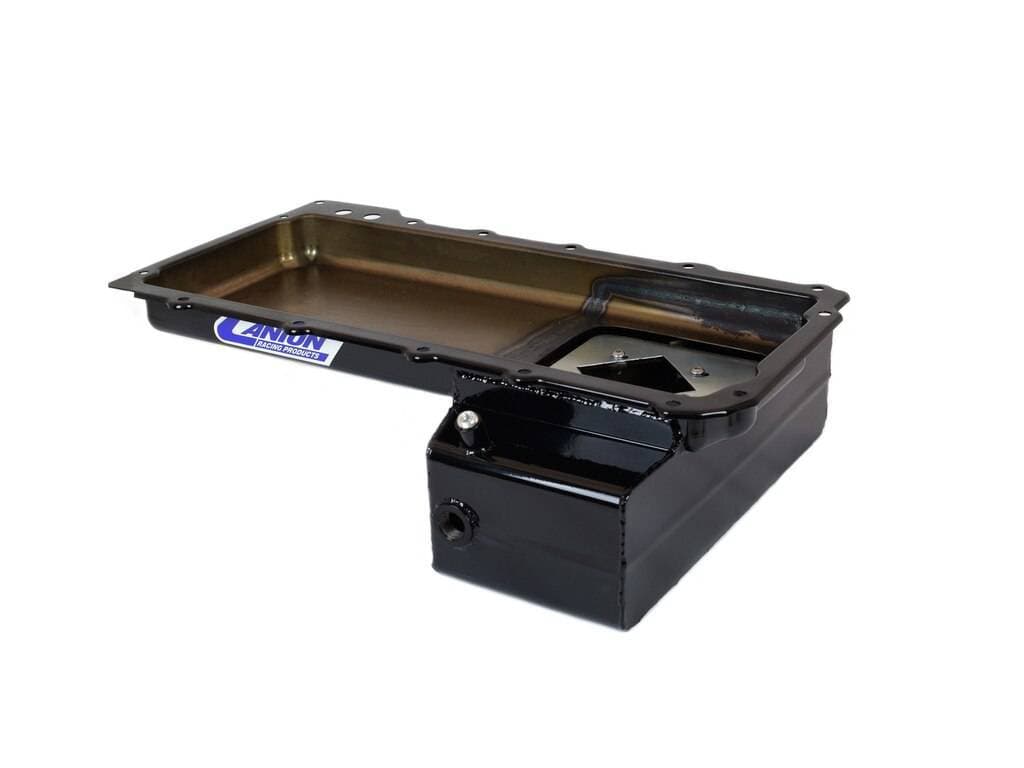

Chevy LS1 / LS6 Swap Front Sump 240sx Drift / Road Race Oil Pan Black Powdercoated

Canton Front Sump LS1/LS6 Oil Pan - Nissan 240SX 1989-1998 with LS Swap. 5-5/8" Deep Front Sump Road Race and Drift Pan. Black Powdercoated.

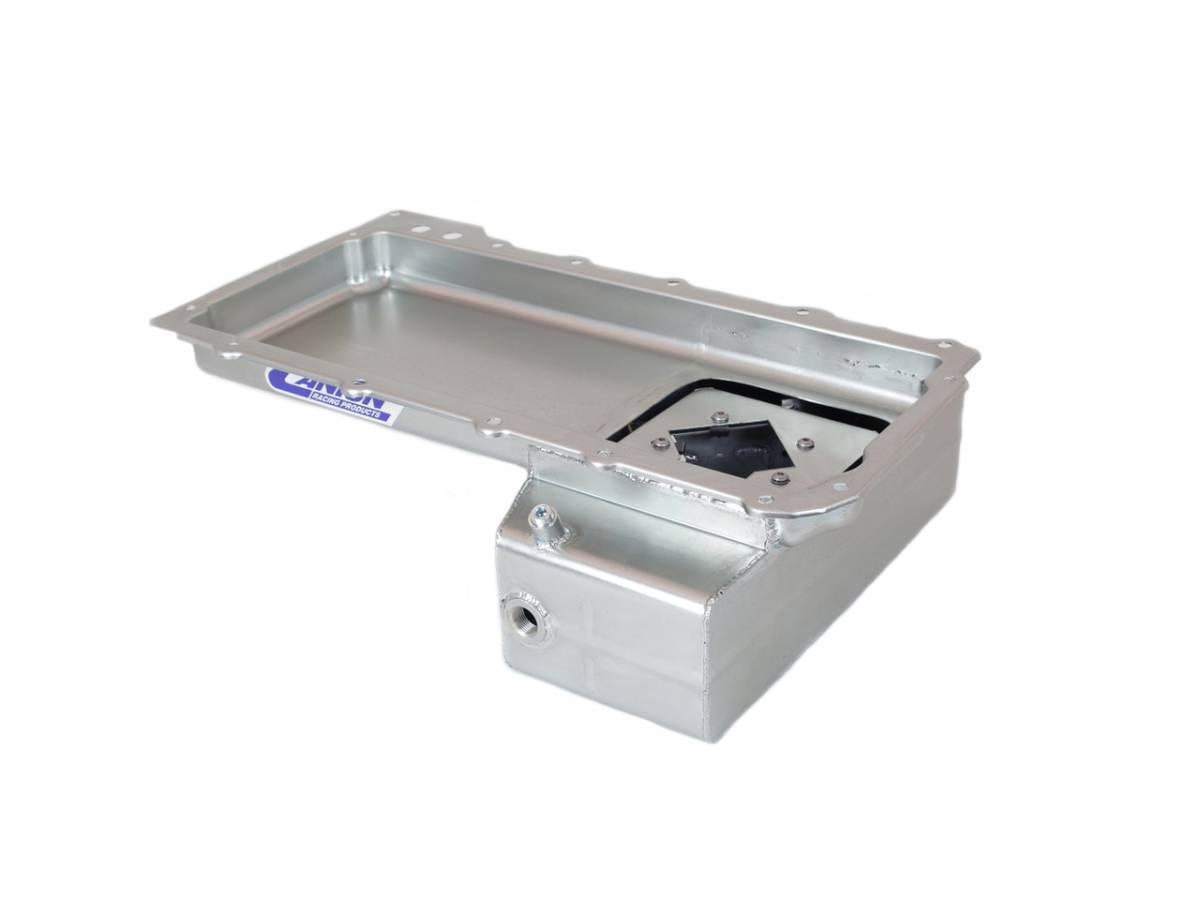

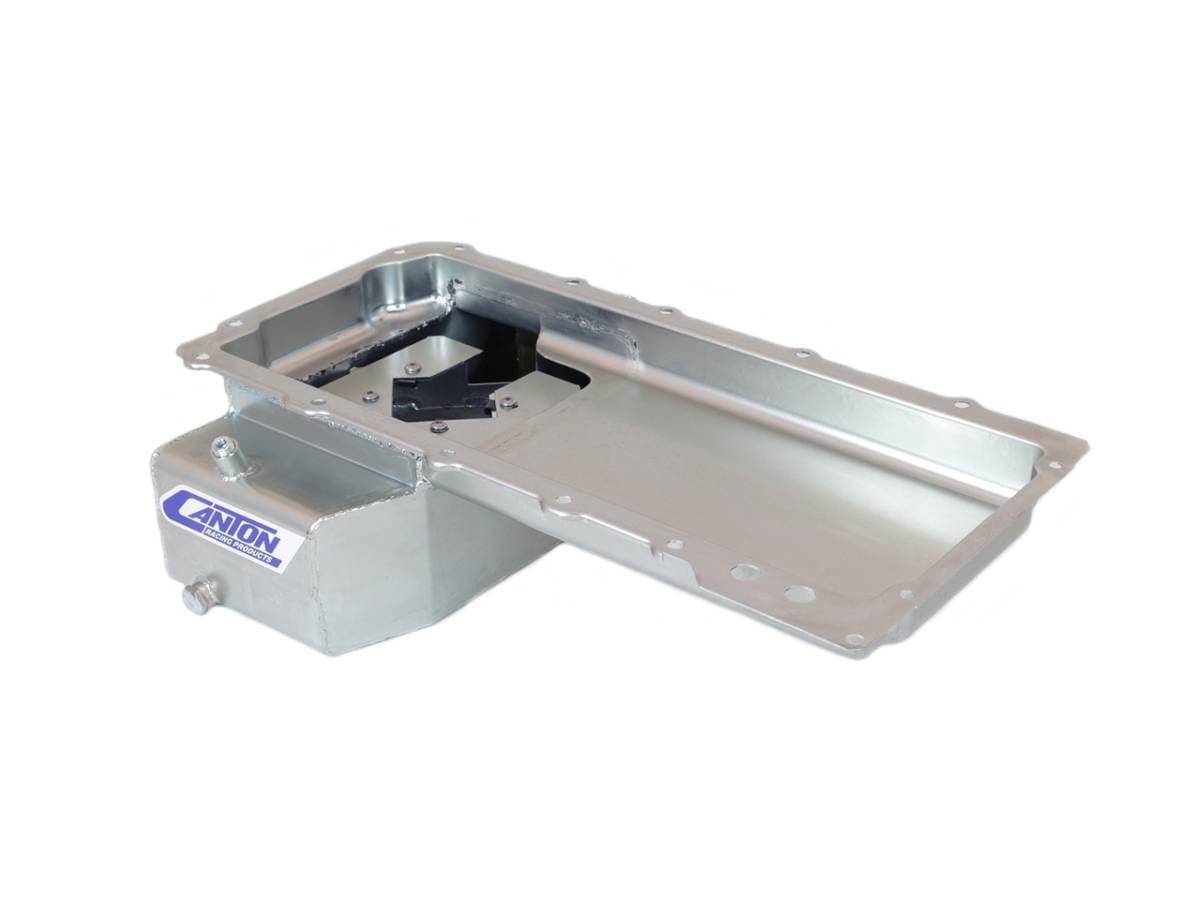

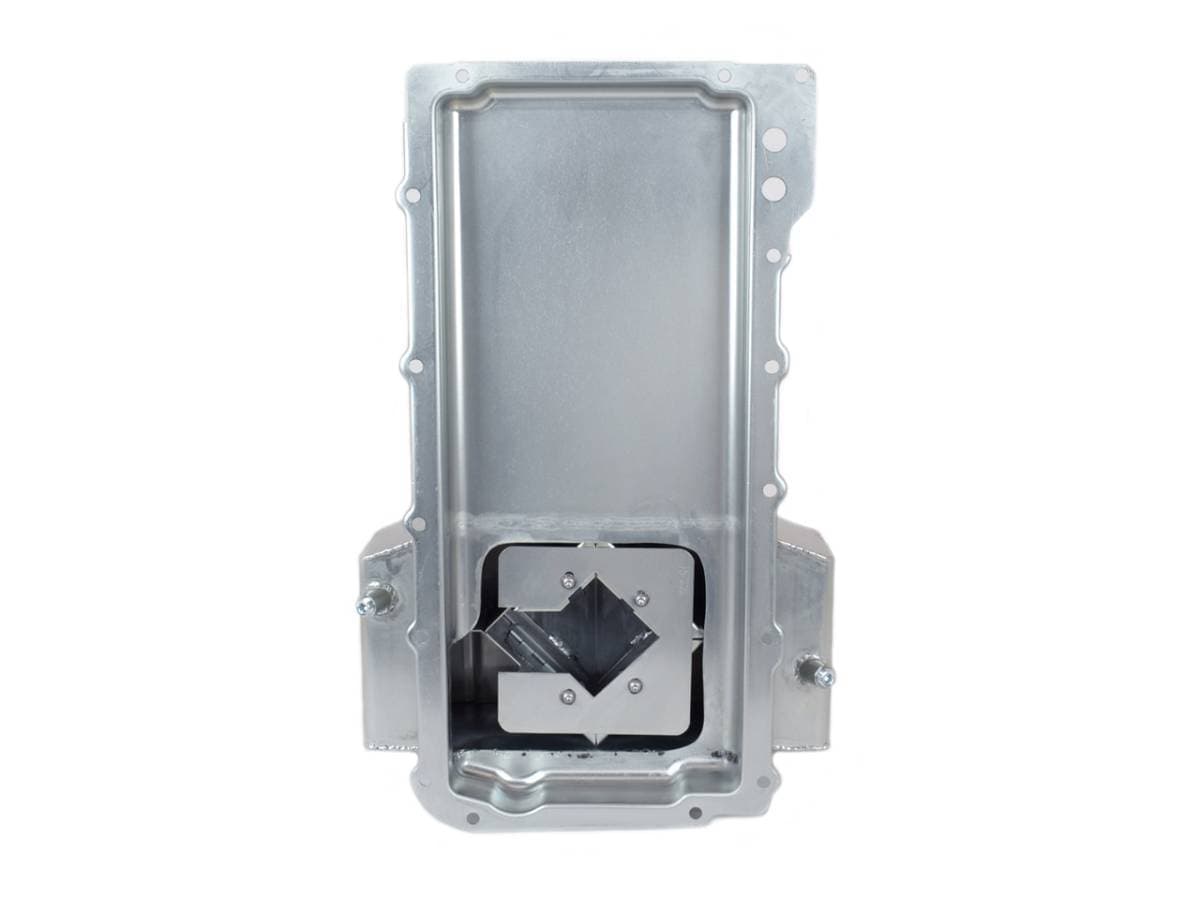

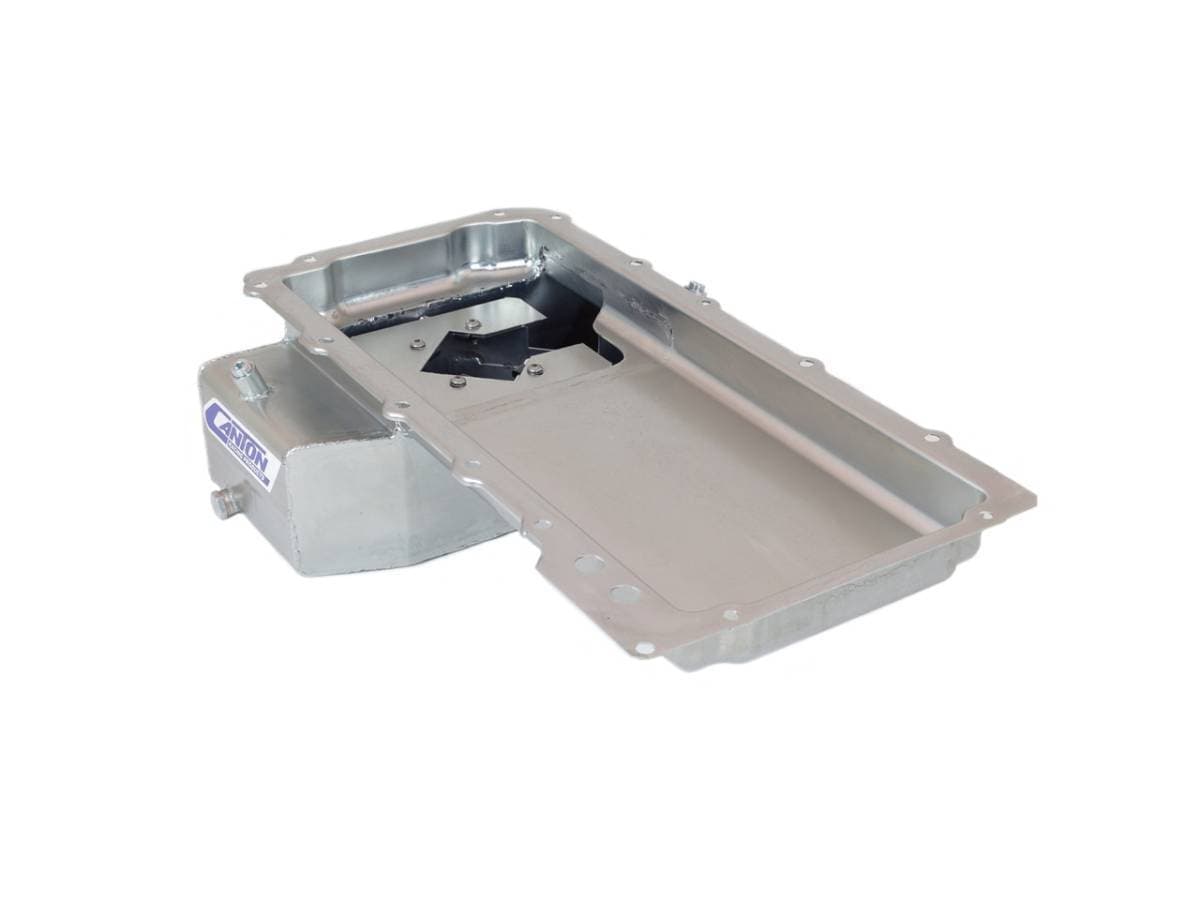

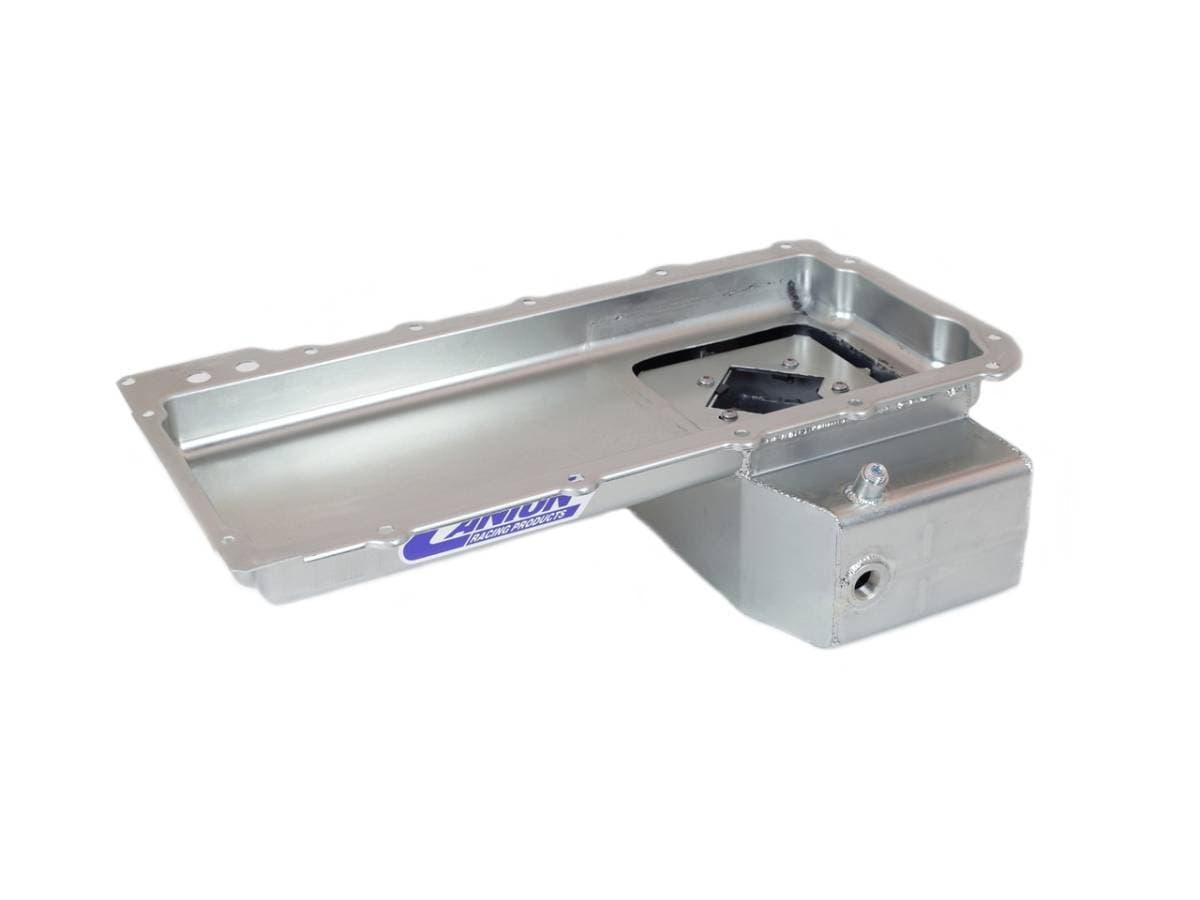

Canton's 15-276BLK front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It's diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity. Will not fit on LS Next 2 blocks.

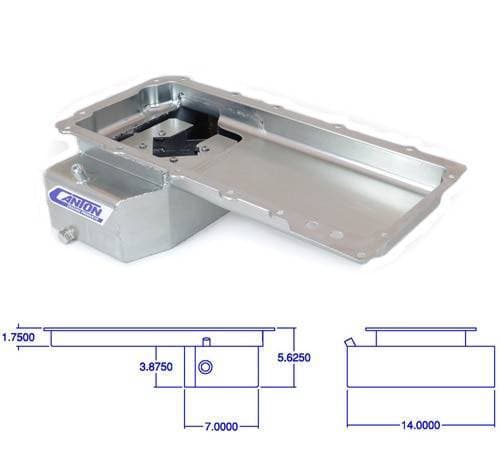

FEATURES: Canton’s 15-276BLK front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. It’s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. This oil pan was created specifically for Nissan chassis cars with LS engine swaps, with provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity. 5 5/8" deep, 6 3/4" long by 14” wide front sump.

Pickup Needed: Stock Pontiac GTO Pickup GM #12572654

RECOMMENDED ACCESSORIES:

PART #: 20-850 Universal Dipstick 1/4 NPT Fitting
PART #: 20-854 Flexible Universal Dipstick
PART #: 22-302 Oil Pan Mounting Stud Kit
PART #: 22-630 LS1 Remote Filter Adapter
PART #: 22-631 LS1 Pan mounted spin-on filter mount
PART #: 22-632 LS1 Remote Filter Mount - 90 Degree
PART #: 22-620 Billet aluminum remote spin-on filter mount
PART #: 22-405 20mm plug [needed if not using low oil warning sender]
