There are many options available for Magnuson kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.
These supercharger kits are the most complete available, including everything needed for installation. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. You do not need to make any major modifications or purchase special tools or other parts. Many customers install in their garage or driveway over a weekend. Email us for a digital copy of the installation guide.
DETAILS:
Horsepower gain: 1500HP depending on modifications
TVS2650 Heartbeat supercharger head unit, 91mm pulley
SC Drive System: Dedicated 10-Rib w/ Cog Driven Jackshaft.
Fuel Pump Supplied: Not Supplied
Fuel Injectors Supplied: Short 80lb/hr Injectors Supplied
Computer/Ignition Mods.: Not Supplied
Fast response, vacuum bypass system designed to unload supercharger at engine idle speeds and allow recirculation
High helix, four-lobe rotors for maximum supercharger efficiency across the entire speed range
Patent-pending Supercharger housing designed to deliver huge airflow at high engine speeds for maximum horsepower levels

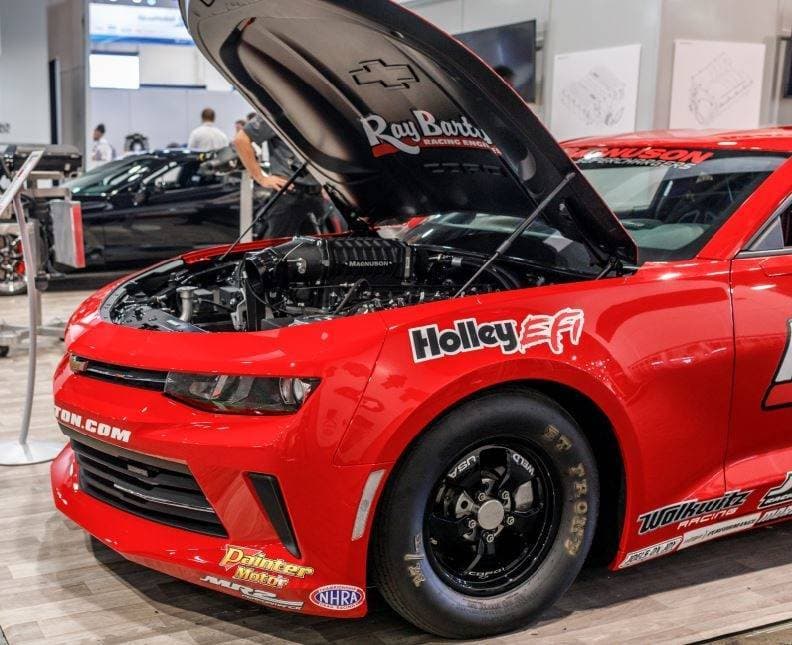

Designed to fit under the hood of 2015+ COPO CAMARO 350SC (hood modifications may be required for other vehicle applications)
Low maintenance cartridge style jackshaft system with high torque/low inertia carbon fiber driveshaft
High flow charge air cooler and massive 1-inch (-16ORB) ports reduce coolant restriction allowing maximum cooling efficiency
High flow inlet duct designed for 109mm mechanical throttle body or electronic throttle with GM LT5 bolt pattern
Port injection fuel system with hard anodized, extruded aluminum fuel rails with ½” thru bore and standard short body (LS9 style) 80-lb/hour injectors
Two-piece 91mm (3.590 inch) front 10-rib pulley with interchangeable rear cog belt system allowing for drive ratio optimization.

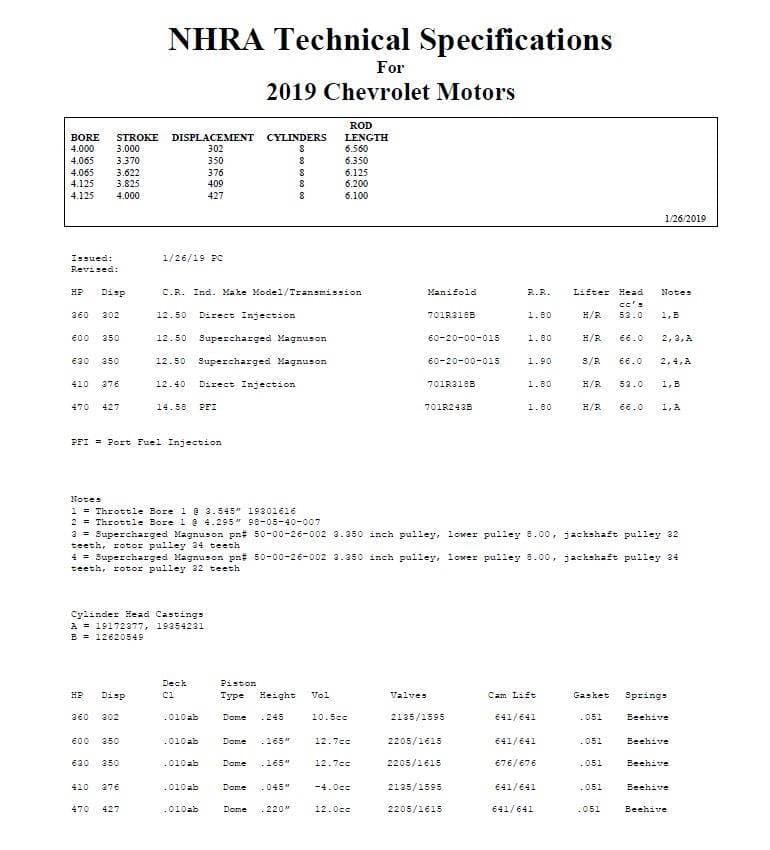

Supplied with standard 32 and 34 tooth cogs for up to 6% overdrive of front pulley. Optional NHRA approved 85mm (3.350 inch) #57-03-10-085-BL also available
TREperformance is an Authorized Priority Dealer of Magnuson Superchargers.
Custom made and shipped direct from Magnuson in 5-10 business days!
