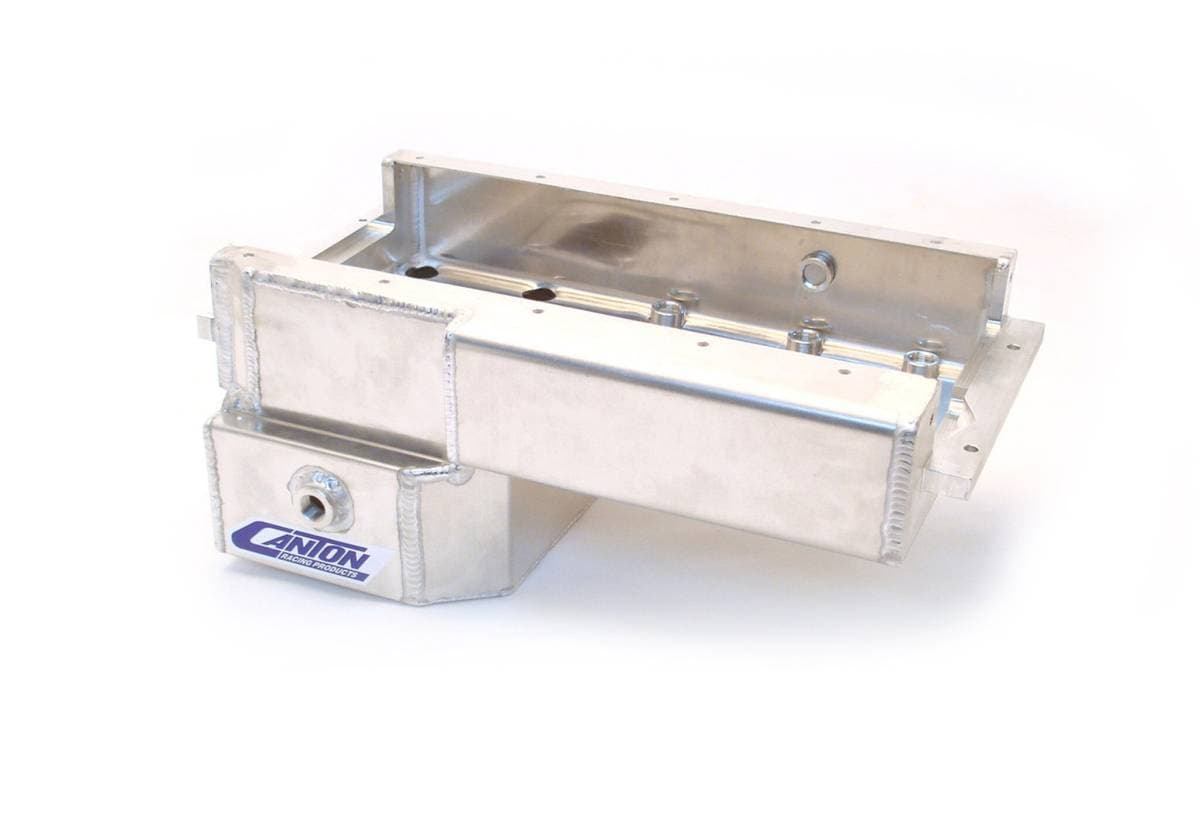

Chevy Dart LS NEXT Road Race Series Wet Sump Canton Oil Pan

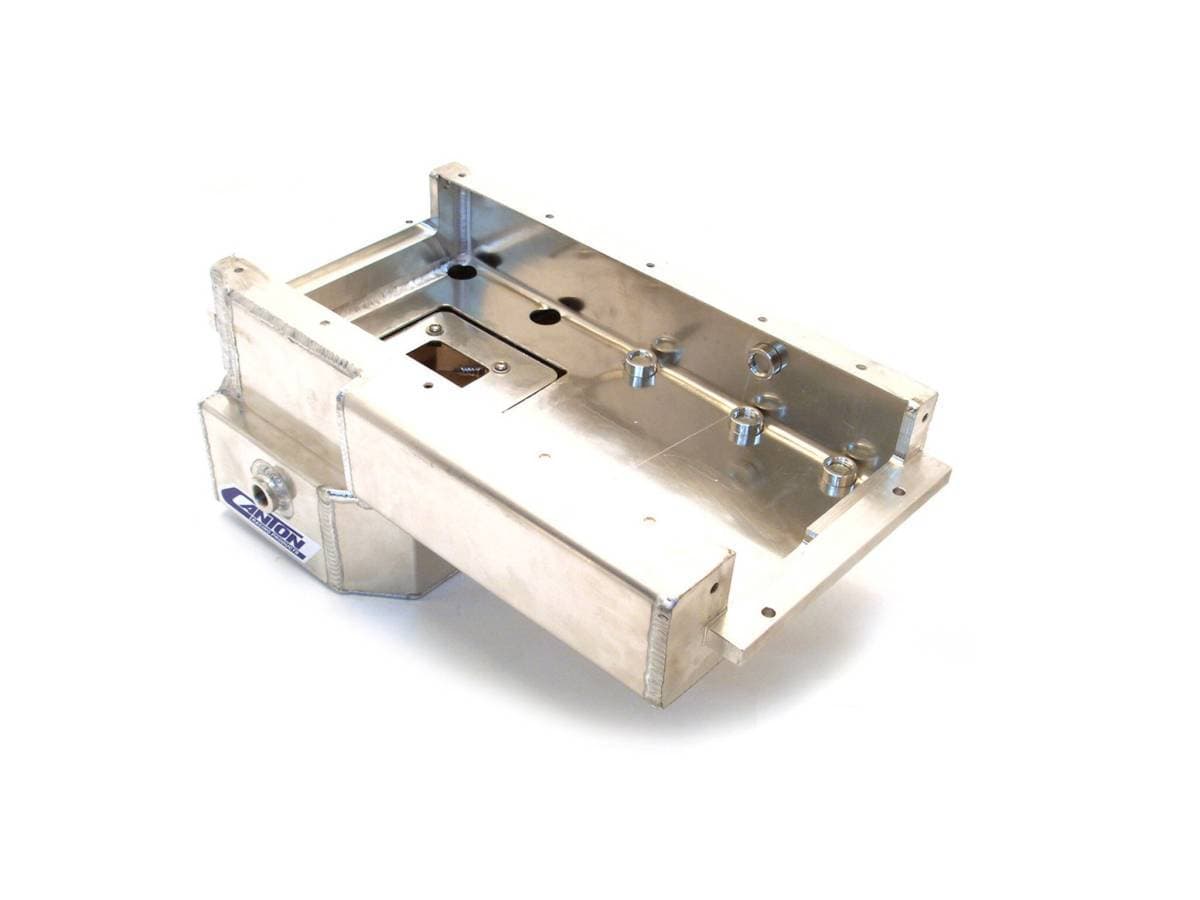

This road race pan is for the Dart LS NEXT blocks. The LS NEXT rear sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Their pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. The Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. The diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.

This oil pan is in stock at our store, ready to ship.

Note: This oil pan will not fit on LS Next 2 blocks.

FEATURES: Designed to fit most rear sump applications, 6.5 qt System Capacity, Pro-Style Oil Recovery Pouch, Machined Billet Front & Rear Seals, Removable Windage Anti-Slosh Baffle, Diamond Shape Road Race Trap Door Baffle System, 20mm Bung for Low Oil Warning Sensor, Magnetic Drain Plug, Provision for pan mounted dipstick

STYLE: T-Sump style pan.

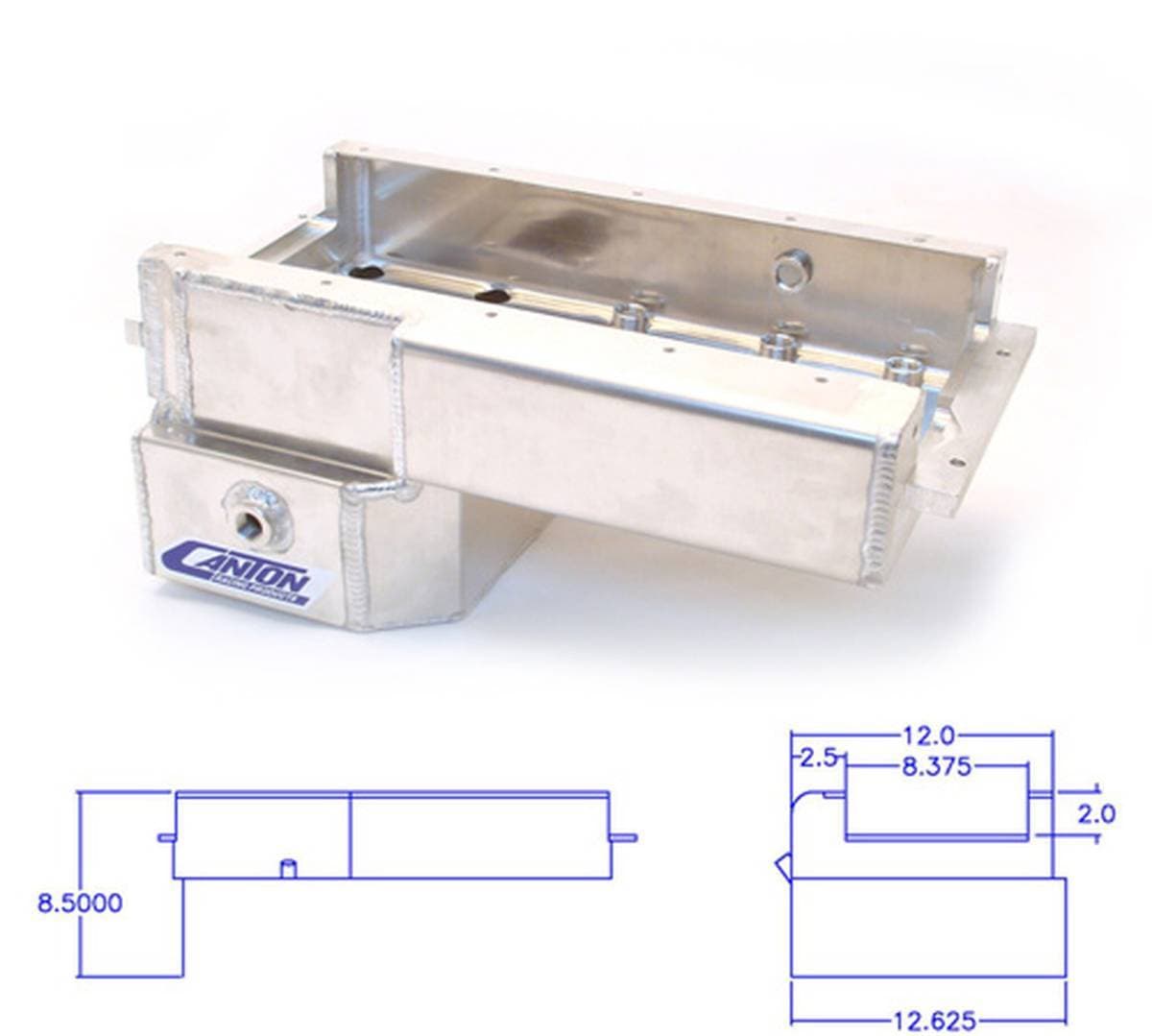

SIZE: Shallow 5-5/8" Sump from Bottom of Rear Cap. 6.5 Quart System Capacity.

OIL PAN PART #: 15-284A pan for direct bolt-in, Dart LS NEXT Blocks.

RECOMMENDED ACCESSORIES:
21-870 LS Flywheel Cover for T56 Bellhousing
22-304 LS NEXT Oil Pan Stud Kit
22-405 Plug for 20mm bung if low oil warning sender is not used
22-620 Billet Aluminum remote spin-on filter mount 13/16"-16 Thread

OIL PUMP PICKUPS:
PART #: 15-285 Dart LS NEXT rear sump pickup for 15-286A pan

GASKET: Works with stock gasket.
