Chevy Camaro/Firebird F Body Canton Oil Pan 1982-1992 - Black

This road race pan is for 1985-up SBC blocks in 1982-1992 F-Bodies. It has a 7-1/2" deep, 12" wide, 8-1/4" long sump for a 6 qt. system capacity.



Note: Will work with stock starter. This pan requires one of our pickups.

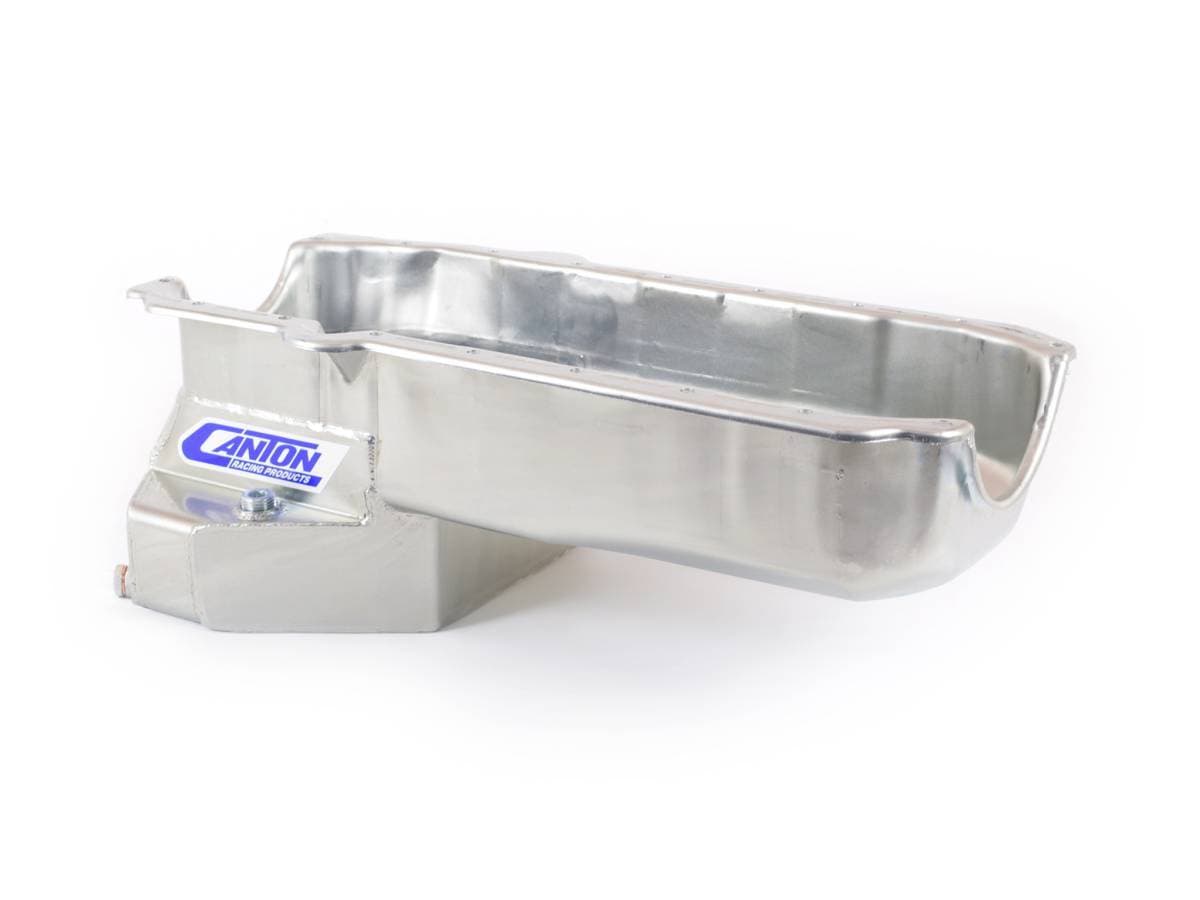

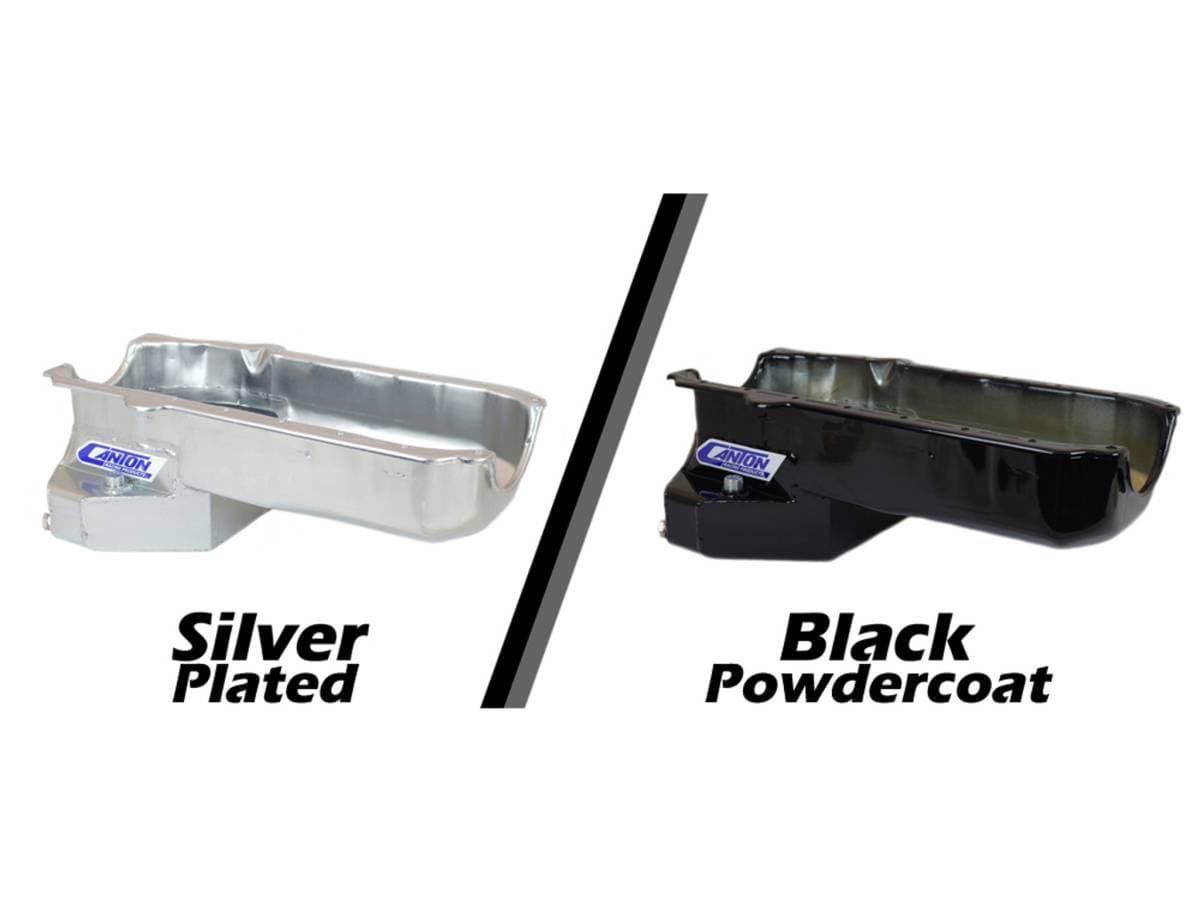

Pictures are for reference, oil pan would come black*

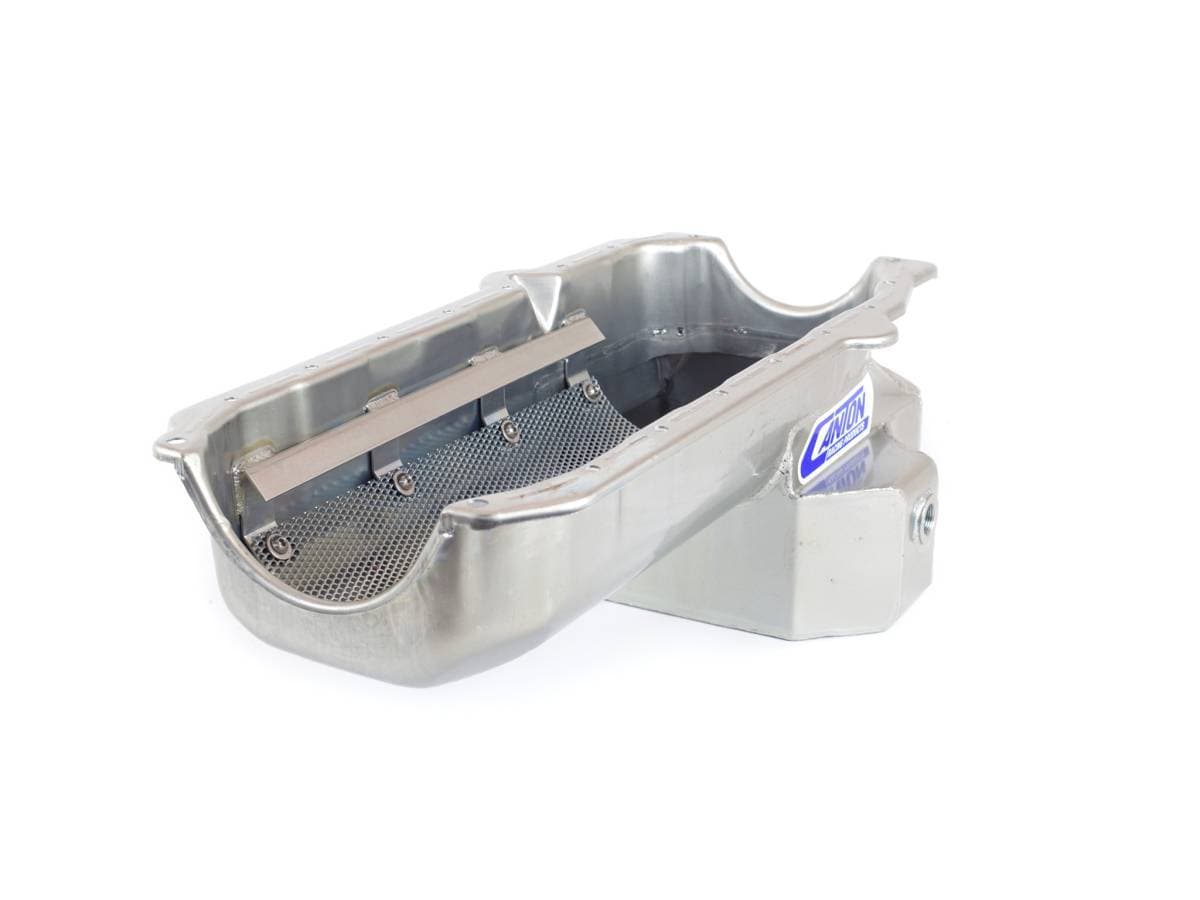

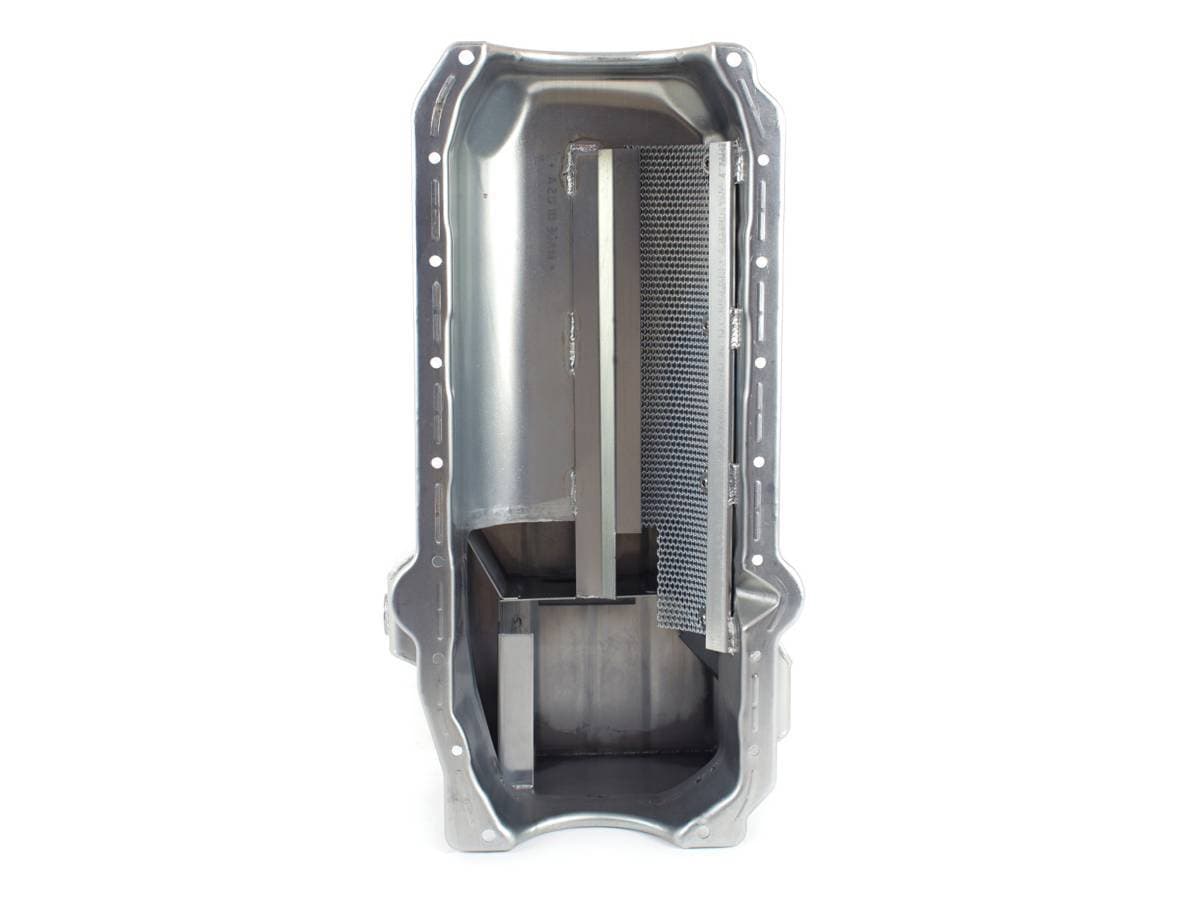

FEATURES: Triple Trap Door Baffles, Crank Scraper, Built In Screen Windage Tray, 1/2" NPT Temperature Bung, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug, Includes a 20MM fitting For A Low Oil Warning Sender (Purchase 22-405 Plug if not using sender)

STYLE: 7-1/2" deep, fully baffled for road racing, this pan was designed to fit in late model (82-92) F Bodies. Makes a great late F-Body Drag Pan. Can be used with cross-over exhaust.

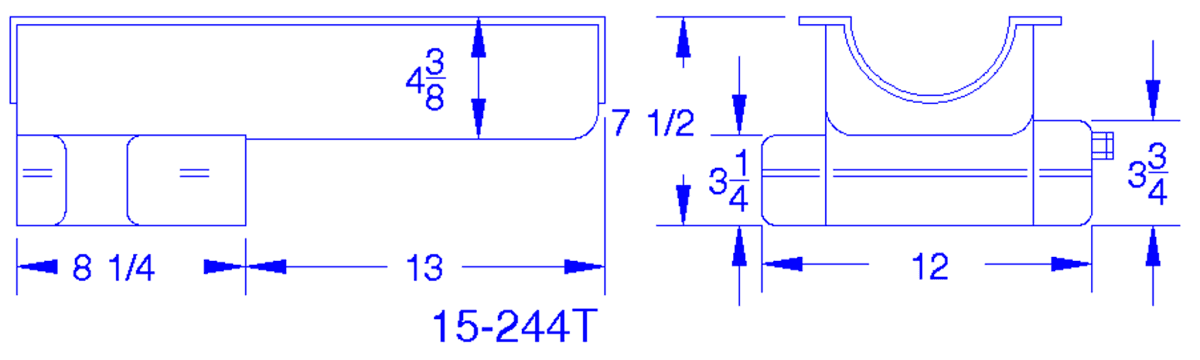

SIZE: 7-1/2" Deep, 12" wide, 8-1/4" long sump has a 6 qt. system capacity.

STARTER: Works with stock starter.

OIL PAN PART #: 15-244TBLK pan for direct bolt-in, '82-92 F-Bodies with 85+ blocks. Powdercoated Black

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 Standard Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-013 Standard Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.
PART #: 20-020 High Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-023 High Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.

GASKET:
PART #: 88-100T Gasket Set for 1986+ SBC blocks.
