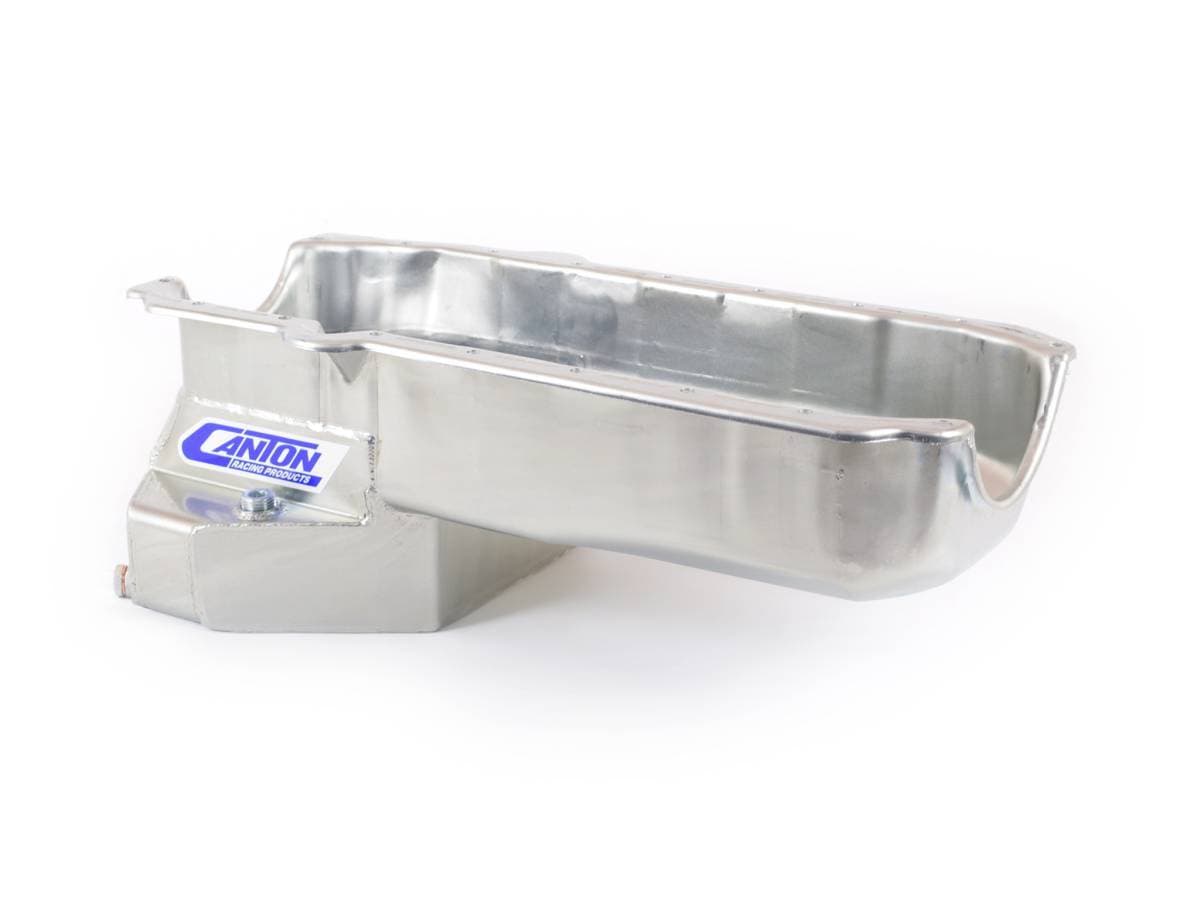

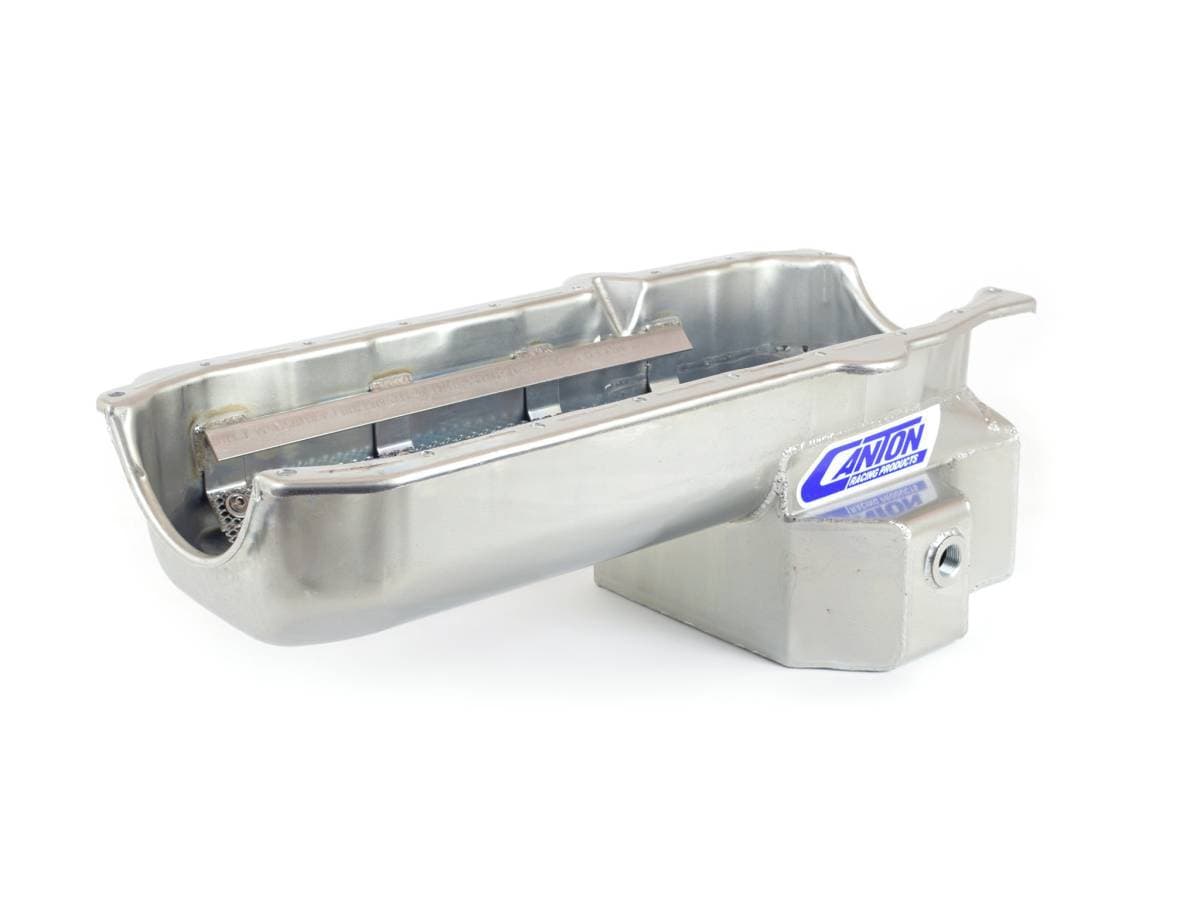

Chevy 1980-1985 SBC Canton Oil Pan - Silver

This road race pan is for '80-85 SBC blocks with right side dipstick in '82-'92 F-Bodies. It has a 7-1/2" deep, 12" wide, 8-1/4" long sump for a 6 qt. system capacity.



Note: Will work with stock starter. This pan requires one of our pickups. Clears 3.875" stroker kit

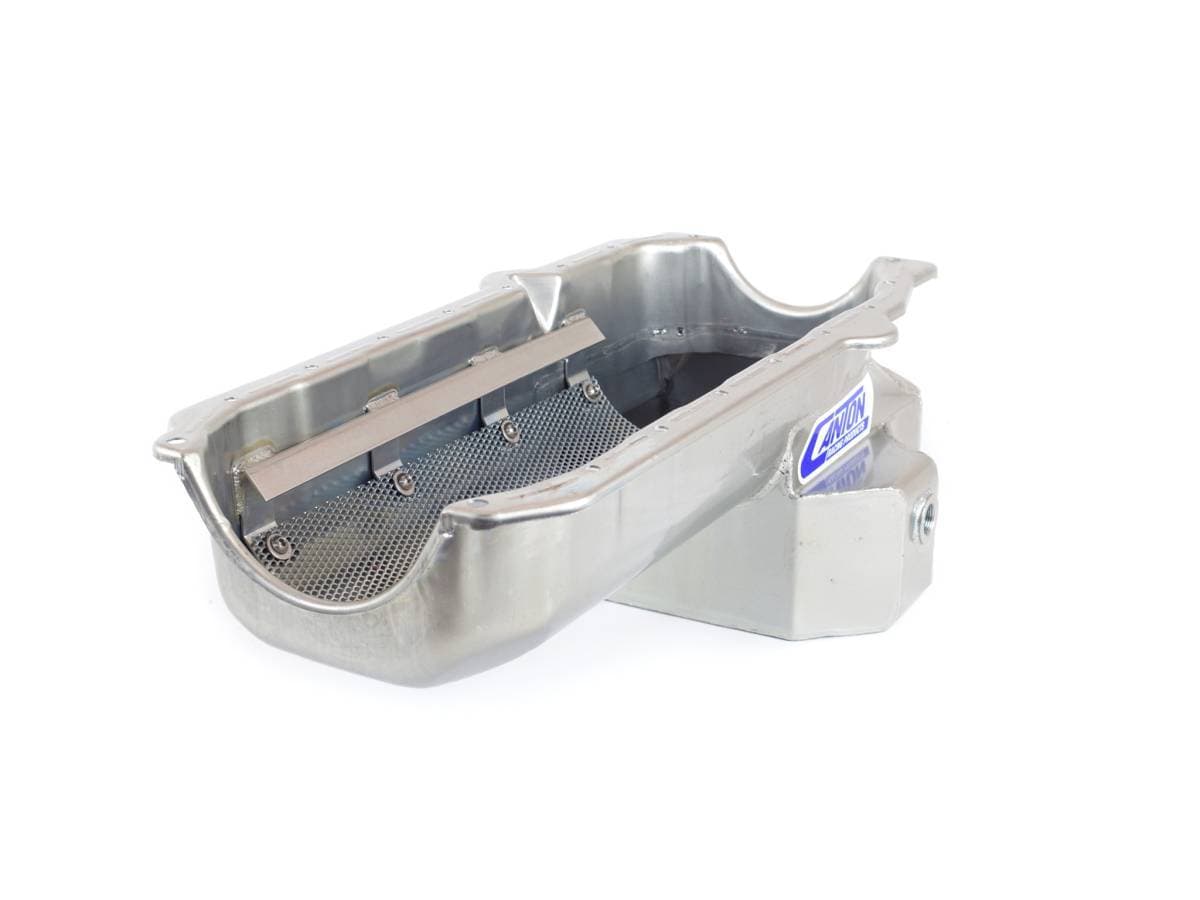

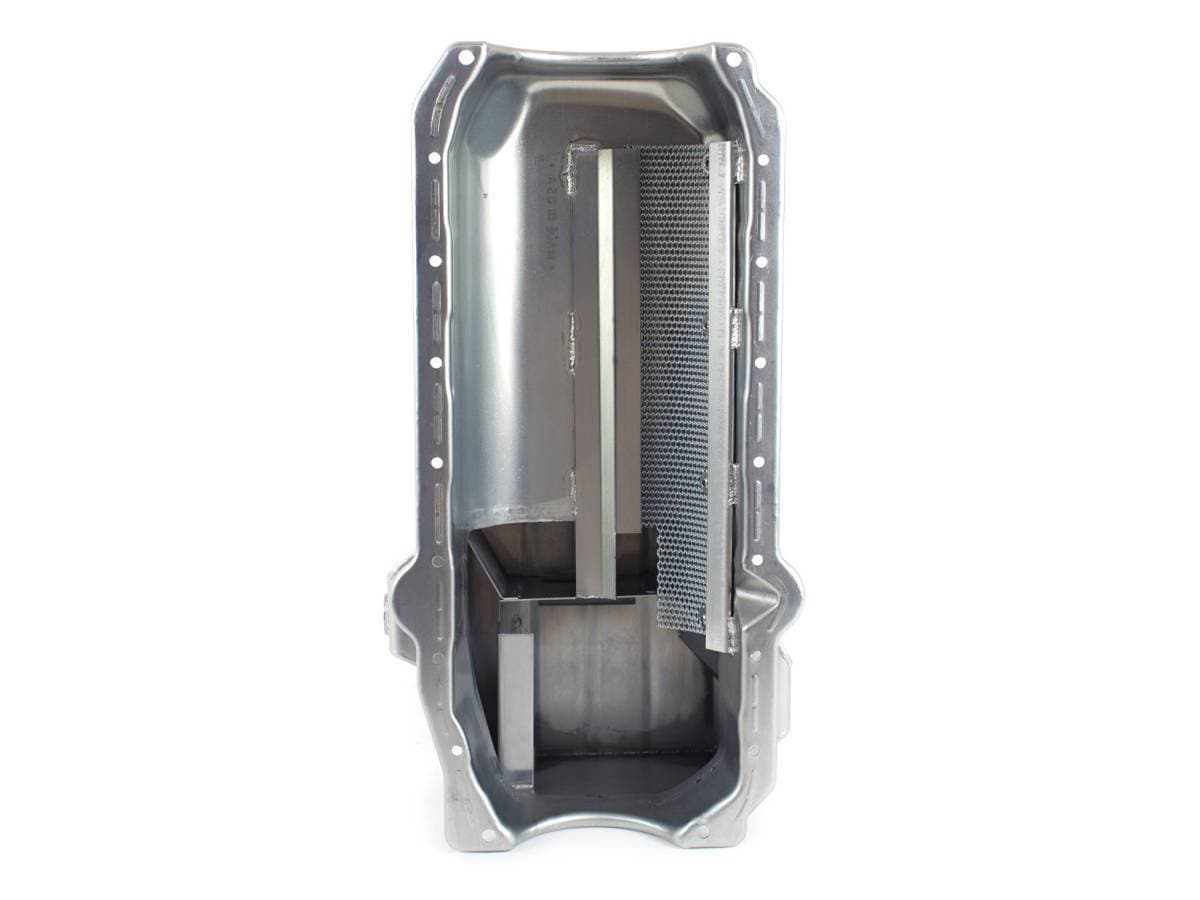

FEATURES: 6 qt System Capacity. Triple Trap Door Baffles. Crank Scraper. Built In Screen Windage Tray. 1/2" NPT Temperature Bung. Magnetic Drain Plug. 20MM fitting For Low Oil Warning Sender (Purchase 22-405 Plug if not using sender)

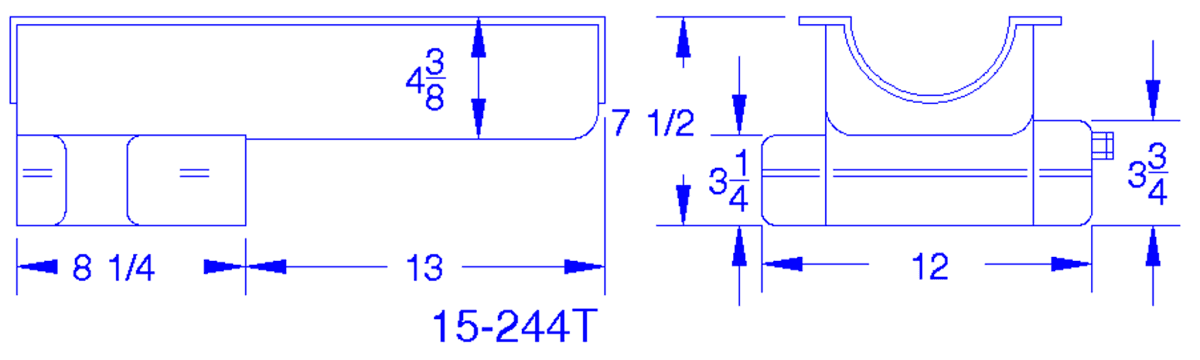

SIZE: 7-1/2" Deep, 12" wide, 8-1/4" long sump has a 6 qt. system capacity.

STARTER: Works with stock starter.

OIL PAN PART #: 15-244M pan for direct bolt-in, '82-'92 F-Bodies.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 Standard Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-013 Standard Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.
PART #: 20-020 High Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-023 High Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.

GASKET:
PART #: 88-100 – SBC Pre ’85 Oil Pan Gasket
