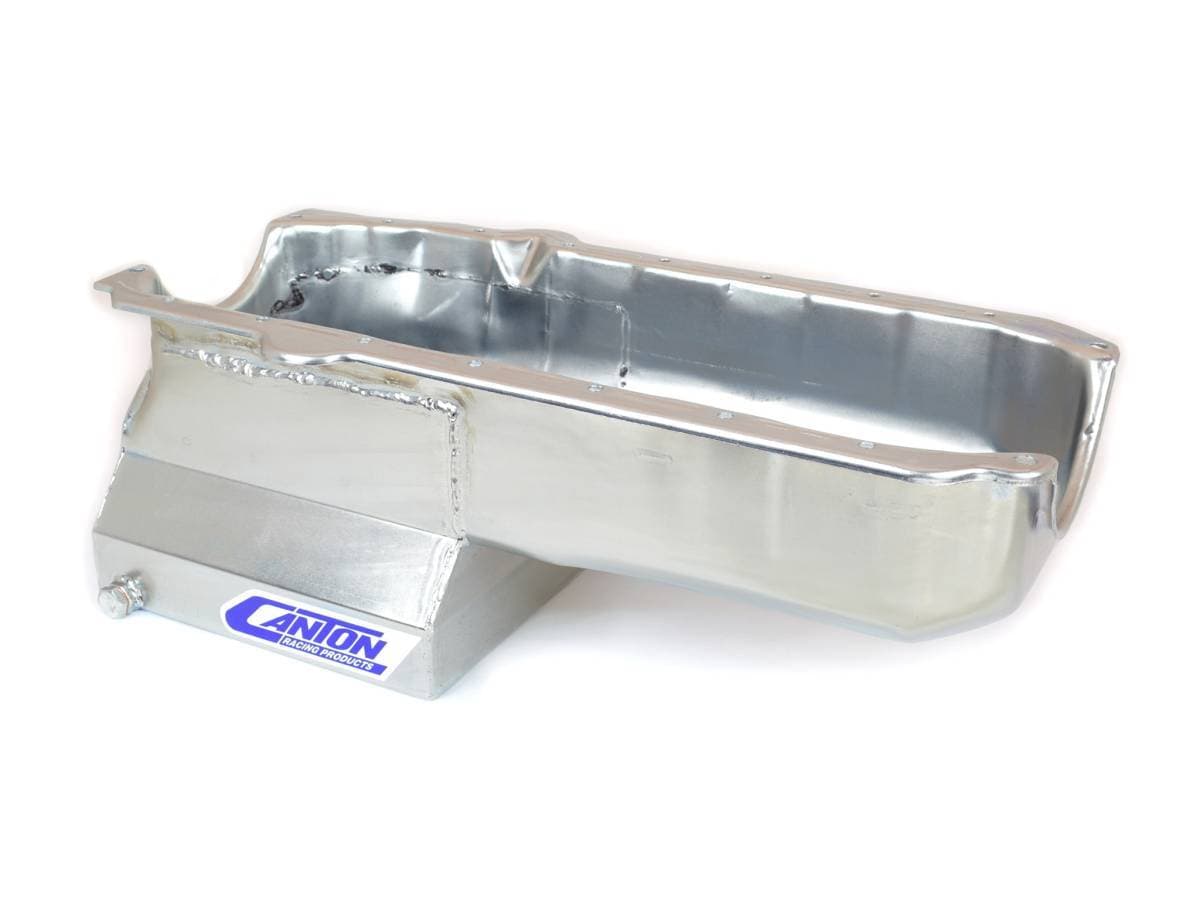

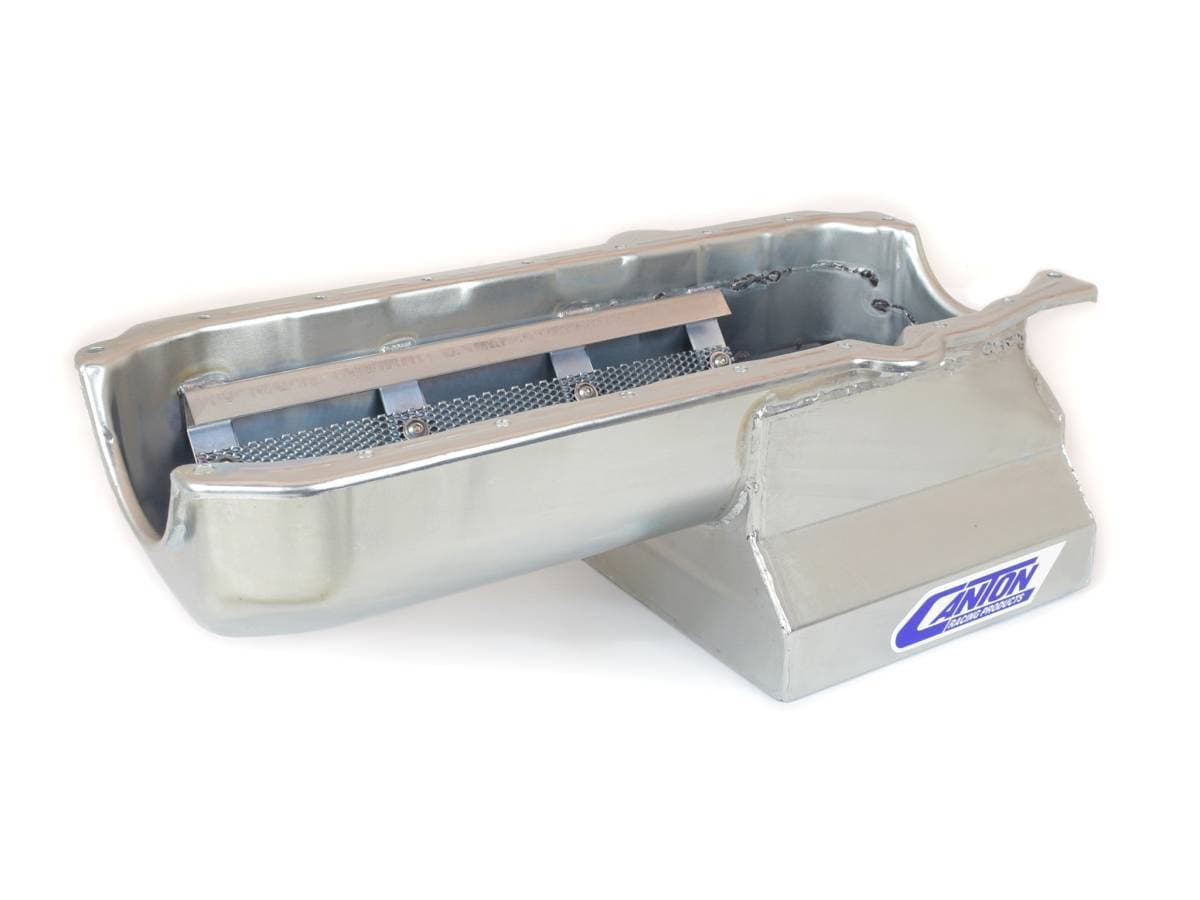

Canton "T" Sump Drag Race Chevy SBC Pre-1980 Blocks w/ Left Side Dipstick Oil Pan - Black

This SBC "T" sump drag race oil pan is for Pre-’1980 blocks with a left side dipstick. It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity. The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.



This pan requires a short oil filter, and one of Canton's pickups.

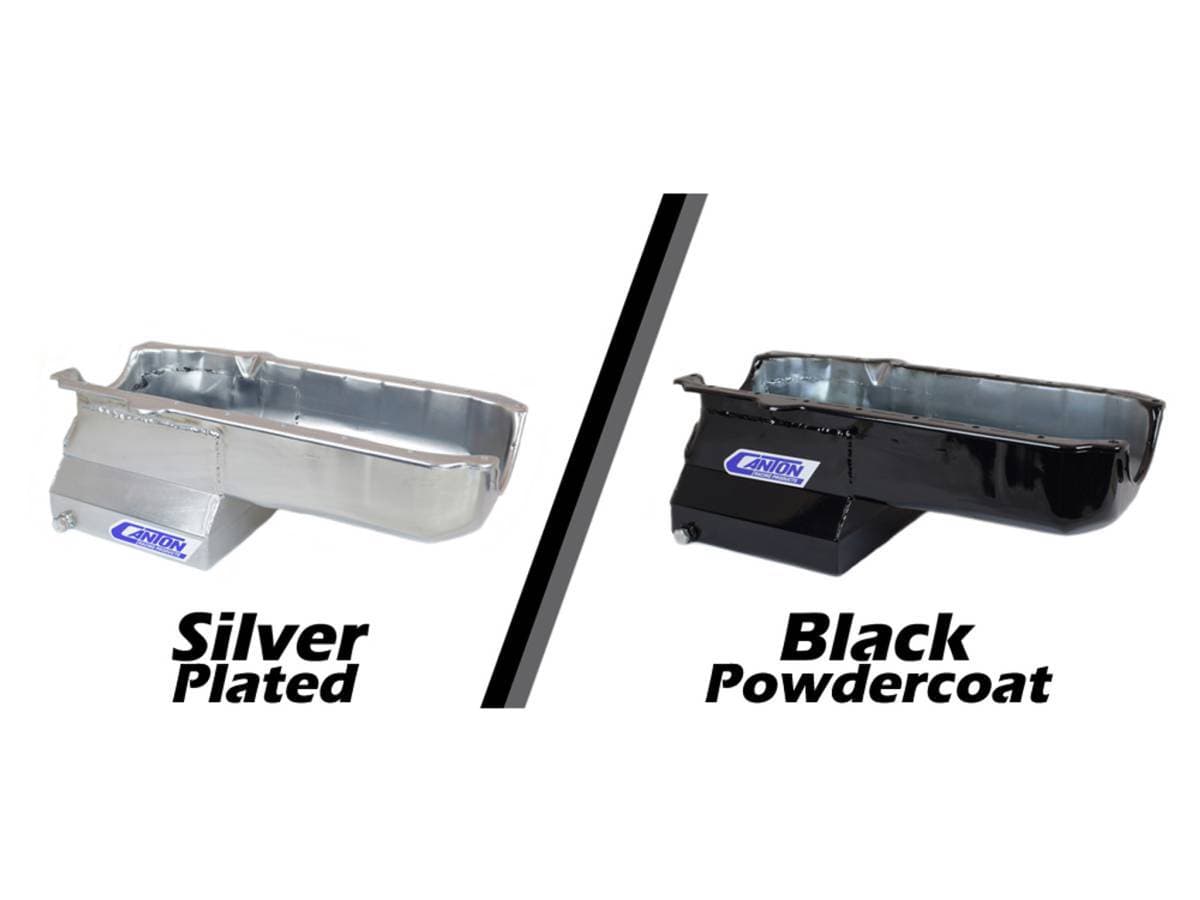

Picture is for reference, oil pan would come black*

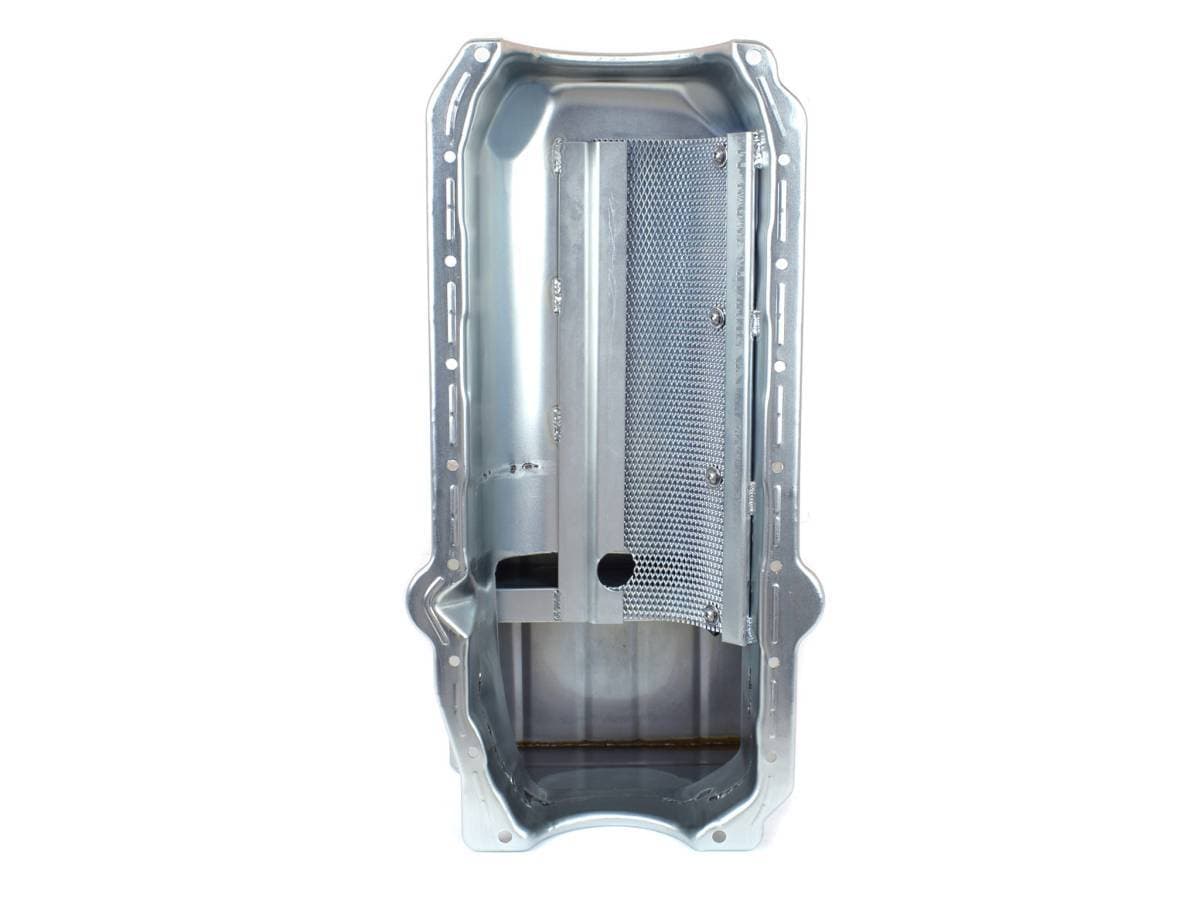

FEATURES: The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.

STYLE: Clears a 3.875 stroke with a steel rod. This pan requires one of our pickups. Black Powdercoating

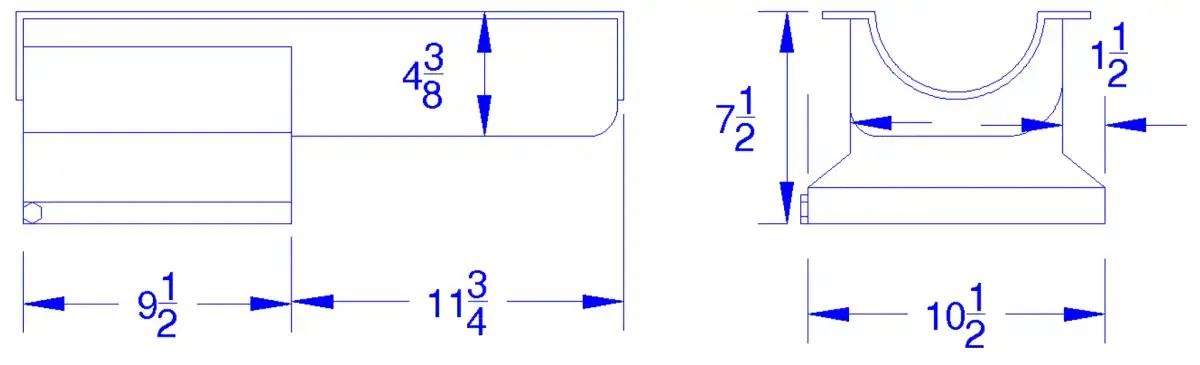

SIZE: It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity.

OIL PAN PART #: 13-120BLK Canton "T" Sump Drag Race Chevy SBC pre-’80 Blocks w/ Left Side Dipstick Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 for SB Stand. Vol. Pumps M55 & M55A.
PART #: 20-013 for SB Stand. Vol. with 3/4" tube #M155.
PART #: 20-020 for SB High Vol. Pumps M55HV.
PART #: 20-023 for SB.H.V w/ 3/4" tube #M155HV.

GASKETS:
PART #: 88-100 Gasket Set for Pre-1980 SBC blocks.
