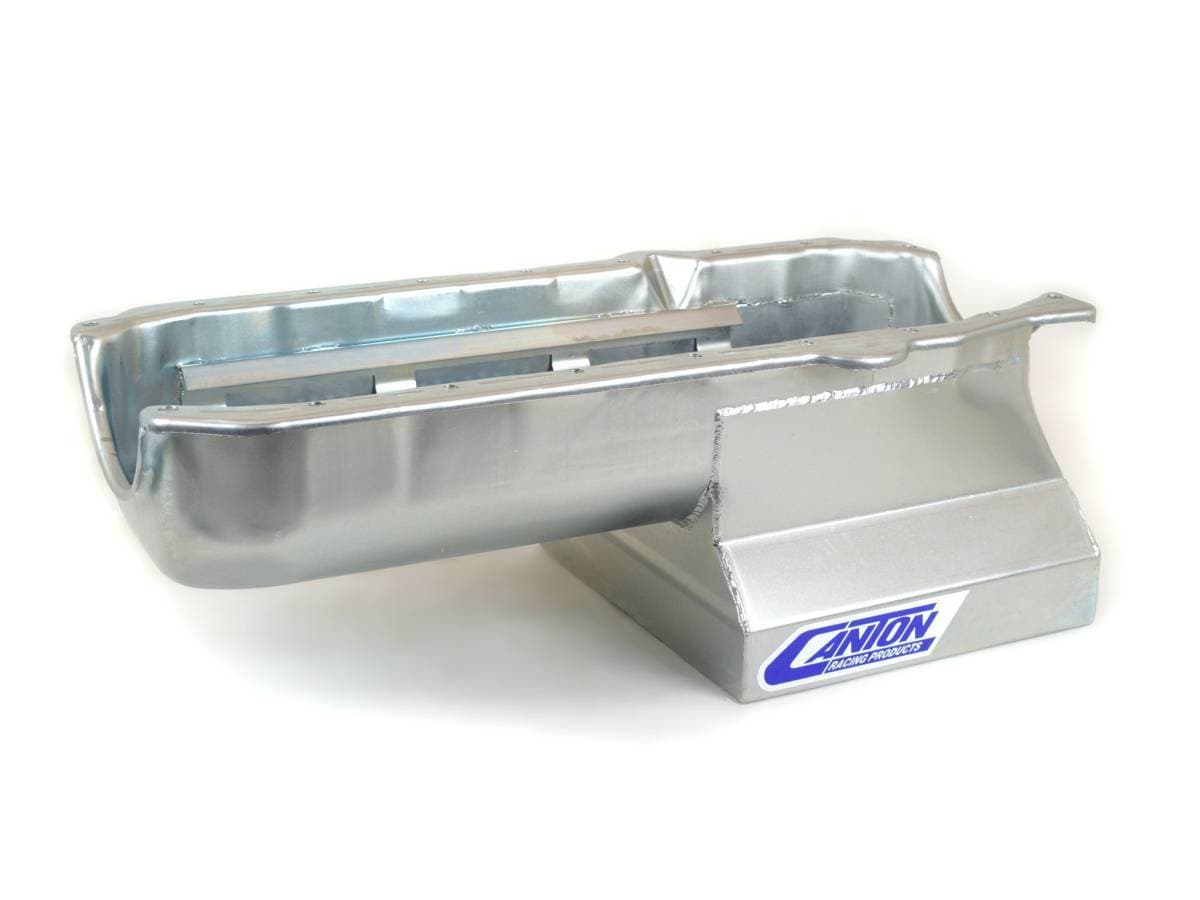

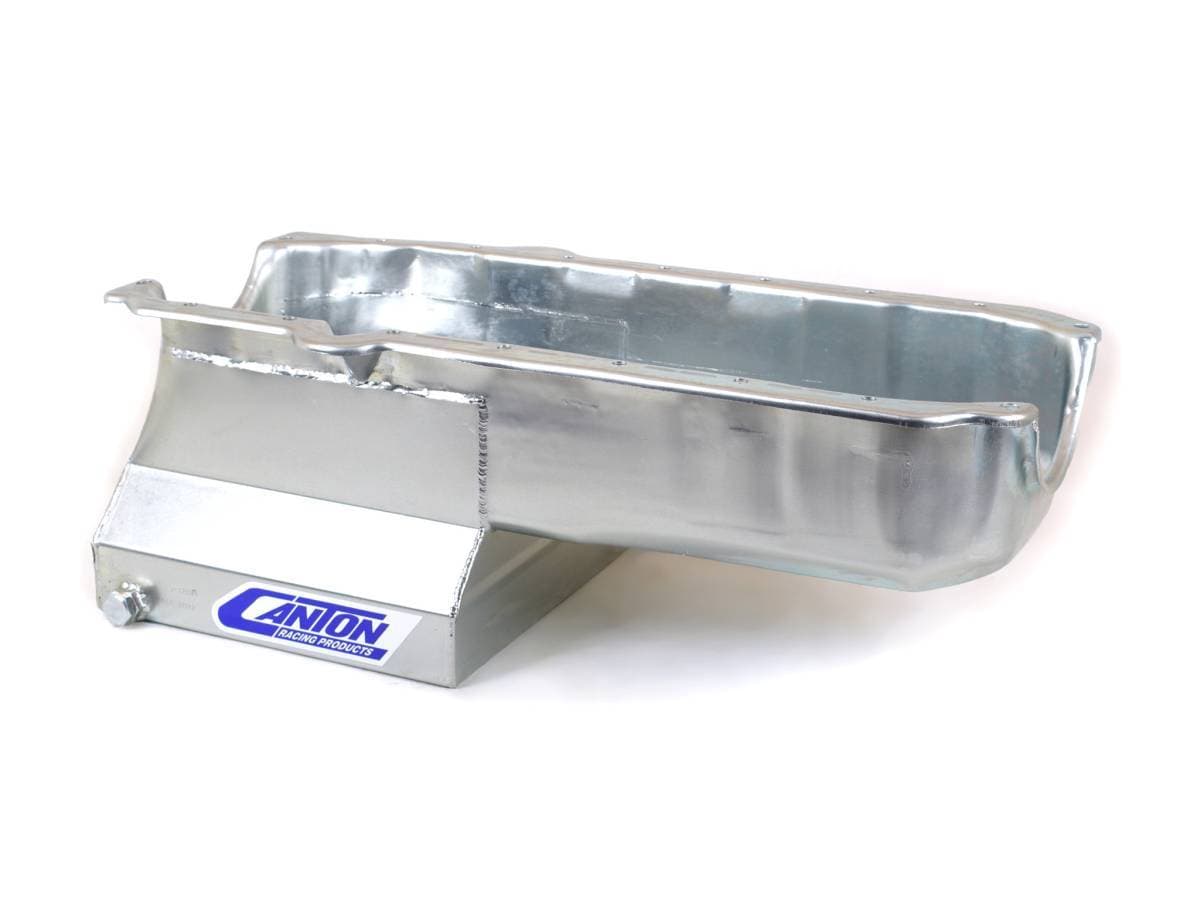

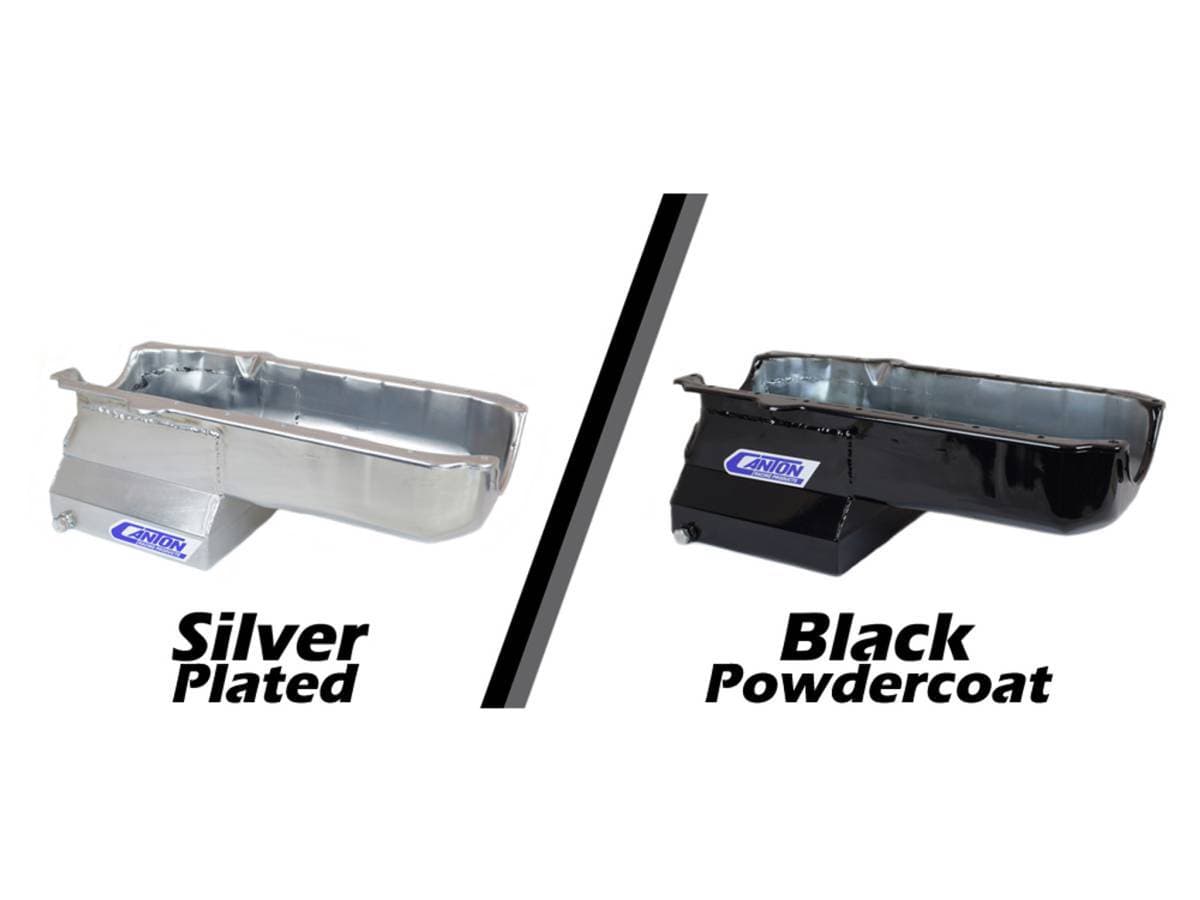

Canton "T" Sump Drag Race Chevy SBC 1980-1985 Blocks w/ Right Side Dipstick Oil Pan - Silver

This Small Block Chevy "T" sump drag race oil pan is for 1980-1985 blocks with a right side dipstick. It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity.



This pan requires a short oil filter, and one of Canton's pickups. Will work with stock or aftermarket starters.

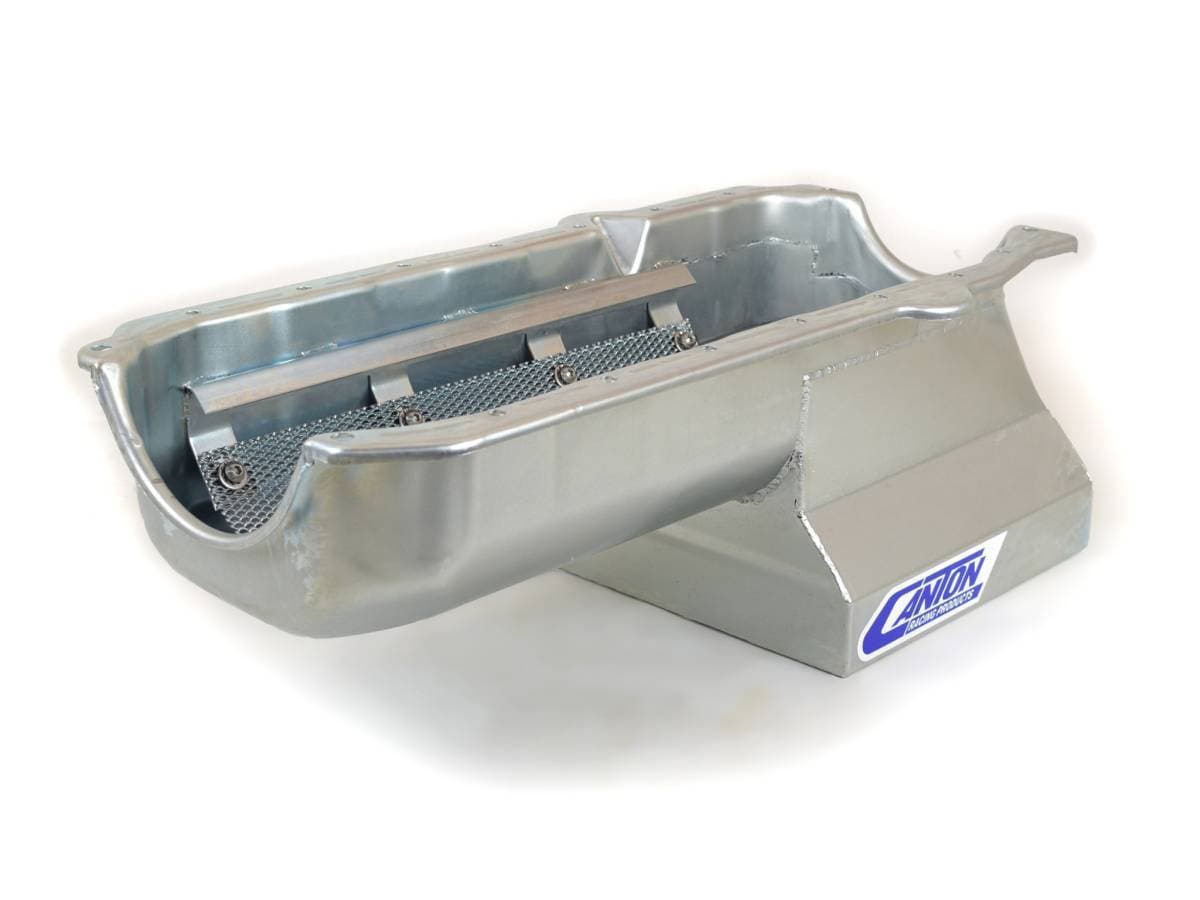

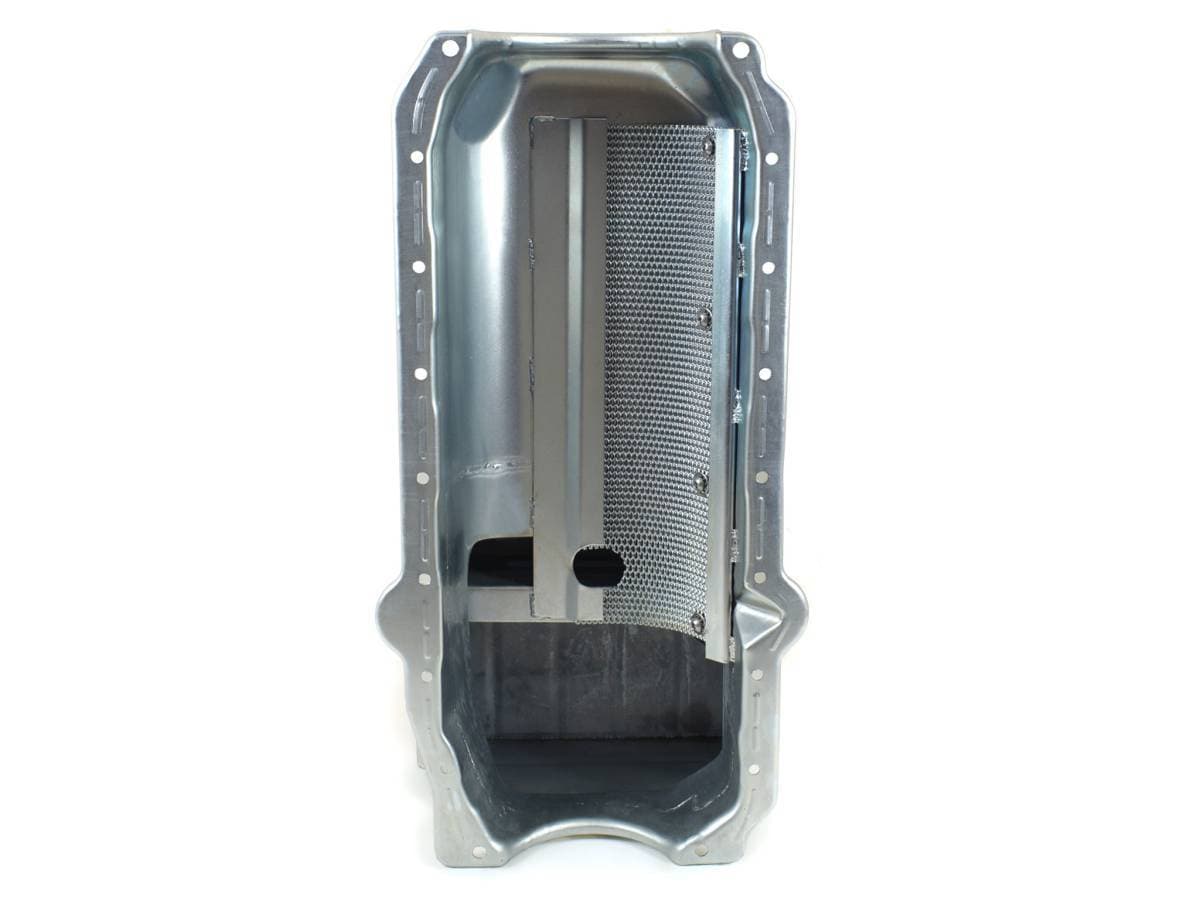

FEATURES: The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.

STYLE: Clears a 3.875 stroke with a steel rod. This pan requires one of our pickups.

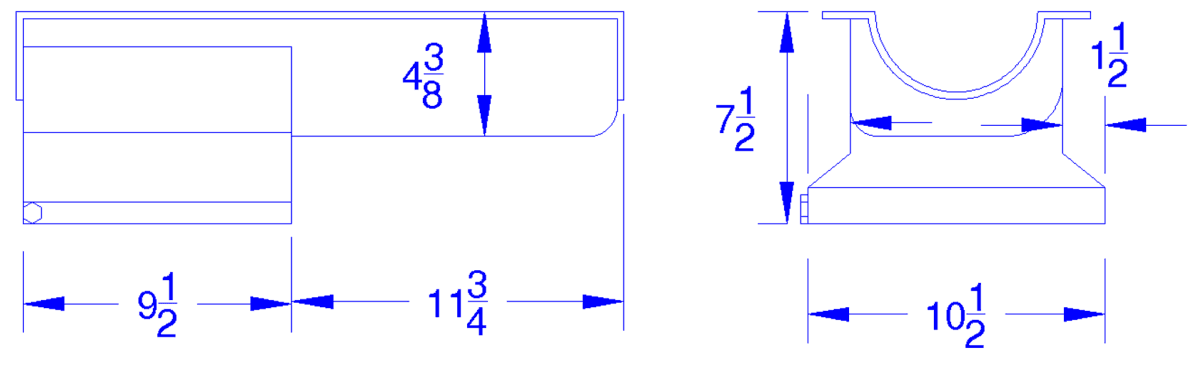

SIZE: It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity.

OIL PAN PART #: 13-120M Canton "T" Sump Drag Race Chevy SBC 1980-1985 Blocks w/ Right Side Dipstick Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 for SB Stand. Vol. Pumps M55 & M55A.
PART #: 20-013 for SB Stand. Vol. with 3/4" tube #M155.
PART #: 20-020 for SB High Vol. Pumps M55HV.
PART #: 20-023 for SB.H.V w/ 3/4" tube #M155HV.
PART #: 20-021 - Bolt-On Pickup for Melling M10555 Pumps

GASKETS:
PART #: 88-100 – SBC Pre ’85 Oil Pan Gasket
