Canton Pontiac 301-455 Shallow Road Race Deep-Sump Oil Pan - Black

This shallow pan for Pontiac 301-455 engines and fits all popular chassis EXCEPT G.T.O.s and ’67-’69 Firebirds. It has a 7" deep, 10-1/2" long sump for a 6 quart system capacity. Cannot be used with some stock exhaust systems



Note: Cannot be used with some stock exhaust systems (measure for clearance). This pan requires our 15-451 pickup.

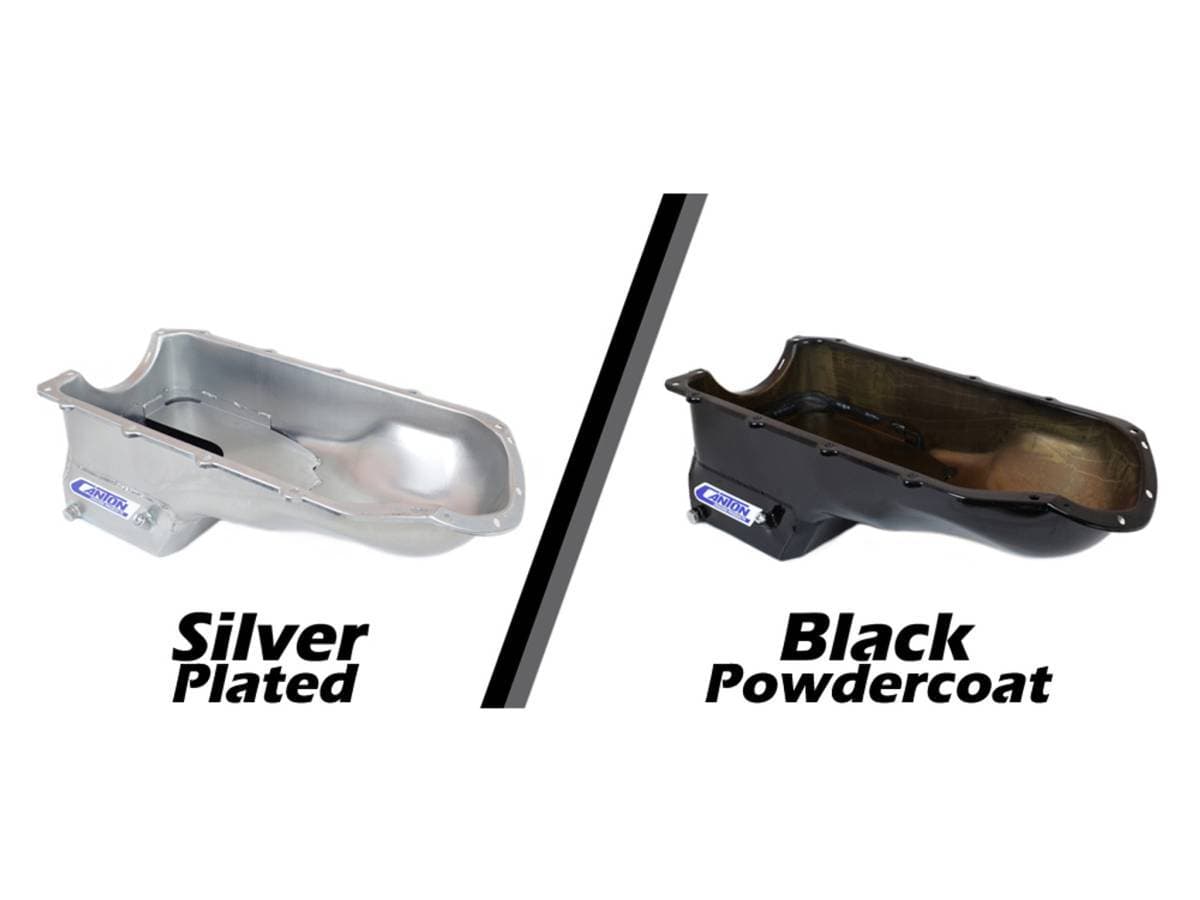

Pictures are for reference, oil pan would come black*

FEATURES: Triple Trap Door Baffle. Removable Windage/Anti-Slosh Baffle. 1/2" NPT Temperature Bung. Provision For Our Pan Mounted Dipstick. Magnetic Drain Plug

STYLE: Takes up to a 4.5 stroke with a steel rod. This pan requires our 15-450 pickup.

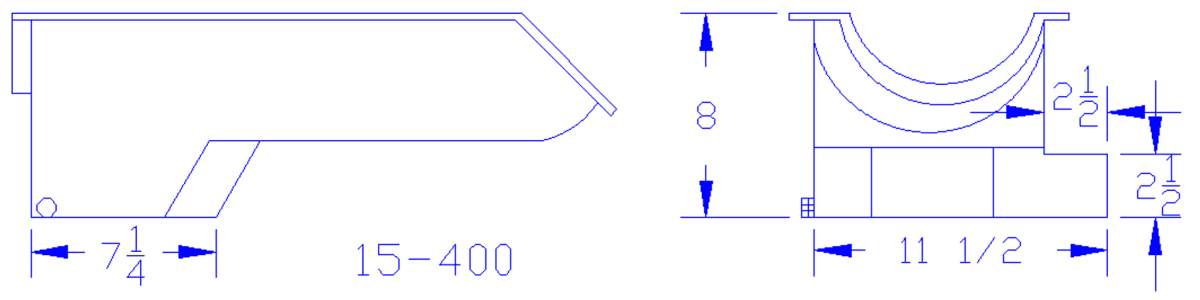

SIZE: 7" deep, 10-1/2" long sump for a 6 quart system capacity.

OIL PAN PART #: 15-450BK Canton Pontiac 301-455 High Capacity Oil Pan. Powdercoated Black

RECOMMENDED ACCESSORIES:
15-451 - Pickup with 3/4" Inlet for M-54DS or M-10541 Oil Pumps
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
88-400 - Pontiac Oil Pan Gasket
