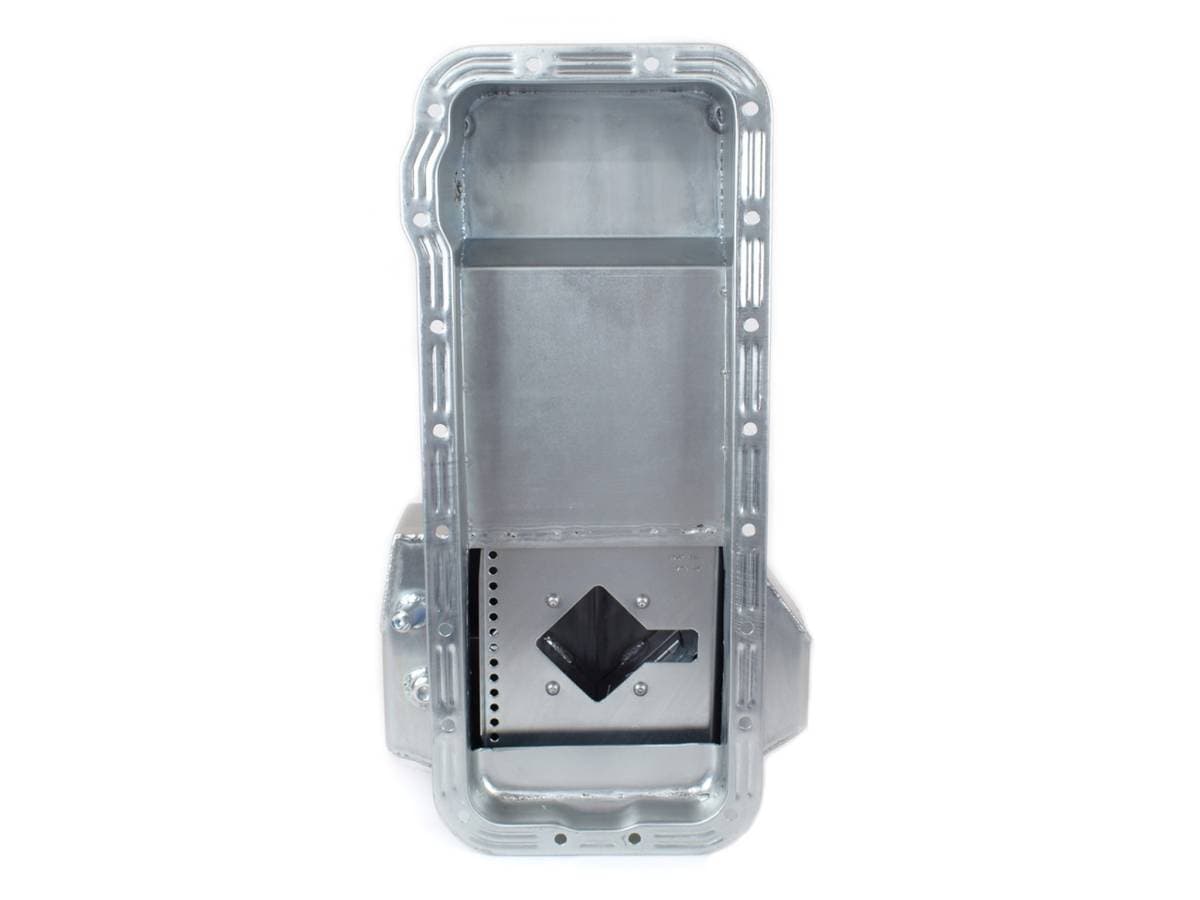

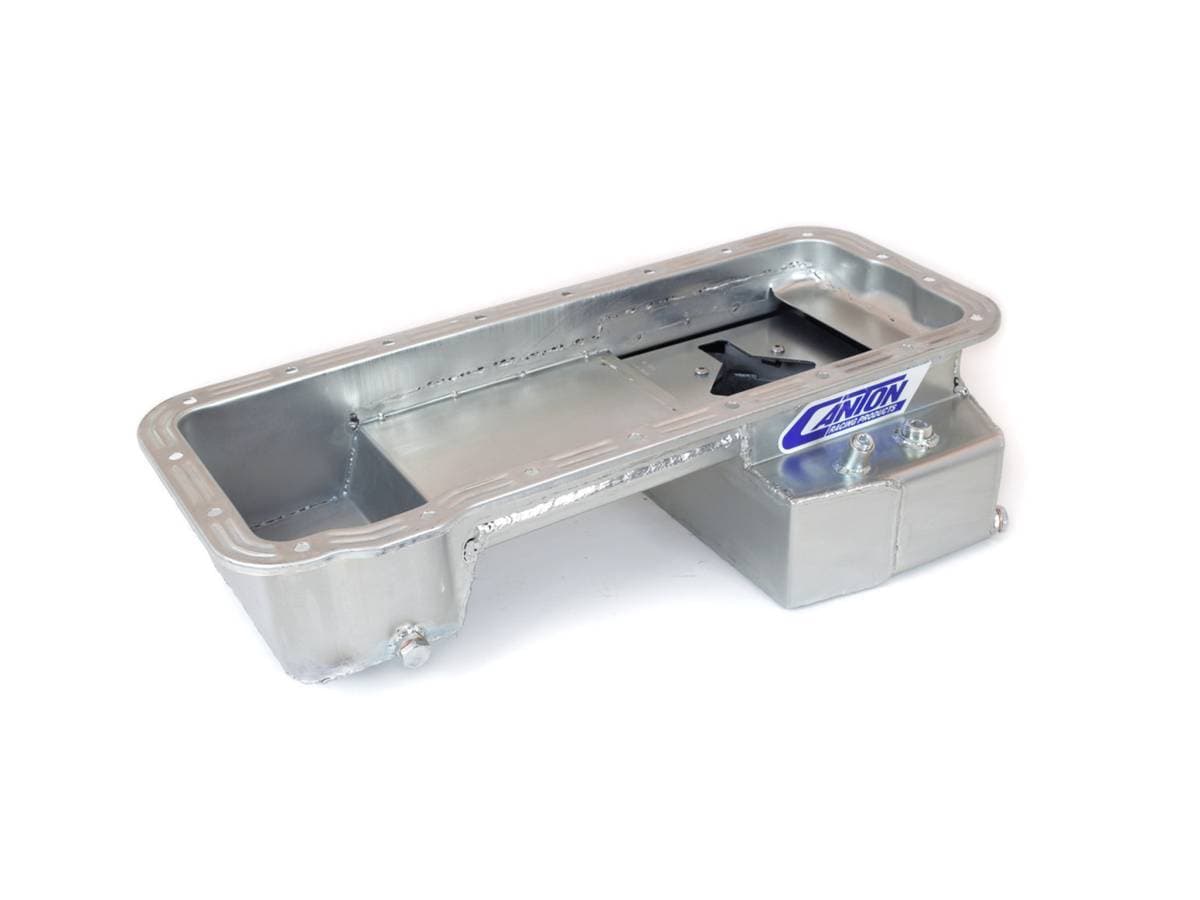

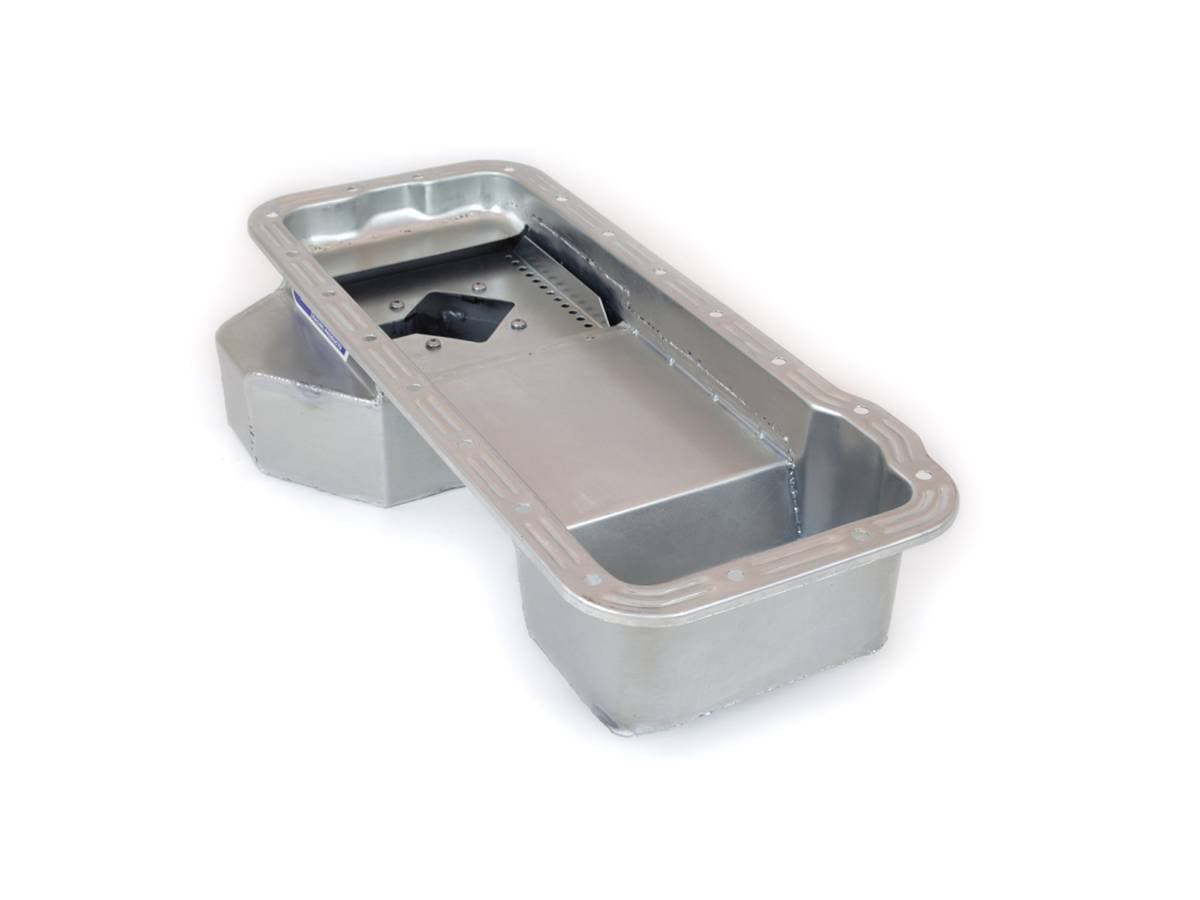

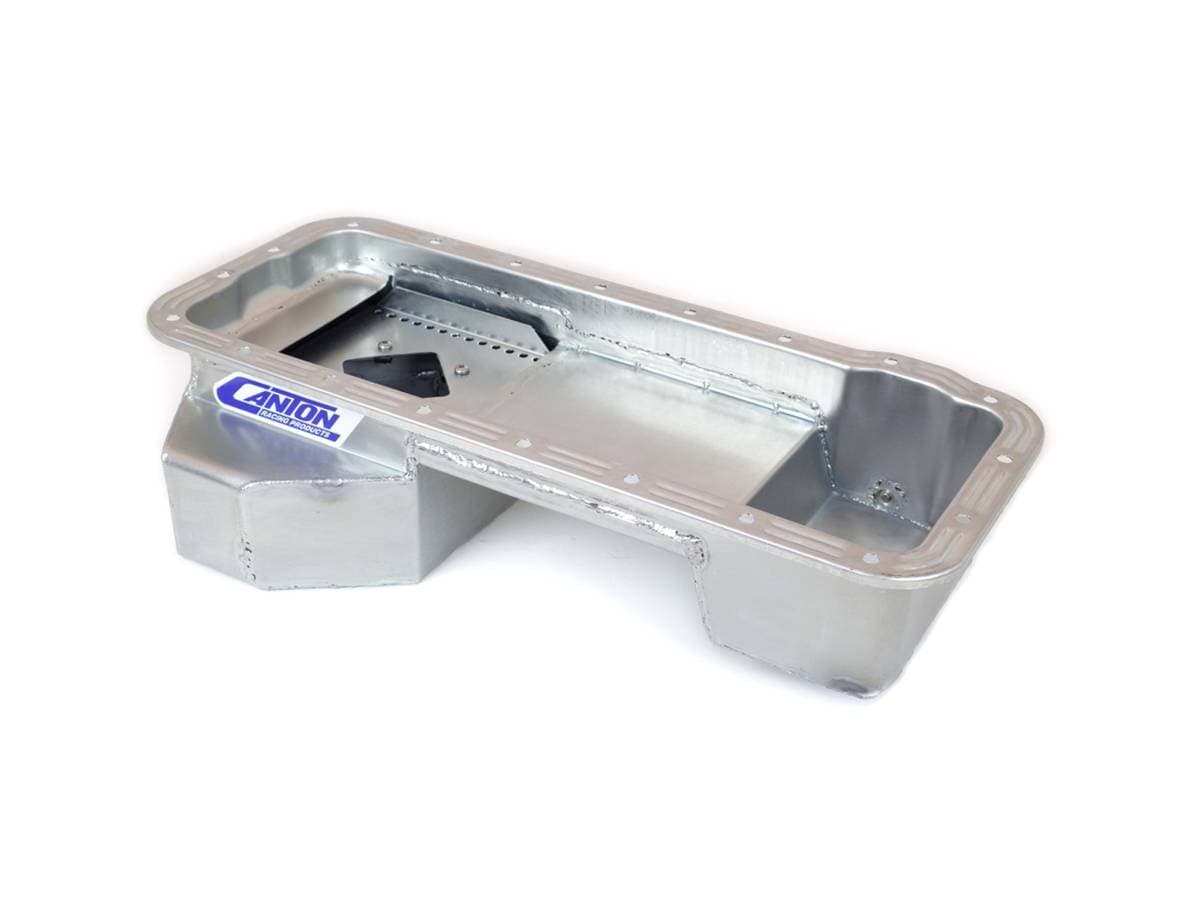

Canton Ford 332-428 FE Rear T Sump Road Race Oil Pan - Black

This "T" style Ford 332-428 FE rear sump oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6" deep, 13" wide by 8" long sump with a 7 quart system capacity.

Note: This pan requires our 15-875 pickup.

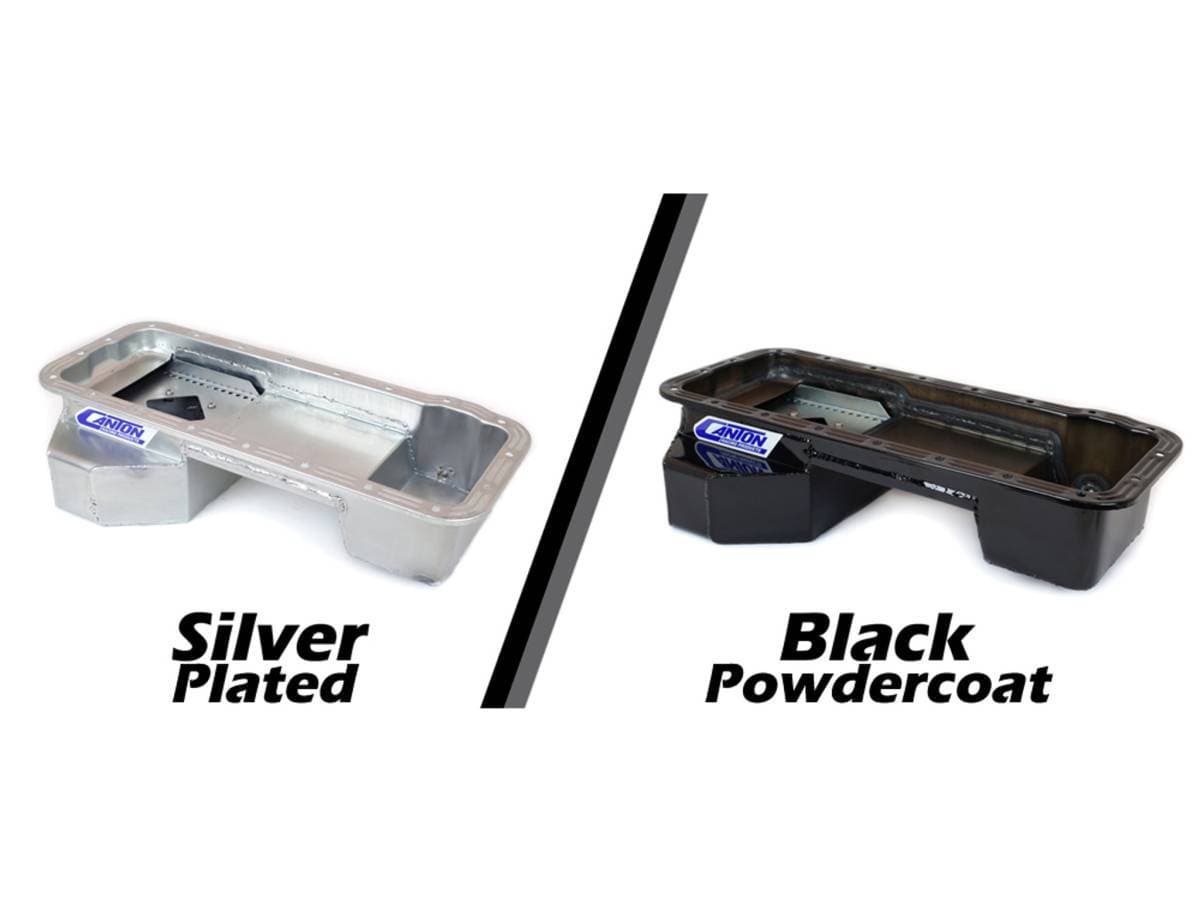

Pictures are for reference, oil pan would come black*

FEATURES: Diamond Shape Road Race Baffle Assembly With Six Trap Doors, 1/2" NPT Temperature Bung, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug

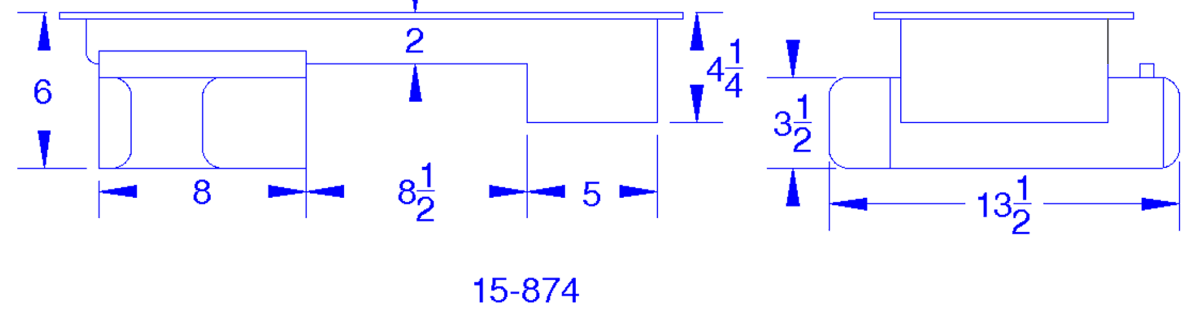

SIZE: 6" deep, 13" wide by 8" long sump with a 7 quart system capacity.

OIL PAN PART #: 15-874BLK for Ford 332-428 FE engines For early Mustangs with Rack and Pinion conversion front ends installed. Powdercoated Black

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-875 - Pickup for FE 15-874 Pan
PART #: 20-953 - Pickup Mounting Stud for Ford 332-428 FE Based Engines
PART #: 20-938 - Ford 332-428 FE Screen Windage Tray
PART #: 88-800 – Ford FE Oil Pan Gasket
PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
