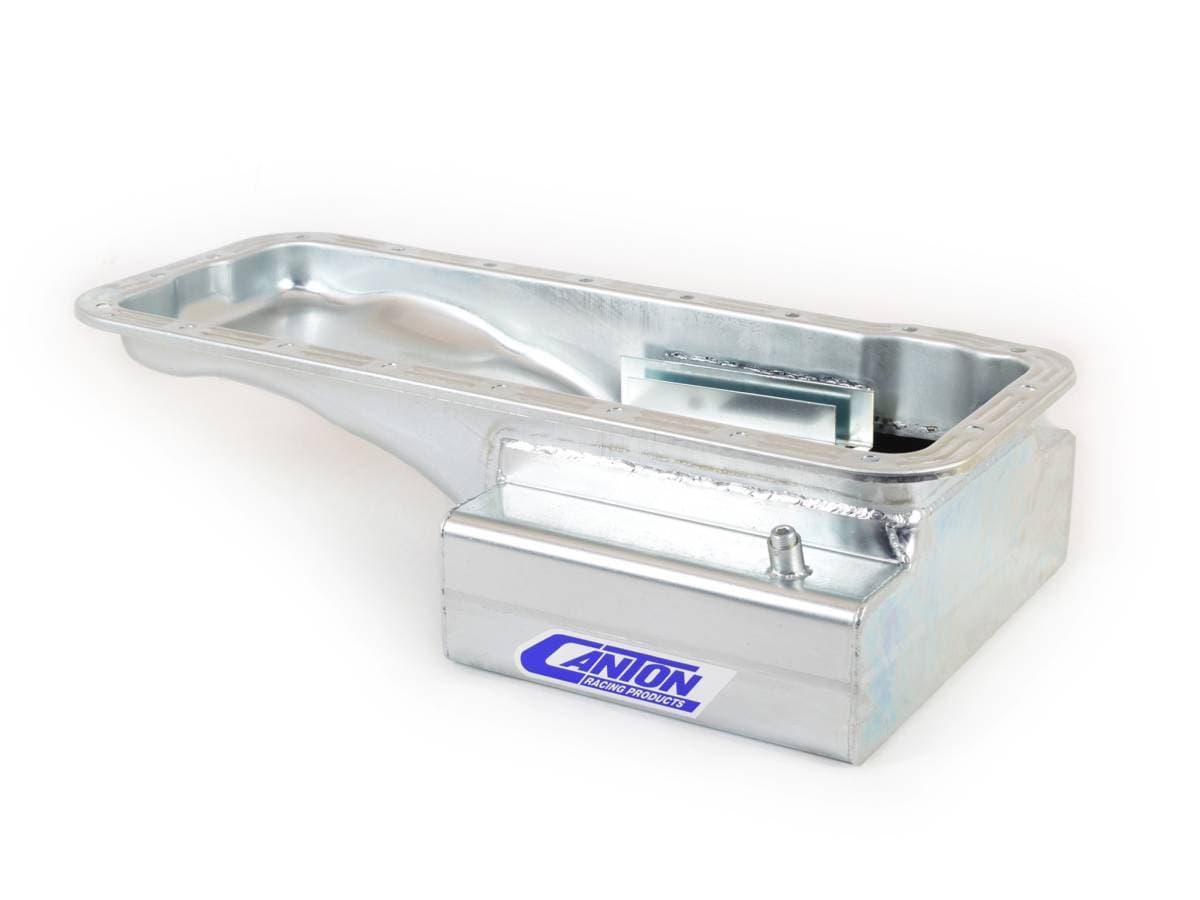

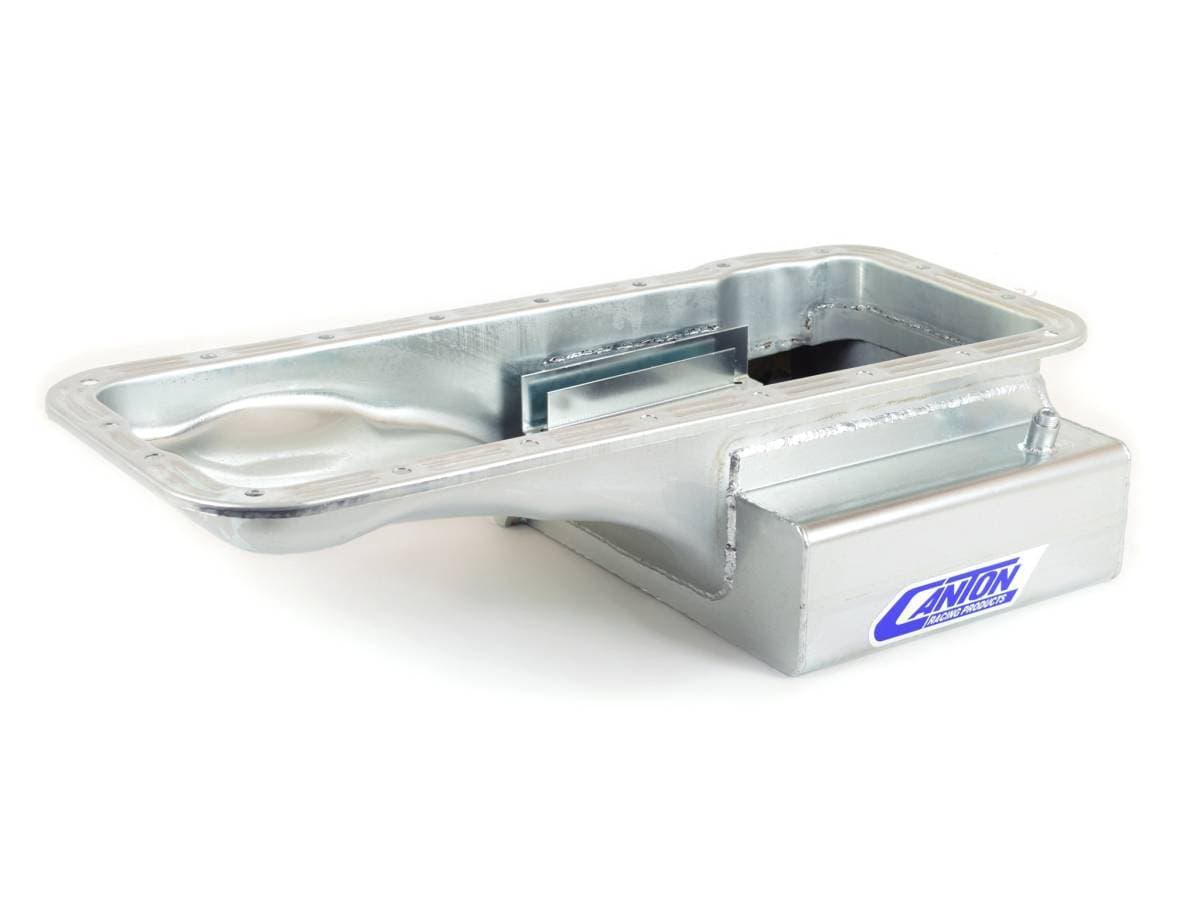

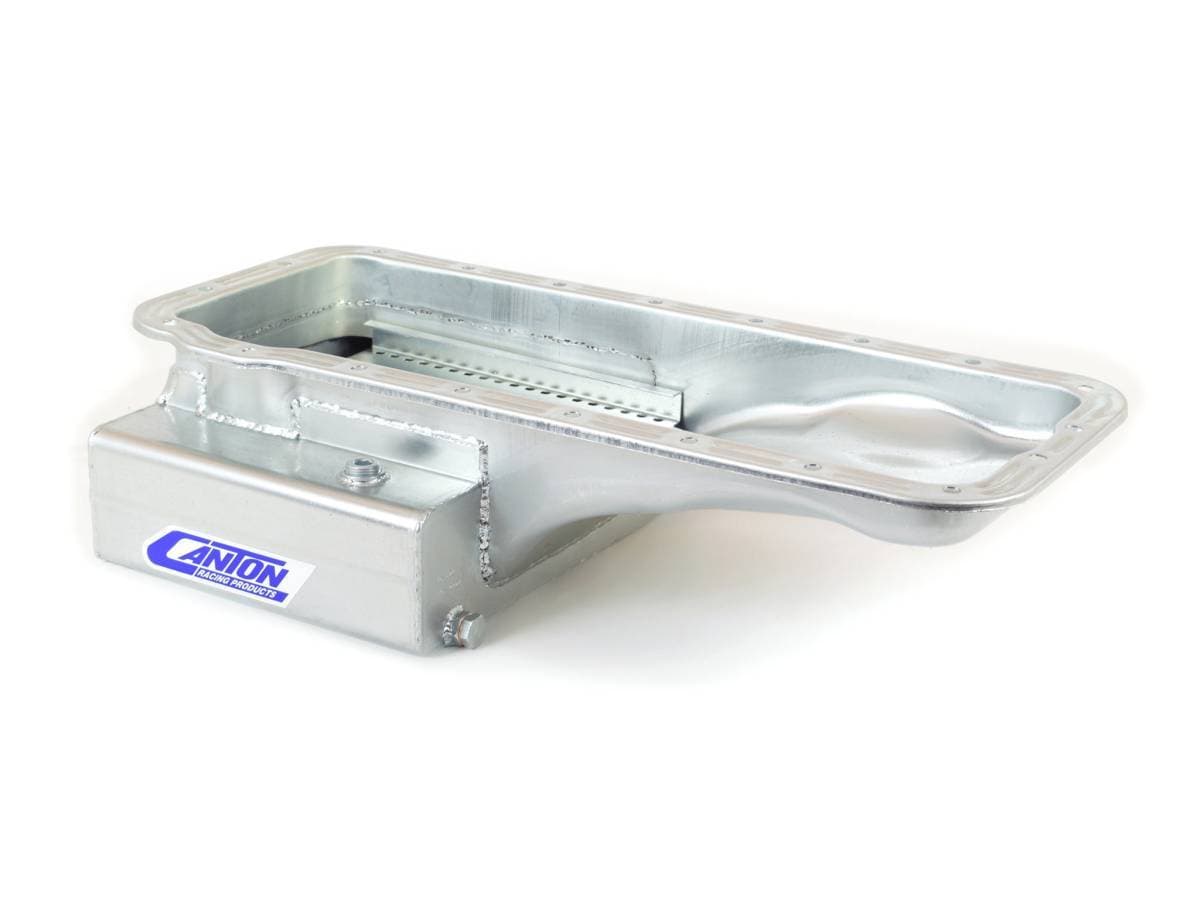

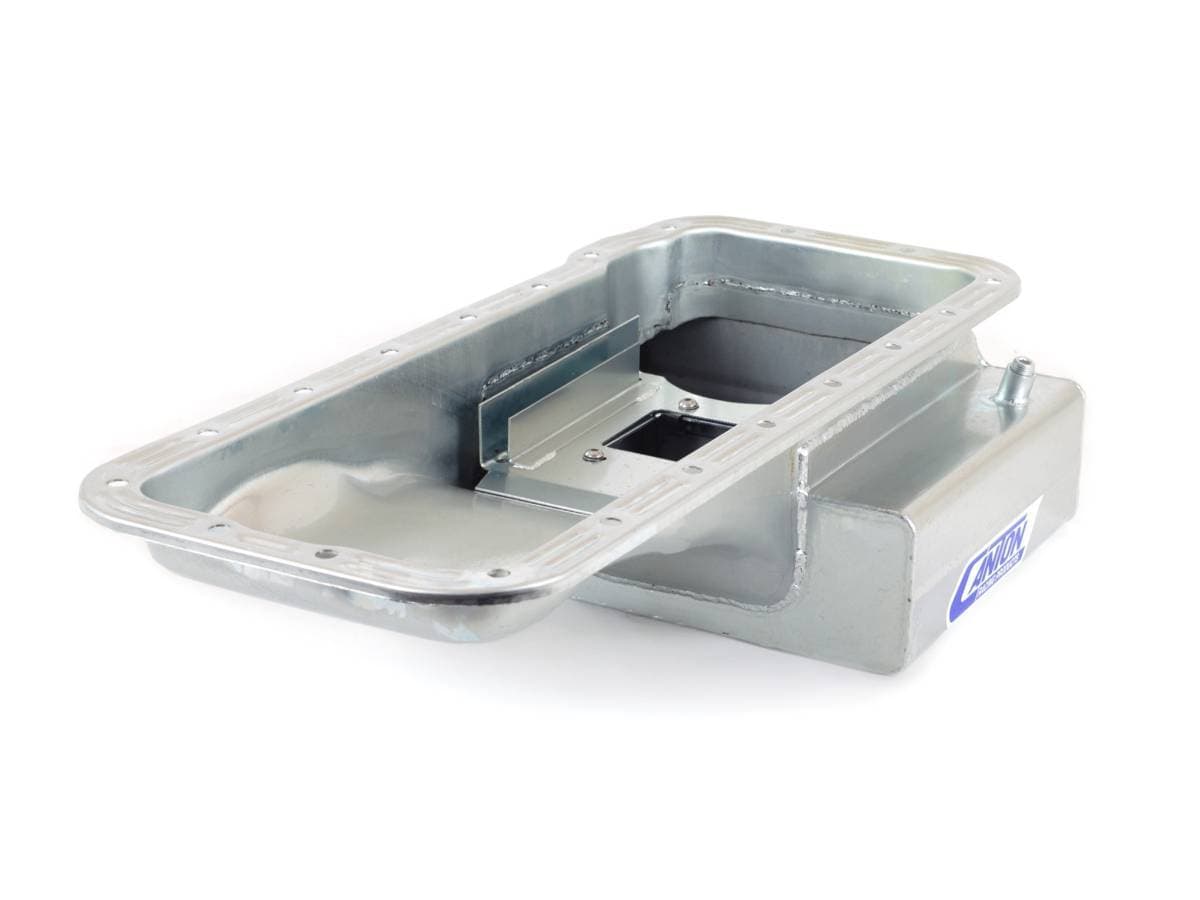

Canton Ford 332-428 FE Front T Sump Street Oil Pan

This front sump Ford 332-428FE road race pan is ideal for Mustangs or Cobra Kit Cars. It has a 6" deep, 13" wide by 10" long sump for an 8 quart system capacity. "T" style sump to increase capacity without losing ground clearance.

Note: This pan requires our 15-821 pickup.

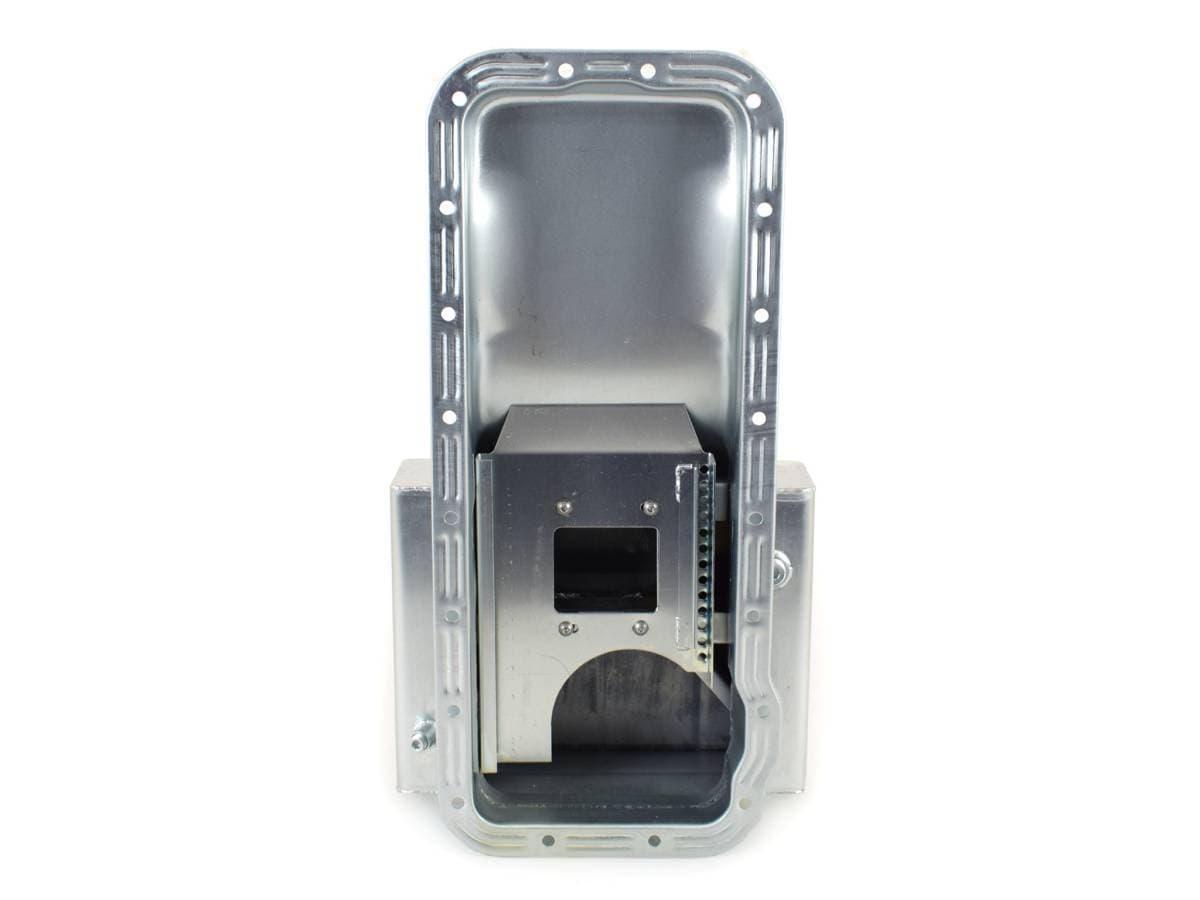

FEATURES: Diamond Shape Road Race Baffle Assembly With Six Trap Doors, Removable Windage/Anti-Slosh Baffle, 1/2" NPT Temperature Bung, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug

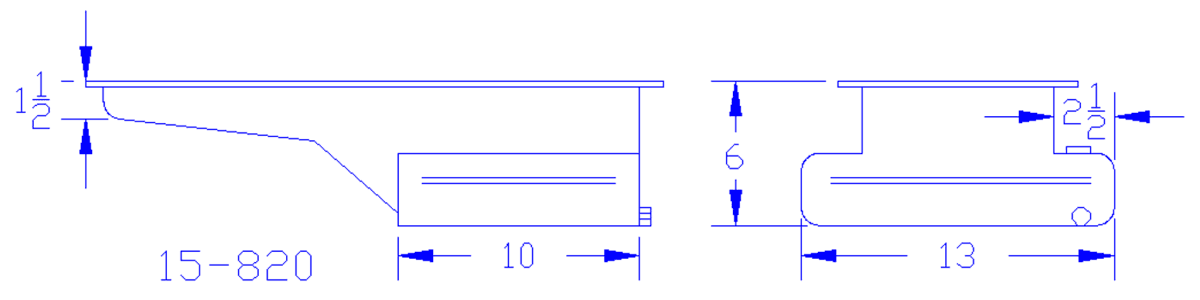

SIZE: 6" deep, 13" wide by 10" long sump for an 8 quart system capacity.

OIL PAN PART #: 15-820 for Ford 332-428 FE engines

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-821 - Pickup 3/4" Dia. Inlet
PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-938 - Ford 332-428FE Screen Windage Tray
PART #: 88-800 - Ford 332-428FE Oil Pan Gasket
