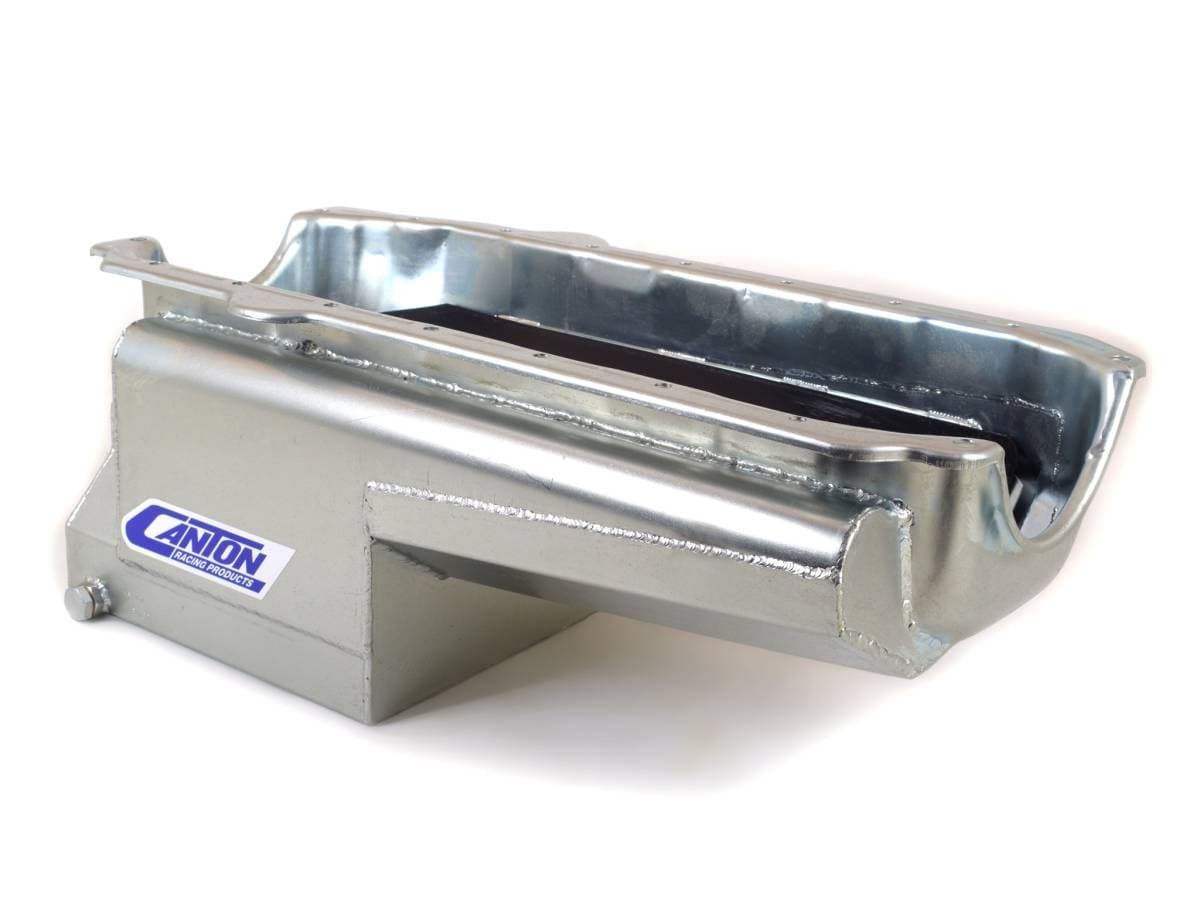

Canton Drag Race Chevy SBC Pre-1985 Blocks w/ Left Side Dipstick Oil Pan - Black

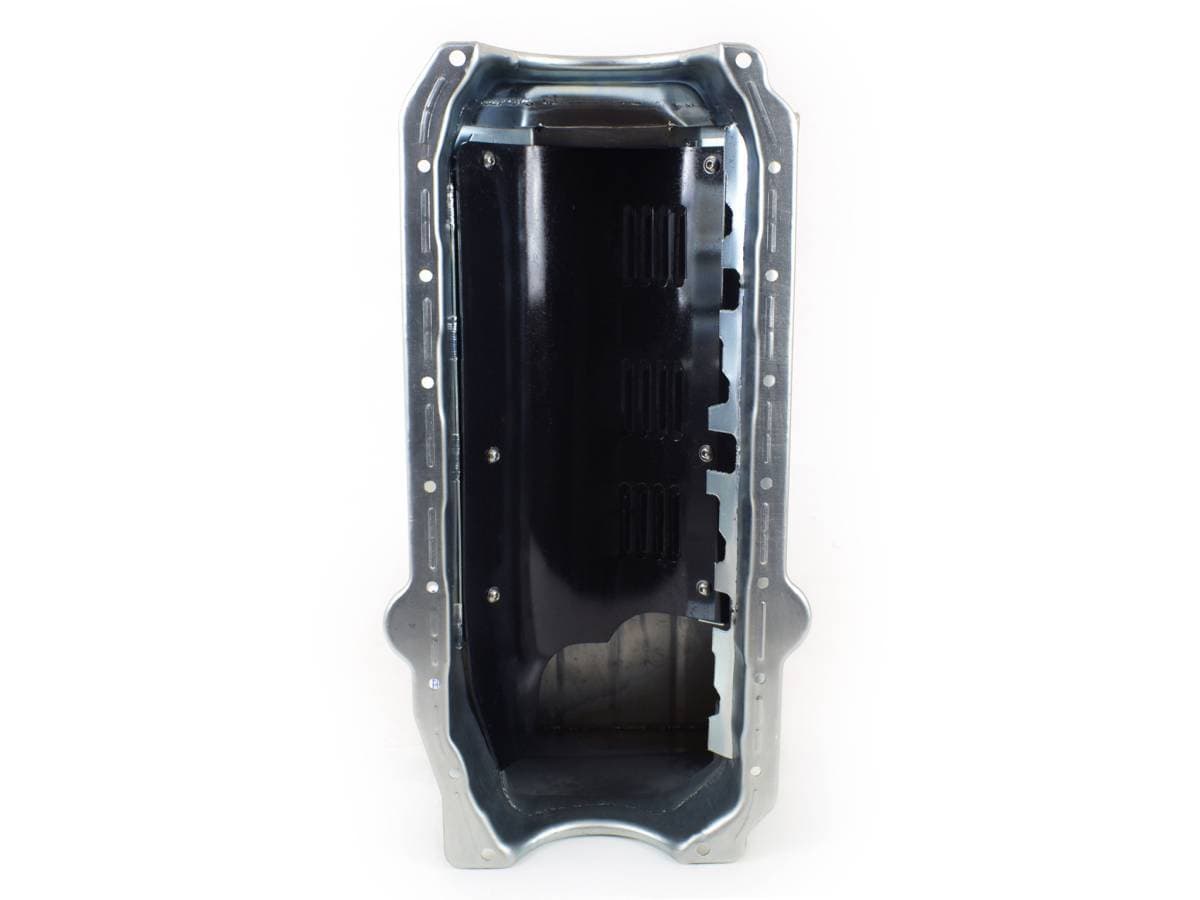

This Drag Race Oil Pan is for pre-’85 blocks with left side dipstick. It has an 8" deep by 10-1/2" wide sump and a 7 qt. system capacity. The pan features a full length oil recovery pouch with crank scraper, a teflon coated louvered windage tray to maximize power, a trap door baffle for oil control, a provision for the required pan mounted dipstick, and a magnetic drain plug.



Note: This pan requires one of Canton's pickups.

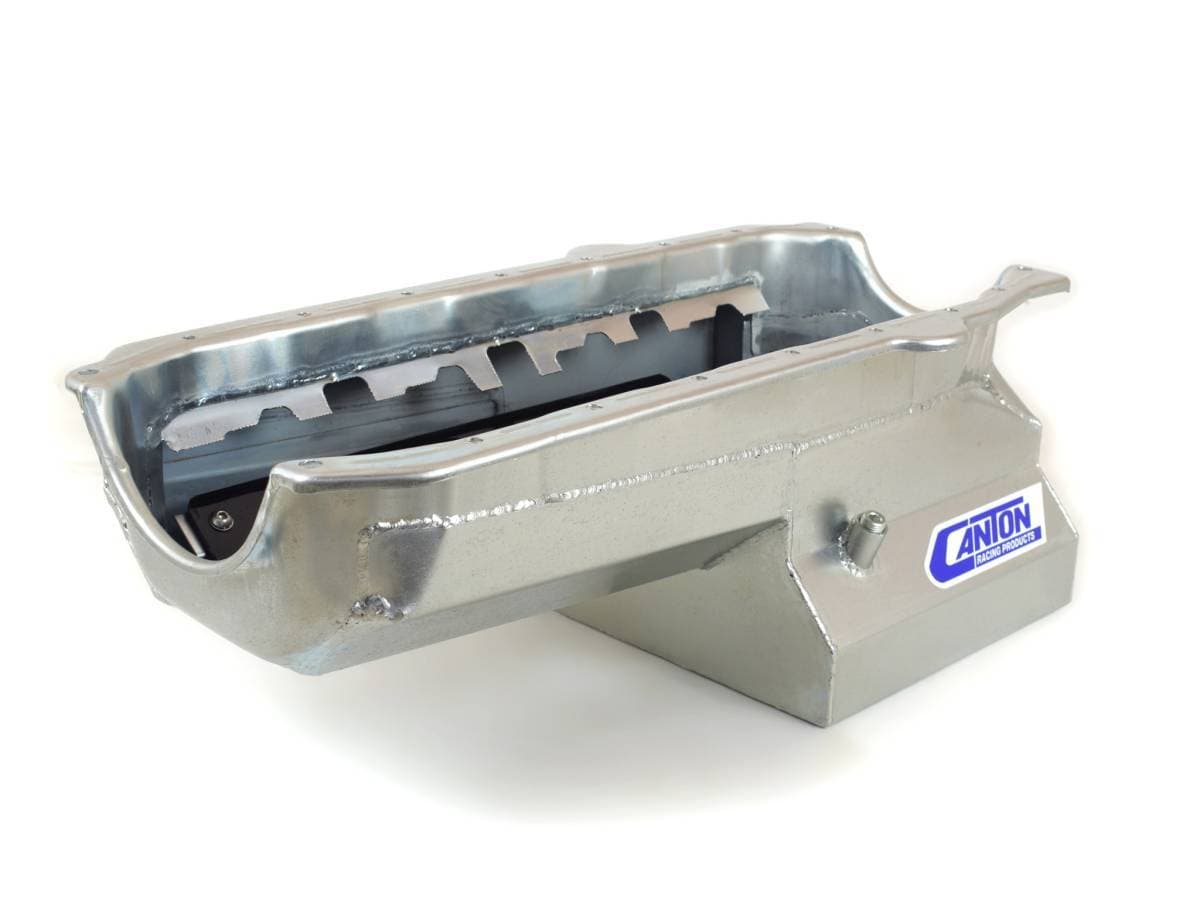

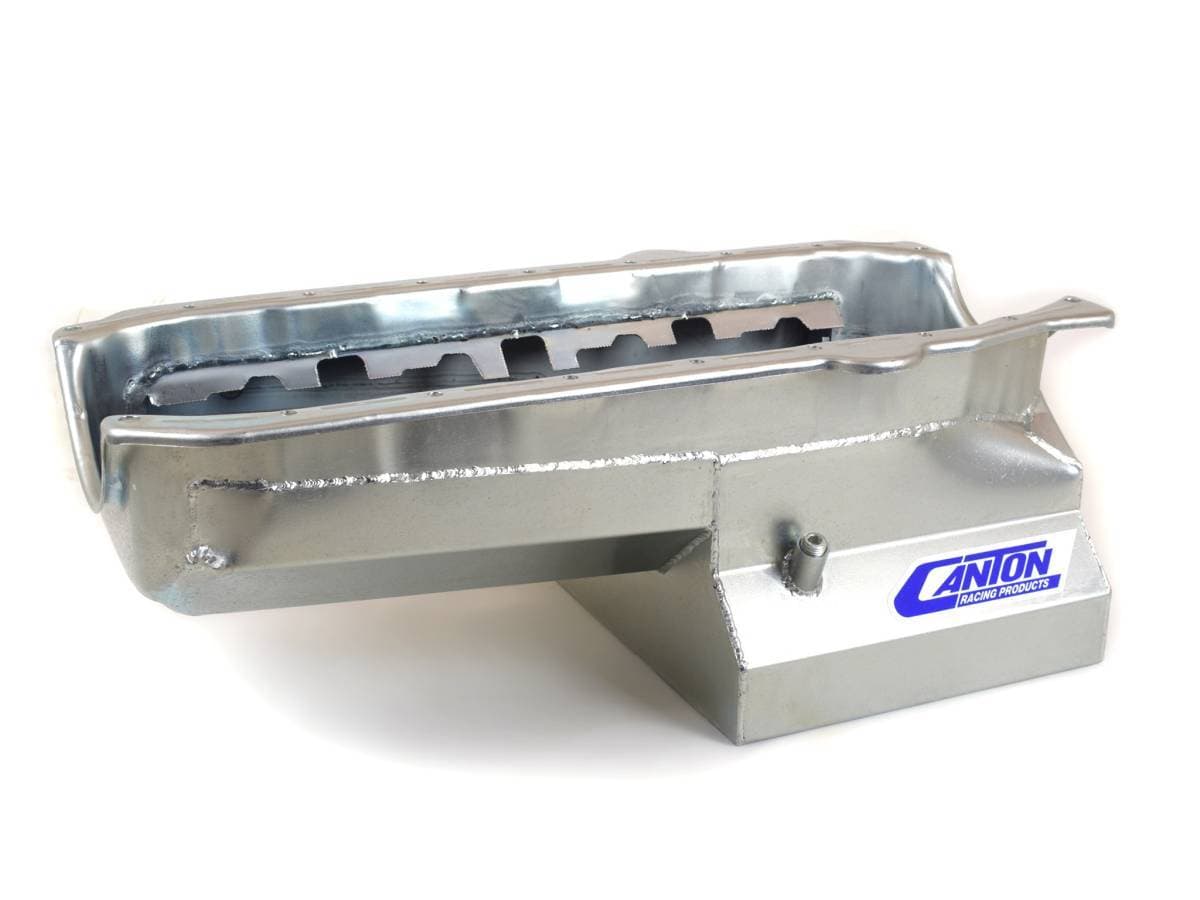

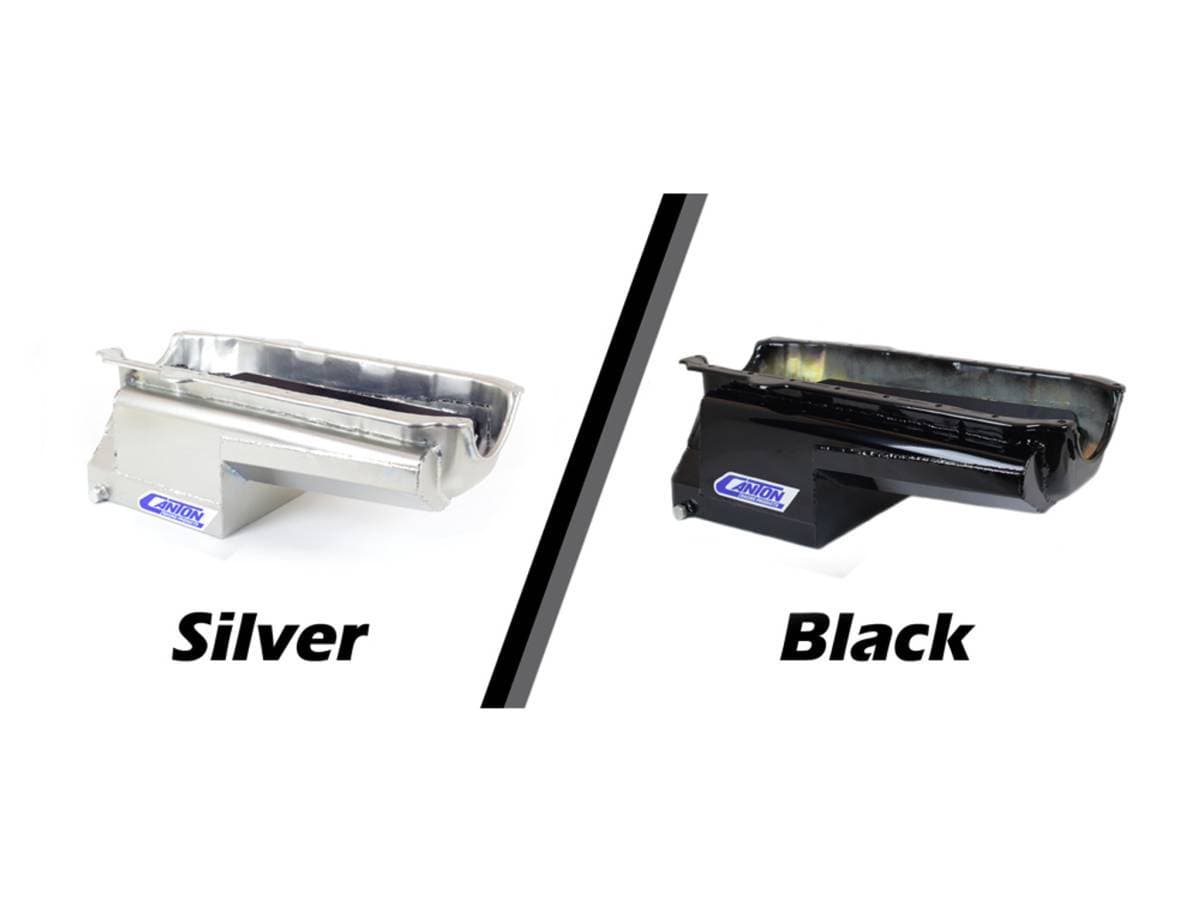

pictures are for reference, Oil pan would come black*

FEATURES: The pan features a full length oil recovery pouch with crank scraper, a teflon coated louvered windage tray to maximize power, a trap door baffle for oil control, a provision for the required pan mounted dipstick, and a magnetic drain plug.

STYLE: Clears a 3.875 stroke with a steel rod. This pan requires one of our pickups. Black Powdercoating

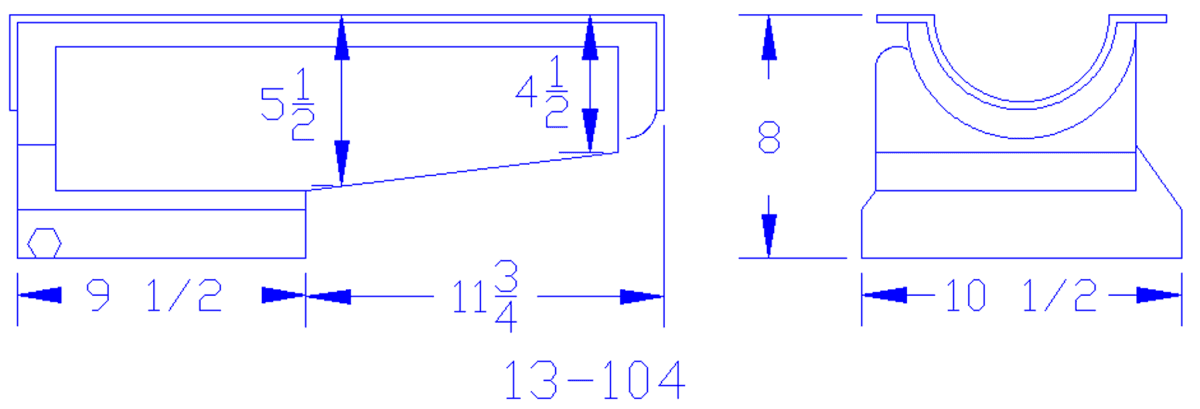

SIZE: It has an 8" deep by 10-1/2" wide sump and a 7 qt. system capacity.

OIL PAN PART #: 13-104BLK Canton Drag Race Chevy SBC pre-85 Blocks w/ Left Side Dipstick Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-050 for SB Stand. Vol. Pumps M55 & M55A.
PART #: 20-055 for SB Stand. Vol. Pumps w/ 3/4" tube M155.
PART #: 20-080 for SB H.V. Pumps M55HV.
PART #: 20-082 for SB H.V. Melling 10555 Pumps.
PART #: 20-085 for SB H.V. Pumps w/ 3/4" tube M155HV.

GASKETS:
PART #: 88-100 Gasket Oil Pan For Small Block Chevy Pre 1985

OIL DIPSTICK:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
