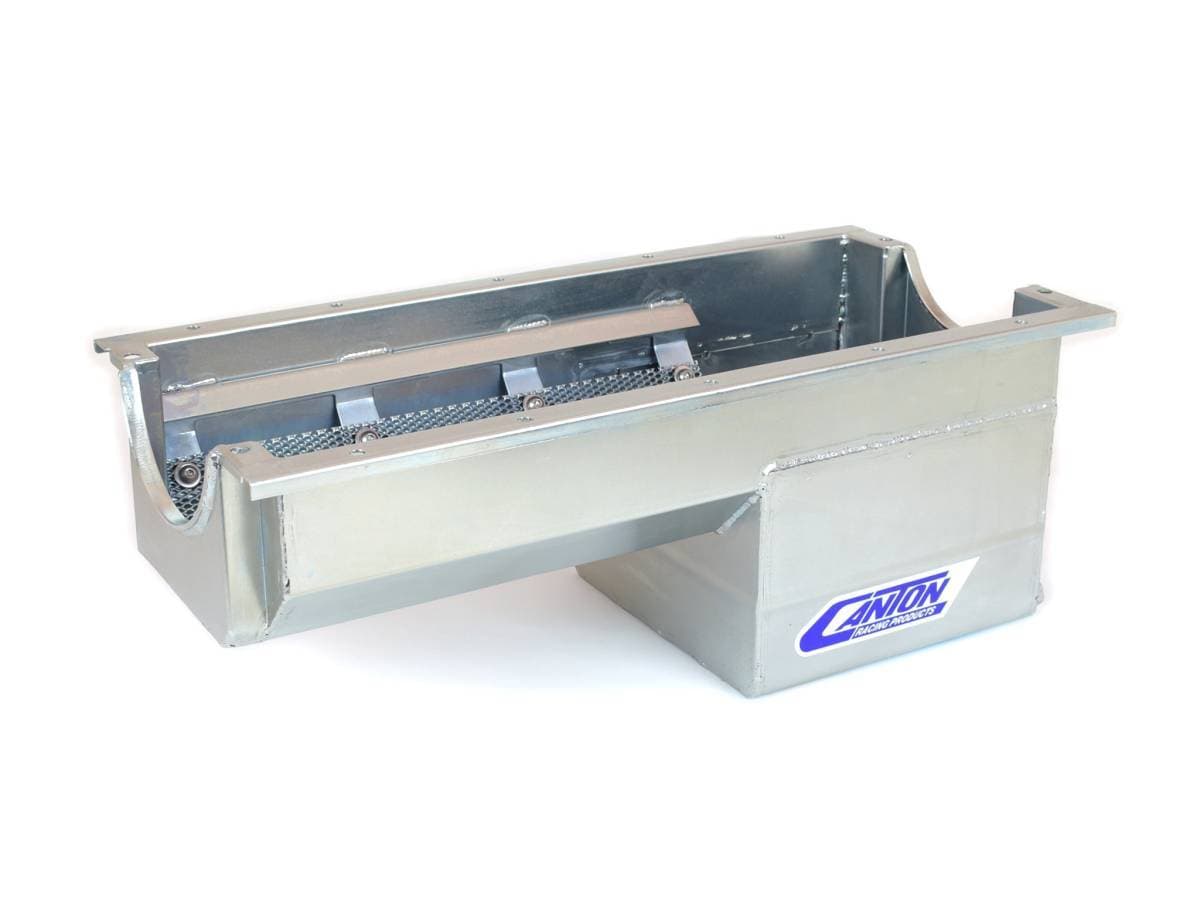

Canton Drag Race Chevy Oil Pan SBC Dart/Rocket Spread Rail Blocks - Black

This bracket drag race oil pan is for Dart/Rocket alum. and iron, spread rail blocks. It has an 8" deep by 9-1/2" long sump with a 6 qt. system capacity. The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug. Clears a 3.875 stroke with a steel rod.



This pan requires one of Canton's pickups.

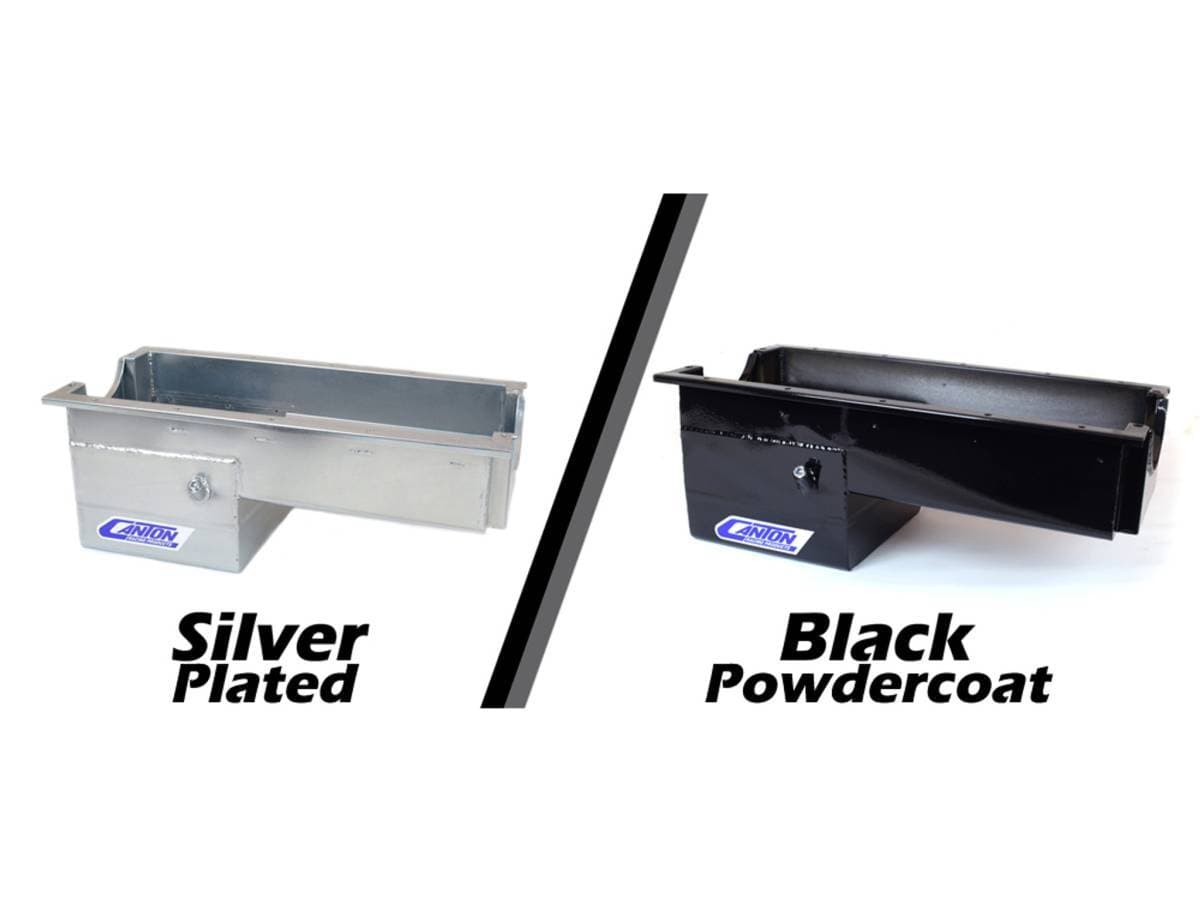

Pictures are for reference, oil pan would come black*

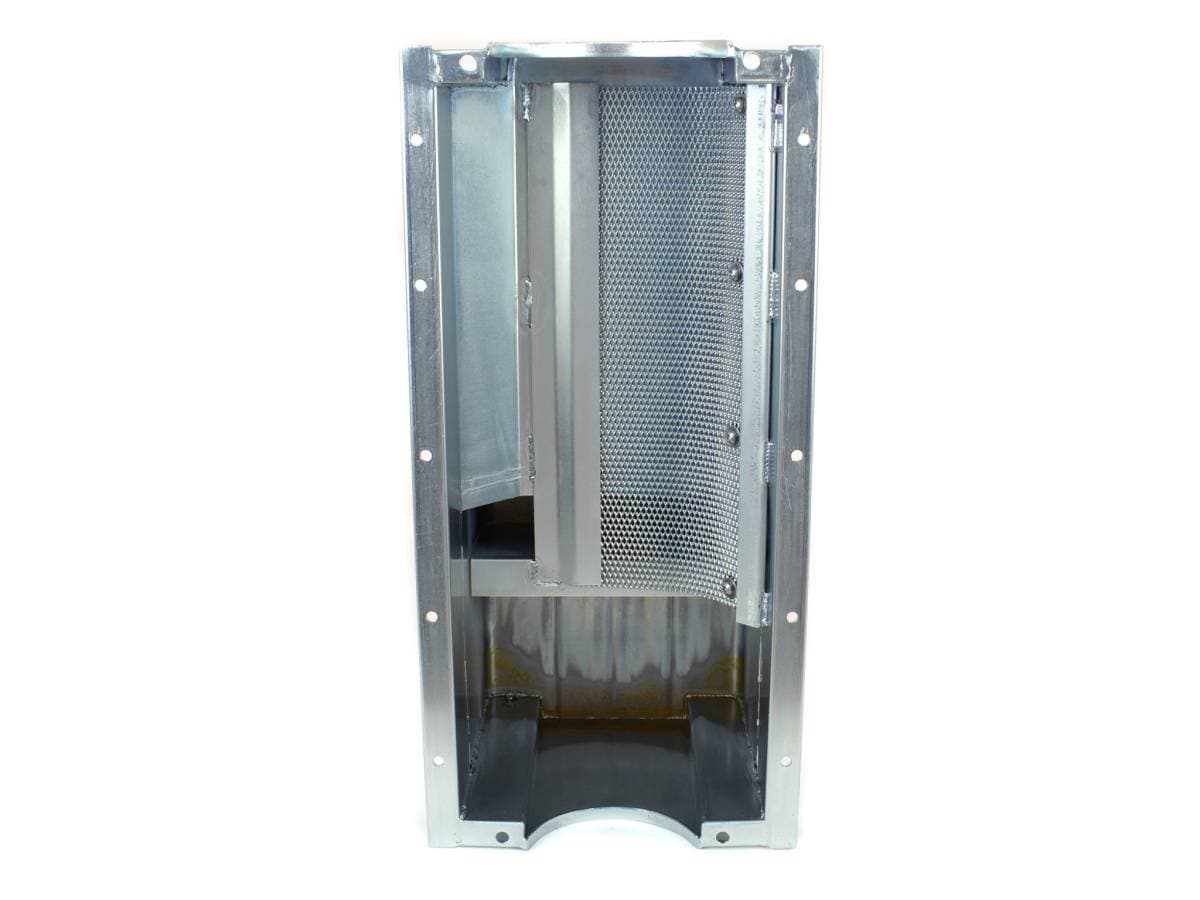

FEATURES: The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.

STYLE: Clears a 3.875 stroke with a steel rod. This pan requires one of our pickups. Black Powdercoating

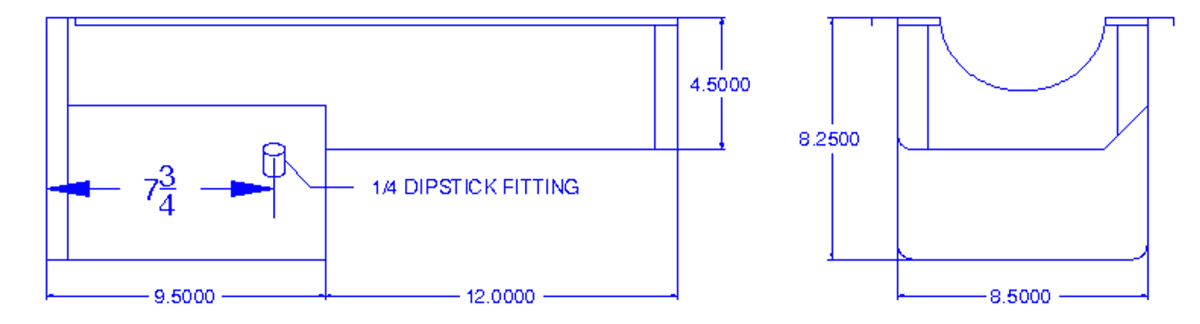

SIZE: It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity.

OIL PAN PART #: 13-090BLK Canton Drag Race Chevy SBC Dart/Rocket alum. and iron, spread rail blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-050 for SB Standard Vol. Pumps M55 & M55A.
PART #: 20-055 for SB Standard Vol. Pumps w/ 3/4" tube M155.
PART #: 20-080 for SB High Vol. Pumps M55HV.
PART #: 20-082 for SB.H.V. Melling 10555 Pumps.
PART #: 20-085 for SB High Vol. Pumps w/ 3/4" tube M155HV.

Oil Dipsticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
