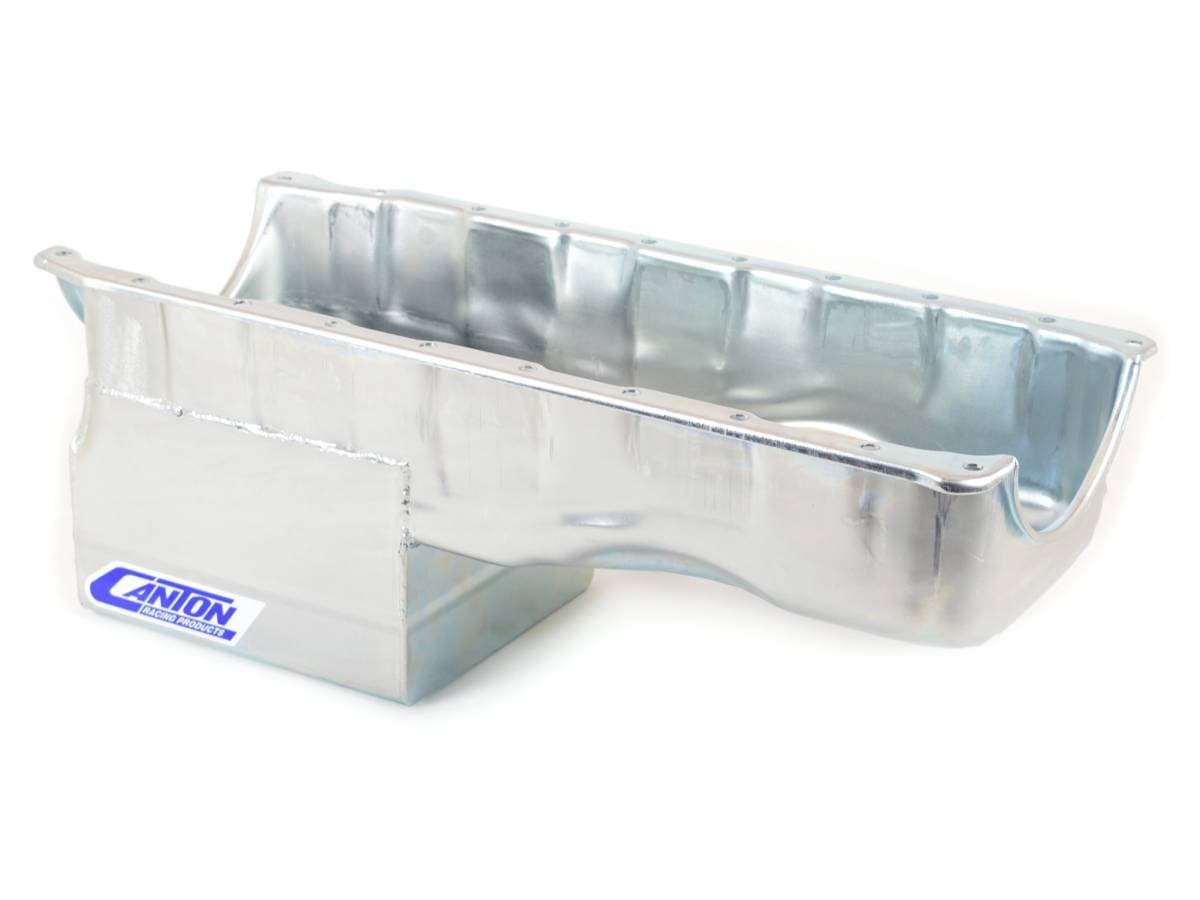

Canton Drag Race Chevy BBC Mark 5 / Gen. 6 Blocks Oil Pan - Silver

This BBC bracket drag oil pan is for Mark 5 / Gen. 6 blocks. w/1 piece seal. It has a 9" deep by 9-1/2" long sump and a 7 qt. system capacity. The pan features our competition oil recovery system, which includes a crank scraper and one-way screen windage tray combination designed to maximize power, and a trap door baffle for oil control. Pan also includes a provision for a pan mounted dipstick and a magnetic drain plug. Takes up to a 4.25 stroke with a steel rod.



Note: This pan requires our 20-190 pickup.

FEATURES: The pan features our competition oil recovery system, which includes a crank scraper and one-way screen windage tray combination designed to maximize power, and a trap door baffle for oil control.

STYLE: Takes up to a 4.5 stroke with a steel rod. w/1 piece rear seal. This pan requires our 20-190 pickup.

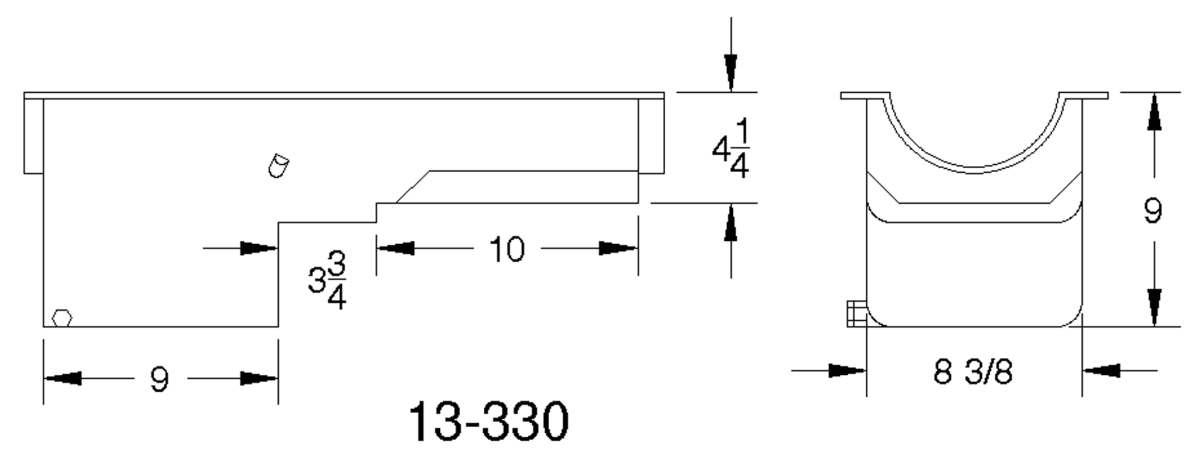

SIZE: It has a 9" deep by 9-1/2" long sump and a 7 qt. system capacity.

OIL PAN PART #: 13-330T Canton Drag Race Chevy BBC Mark 5 / Gen. 6 Blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-190 pickup for BBC pumps.

GASKETS:
PART #: OEM Gasket
