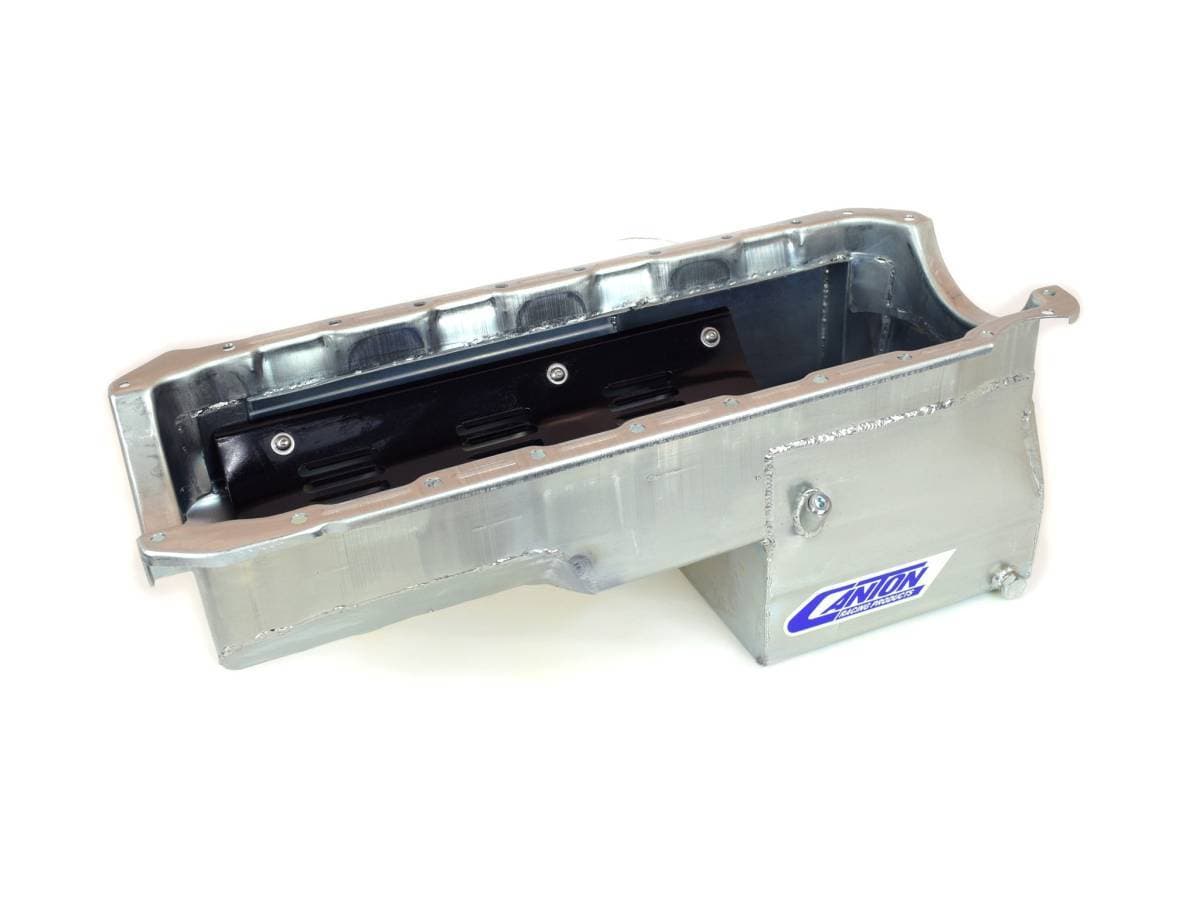

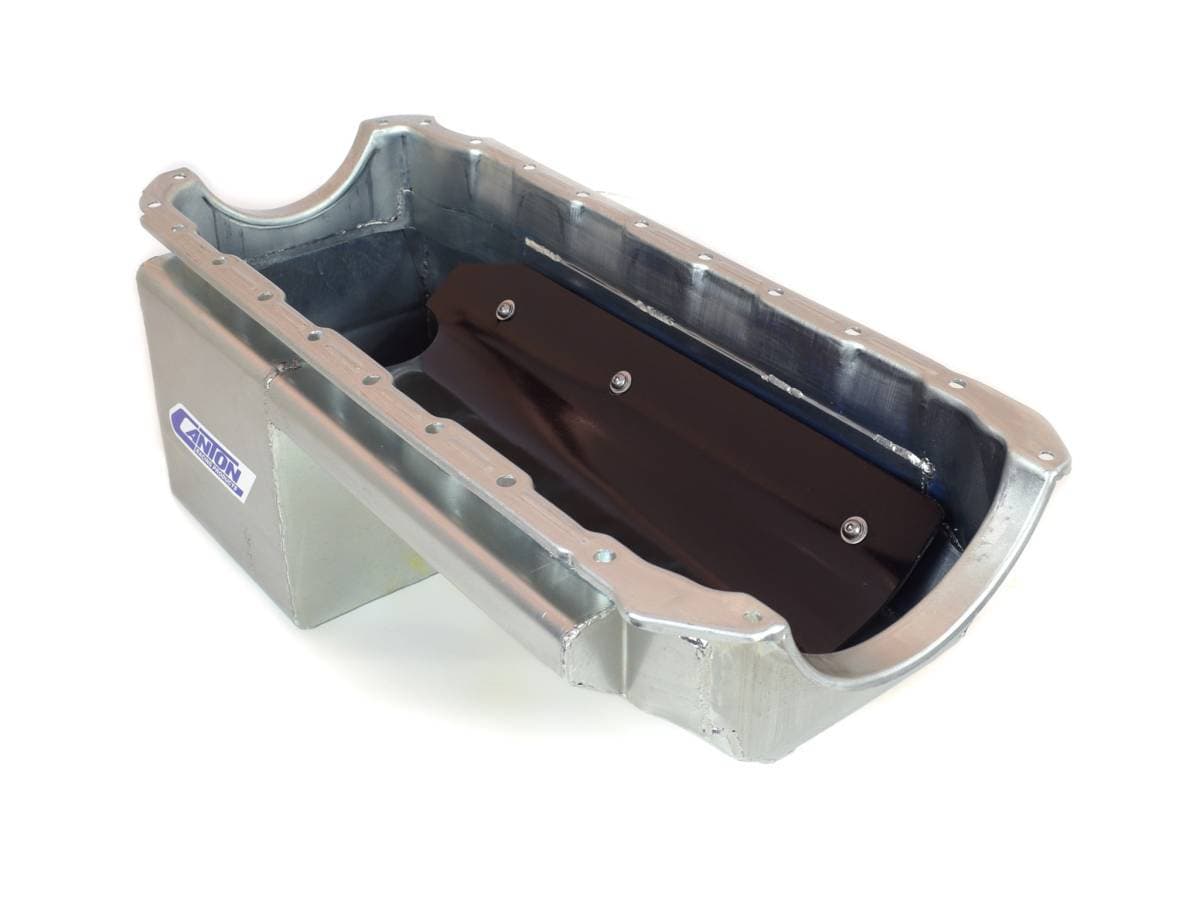

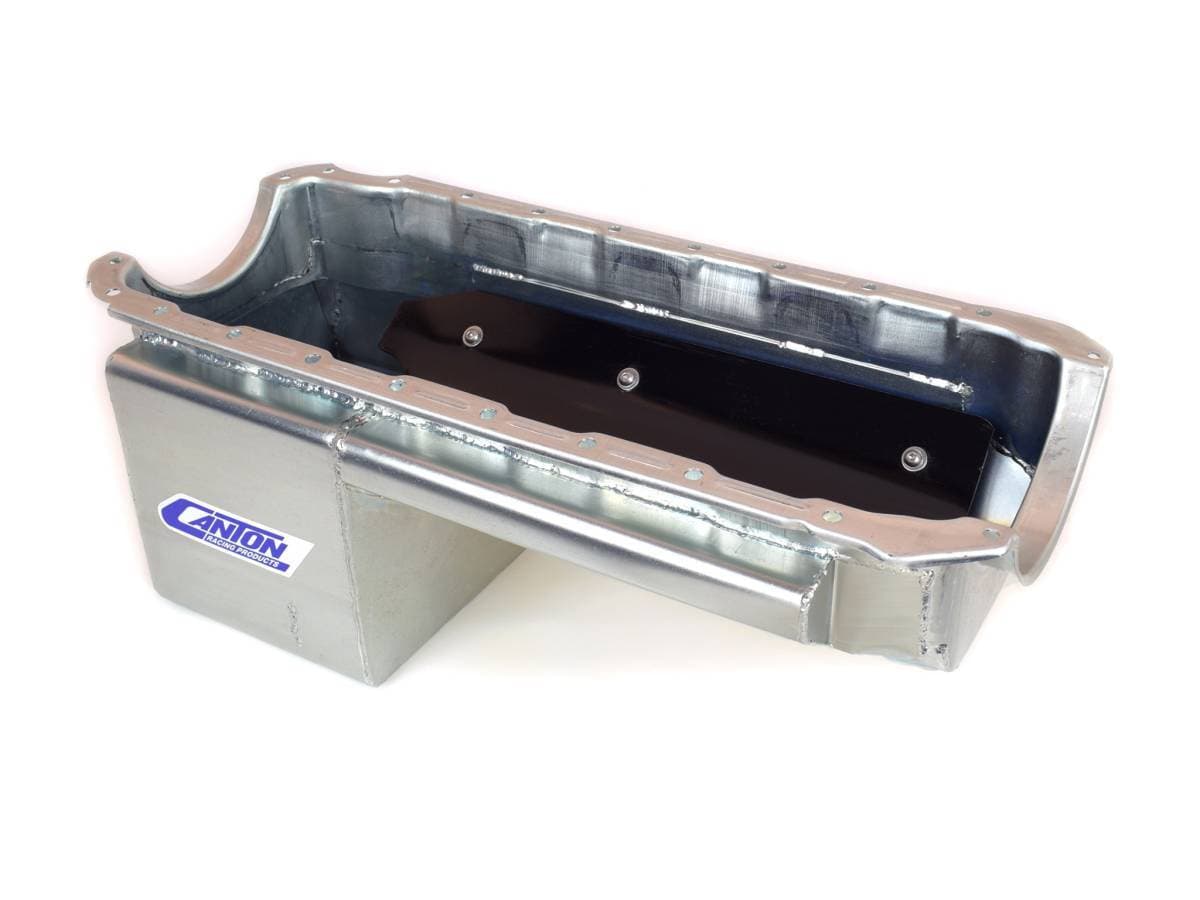

Canton Drag Race Chevy BBC Mark 4 Blocks With Aftermarket Offset Starters Oil Pan - Silver

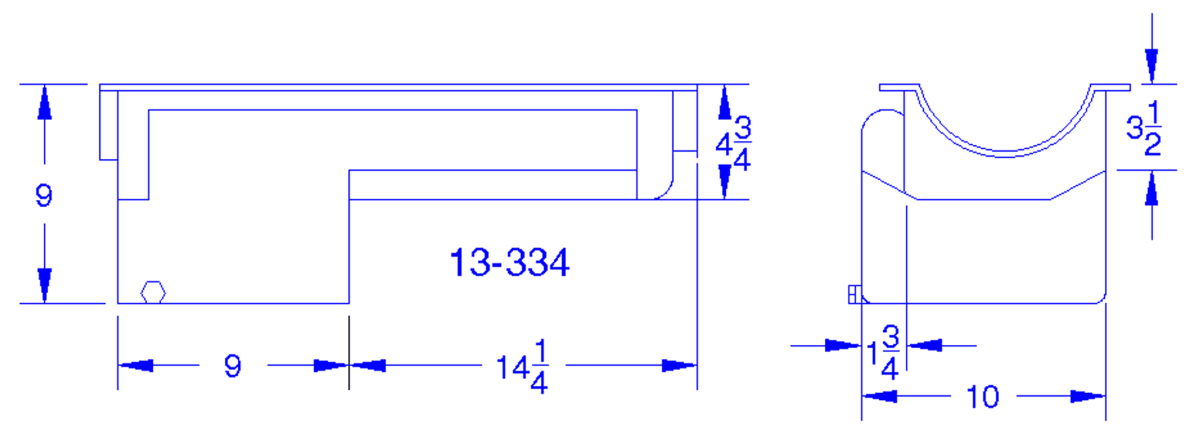

This BBC drag race power series oil pan is for Mark 4 blocks. It has a 9" deep by 9" long and 9" wide sump and a 7 quart system capacity. It is designed to fit most stock chassis. Will work with aftermarket offset starters.



Notes: This pan requires our 20-190 pickup.

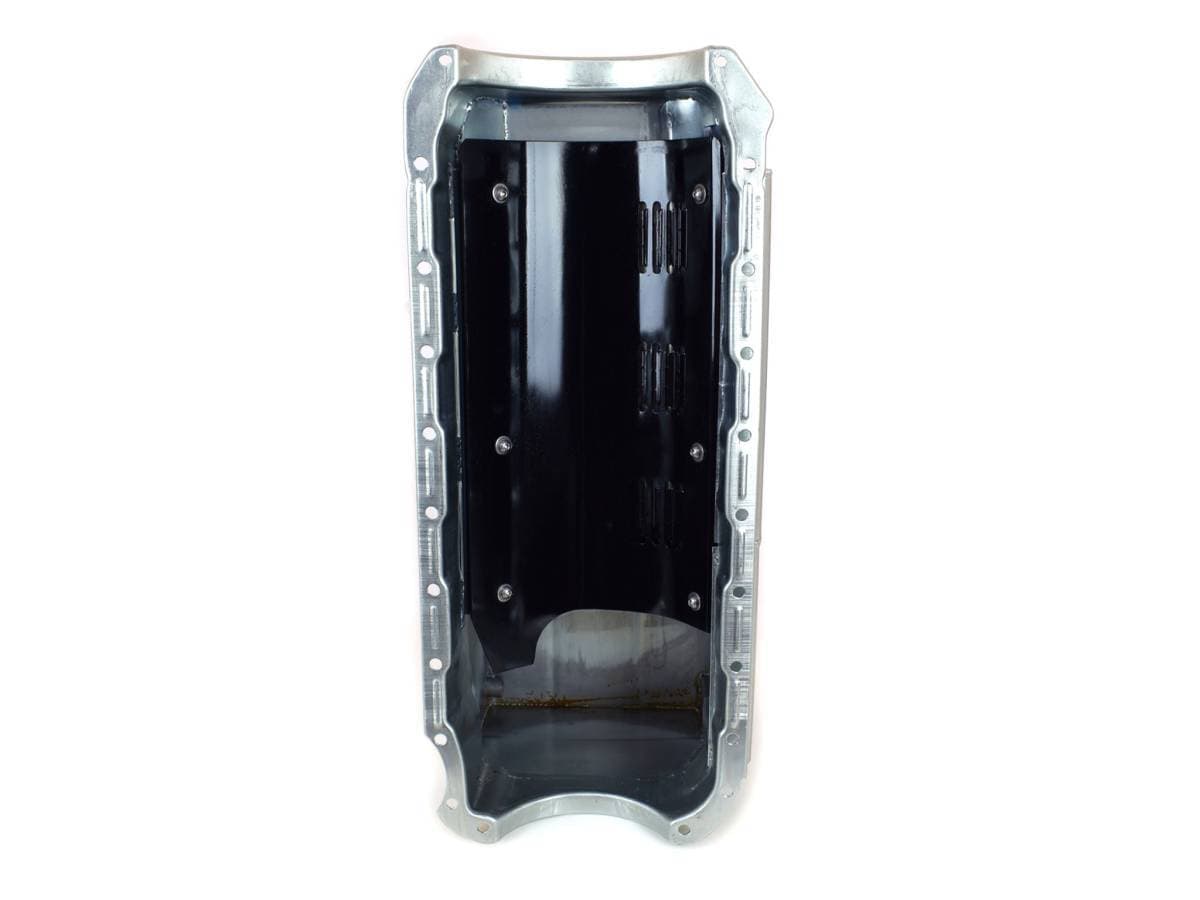

FEATURES: The pan features our competition oil recovery system, which includes a crank scraper and one-way screen windage tray combination designed to maximize power, and a trap door baffle for oil control.

STYLE: Takes up to a 4.5 stroke with a steel rod. This pan requires our 20-190 pickup.

SIZE: It has a 9" deep by 9" Wide sump and a 7 qt. system capacity.

OIL PAN PART #: 13-334 Canton Drag Race Chevy BBC Mark 4 Blocks Oil Pan Using Offset Aftermarket Starters.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-190 pickup for BBC pumps.

GASKETS:
PART #: 88-300 – BBC Mark IV Oil Pan Gasket
