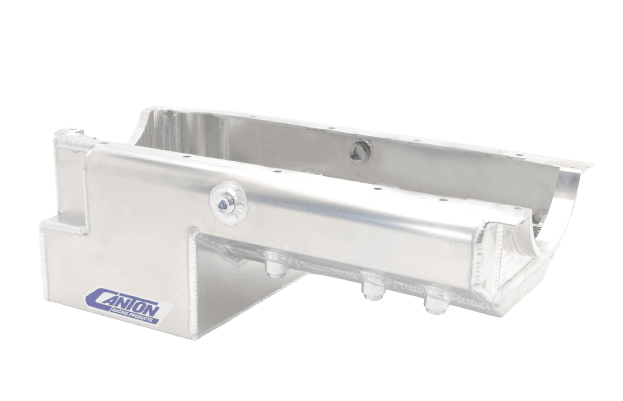

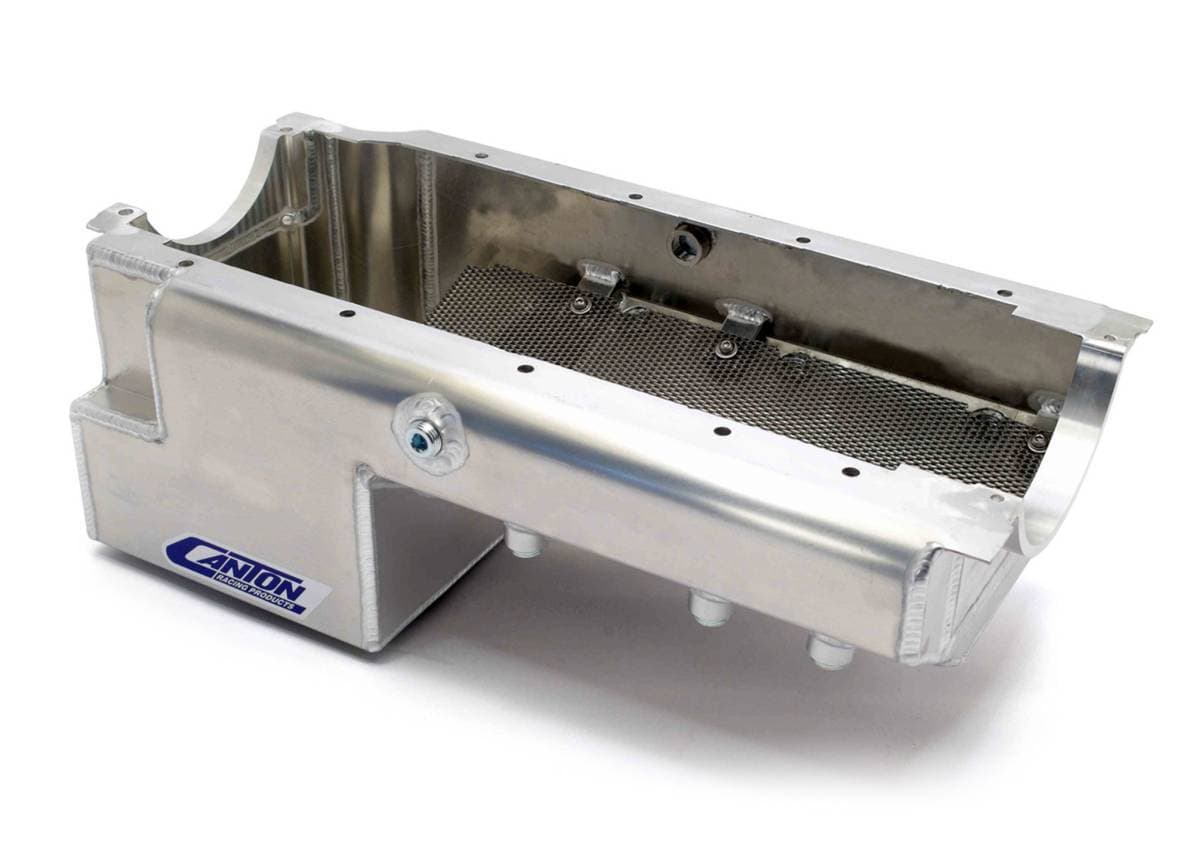

Canton Drag Race Chevy BBC Mark 4 Blocks Aluminum Oil Pan

This aluminum drag race oil pan is for BBC Mark 4 blocks. It has an 8" deep by 10" long and 12" wide sump and an 7qt. system capacity. Takes up to a 4.75" stroke with a steel rod.

Notes: This pan requires our #20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel..

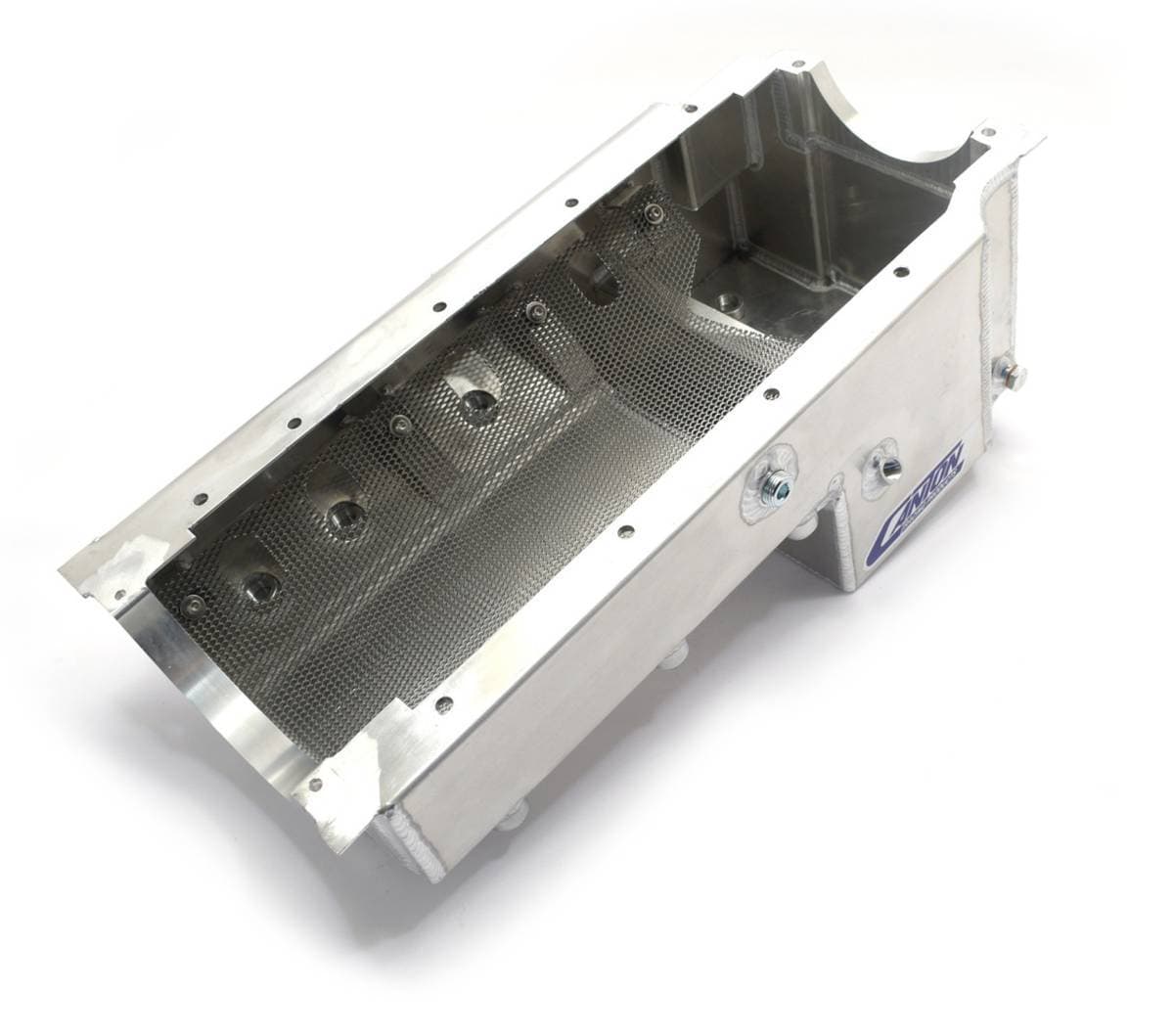

FEATURES: The pan features a horsepower saving oil recovery pouch and our competition oil recovery system, which includes a one-way screen windage tray combination designed to maximize power, and a trap door baffle for oil control.

STYLE: Takes up to a 4.75 stroke with a steel rod. This pan requires our 20-170 pickup.

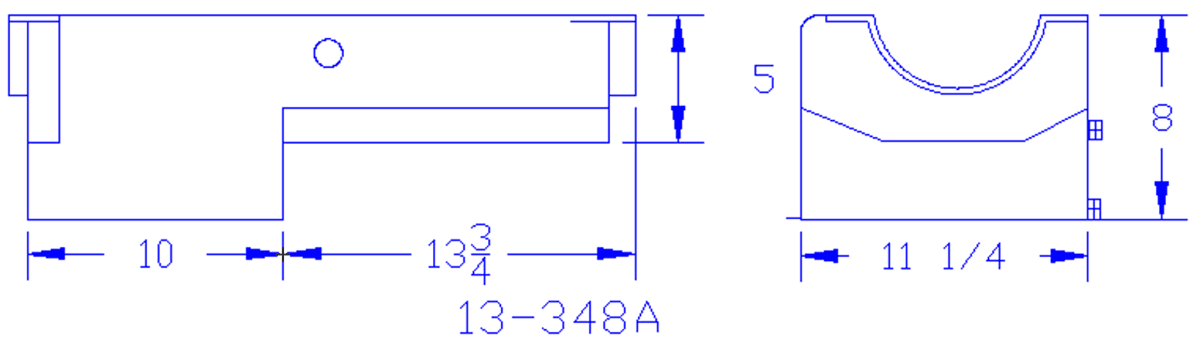

SIZE: It has an 8" deep by 10" long and 12" wide sump and an 7qt. system capacity.

OIL PAN PART #: 13-348A Canton Drag Race Chevy BBC Mark 4 Blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-170 pickup for BBC pumps.
