Canton Drag Race Chevy BBC Mark 4 Blocks 8qt Oil Pan - Black

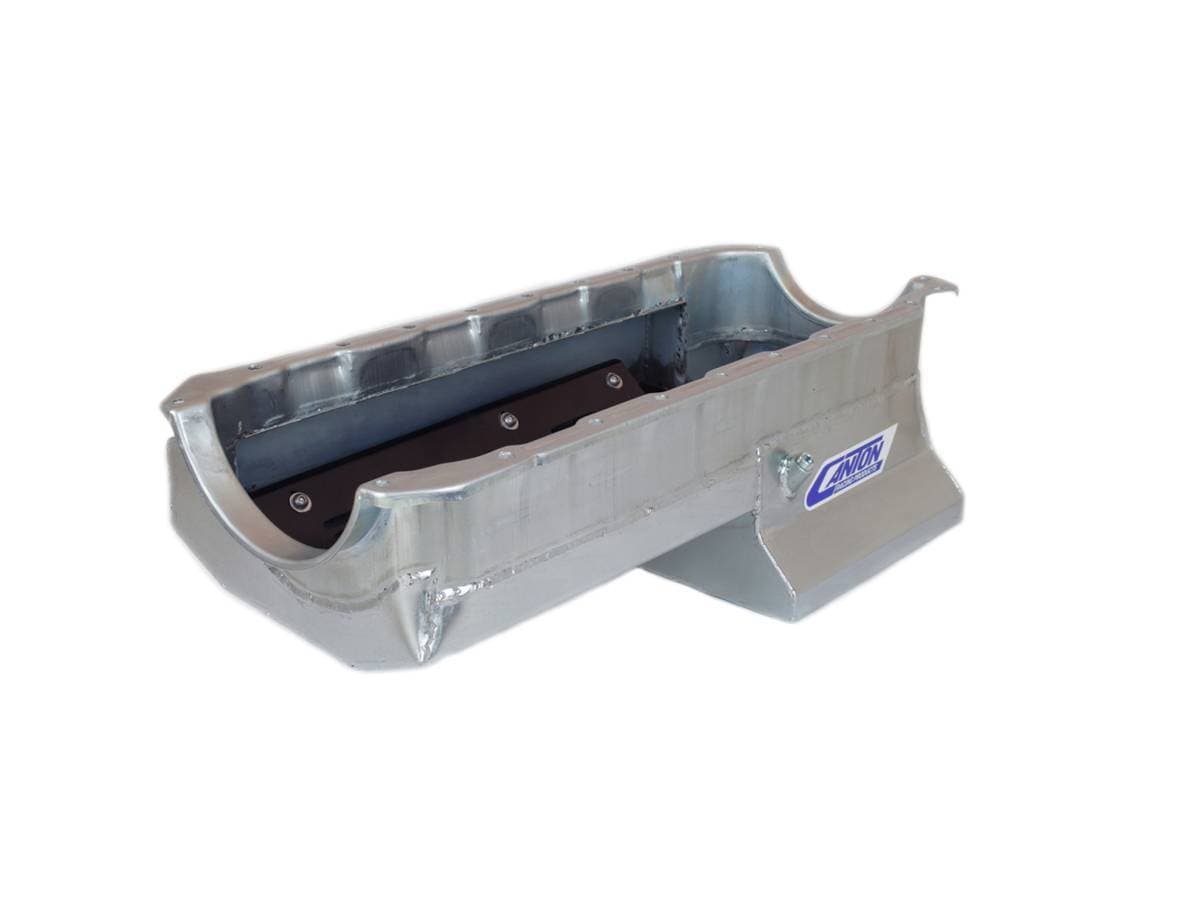

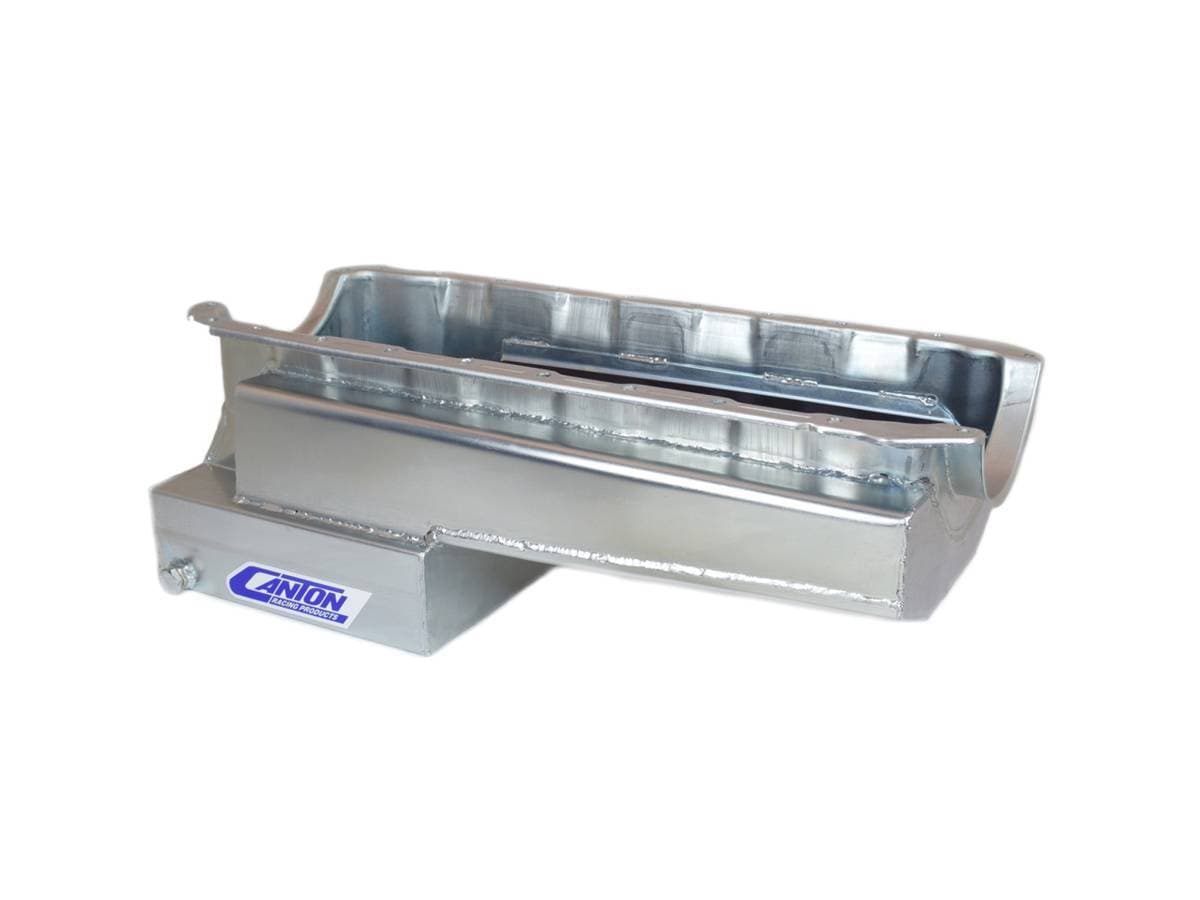

This drag race oil pan is for BBC Mark 4 blocks. It has an 8" deep by 10" long and 11-1/4" wide sump and an 8qt. system capacity. The pan features a horsepower saving oil recovery pouch and our competition oil recovery system, which includes a crank scraper and one-way screen windage tray combination designed to maximize power, and a trap door baffle for oil control. Pan also includes a provision for a pan mounted dipstick and a magnetic drain plug. Takes up to a 4.5 stroke with a steel rod.

This pan requires our #20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel.

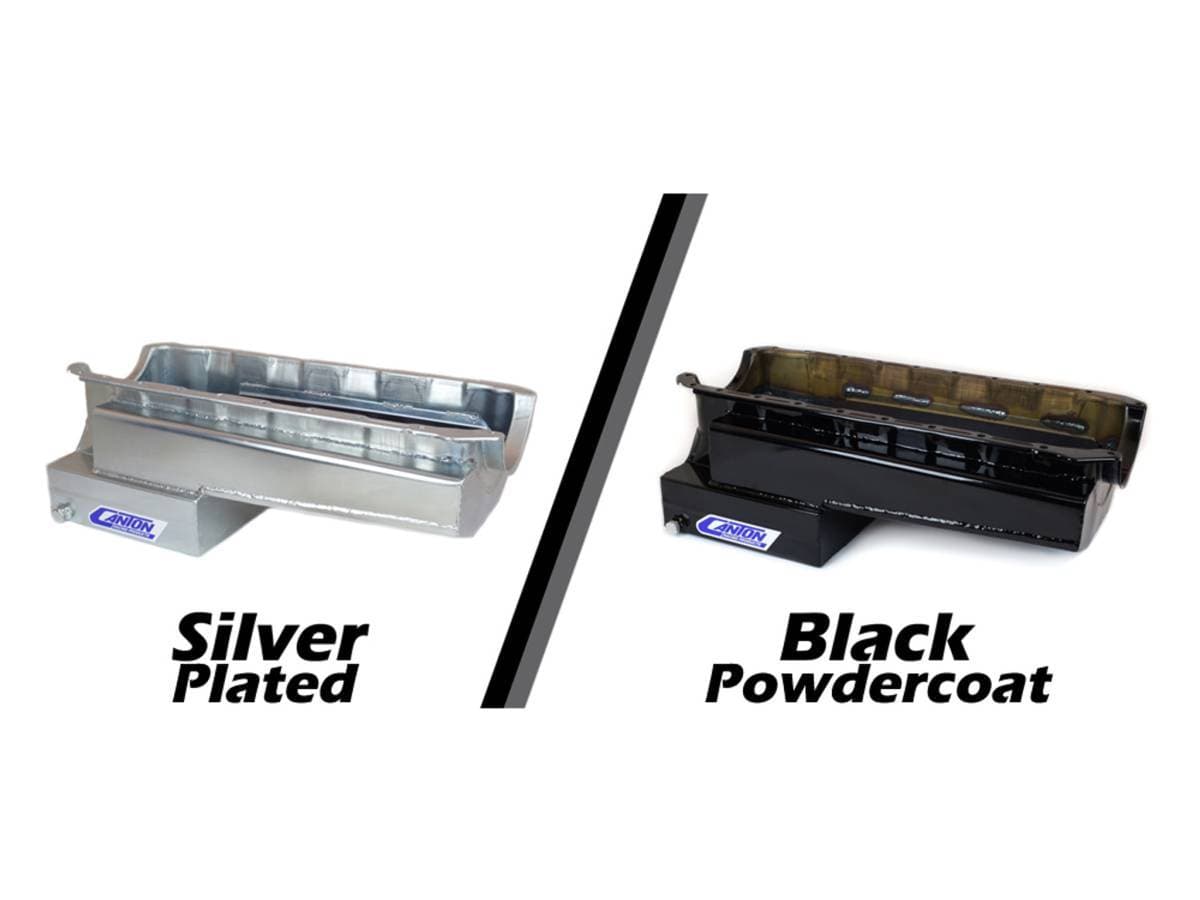

Pictures are for reference, oil pan would come black*

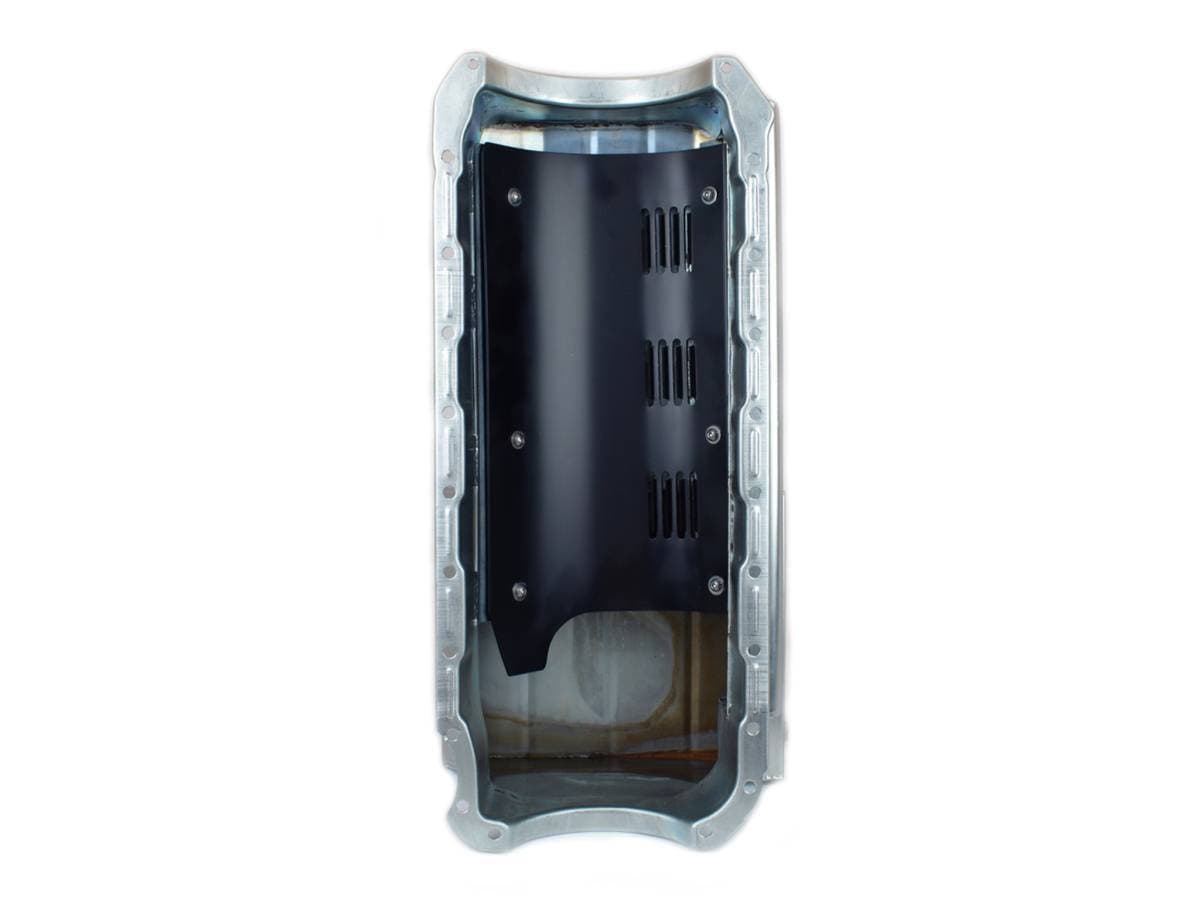

FEATURES: The pan features a horsepower saving oil recovery pouch and our competition oil recovery system, which includes a crank scraper and one-way screen windage tray combination designed to maximize power, and a trap door baffle for oil control.

STYLE: Takes up to a 4.5 stroke with a steel rod. This pan requires our 20-170 pickup. Black Powdercoating

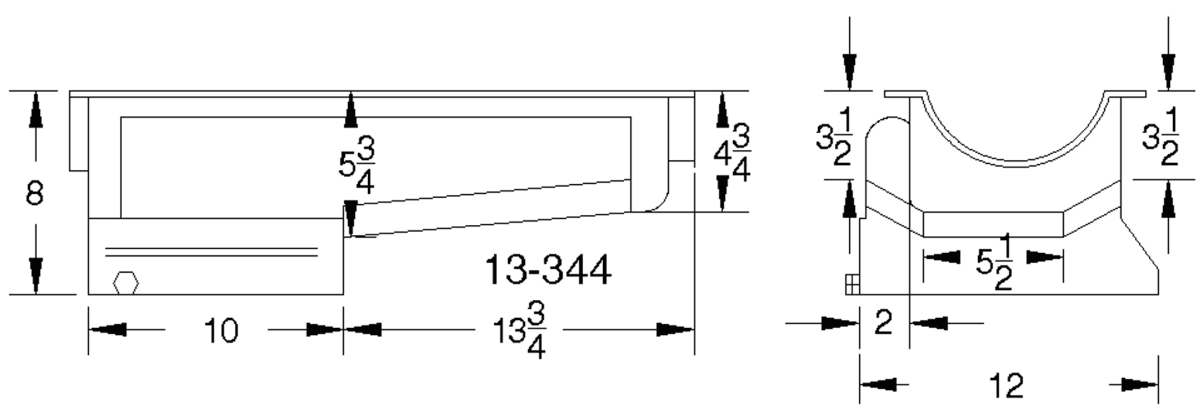

SIZE: It has an 8" deep by 10" long and 11-1/4" wide sump and an 8qt. system capacity.

OIL PAN PART #: 13-344BLK Canton Drag Race Chevy BBC Mark 4 Blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-170 pickup for BBC pumps.

GASKETS:
PART #: 88-300 BBC Mark 4 oil pan gasket 4 piece design.
