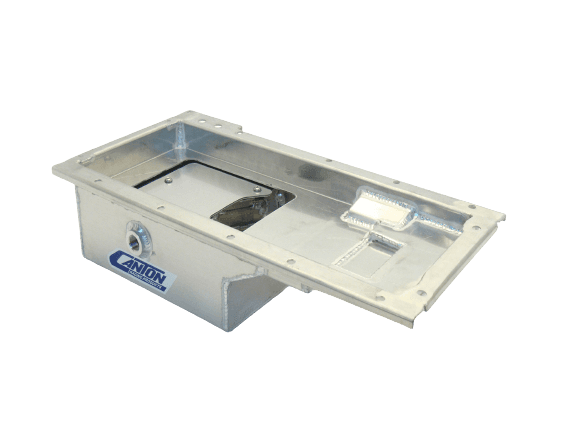

Canton Chevy LS1/LS6 Aluminum Pro-Style Drag Race Oil Pan

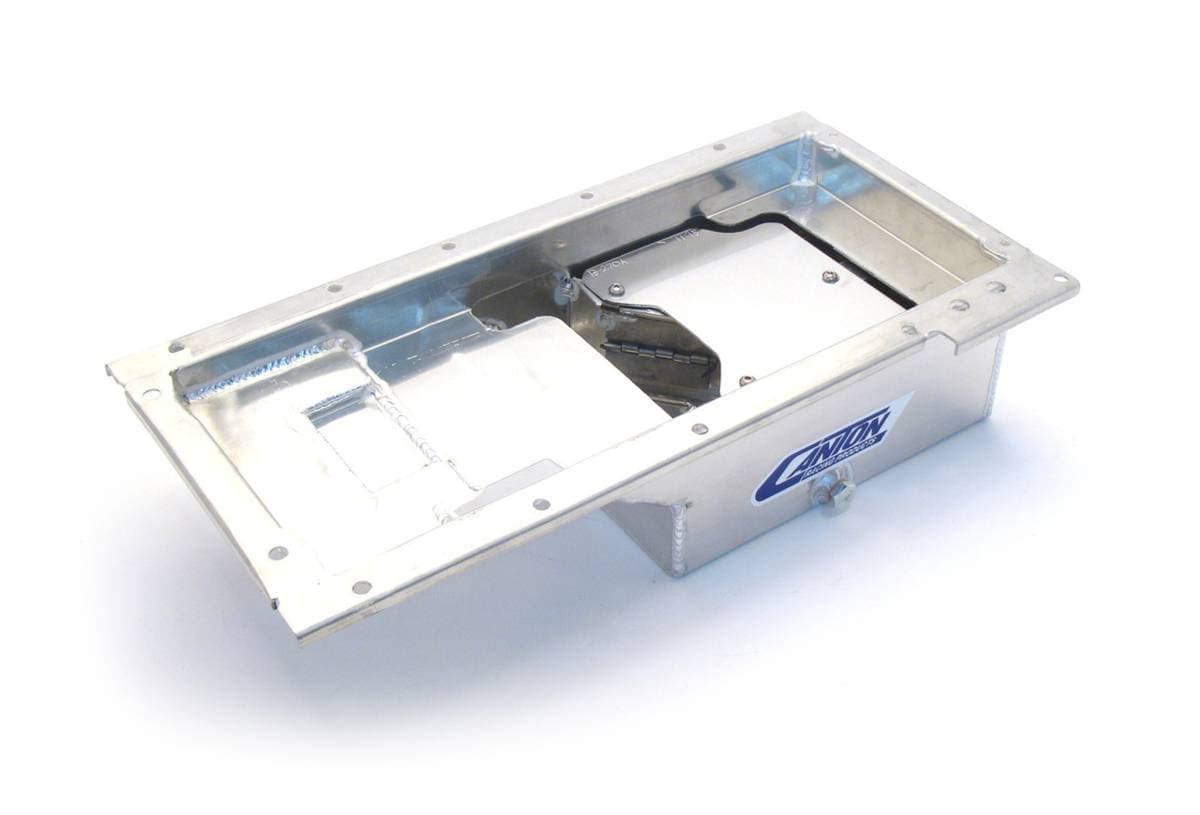

This aluminum drag race oil pan for LS1/LS6 aluminum blocks in ’98+ F-body chassis. It has 5-1/4" deep by 11" long by 8-1/2" wide sump and a 6-1/2 qt. system capacity. It features fully fabricated aluminum construction, which is significantly lighter than cast pan designs, and road race style trap door baffles for oil control.

Requires our LS1 Filter Adapter (#22-630 or #22-632) or Filter Mount (#22-631) Works with OEM GM# 12558253 windage tray. Use GM part #12558251 F-Body Pickup with this oil pan. . Will not fit on LS Next 2 blocks.

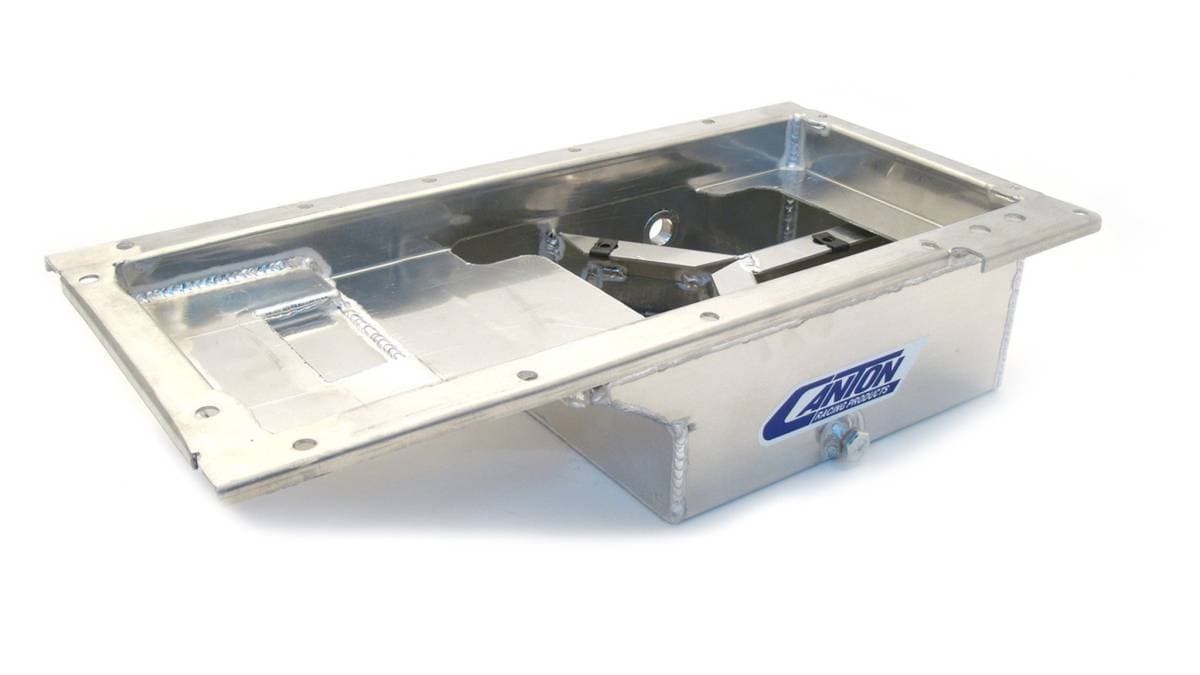

FEATURES: Pan features a Pro-Style block high oil recovery pouch, Works with OEM windage trays. Drag Race Trap Door Baffle Assembly. Removable Windage Anti-Slosh Baffle. Provision for 20mm oil temperature sensor. Magnetic Drain Plug.

STYLE: Clears a 4.25 stroke with steel rods. It features fully fabricated aluminum construction, drag race style trap door baffles for oil control.

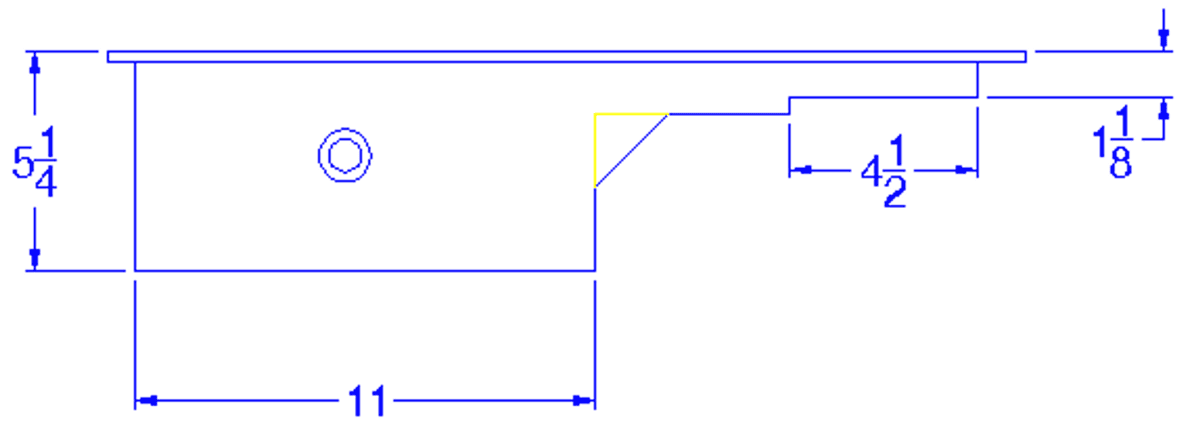

SIZE: 5-1/4" deep by 11" long by 8-1/2" wide sump and a 6-1/2 qt. system capacity.

OIL PAN PART #: 13-270A LS1/LS6 Aluminum Pro-Style Drag Race Oil Pan.

RECOMMENDED ACCESSORIES:

21-870 - LS flywheel cover
22-302 - GM LS Oil Pan Stud Kit
22-620 - Billet Aluminum Spin-on Filter Adapter
22-405 - 20mm Plug(needed if not using low oil sender

OIL PUMP PICKUPS:
PART #: This pan requires a GM#12558251 F-body pickup.
