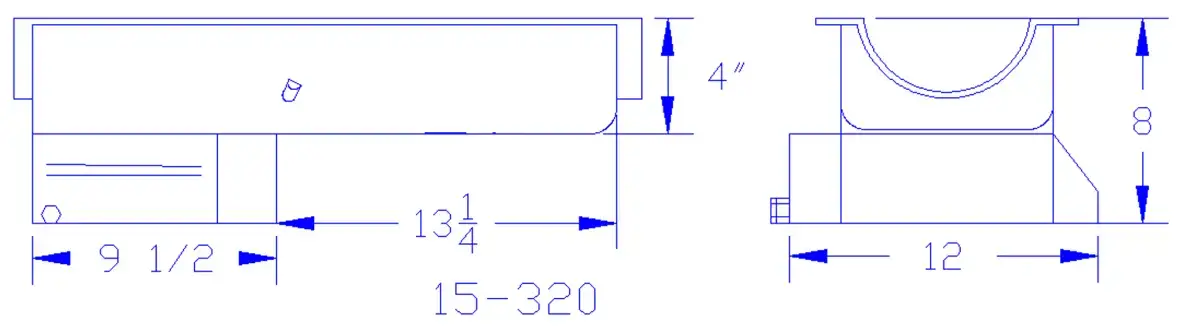

This BBC stock depth wide sump oil pan is for Mark IV big block Chevys. It is designed with a shallow front with angled corners to clear the large cross members in early Camaros and Novas and '68-'72 Chevelle. It has an 8" Deep, 12" Wide, 9-1/2" Long sump with a 7 quart system capacity.
Note: Due to the extra shallow front section of this pan designed for large cross member clearance our main cap mounted windage trays will not clear this pan. This pan requires our #20-170 pickup.

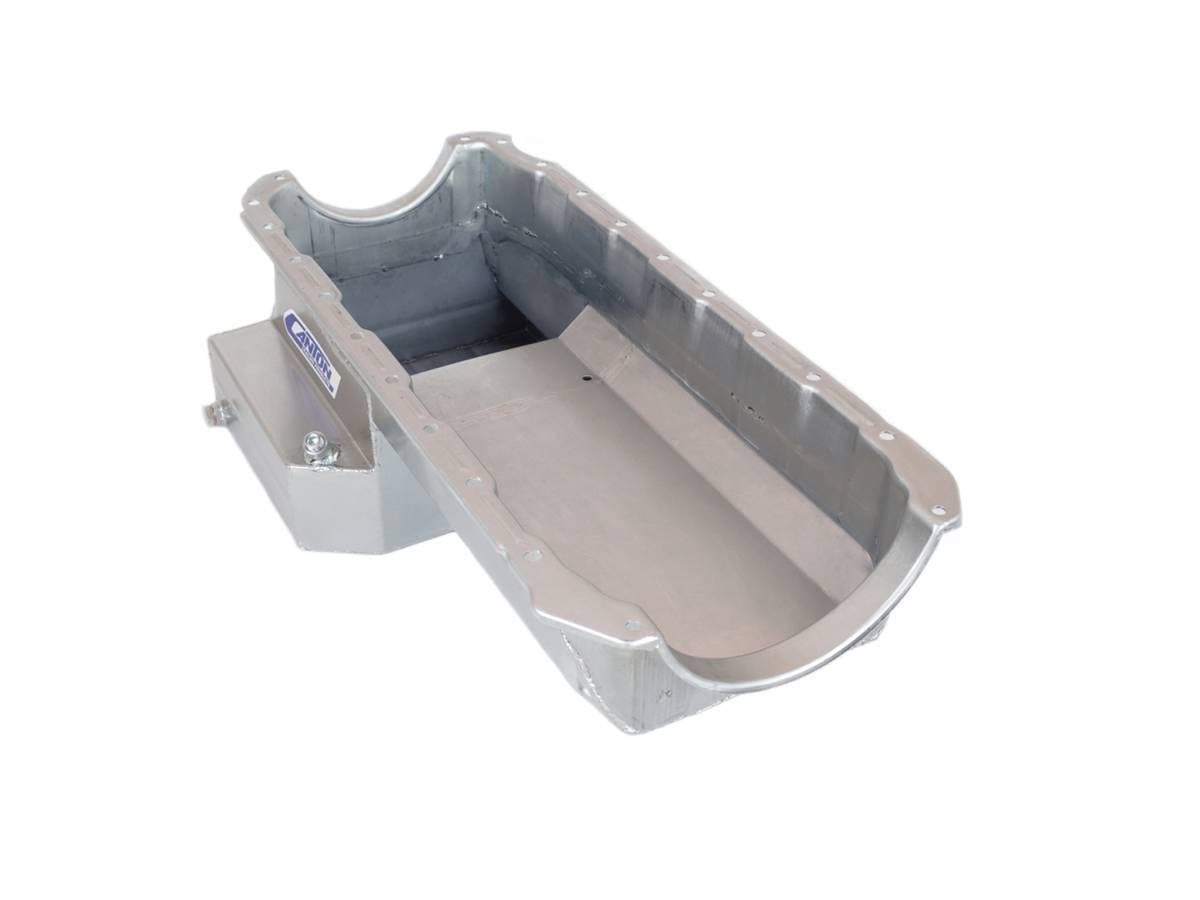

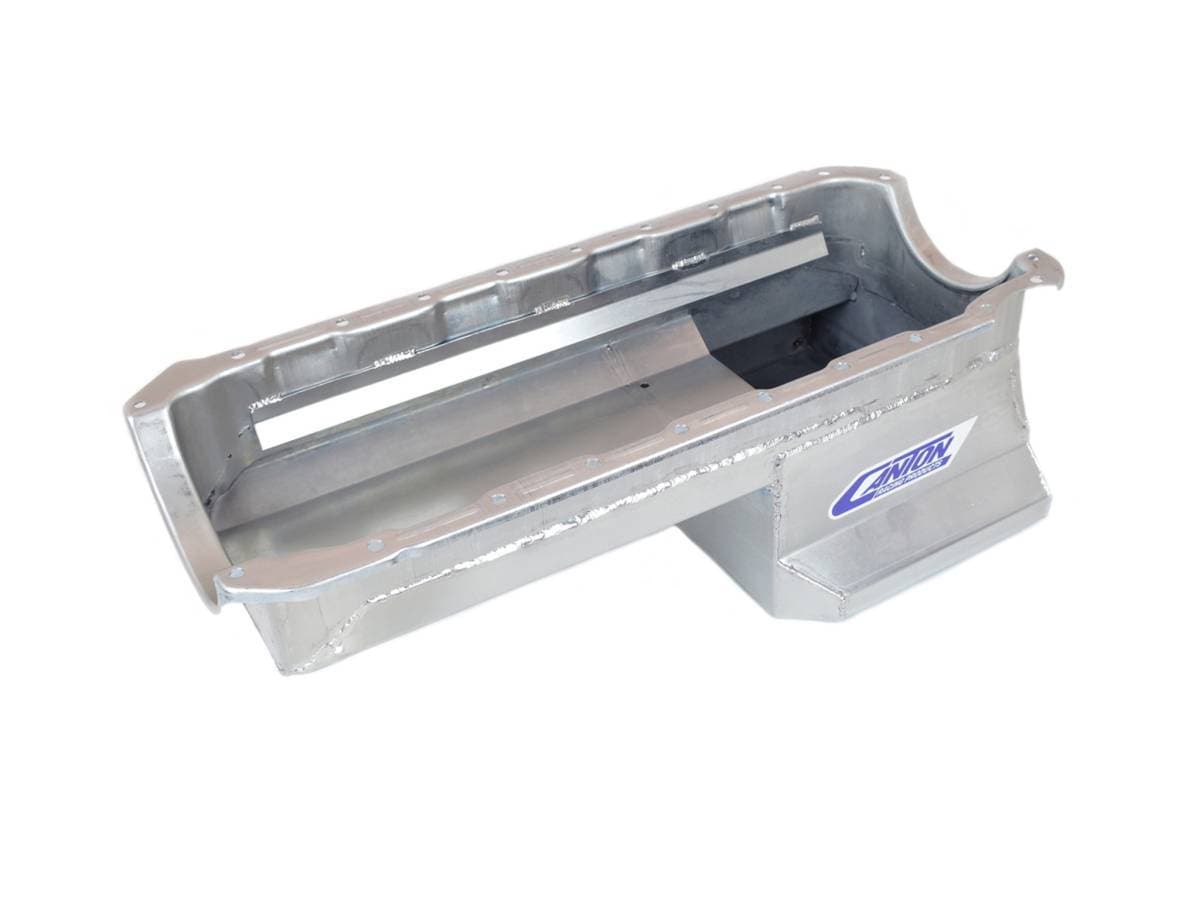

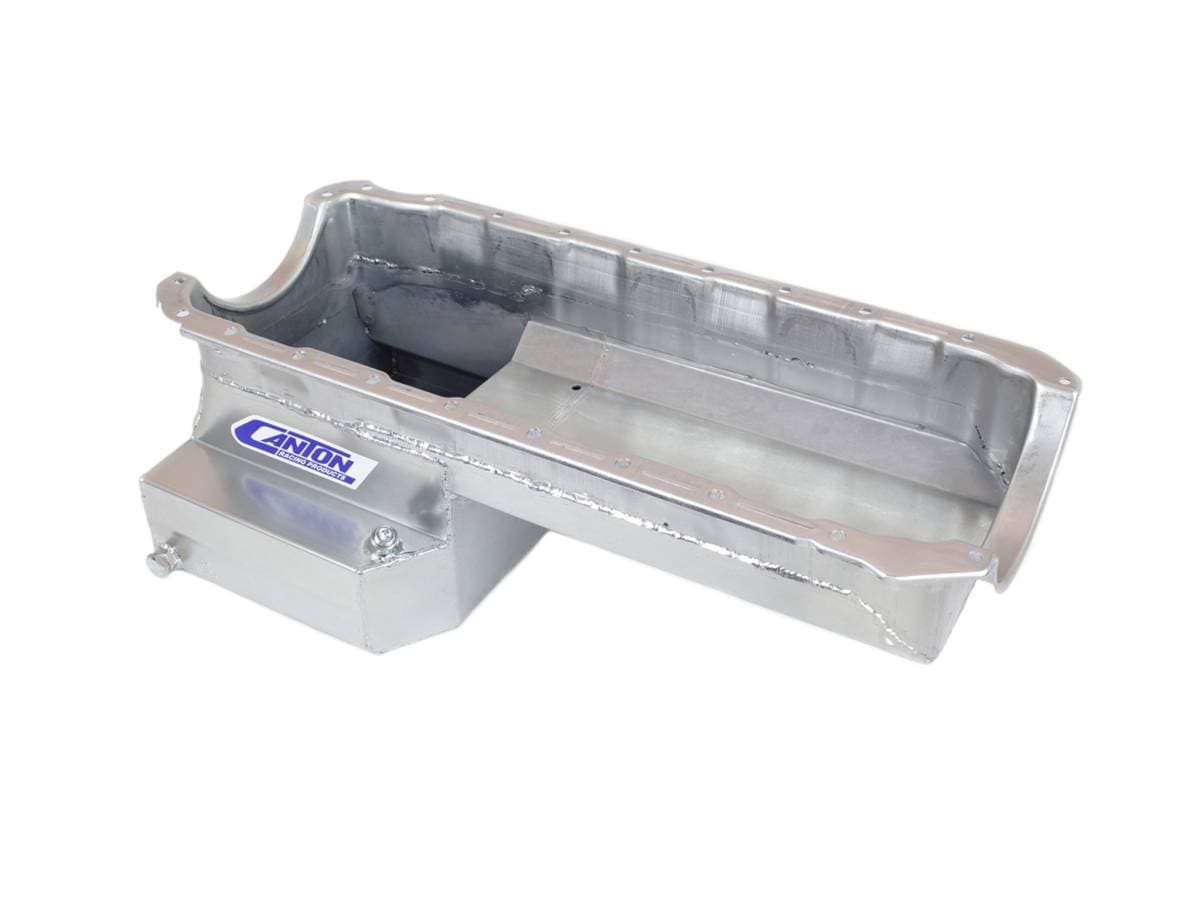

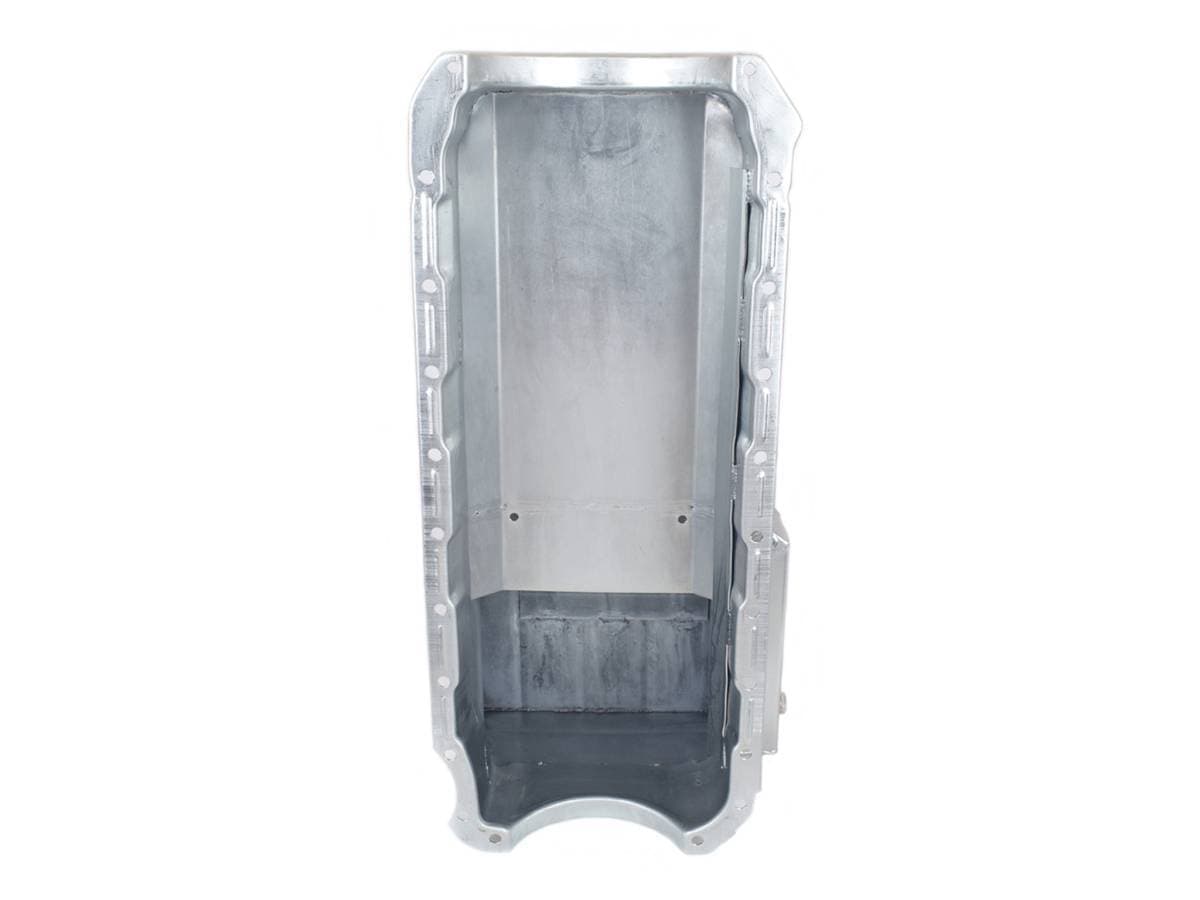

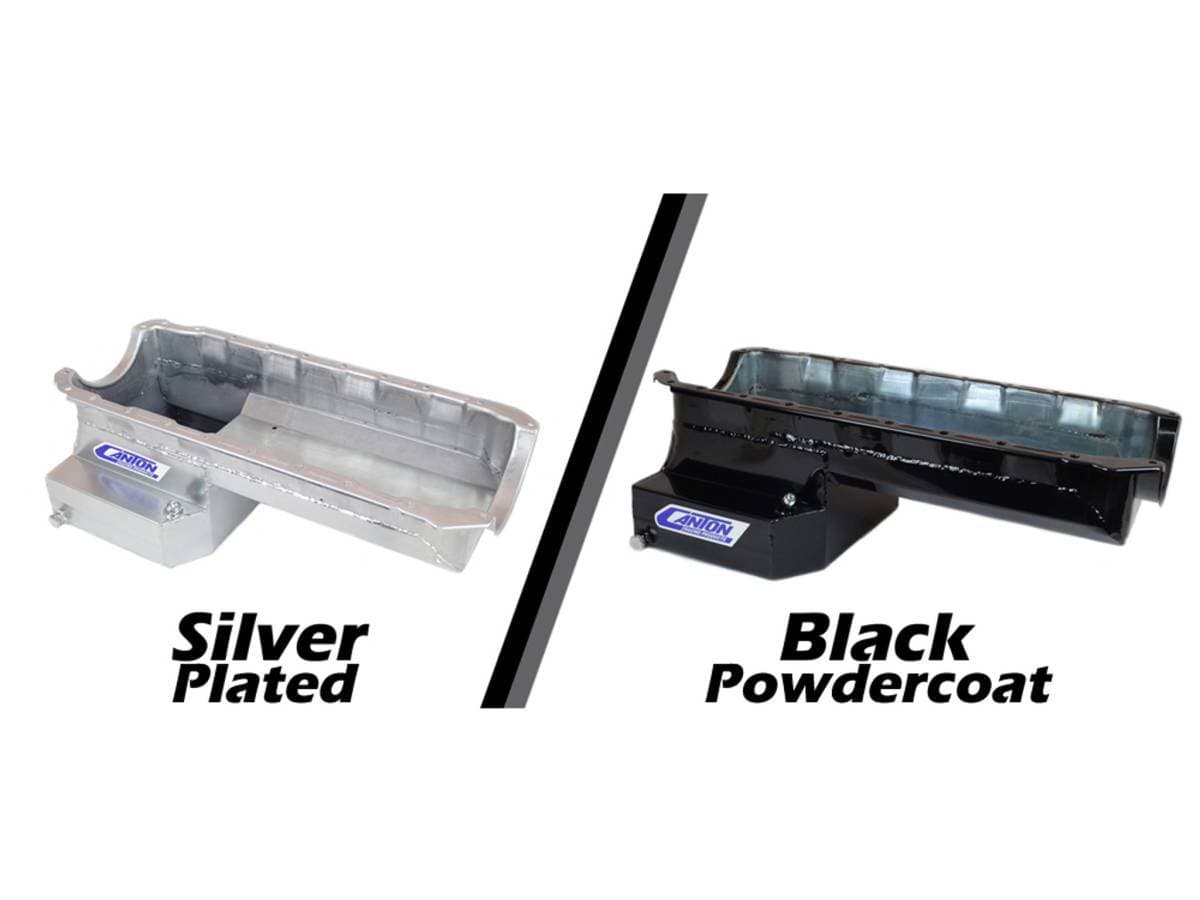

Pictures are for reference, oil pan would come black*
FEATURES: Crank Scraper. Slosh Baffle. Provision For Our Pan Mounted Dipstick. Magnetic Drain Plug
STYLE: Takes up to a 4.25 stroke with a steel rod. This pan requires our 20-170 pickup.
SIZE: retains stock depth by 12" wide sump and an 7qt. system capacity.
OIL PAN PART #:15-320BLK Canton Drag Race Chevy BBC Mark 4 Blocks Oil Pan. Powdercoated Black
RECOMMENDED ACCESSORIES:
OIL PUMP PICKUPS:
PART #: 20-170 pickup for BBC pumps.
