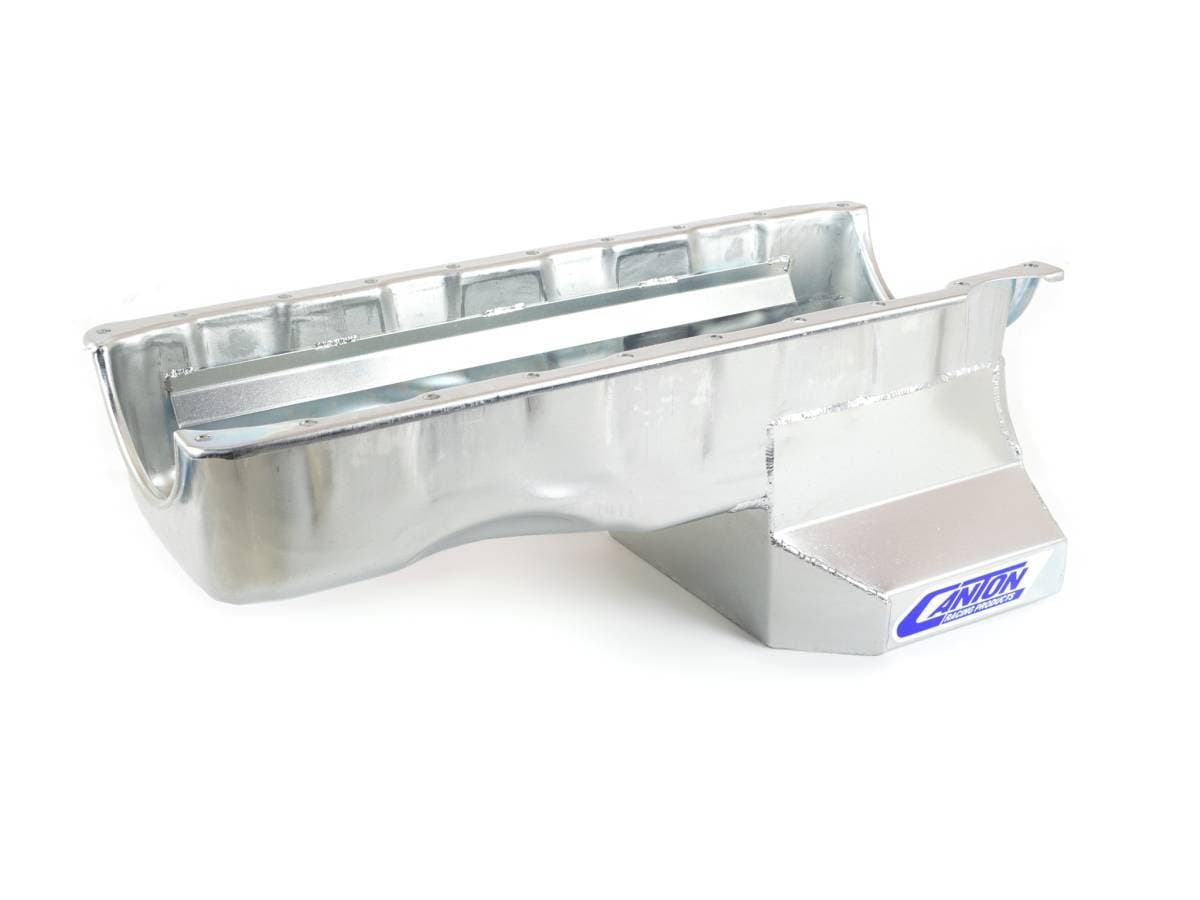

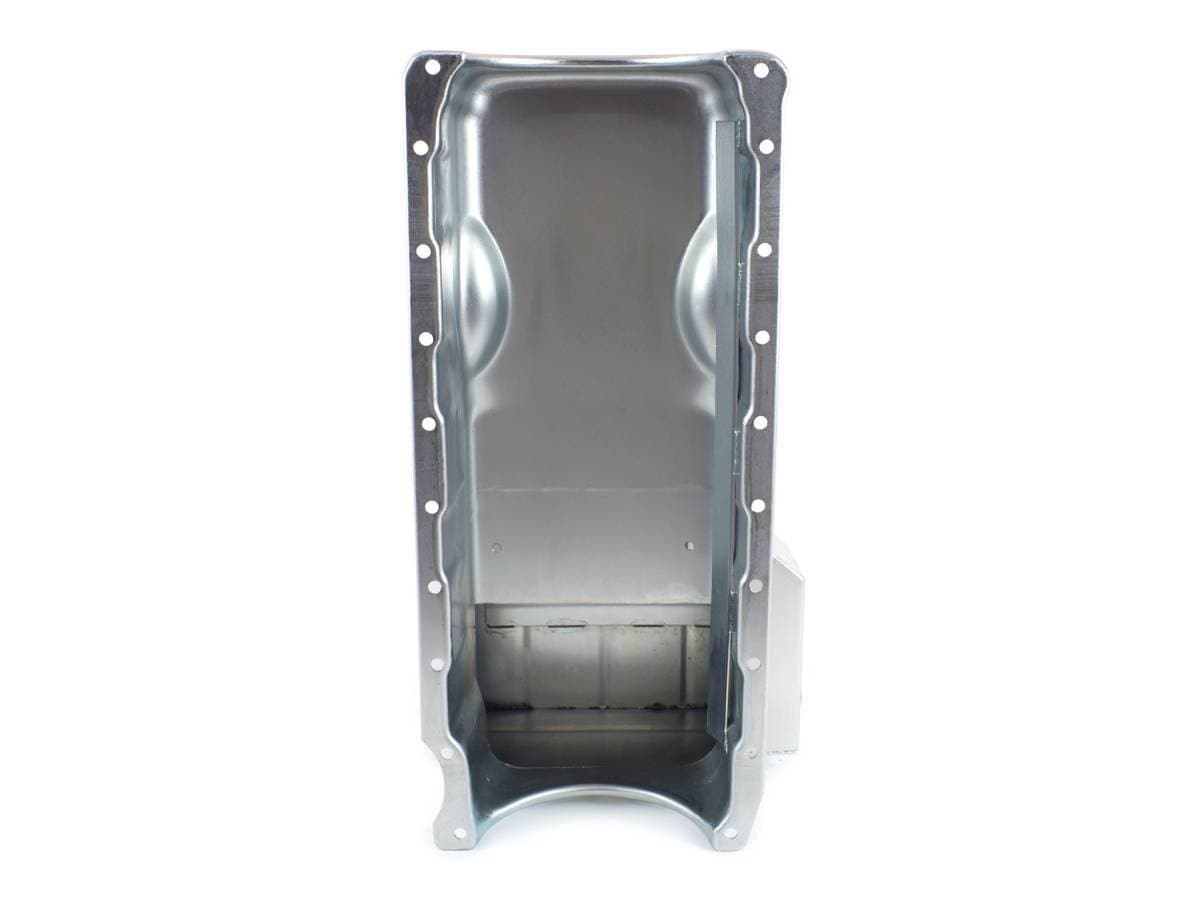

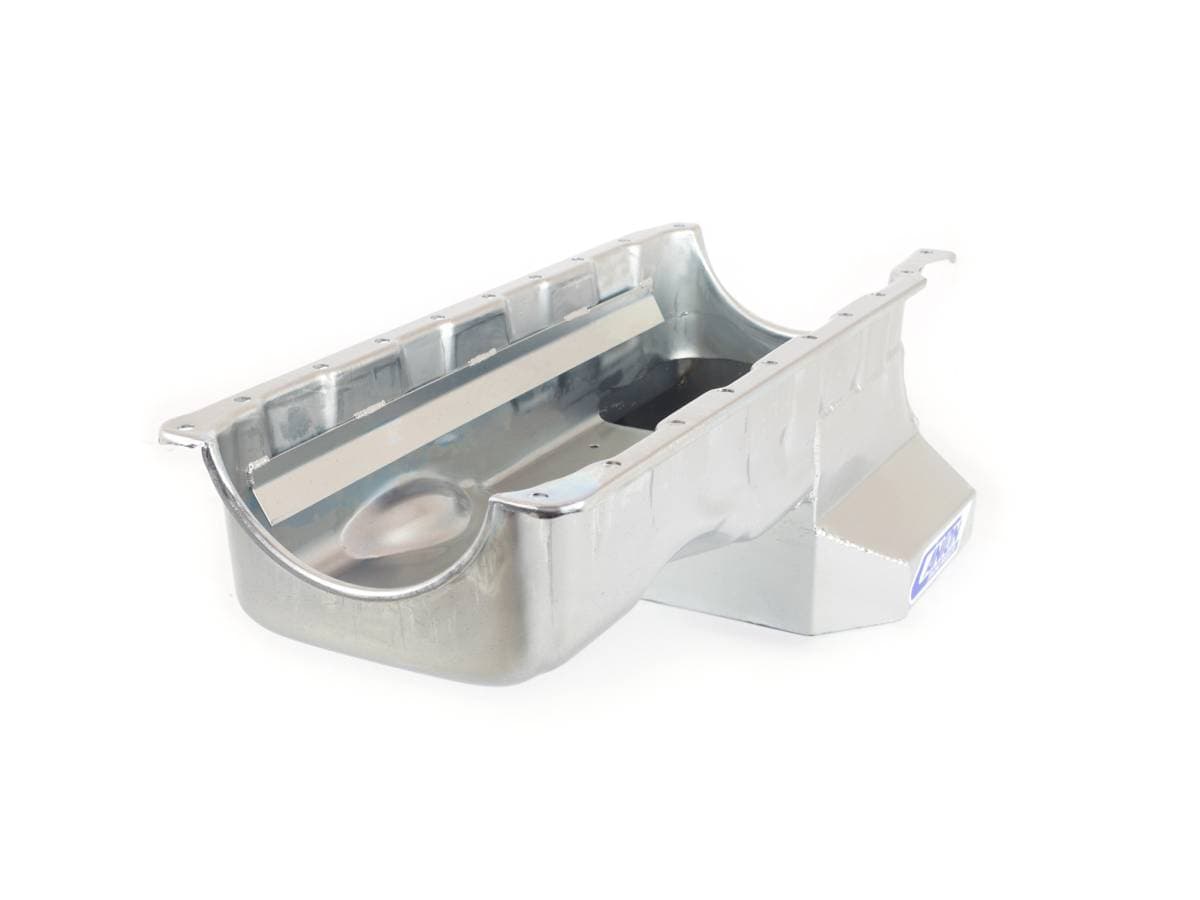

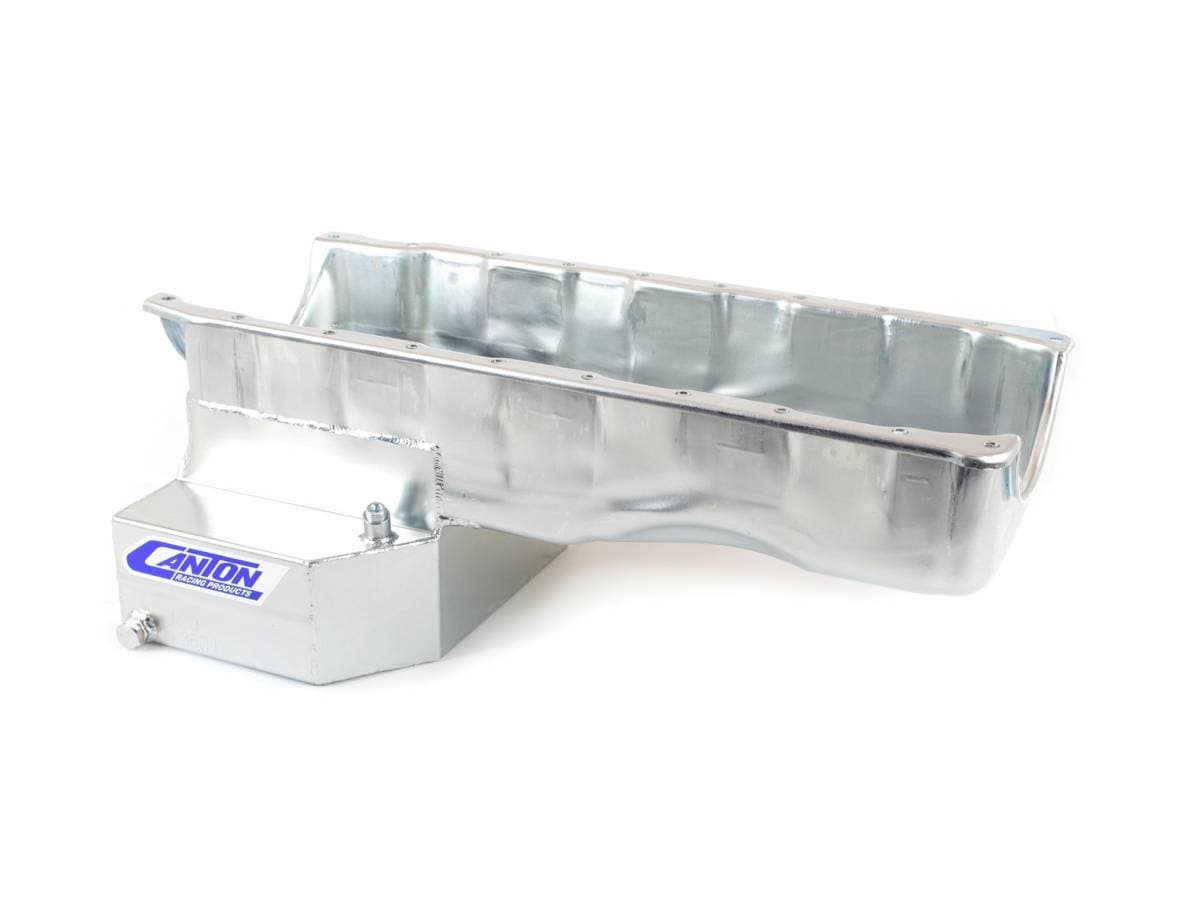

Canton Chevy 1964-1967 Chevelle BBC Mark 5 & 6 Blocks T-Sump Street Oil Pan - Black

This BBC early Chevelle pan is for Mark V and VI Big Block Chevys. It is designed with angled front corners to fit in '64-'67 Chevelle and most other GM chassis. It has a 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity.



Note: This pan requires our 20-190 pickup.

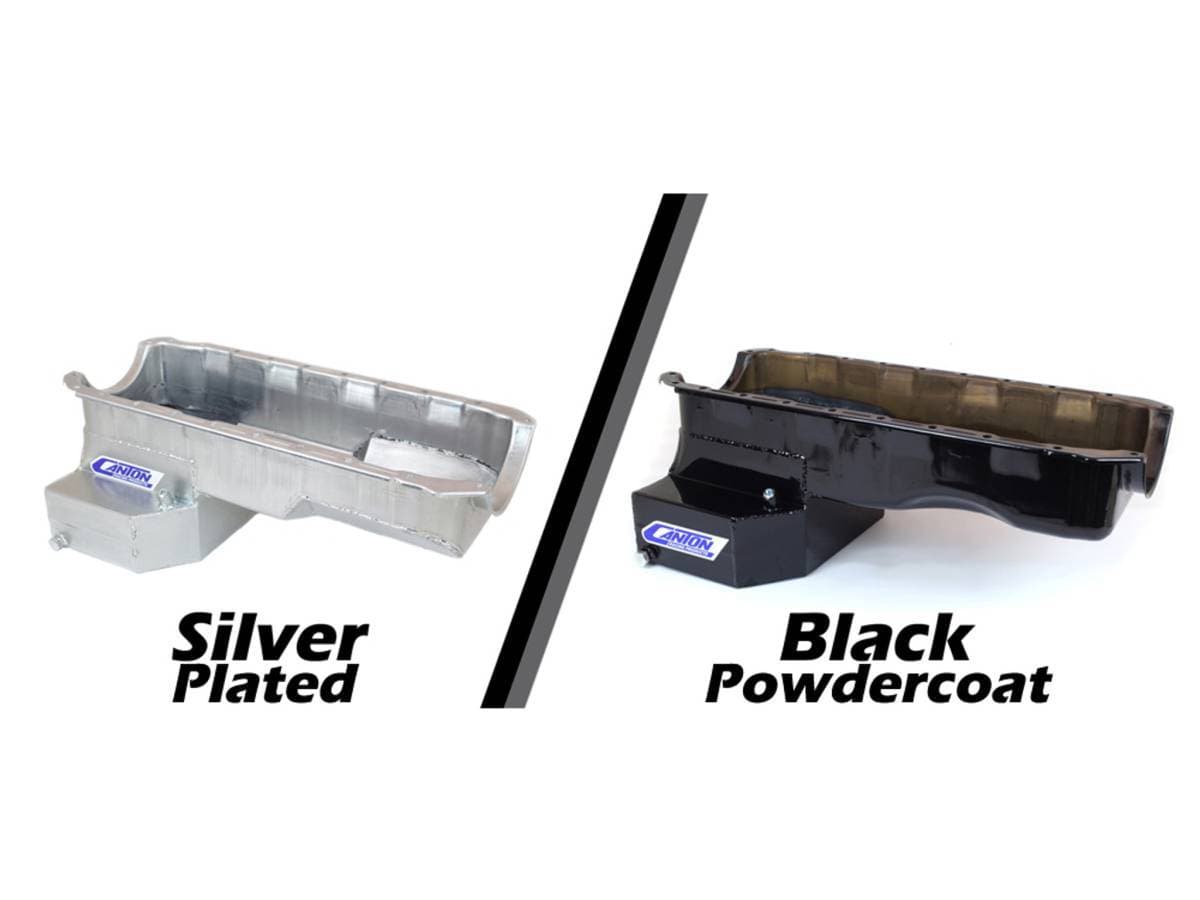

Pictures are for reference, oil pan would come black*

FEATURES: Crank Scraper. Slosh Baffle. Provision For Our Pan Mounted Dipstick. Magnetic Drain Plug

STYLE: Takes up to a 4.5 stroke with a steel rod. This pan requires our 20-190 pickup.

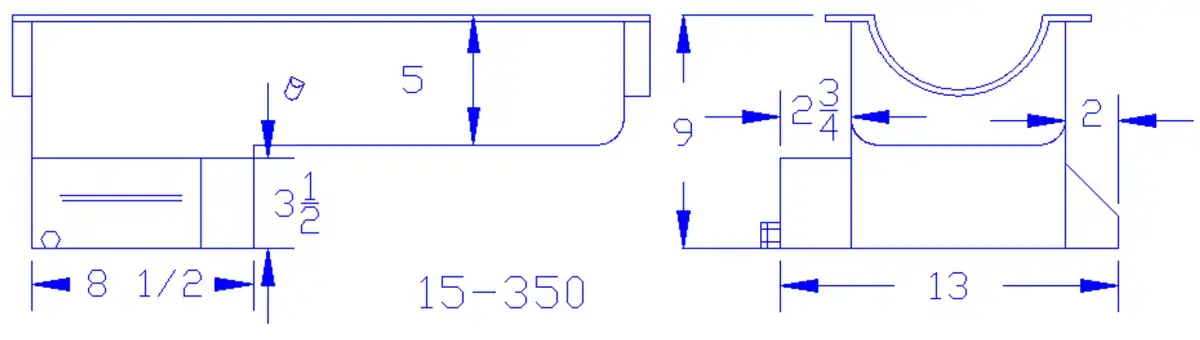

SIZE: 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity.

OIL PAN PART #:15-350TBLK Canton Drag Race Chevy BBC Mark 5 & 6 Blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-190 pickup for BBC pumps.
