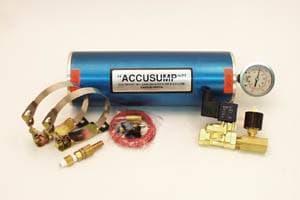

This 2 Quart Marine Accusump kit is for pre-oiling and surge control on all applications. Tube is 12" long with 4.25" Dia. All components are anodized aluminum, stainless, or brass. The kit comes with a liquid filled stainless steel pressure gauge, stainless steel mounting clamps, brass safety valve, E. P. C. valve system, on / off switch, wire and terminals and installation instructions.
FEATURES: This unit is 12" long 4.25" in diameter without valve or gauge. With the included gauge installed the length increases 2.5" and the valve installed adds another 3.25". Both the valve and gauge can be mounted away from the unit if necessary.
INCLUDED ACCESSORIES:
MOUNTING BRACKETS: Mounting brackets are recommended for ease of installation for all Accusumps. These clamps offer a convenient way to mount an Accusump to a panel or any other flat surface. By using the clamps you also reinforce the end caps for strength. Mounting kits includes two stainless steel safety clamps with mounting bracket.
PART #: 24-200 for all 4.25" dia. Accusumps.
Electric Pressure Control Valving:
E.P.C. valving has the convenience of an electric valve and the rapid refill rate of a manual valve. The E.P.C. valving allows the Accusump to quickly charge with oil when the engine's oil pressure is above a predetermined level and discharge when the engine's oil pressure drops below that level. Comes with an electric valve, regulator, toggle switch, wire, terminals, and a pipe nipple.
PART #: 24-273 E.P.C. valve kit for a discharge of 35-40 PSI.
OPTIONAL MOUNTING BRACKETS:
PART #: 24-210 Billet Aluminum brackets for all 4.25" dia. Accusumps.
