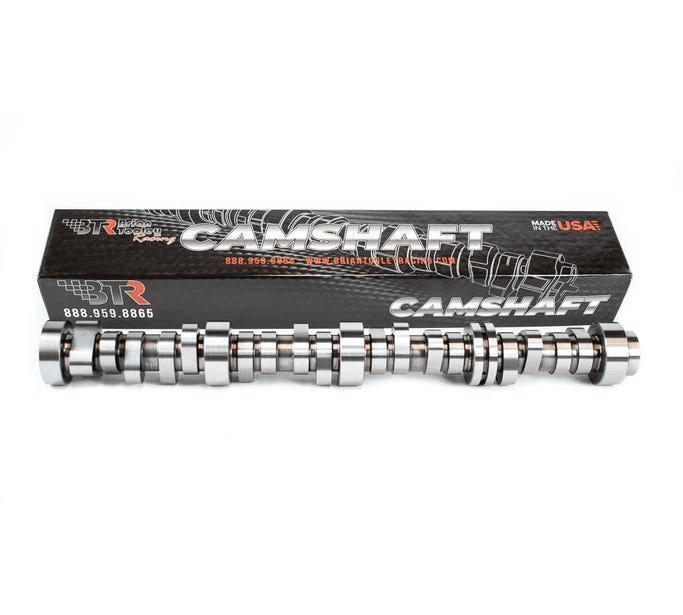

BTR is proud to introduce these new editions to our already impressive lineup of Gen V camshafts. The new Gen V Stage 3 Centrifugal and PDS Supercharger camshaft was designed for customers building an aggressive street/strip 5.3 -6.2 supercharged combo. Not for the faint of heart, this cam delivers explosive midrange and top end power up to 7000 rpm and higher depending on engine modifications. An aggressive idle let's you know something serious lurks underneath the hood. Developed in house, these new BTR lobe designs were Spintron and Engine Dyno tested to achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.
Note: The use of BTR dual or conical spring kits is required due to high valve lift and increased rpm potential. We also recommend the use of hardened pushrods in power adder applications. Includes a 38% fuel lobe and was designed to be locked out. We recommend our BTR VVT lockout bushing.
*Notice, torque converter is required for both 5.3L and 6.2L applications.
*Custom tuning is required after installation. We offer remote tuning options see here or we recommend going to a local dyno shop near you for custom tuning. Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Engine Combination: Supercharged - Centrifugal & Twin Screw
Camshaft Duration: 228/25X
Valve Lift with Factory Rocker Arm Ratio: 0.648 int./0.648 exh.
Torque Converter Information: Aftermarket converter required
Lobe Separation (degrees): 113
Fuel Lobe Percentage: 38%
Camshaft Gear Attachment: Single bolt
Quantity: Sold individually.
This camshaft requires flycutting the piston when used in a L83 application!
