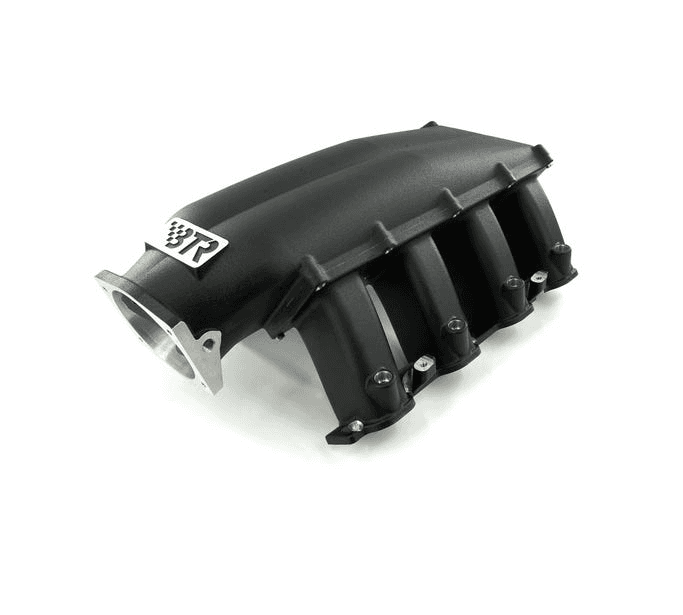

BTR Gen V LT Trinity Cast Aluminum Mid-Length Intake Manifold W/ Injector Holes - Black Finish

The proven BTR TrInity intake manifold now comes in a mid-length runner option! The 3-piece design allows for the ultimate in application flexibility. It is similar in concept to billet intakes costing thousands more, and has an optimum operating range of 3500-7500 rpm.

The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped o-rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are SAE o-rings seated in a dovetailed o-ring groove. Both the port mouth radius and the port match is CNC machined. The Trinity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear. The manifold comes semi-assembled and includes all the hardware required to bolt it on.

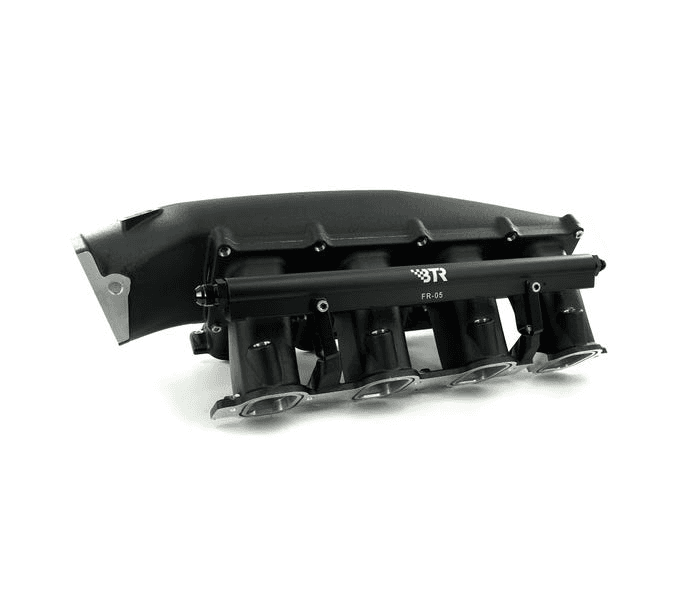

Note: Optional NW 103MM throttle bodies, fuel rail kit, EVAP Adapter & LT4 Fuel Line available, click the blue product options button to configure your intake!
