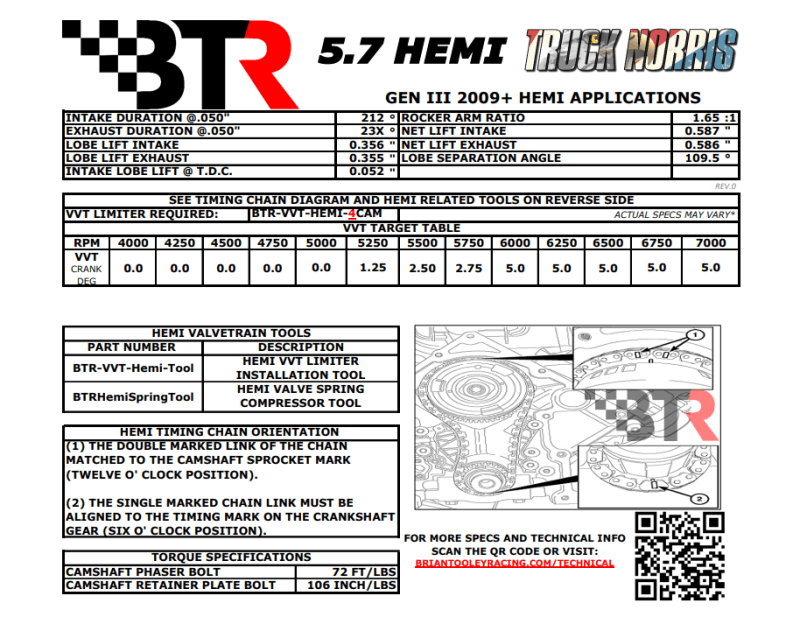

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Duration: 212 int./23X exh.
Valve Lift: 0.587 int./0.586 exh.
Valve Lobe Lift: 0.356 int./0.355 exh.
Lobe Separation (degrees): 109.5
RPM Operating Range: 1500-7000

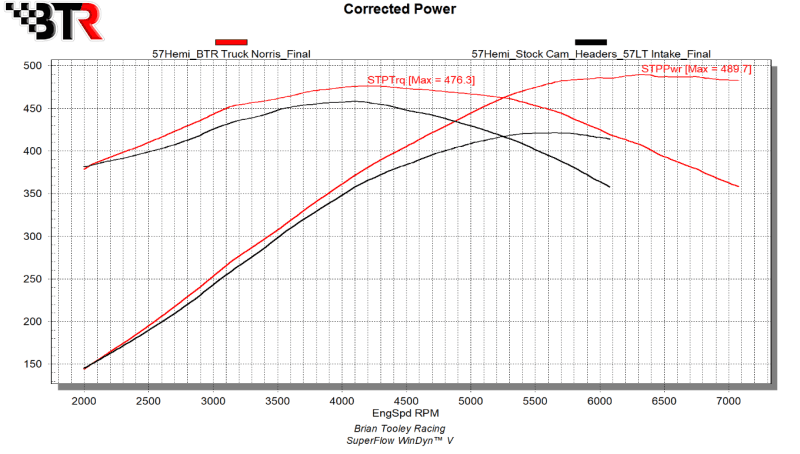

Expected Cam Swap Gains: 69 Horsepower, 18 lb/ft, extra 1500 RPM of operating range
Torque Converter Information: Works well with stock converters to take full advantage of camshaft aftermarket converter recommended
Non-MDS Camshaft - Requires MDS Conversion Kit see the product options or for a full complete engine refresh kit including MDS delete parts see PN: BTR-MDS-HEMI
Camshaft Qualities
Camshaft Idle Quality: Great rumble sound without sacrificing factory comforts
Drivability: Mild-mannered daily feel, with a nice aggressive sound
Camshaft Chop: 5/7

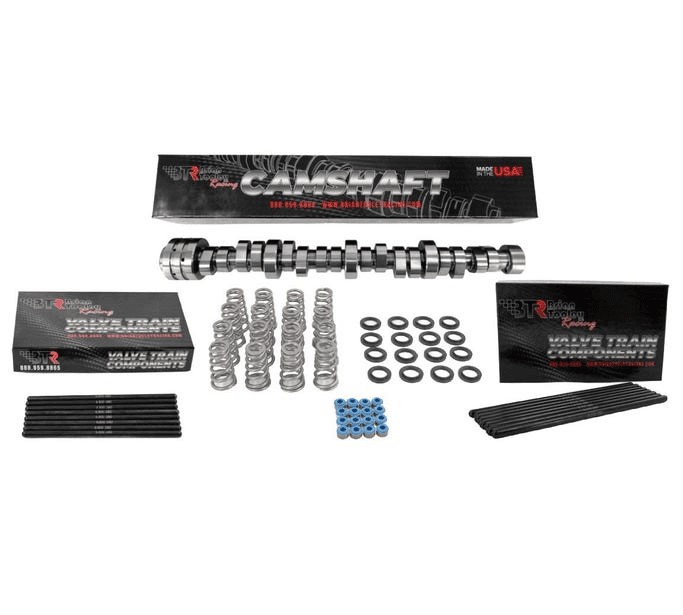

What is included with the base system?
BTR Gen III Hemi Truck Norris Camshaft
BTR Drop-In 5.7L .625" Lift Valve Spring Kit - (Upgrades Available) *These Valve Springs can be used in 6.4L applications but requires shimming the valve springs which is not included. We Recommend selecting the 6.4L springs for less stress and proper fitment in the product options!
Your Choice of BTR Intake & Exhaust Chromoly Pushrods Size - See The Product Options
VVT Limiter Included (Requires VVT Limiter Tool Available In The Product Options)
*This system also has many other options see the blue "choose product options" button!
