Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Duration: 216 int./23X exh.
Valve Lift: 0.587 int./0.586 exh.
Valve Lobe Lift: 0.356 int./0.355 exh.
Lobe Separation (degrees): 112
RPM Operating Range: 1800-6700

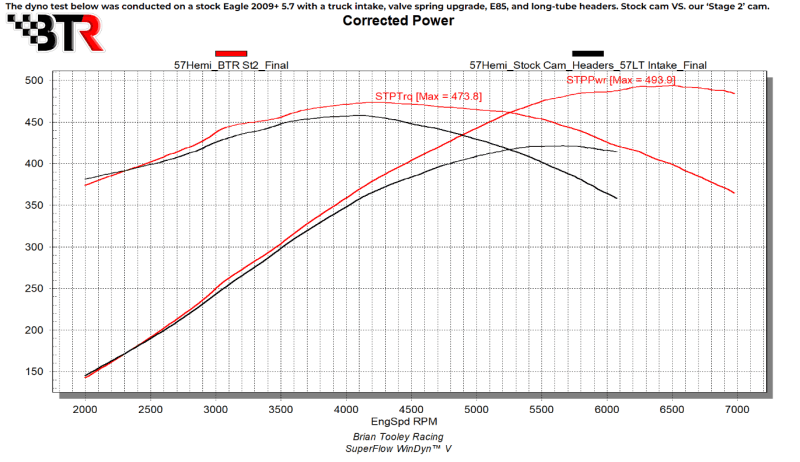

Expected Cam Swap Gains: 73 Horsepower, 16 Ft/lbs, extra 1200 RPM of operating range
Torque Converter Information: Works with stock converters, aftermarket converter highly recommended
Non-MDS Camshaft - Requires MDS Conversion Kit see the product options or for a full complete engine refresh kit including MDS delete parts see PN: BTR-MDS-HEMI

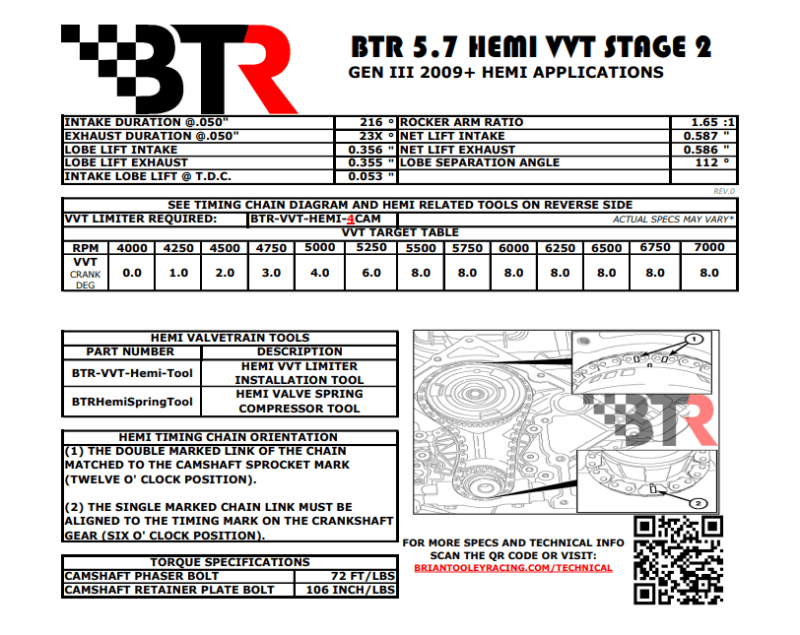

VVT Target Tuning Data (See the documents tab and click on the cam card for VVT Target Table)
Camshaft Qualities
Camshaft Idle Quality: Mild change in idle quality
Drivability: Mild, Daily Drivable
Camshaft Chop: 3/10

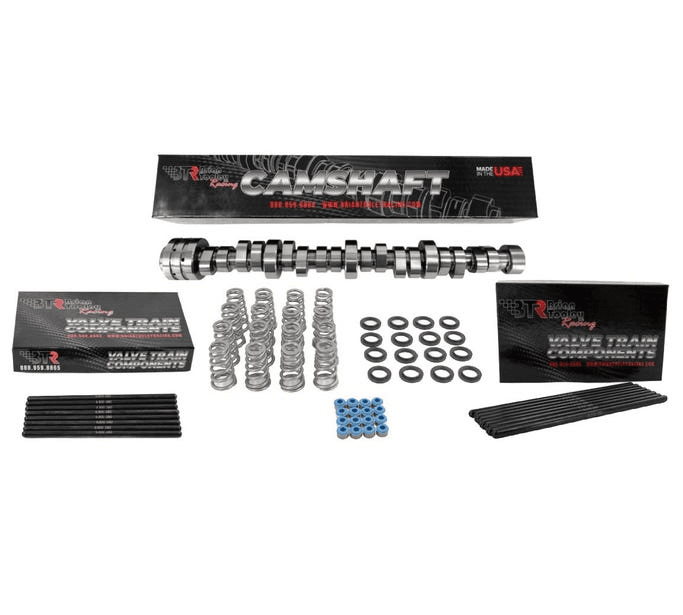

What is included with the base system?
BTR Gen III Hemi Stage 2 Camshaft
BTR Drop-In 5.7L .625" Lift Valve Spring Kit - (Upgrades Available) *These Valve Springs can be used in 6.4L applications but requires shimming the valve springs which is not included. We Recommend selecting the 6.4L springs for less stress and proper fitment in the product options!
Your Choice of BTR Intake & Exhaust Chromoly Pushrods Size - See The Product Options
VVT 4 Degree Limiter Included (Requires VVT Lockout Tool Available In The Product Options)
*This system also has many other options see the blue "choose product options" button!
