The AFR500v3CAN Air Fuel Kit comes equipped with PC software for programming your CAN or OBDII message structure. No adapters or extra hardware are required for PC programming.

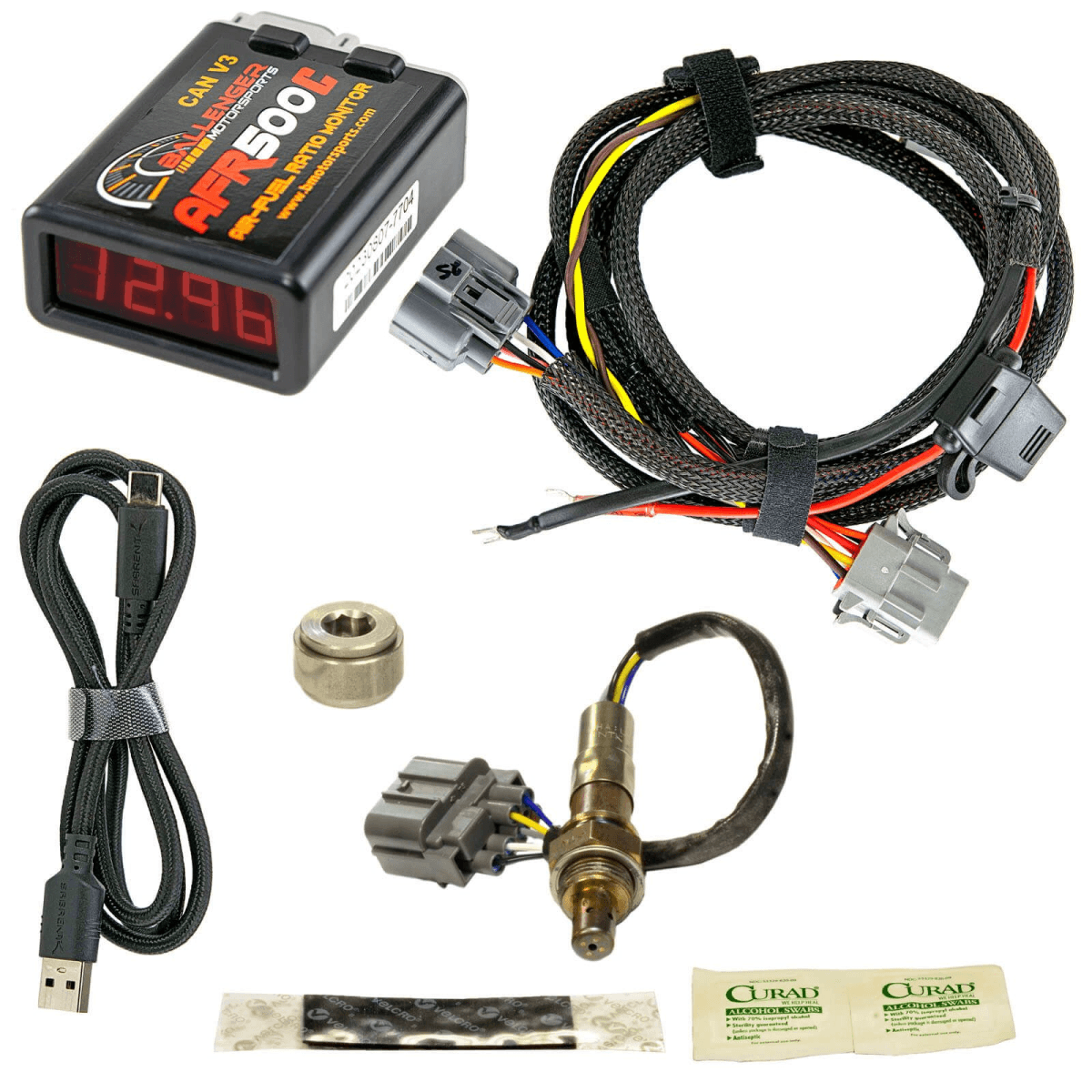

This AFR500v3CAN Kit includes:
CAN flying lead & USB programming harness.
PC software for full digital programmability.

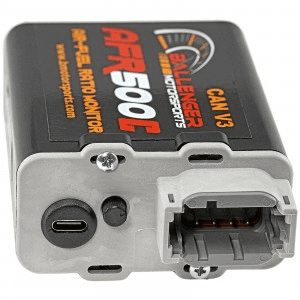

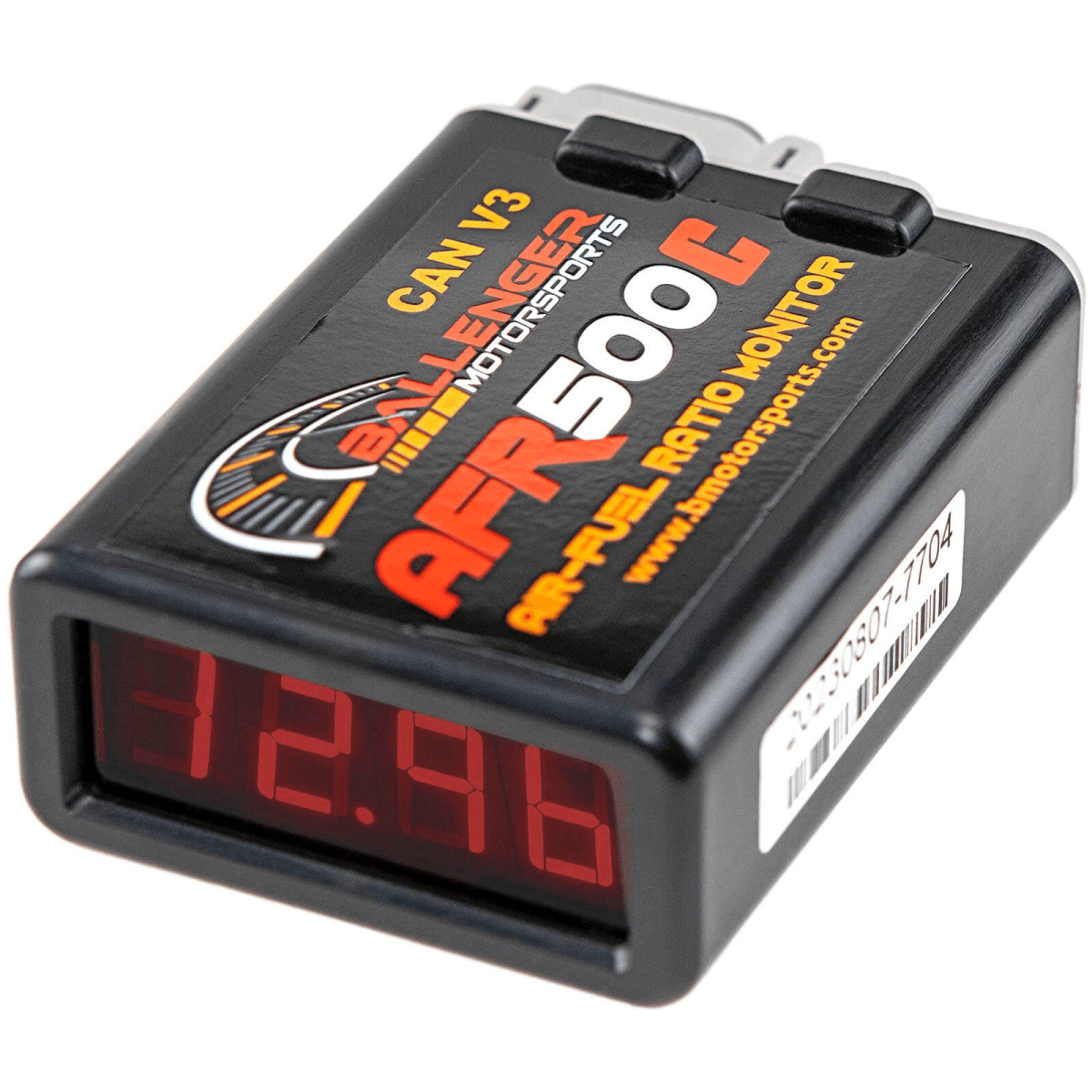

Large, bright digital display controller (~3.4in x 2.7in x 1.3in).
Display lambda.
Standard measurement range.
13ft wiring harness with sealed connections.
NTK Production Grade Sensor.
Weld in steel exhaust boss and plug.
Mounting velcro.
Comprehensive installation, troubleshooting, and tuning manual.
CAN specific manual addendum.

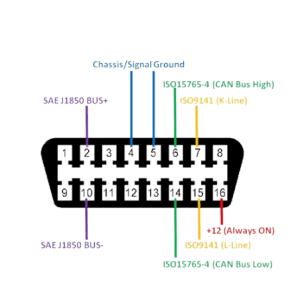

OBDII CAN connection.
0–5-volt analog output signal.
11–28-volt input power (24v system capable).
Compatibility with most aftermarket ECUs.
Compatibility with HP Tuners.
AFR500v3CAN Features:
A digitally derived output with a higher resolution digital/analog converter.
4X times the measurement resolution (4096 increments compared to the previous 1024).
The ASIC chips, one of the most common points of failure from electrostatic damage, have been replaced with a custom board providing better protection and upgrade capabilities.
The ability to display from 0.0 to 6.0 in lambda setting for better flexibility with alternate fuels such as diesel.
Ability to upgrade firmware for future sensor types.
All harnesses, control units, accessories, etc. are backward and forward compatible.
Options are selectable at any time via internal jumpers.
NTK Calibration grade sensor highly recommended for low AFR methanol applications. NTK Production Grade is the least expensive sensor we recommend for methanol applications.
Programmable CAN termination resistor.
Sensor Averaging Filter setting.
O2% output.
Fault condition diagnostics.
IP, pump cell current output.
Sensor Temperature output.
Heater duty cycle output.
Battery voltage output.
Validated Port Compatibility:
HP Tuners CAN OBDII
HP Tuners Serial Lambda & Serial AFR over USB
EFI Live CAN OBDII
MoTeC
AEM / AEMnet
Haltech
MS3 / Megasquirt 3
Why Use A Wideband Air/Fuel Controller:
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.
