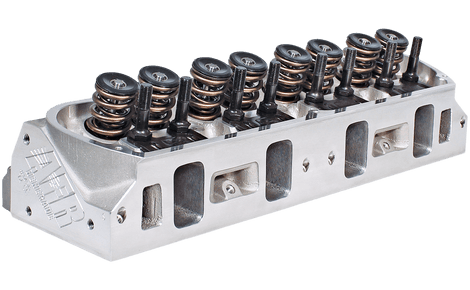

AFR 220cc Competition Renegade SBF Cylinder Heads, 72cc Chambers

AFR`s 220cc "Competition" heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. This is AFR`s largest, best flowing head for the small block Ford. Recommended for race applications or radical "Pro Street" style builds. Component upgrade and machining options are available to customize AFR Heads to your specific build.







The Best 20° In-Line Head You Can Buy!

AFR's BRAND NEW 220cc Renegade Ford head is a fresh addition to the
lineup that adds quite a punch to our already formidable and proven

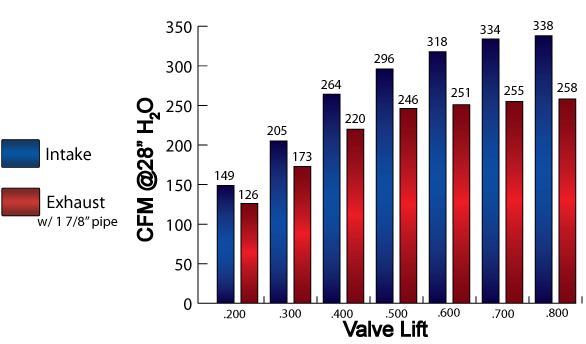

20° Ford Heads. These new 220cc heads flow a massive 340 CFM,
averaging an 11 CFM increase from .200-.800 lift over our previous
best in spite of its 5cc smaller intake runner. This is the best
small block Ford 20° inline head you'll find to provide huge
horsepower to out run your competition. With the largest intake and
exhaust runner volumes for our in-line Ford line up, these are the
ultimate for NMRA Renegade or Hot Street classes. With lightweight
8mm 2.100 intake valves and 1.570 exhaust valves these heads move
massive amounts of air. Combustion chamber volumes are available in
58cc or 72cc. 80cc exhaust ports and bolt pattern are raised .375
(3/8") higher than stock, this rarely affects header or chassis
fitment. AFR's new 220cc is the perfect choice for 347 through 427
CI windsor engines operating from 4500 rpm upwards. AFR's trademark
3/4" thick cylinder head deck makes them ideal for heavy nitrous or
blower applications.



Note:

2.100 valves will require aftermarket pistons notched for valve
clearance.

color="#ffffff" size="4">Basic Package Components	color="#ffffff" size="4">Part #
100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-angle Valve Job
8mm Bead Lock Intake Valve 2.100" x 5.000" O.A.L.	AFR #7256
8mm Bead Lock Exhaust Valve 1.570" x 5.030" O.A.L.	AFR #7248
PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 (upgrades available)	AFR #8000
10° Manley Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D	AFR #8511
10° Bead Lock Valve Keepers with lashcap recess	AFR #9009
ARP 7/16" Rocker Studs	AFR #6405
Adjustable 5/16" Guide Plates	AFR #6103
Viton Valve Seals	AFR #6612
Hardened Valve Spring I.D Locator 1.550" O.D x .780" I.D	AFR #8048
Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep	AFR #9059
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep	AFR #9069
Bronze Valve Guides	AFR #9051

color="#ffffff" size="4">Specifications, Features, and Optional Supporting Components

Head style="float:right;"> Material	A356 Aluminum
Intake Port Volume	220cc
Intake Port Dimension	2.265" H x 1.325" W 3/8 Radius Intake Port Dimension
Intake Port Location	Stock
Exhaust Port Volume	style="float:right;">70cc
Exhaust Port Dimension	1.445" H x 1.595" W
Exhaust Port Location	style="float:right;">Raised .375"
Combustion Chamber Size	58cc or 72cc
Valve Cover Bolt Pattern	style="float:right;">Perimeter Bolt
Valve Angle	20°
Valve Spring Pocket Diameter	style="float:right;">1.580" O.D
Max Valve Spring Pocket Machining	1.580" O.D
Deck Thickness	style="float:right;">.750"
Minimum Bore Diameter	4.000"
Flat Mill	style="float:right;">.006" per cc 54cc Max (from 58cc); 69cc Max (from 72cc);
Angle Mill	.009" per cc 48cc Max (from 58cc); 66cc Max (from 72cc)
Minimum Cross Sectional Area	style="float:right;">2.345 sq. in.
Note: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit AFR.
Spark Plug Dimensions	style="float:right;">14mm x .750" w/Gasket Seat
Carb EO#	N/A
Head Bolt Diameter	style="float:right;">1/2"
Intake Port Gasket, Fel-Pro #1262	AFR #6812
Exhaust Port Gasket, Fel-Pro #1487	AFR #6839
Head Gasket, 302/351 Windsor, Fel-Pro #1011-1	AFR #6808
SB Ford 1/2" Bolt Head Bolts, ARP #154-3603	AFR #6318
SB Ford 1/2" Bolt Head Studs, ARP #254-4503	AFR #6317
1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708	AFR #6319
Head Bolt Washers, Manley	AFR #6320
Stud Girdle	AFR #6207
Suggested Manifold	RPM Performer or Vic Jr.
Spark Plug Starting Range	Autolite 3922

Important: Do not port
match you intake manifold to any Fel-Pro gasket as it does not
precisely match AFR heads.

Note: Milling head deck will affect flow numbers.
