AFR 205cc Top-End Engine Kit for Ford 5.0L Boss or Dart block Stroker 347-363ci

We did the work, so you don't have to.


We put together this AFR 205cc head kit together as a great kit to finish up an aggressive 331, 347, or 363 stroker combination in an aftermarket Dart, World, or Boss block.

Built around AFR #1450 cylinder heads with hydraulic roller spring upgrade, this combo will make about 550hp on a typical 10.5:1 363ci engine. Intake not included.

KIT/COMBO CONTENTS:

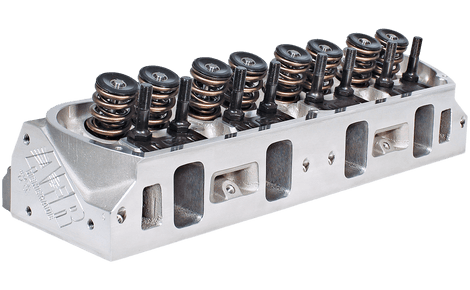

AFR-1450 AFR 205cc renegade competition cylinder heads, Pair, 58cc chambers, 7/16 rocker studs

AFR-8019 Upgraded hydraulic roller springs good for .650 max lift

TFS-51403003 Camshaft, Track Max, Hydraulic Roller Tappet, Duration@.050" 236/248, Advertised Duration 298/310, Lift .574/.595, Lobe Sep. 110, Ford, Small Block

TFS-51400520 - Trick Flow Rocker Arms, 1.6 Ratio, 7/16 in. Stud, Full Roller Design, Aluminum, Small Ford and 351W, Set of 16

ARP-154-3603 Cylinder Head Bolts, High Performance, Hex Head, Ford, 351w/dartshp, 1/2" Kit

FEL-TCS45449 Gaskets, Timing Cover, Cork/Rubber, Ford, Small Block, Kit

C5515-040 x2 Cometic Gasket Ford 289/302/351W .040" MLS Cylinder Head Gasket, 4.155" Bore, Non-Svo

TFS-52578520 Trick Flow Timing Chain and Gear Set, True Roller, Double Roller, Billet Steel Sprockets, Ford, Small Block, Set

TFS-21406250 Pushrods, Chromemoly, Heat-Treated, 5/16 in. Diameter, 6.250 in. Length, Universal, Set of 16

TFS-21400004 Trick Flow OE replacement 302 roller lifters for roller 302/351w blocks, .874" OD
