AFR 195cc Top-End Engine Kit for Ford 5.0L Stroker, Stage 3

We did the work, so you don't have to.


We put together this AFR 195cc head kit together as a great kit to finish up a 331 or 347 stroker combination

Built around AFR #1381 CNC Ported race heads, this combo will make about 500hp on a typical 10.5:1 347ci engine. Intake not included.

KIT/COMBO CONTENTS:

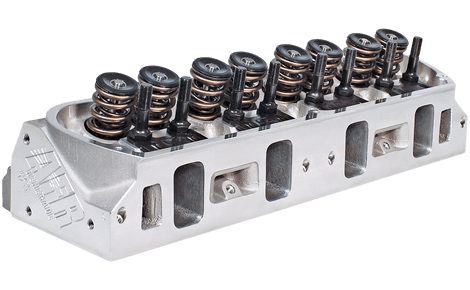

AFR-1381-716 AFR 195cc cylinder heads, Pair, 58cc chambers, No smog holes, 7/16 ARP rocker studs, .650 lift hydraulic roller springs

TFS-51403003 Camshaft, Track Max, Hydraulic Roller Tappet, Duration@.050" 236/248, Advertised Duration 298/310, Lift .574/.595, Lobe Sep. 110, Ford, Small Block

TFS-51400520 - Trick Flow Rocker Arms, 1.6 Ratio, 7/16 in. Stud, Full Roller Design, Aluminum, Small Ford and 351W, Set of 16

ARP-154-3601 Cylinder Head Bolts, High Performance, Hex Head, Ford, 289-302, Kit

TFS-51400419 Cylinder Head Bolt Bushings, Kit(not needed with 351w)

FEL-TCS45449 Gaskets, Timing Cover, Cork/Rubber, Ford, Small Block, Kit

TFS-51400904 Gaskets, Head Set, Ford, 289/302/351W, Set

TFS-52578520 Trick Flow Timing Chain and Gear Set, True Roller, Double Roller, Billet Steel Sprockets, Ford, Small Block, Set

TFS-21406250 Pushrods, Chromemoly, Heat-Treated, 5/16 in. Diameter, 6.250 in. Length, Universal, Set of 16

TFS-21400004 Trick Flow OE replacement 302 roller lifters for roller 302/351w blocks, .874" OD
