AFR 195cc LT4 Competition Eliminator SBC Aluminum Bare Cylinder Heads, No Parts

AFR's LT1/LT4 competition heads are designed for the Gen II reverse cooled SBC engine from 1992-1996. The competition package heads flow more air flow through the same size ports as the standard 195cc heads. They feature all the same benefits and quality components as AFR's Gen I SBC Heads in addition to dual pattern valve cover mounting holes as standard equipment. Not compatible with self-aligning rocker arms. Specify chamber size 55cc - 65cc. Machining options are available to customize AFR Heads to your specific build.

Note: Head comes completely bare, no parts.

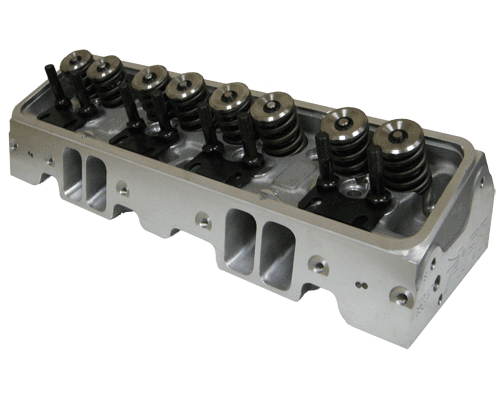

*Notice Pictures are for reference heads would come bare, no parts.

The Ultimate Bolt-on Emissions Legal Street Weapon - Information below is referring to fully assembled heads.
The AFR Emissions Legal (ARB only, 49 state legal, not California), 195cc intake port LT4 small block Chevy aluminum cylinder heads are available only in an LT4 angle plug version. These heads feature a 55cc to 65cc combustion chamber with a 64cc exhaust port and a 3/4" thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm 2.080 intake and 1.600 exhaust with AFR’s hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of 2500 rpm to 6500 rpm (higher rpm ranges possible depending on combination of parts), 23° valve angle, and standard valve spacing make this the perfect street head for 350 cid to 383 cid engines. Designed specifically for 1996 Corvettes or LT4 manifold users. No special parts are required, except for the LT4 intake manifold. Dual valve cover bolt pattern is standard.
The exhaust ports are raised .100" over a standard GM L-98 cylinder head.

Basic Package Components	Part #
100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-angle Valve Job

Specifications, Features, and Optional Supporting Components

Head Torque	65-70 ft. lbs
Intake Port Volume	195cc
Intake Port Dimension	2.110" H x 1.265" W 5/16 Radius
Intake Port Location	Stock
Exhaust Port Volume	64cc
Exhaust Port Dimension	1.450" H x 1.550" W
Exhaust Port Location	.100" Raised
Combustion Chamber Size	55cc or 65cc
Valve Cover Bolt Pattern	Center and Perimeter Bolt
Valve Angle	23°
Valve Spring Pocket Diameter	1.460" O.D
Max Valve Spring Pocket Machining	1.750" O.D
Deck Thickness	.750"
Minimum Bore Diameter	4.000"
Flat Mill	.006" per cc 60cc Maximum
Angle Mill	.009" per cc 55cc Maximum
Minimum Cross Sectional Area	1.810 sq. in.
Spark Plug Dimensions	14mm x .750" w/Gasket Seat
Intake Port Gasket	GM #12524653 LT1 / Fel-Pro #1284
Exhaust Port Gasket, Fel-Pro #1404	AFR #6834
Head Gasket, 350cid Fel-Pro #1074	AFR #6803
SB Chevy Head Bolt Kit, ARP #134-3701	AFR #6310
SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301	AFR #6305
Head Bolt Washers, Manley	ARP #234-4301 AFR #6320
Stud Girdle GM L98	Fel-Pro #1074, AFR #6200
Suggested Manifold	GM LT1 or LT4
Spark Plug Starting Range	Autolite 3924

Important: Do not port match you intake manifold to any Fel-Pro gasket as it does not precisely match AFR heads.
Note: Milling head deck will affect flow numbers. Angle mills might require .120" Thick intake gasket.
