AFR 195cc CNC 515hp Top-End Engine Kits for Small Block Chevrolet

We did the work, so you don't have to.

We put together this AFR 195cc head kit together as a great kit to finish up a street build

Built around AFR #1040 heads this combo For 383 strokers making 10.7:1 compression w/ flat top pistons that have 5cc valve reliefs and pistons .010" in the hole and with good flowing exhaust and intake parts will make about 515hp. Intake not included.

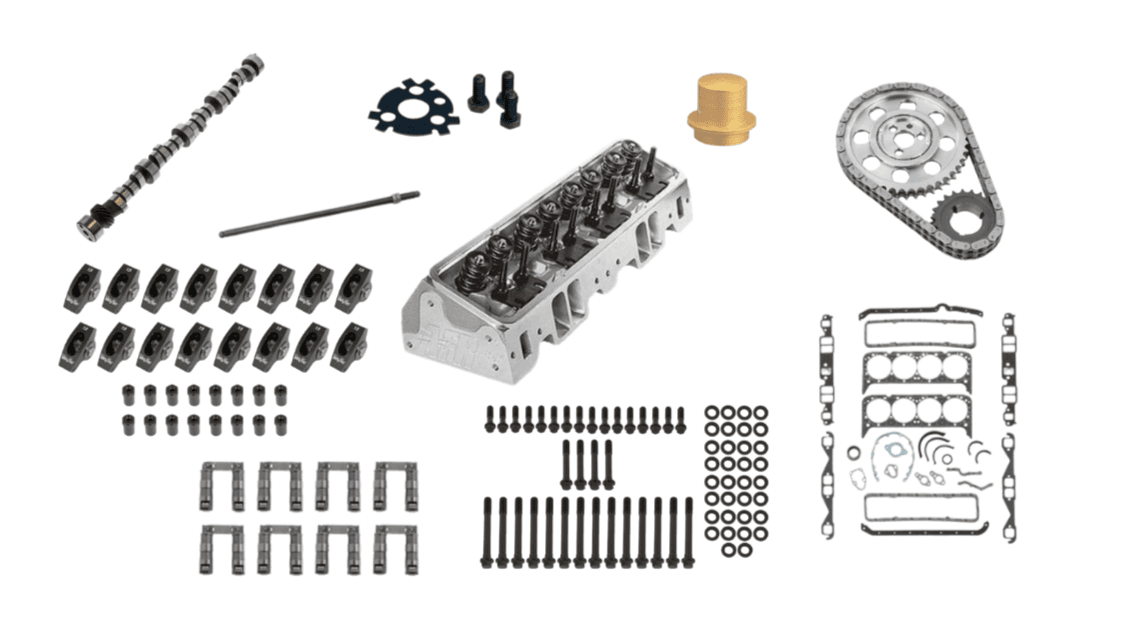

KIT/COMBO CONTENTS:

TFS-31400510 - Trick Flow Rocker Arms, Stud Mount, Full Roller, Aluminum, 1.5 Ratio, Fits 3/8 in. Stud, Chevy, Small Block, Set of 16

TFS-31478500 - Trick Flow Timing Chain and Gear Set, True Roller, Double Roller, Billet Steel Sprockets, Chevy, Small Block, Set

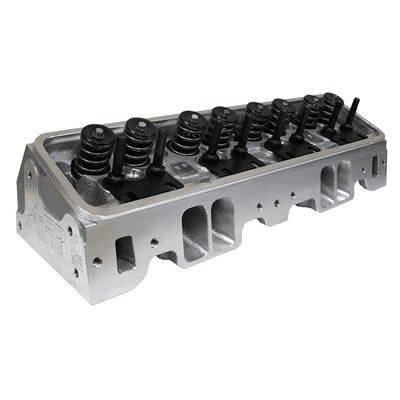

AFR 1040 - AFR Cylinder Head, 195cc, Assembled, 65cc Chambers, 1.290" Springs, Small Chevy

SUM-G001 - Summit Cam Button Spacer, Aluminum, Chevy, Small Block, Each

TFS-31402002 - Trick Flow Camshaft, Hydraulic Roller Tappet, Advertised Duration 308/316, Lift .555/.555, Chevy, Small Block, Each

SUM-G1792 - Summit Camshaft Lock Plate, Steel, Black Oxide, Chevy, Kit

TFS-92000 - Trick Flow Cylinder Head Bolt Kit, Hex Head, Chromoly Steel, Black Oxide Finish, Chevrolet 262-400, Each

TFS-9000 - Trick Flow Pushrod Length Checker, Adjustment Range 6.125 in. to 7.500 in., Ball Ends, Each

TFS-31400915 - Trick Flow Gaskets, Full Set, Chevy, Small Block Gen I, Set

TFS-21400003 - Trick Flow Retro-Fit Hydraulic Link Bar  Lifters & Lash Adjusters

Quantity: Sold as a kit.

Notes: Will not fit centerbolt-style intake manifolds. Kit includes camshaft lock plate, push rod length checker and thrust button assembly. Standard base circle camshaft, verify clearance in stroker applications.
