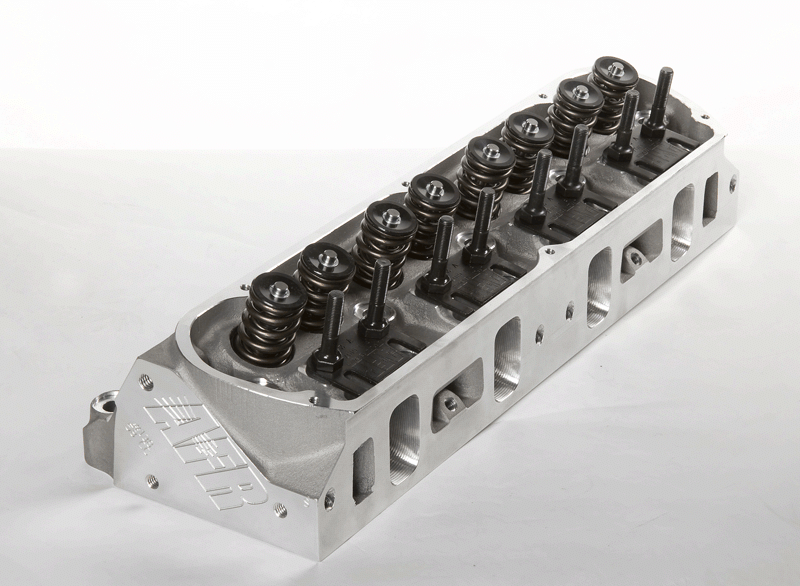

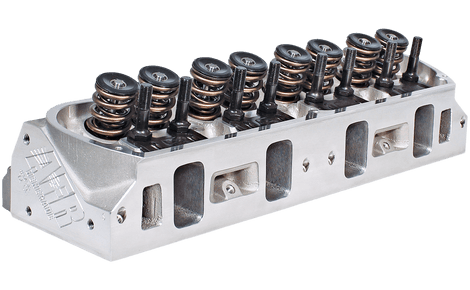

AFR 185cc Renegade SBF Cylinder Heads, 60cc Chambers, Pedestal, Emissions-Legal

AFR`s 185cc "Street" heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for engines from 302-393 cubic inches, operating up to 6000-6500 RPM. Legal for 1995 and older emissions controlled vehicles under CARB EO #D-250-3 (Part numbers 14xx). Not compatible with OEM pistons. Component upgrade and machining options are available to customize AFR Heads to your specific build.






The Ultimate Bolt-On Emission Legal Street/Strip Weapon!

If you need the world´s finest street/strip small block Ford head,
check out AFR´s all new 185cc intake port emissions legal (CARB EO
#250-3) performance aluminum cylinder heads. With lightweight 8mm
2.020" intake valves, 1.600" exhaust valves, combustion chamber
volumes of 58cc or 72cc, and 70cc exhaust ports, AFR´s new 185cc
Ford cylinder heads are designed for 302-351 cid engines operating
from 1500 rpm to 6500 rpm. A 3/4" thick head deck makes the AFR head
ideal for nitrous or blower applications. Also available with
optional nitrous or blower exhaust ports featuring 70cc ultra high
flowing exhaust ports. These heads will not accept shaft mount
rocker arms. Hardened pushrods required with cylinder heads #1420
and #1422. High flow 2.020 valves might require aftermarket pistons
notched for valve clearance.



Note:

Hydraulic roller cams typically experience valve float at 6000-6200
rpm because of their fast ramp rates. AFR suggests you upgrade your
springs to AFR part #8019, 1.270 O.D. with higher spring pressures
to reduce chances of valve float associated with rpm’s 6200 or
higher, but smaller cams with less than .500 lift can rev to 6500
rpm with the included springs.

Note: Stock 86-93 5.0L must have pistons notched for clearance.

color="#ffffff" size="4">Basic Package Components	color="#ffffff" size="4">Part #
100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-angle Valve Job
8mm Bead Lock Intake Valve 2.020" x 4.900" O.A.L.	AFR #7251
Bead Lock Exhaust Valve, 1.600"	AFR #7250
Pedastal 8mm Bead Lock Intake Valve 2.020" x 5.080" O.A.L	AFR #7263
Pedestal 8mm Bead Lock Exhaust Valve, 1.600" x 5.100" O.A.L	AFR #7264
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available)	AFR #8017
7° Chrome Moly Retainers	AFR #8514
7° Bead Lock Valve Keepers	AFR #9007
ARP 3/8" Rocker Studs	AFR #6409
Adjustable 5/16" Guide Plates	AFR #6103
Viton Valve Seals	AFR #6612
Hardened Spring Cup	AFR #8042
Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep	AFR #9059
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep	AFR #9069
Bronze Valve Guides	AFR #9051
Thermactor Air Injector	AFR #6226

color="#ffffff" size="4">Specifications, Features, and Optional Supporting Components

Head style="float:right;"> Material	A356 Aluminum
Intake Port Volume	185cc
Intake Port Dimension	style="float:right;">2.045" H x 1.205" W x 3/8 Radius
Intake Port Location	Stock
Exhaust Port Volume	style="float:right;">70cc
Exhaust Port Dimension	1.355" H x 1.360" W
Exhaust Port Location	Stock
Combustion Chamber Size	60cc
Valve Cover Bolt Pattern	style="float:right;">Perimeter Bolt
Valve Angle	20°
Valve Spring Pocket Diameter	style="float:right;">1.460" O.D
Max Valve Spring Pocket Machining	1.625" O.D
Deck Thickness	style="float:right;">.750"
Minimum Bore Diameter	4.000"
Flat Mill	style="float:right;">.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
Angle Mill	.009" per cc 48cc Max (from 58cc); 62cc Max (from 72cc)
Minimum Cross Sectional Area	style="float:right;">2.025 sq. in.
Note:Angle mills might require a .120" Thick intake gasket.
Spark Plug Dimensions	style="float:right;">14mm x .750" w/Gasket Seat
Carb EO#	D-250-3
Head Bolt Diameter	style="float:right;">1/2"
Intake Port Gasket, Fel-Pro #1262	AFR #6832
Exhaust Port Gasket, Fel-Pro #1415	AFR #6837
Head Gasket, 302/351 Windsor, Fel-Pro #1011-1	AFR #6808
SB Ford 1/2" Bolt Head Bolts, ARP #154-3603	AFR #6318
SB Ford 1/2" Bolt Head Studs, ARP #254-4503	AFR #6317
1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708	AFR #6319
Head Bolt Washers, Manley	AFR #6320
Stud Girdle	AFR #6207
Suggested Manifold	style="float:right;">Performer or Performer RPM
Spark Plug Starting Range	Autolite 3924

Important: Do not port
match you intake manifold to any Fel-Pro gasket as it does not
precisely match AFR heads.

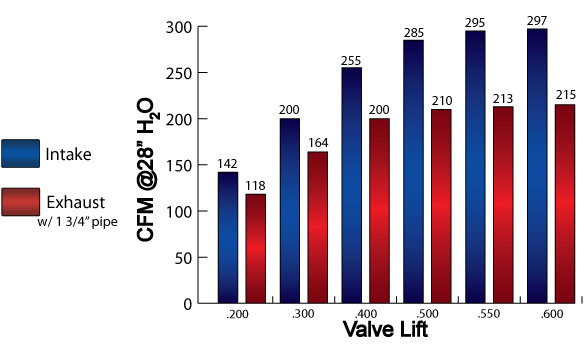

Note: Milling head deck will affect flow numbers.
