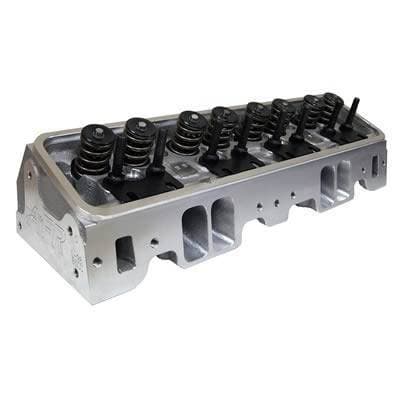

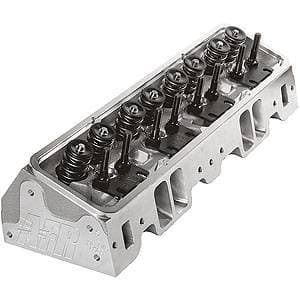

AFR 180cc Eliminator SBC Cylinder Heads, 75cc Chambers, Straight Plug

AFR`s 180cc "Street" heads are a cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6000 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250-2. Component upgrade and machining options are available to customize AFR Heads to your specific build.







The Small Port, High Velocity Torque Monster!

The AFR Emissions Legal (versions from 1969-94 with heat riser, CARB
EO #D-250-2), 180cc intake port small block Chevy cylinder heads are
available in your choice of straight or L98 angle plug versions.
These cylinder heads feature a 75cc or 65cc combustion chamber with
a 64cc exhaust port and a 3/4" thick head deck (ideal for nitrous or
blower applications.) Standard valves are lightweight 8mm 2.020
intake and 1.600 exhaust with AFR's hardened ductile iron
interlocking valve seats. The exceptional flow characteristics,
ideal operating range of idle to 5500 rpm (higher rpm ranges
possible depending on combination of parts), 23? valve angle, and
standard valve spacing make this the perfect street aluminum
cylinder head for 327 cid to 350 cid engines from 1955-86. Also
available for 1987 to present engines with center bolt valve covers
and 2 center intake bolts at 72? angle, AFR Part #0919. No special
parts are required. Vortec style cylinder heads available also, AFR
Part #0912. Drilling for centerbolt valve covers available as an option.

The exhaust ports are raised .100" over a standard GM L-98 cylinder
head.



Note:

Hydraulic roller cams typically experience valve float at 6000-6200
rpm because of their fast ramp rates. AFR suggests you upgrade your
springs to AFR part #8019, 1.270 O.D. with higher spring pressures
to reduce chances of valve float associated with rpm's 6200 or
higher, but smaller cams with less than .500 lift can rev to 6500
rpm with the included springs.

color="#ffffff" size="4">Basic Package Components	color="#ffffff" size="4">Part #
100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-angle Valve Job
8mm Bead Lock Intake Valve 2.020" x 4.900" O.A.L.	AFR #7251
Bead Lock Exhaust Valve, 1.600"	AFR #7250
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available)	AFR #8017
7? Chrome Moly Retainers	AFR #8514
7? Bead Lock Valve Keepers	AFR #9007
ARP 3/8" Rocker Studs	AFR #6409
Adjustable 5/16" Guide Plates	AFR #6103
Viton Valve Seals	AFR #6612
Hardened Spring Cup	AFR #8042
Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep	AFR #9060
Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep	AFR #9070
Bronze Valve Guides	AFR #9051

color="#ffffff" size="4">Specifications, Features, and Optional Supporting Components

Head style="float:right;"> Material	A356 Aluminum
Intake Port Volume	180cc
Intake Port Dimension	style="float:right;">2.050" H x 1.250" W x 5/16? Radius
Intake Port Location	Stock
Exhaust Port Volume	style="float:right;">64cc
Exhaust Port Dimension	1.450" H x 1.550" W
Exhaust Port Location	style="float:right;">.100" Raised
Combustion Chamber Size	65cc or 75cc
Valve Cover Bolt Pattern	style="float:right;">Perimeter Bolt
Valve Angle	23?
Valve Spring Pocket Diameter	style="float:right;">1.460" O.D
Max Valve Spring Pocket Machining	1.750" O.D
Deck Thickness	style="float:right;">.750"
Minimum Bore Diameter	4.000"
Flat Mill	style="float:right;">.006" per cc 60cc Maximum
Angle Mill	.009" per cc 55cc Maximum
Minimum Cross Sectional Area	style="float:right;">1.810 sq. in.
Note:Angle mills might require a .120" Thick intake gasket.
Spark Plug Dimensions	style="float:right;">14mm x .750" w/Gasket Seat
Carb EO#	D-250-23
Exhaust Port Gasket, Fel-Pro #1404	AFR #6834
Head Gasket, 350cid Fel-Pro #1003	AFR #6800
Head Gasket, 400cid Fel-Pro #1014	AFR #6802
SB Chevy Head Bolt Kit, ARP #134-3701	AFR #6310
SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301	AFR #6305
Head Bolt Washers, Manley	AFR #6320
Stud Girdle GM L98	AFR #6200
Suggested Manifold	AFR DPR #4804
Spark Plug Starting Range	style="float:right;">Autolite 3924

Important: Do not port
match you intake manifold to any Fel-Pro gasket as it does not
precisely match AFR heads.

Note: Milling head deck will affect flow numbers.
